Model #JGP645BEX1BB GE gas cooktop

Here are the diagrams and repair parts for GE JGP645BEX1BB gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

    Showing 10 of 103 parts

    Cooktop Downdraft Vent Gear Motor

    #147

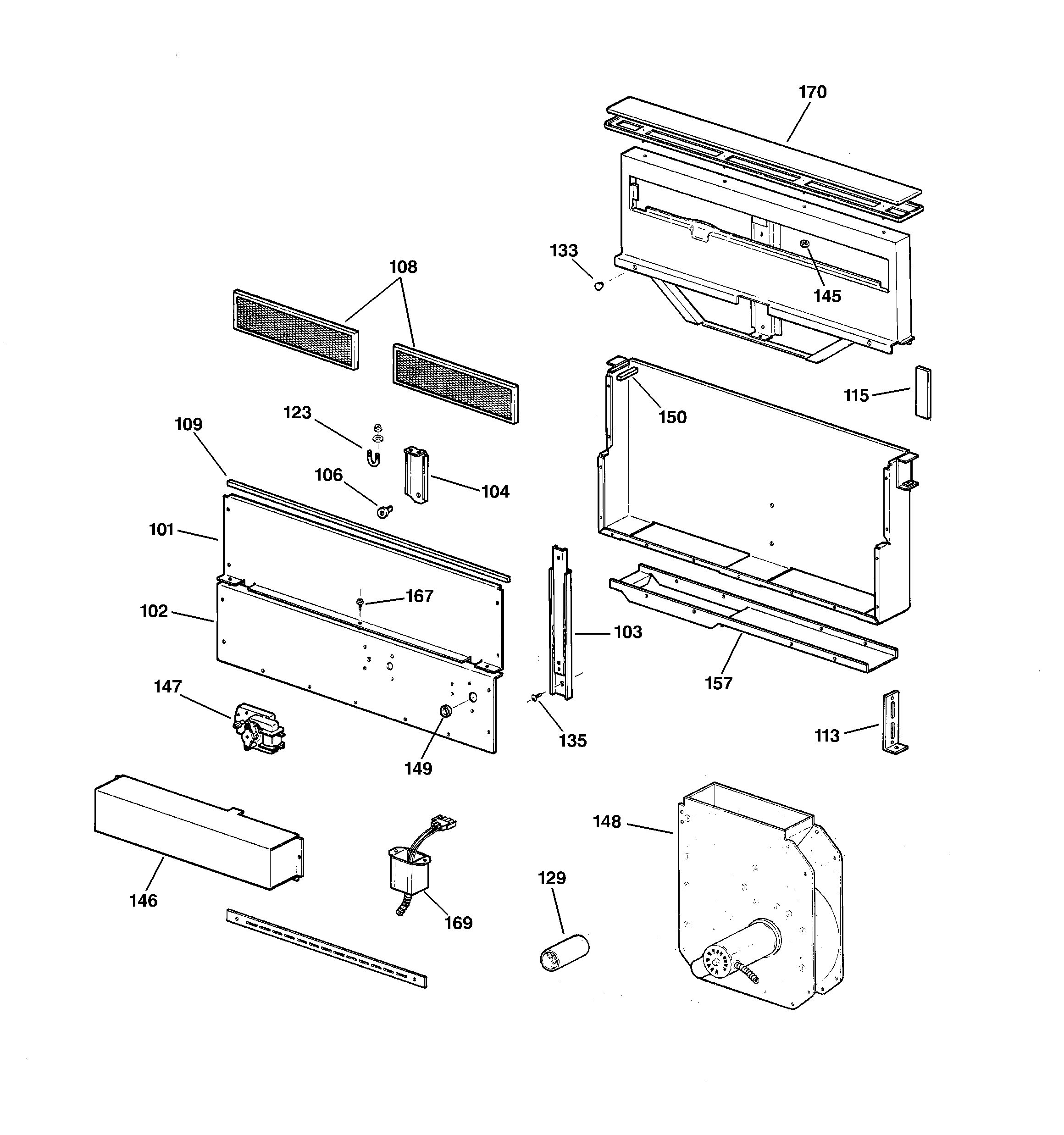

    Unit parts Diagram

    $239.99

    In Stock

    Seal

    #150

    Unit parts Diagram

    Seal

    Part #WB02X10307
    $27.69

    In Stock

    Cooktop Downdraft Vent Blower Fan Assembly

    #148

    Unit parts Diagram

    $582.55

    In Stock

    Owner's Manual

    #1

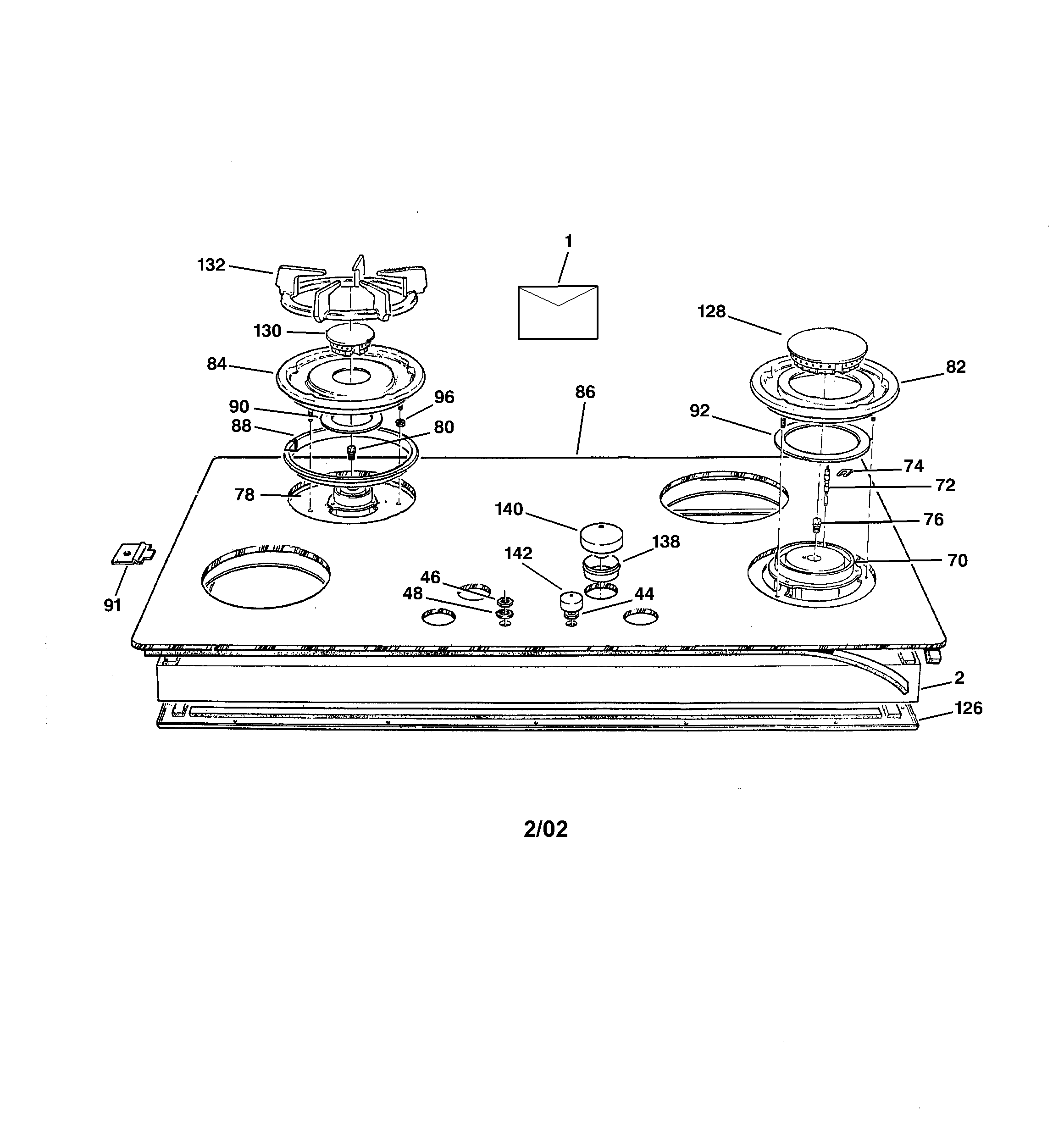

    Control panel & cooktop Diagram

    Owner's manual

    Part #49-8837
    $8.49

    In Stock

    Cooktop Downdraft Vent Fan Control Switch

    #38

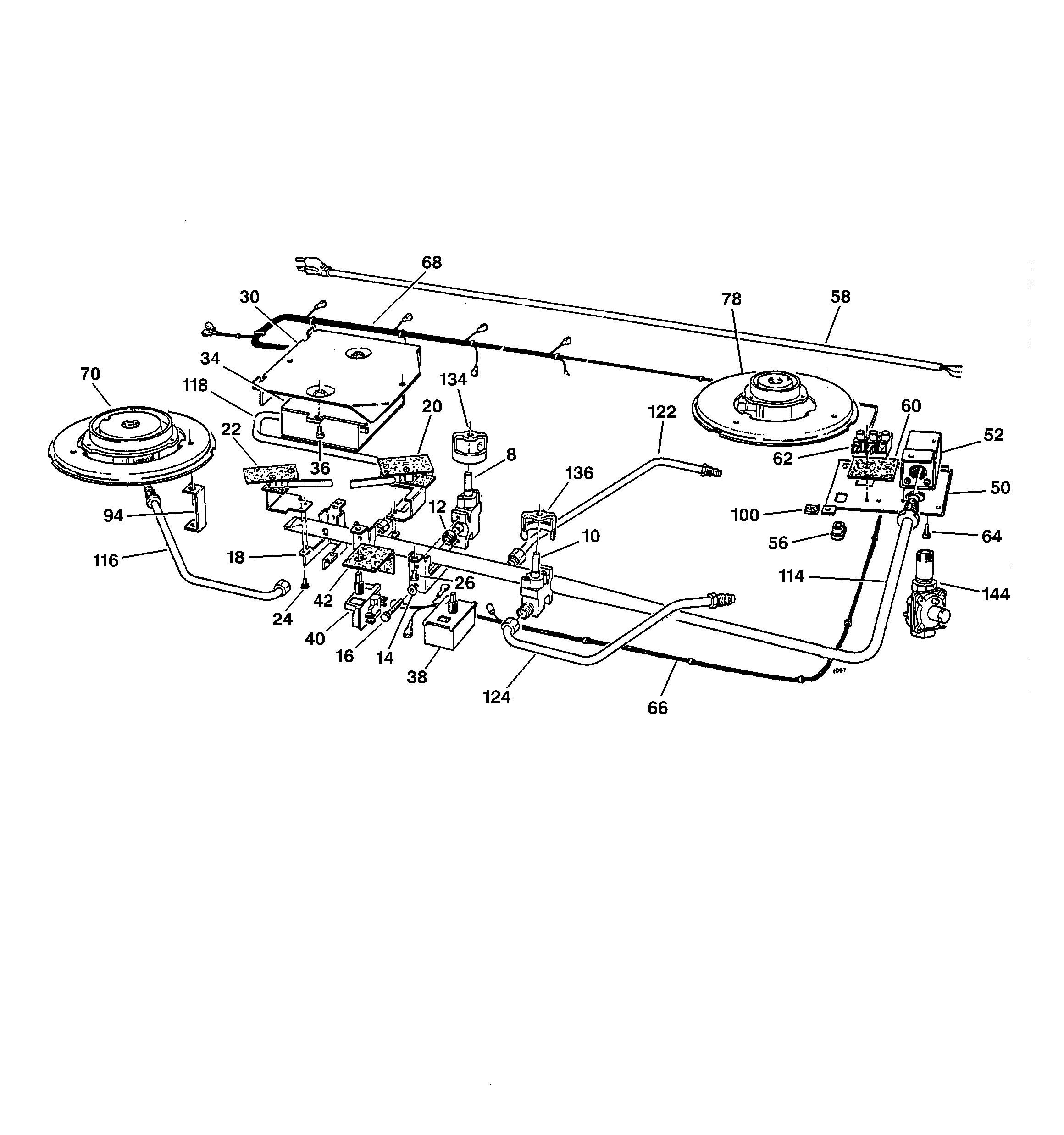

    Gas & burner parts Diagram

    $163.47

    In Stock

    Bushing

    #149

    Unit parts Diagram

    Bushing

    Part #WB01X10006
    This item is not returnable
    $4.35

    In Stock

    Range Hood Grease Filter

    #108

    Unit parts Diagram

    Range hood grease filter

    Part #WB02X10310
    $31.95

    In Stock

    Cooktop Seal

    #109

    Unit parts Diagram

    Cooktop seal

    Part #WB02X10309
    $28.88

    In Stock

    Speed Nut

    #100

    Gas & burner parts Diagram

    Speed nut

    Part #WB1K2
    ?
    Manufacturer substitution
    This part replaces WB01K0002. Substitute parts can look different from the original.
    This part replaces WB01K0002
    This item is not returnable
    $2.49

    In Stock

    Seal

    #2

    Control panel & cooktop Diagram

    Seal

    Part #WB2X9857
    ?
    Manufacturer substitution
    This part replaces WB02X9830. Substitute parts can look different from the original.
    This part replaces WB02X9830
    $56.49

    In Stock
