Model # GPG94BL3 Official Frigidaire gas wall oven - 5995247177

Here are the diagrams and repair parts for Official Frigidaire GPG94BL3 gas wall oven - 5995247177, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

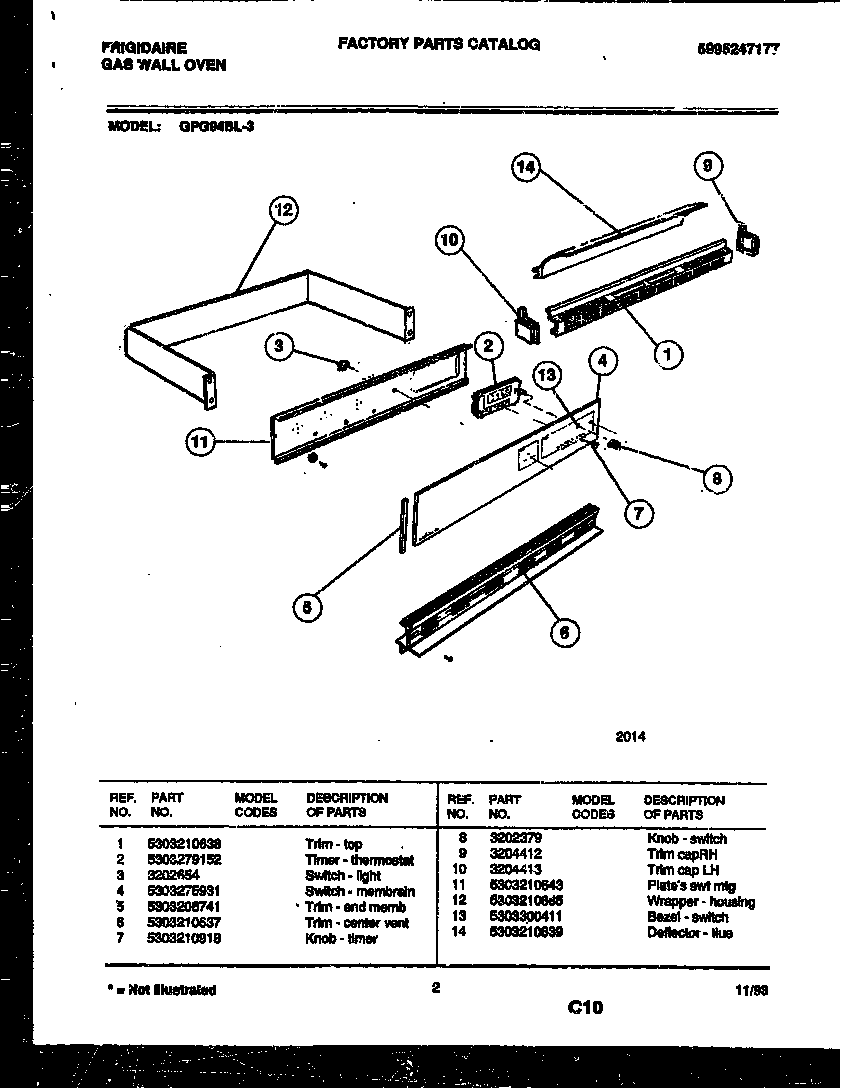

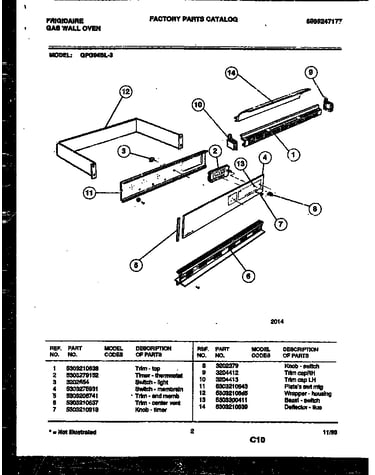

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |

Bulb 3201908
#7

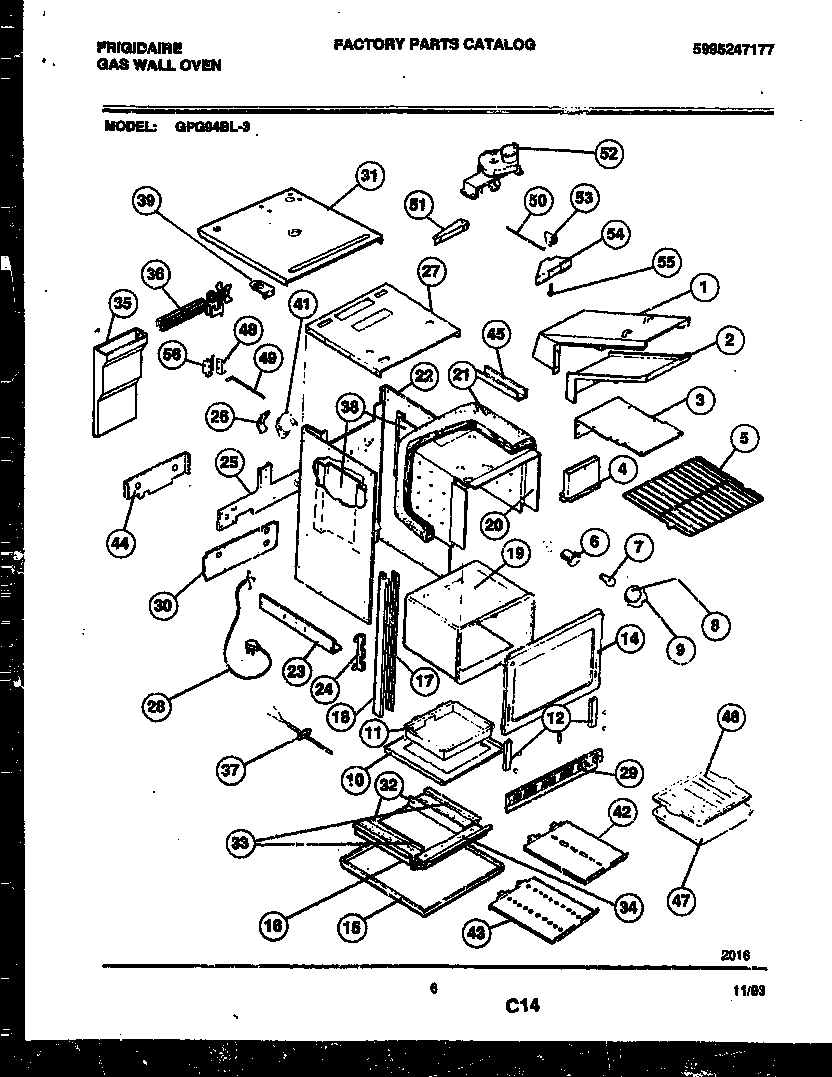

Body parts diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$15.31
12% OFF Phone Price : $17.31
In Stock
Screw 3051070
#4

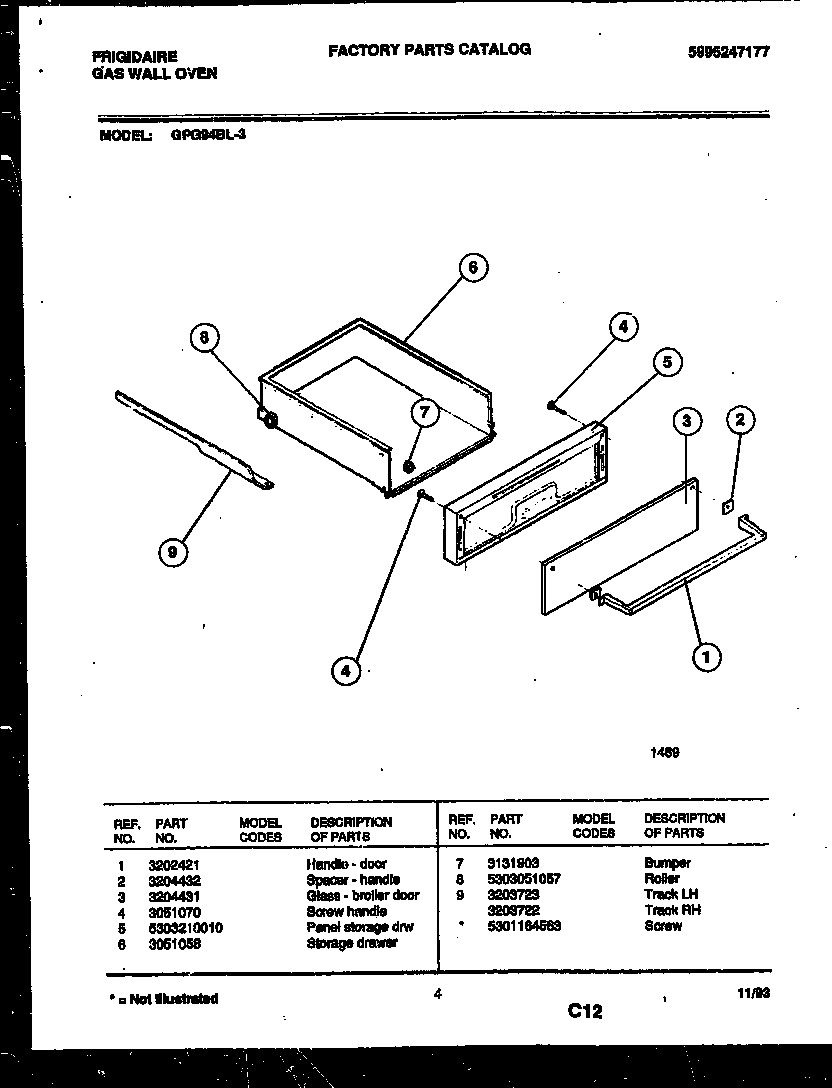

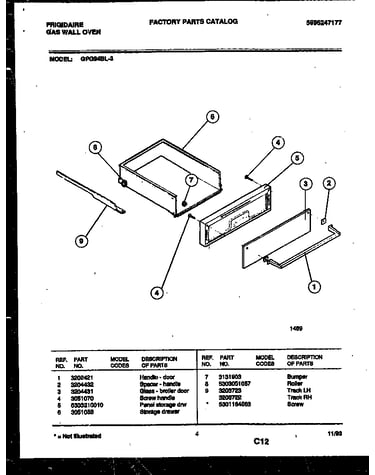

Drawer parts diagram

Screw

Part #3051070

Replaced by #5304500008

?
Manufacturer substitution
This part replaces 3051070. Substitute parts can look different from the original.
In Stock
Wall Oven Gas Valve (replaces 75303210798) 5303210798
#5

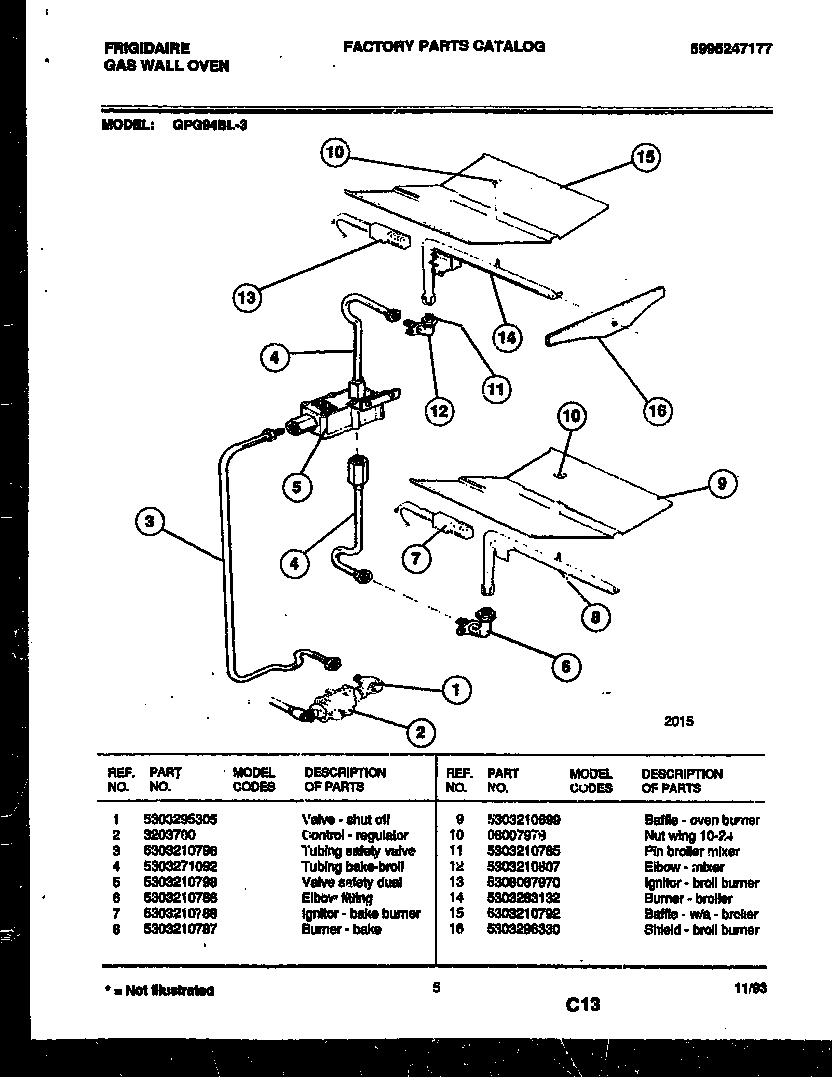

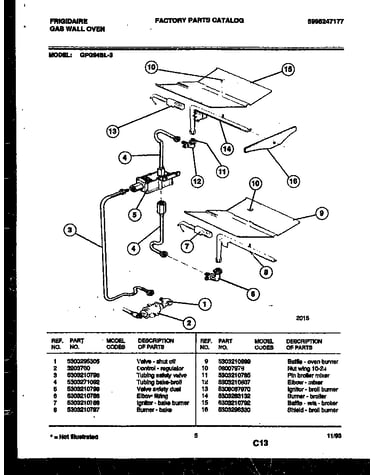

Gas control diagram

Wall oven gas valve (replaces 75303210798)

Part #5303210798

$392.37
$10.00 OFF Phone Price : $402.37
In Stock
Seal 3205189
#10

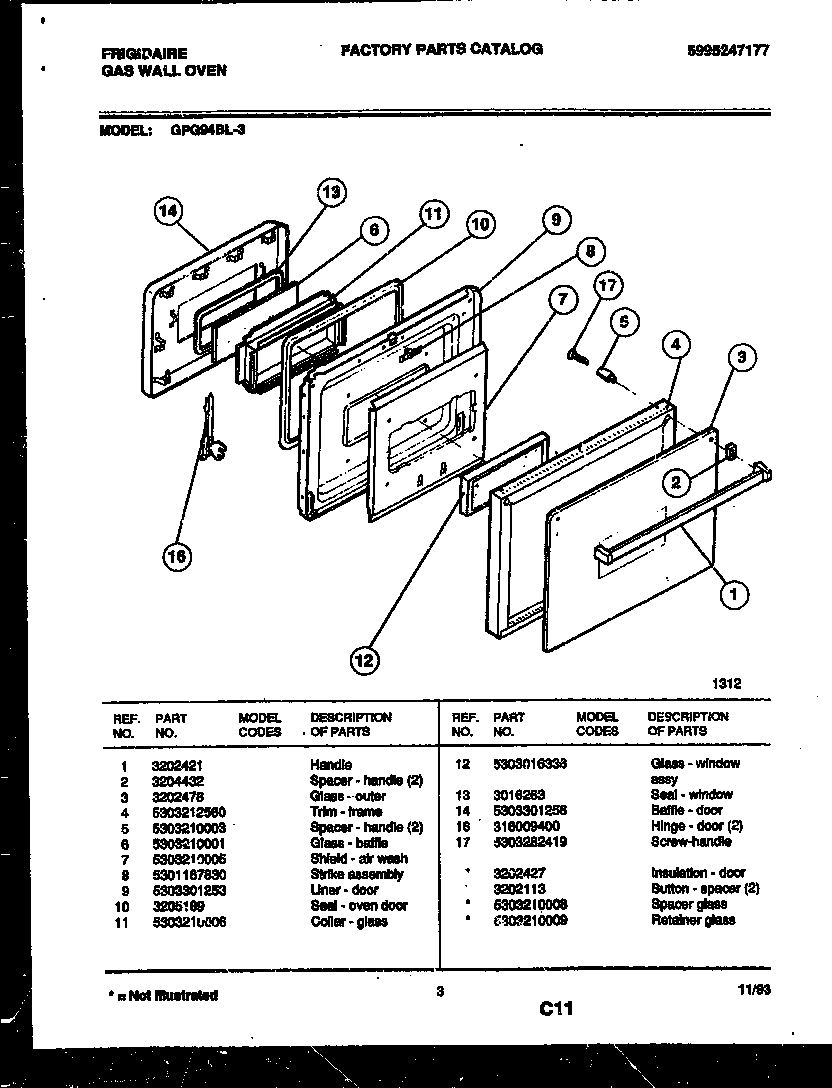

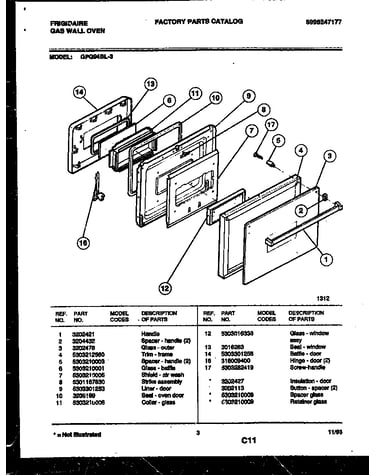

Door parts diagram

Seal

Part #3205189

Replaced by #318178801

?
Manufacturer substitution
This part replaces 3205189. Substitute parts can look different from the original.
$171.66
6% OFF Phone Price : $181.66
In Stock
Wall Oven Door Hinge Receiver 3201631
#24

Body parts diagram

Wall oven door hinge receiver

Part #3201631

In Stock
Cord 3203699
#28

Body parts diagram

Cord

Part #3203699

In Stock
Bumper 3131903
#7

Drawer parts diagram

Bumper

Part #3131903

In Stock
Range Storage Drawer Support Track 3203722
#9A

Drawer parts diagram

Range storage drawer support track

Part #3203722

In Stock
Wall Oven Broil Drawer Slide Rail, Left 3203723
#9

Drawer parts diagram

Wall oven broil drawer slide rail, left

Part #3203723

$75.69
6% OFF Phone Price : $80.69
In Stock
Range Bake Burner 5303210787
#8

Gas control diagram

Range bake burner

Part #5303210787

$156.53
6% OFF Phone Price : $166.53
In Stock
