Model # DCT486CB Official Dynasty gas counter unit cooktop

Here are the diagrams and repair parts for Official Dynasty DCT486CB gas counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |

Cleaner 20000008
#41

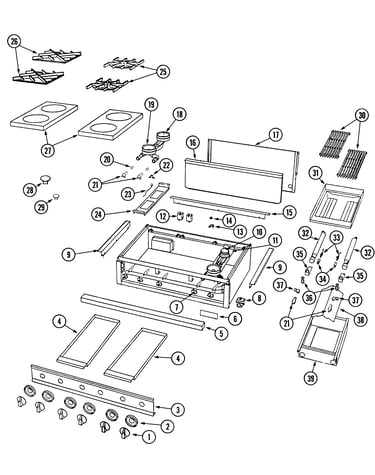

Top assembly/gas controls diagram

Cleaner

Part #20000008

The manufacturer no longer makes this part, and there's no substitute part

Trim 70001651
#5A

Top assembly/gas controls diagram

Trim

Part #70001651

The manufacturer no longer makes this part, and there's no substitute part

Burner Insert 70001061
#1A

Top assembly/gas controls diagram

Burner insert

Part #70001061

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Spark Switch 70001058
#7

Top assembly/gas controls diagram

Cooktop spark switch

Part #70001058

The manufacturer no longer makes this part, and there's no substitute part

Hanger (simm 70001055
#11

Top assembly/gas controls diagram

Hanger (simm

Part #70001055

The manufacturer no longer makes this part, and there's no substitute part

Logo, Dynast 70001403
#6A

Top assembly/gas controls diagram

Logo, dynast

Part #70001403

The manufacturer no longer makes this part, and there's no substitute part

Module Kit 70002168
#12B

Top assembly/gas controls diagram

Module kit

Part #70002168

The manufacturer no longer makes this part, and there's no substitute part

Burner, Front 70001385
#19

Top assembly/gas controls diagram

Burner, front

Part #70001385

The manufacturer no longer makes this part, and there's no substitute part

Grate, Charb 70001081
#30

Top assembly/gas controls diagram

Grate, charb

Part #70001081

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Burner Orifice 70001056
#20

Top assembly/gas controls diagram

Cooktop burner orifice

Part #70001056

The manufacturer no longer makes this part, and there's no substitute part
