Crosley
Chest Freezer

Model #CFC05M0AW6 Crosley freezer

Here are the repair parts and diagrams for your Crosley CFC05M0AW6 freezer.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 31 parts

Freezer Gasket and Liner Fastener Kit

#NI

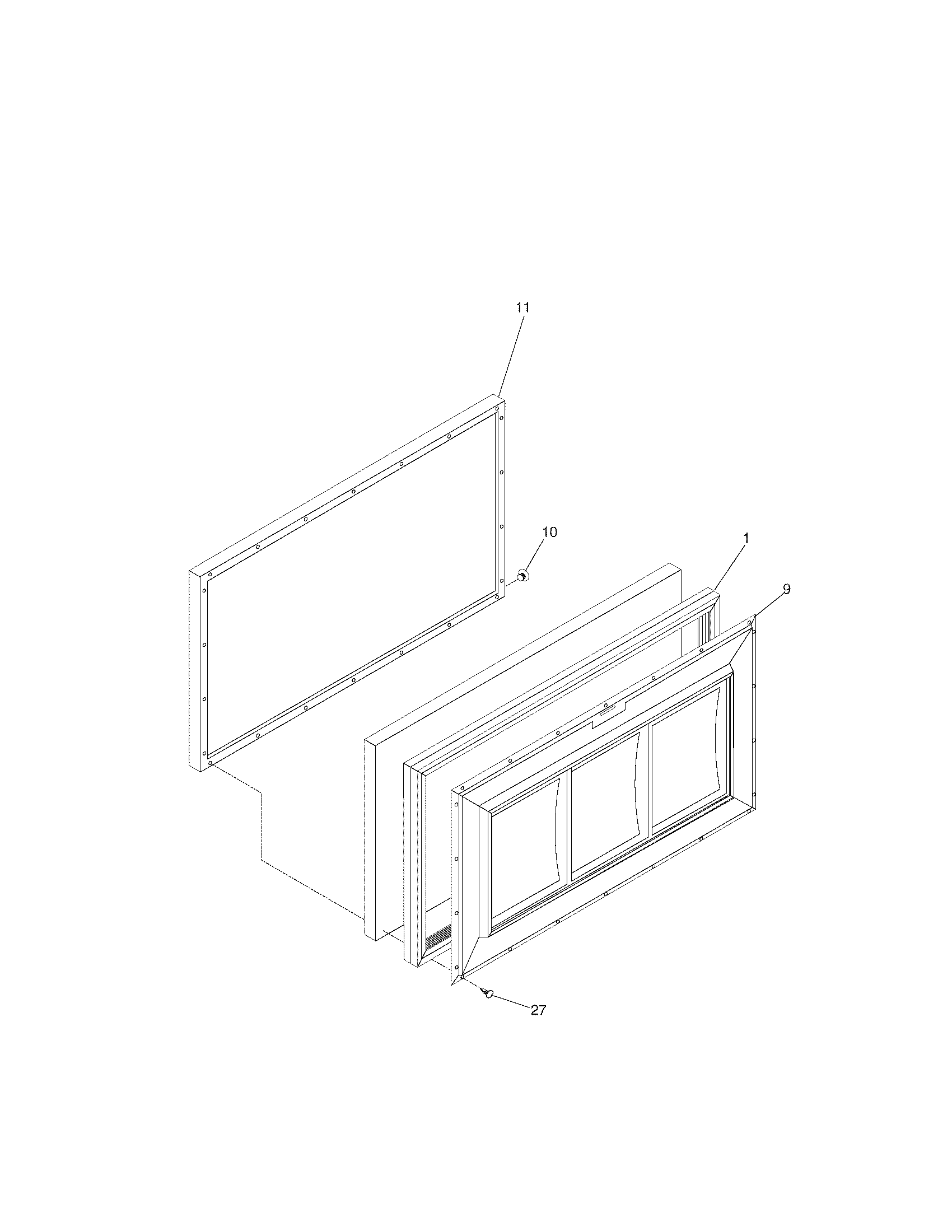

Door Diagram

$12.75

In Stock

Freezer Inner Door Panel Rivet

#27

Door Diagram

$7.75

In Stock

Freezer Corner Trim

#30

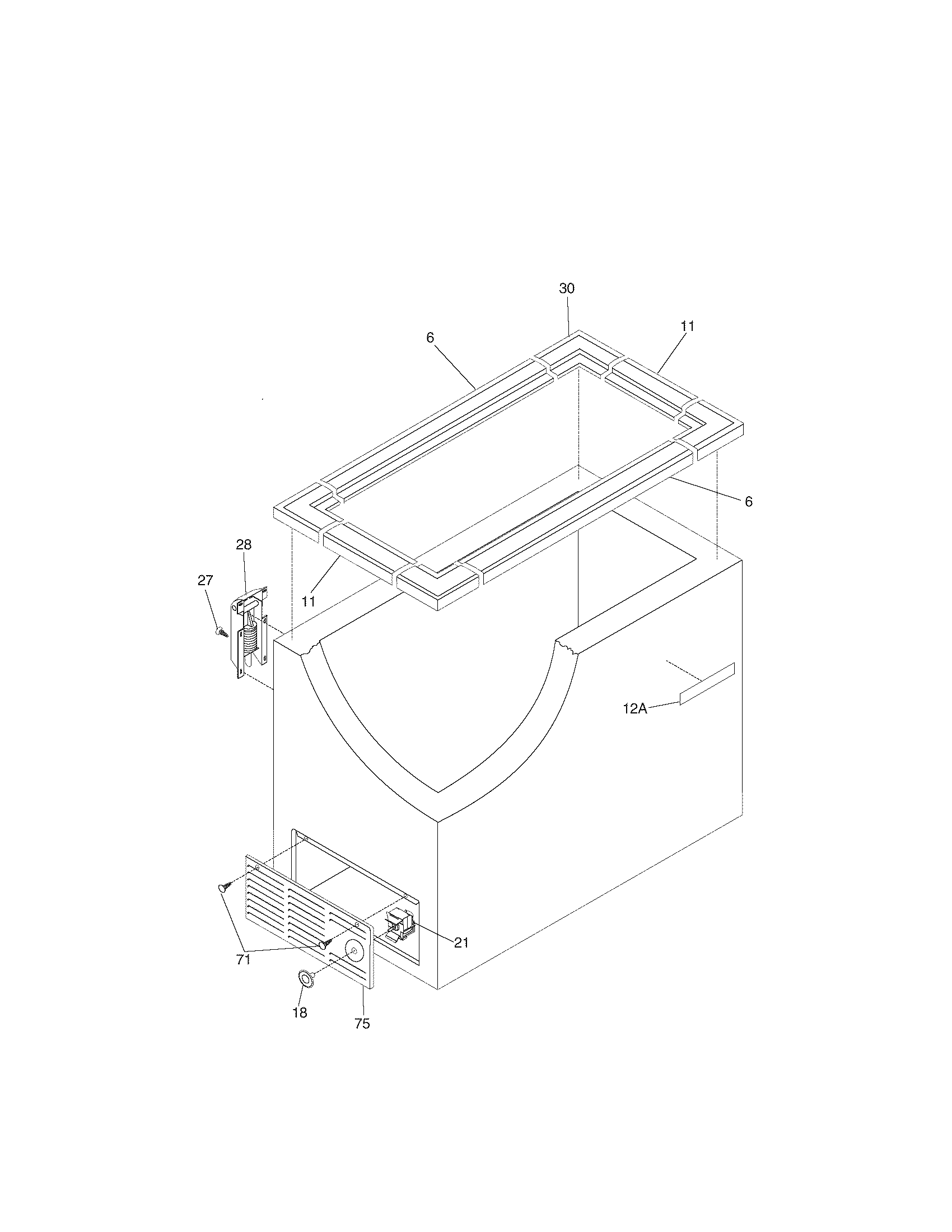

Cabinet Diagram

Freezer corner trim

Part #216105500

$22.33

In Stock

Freezer Condenser Coil

#1

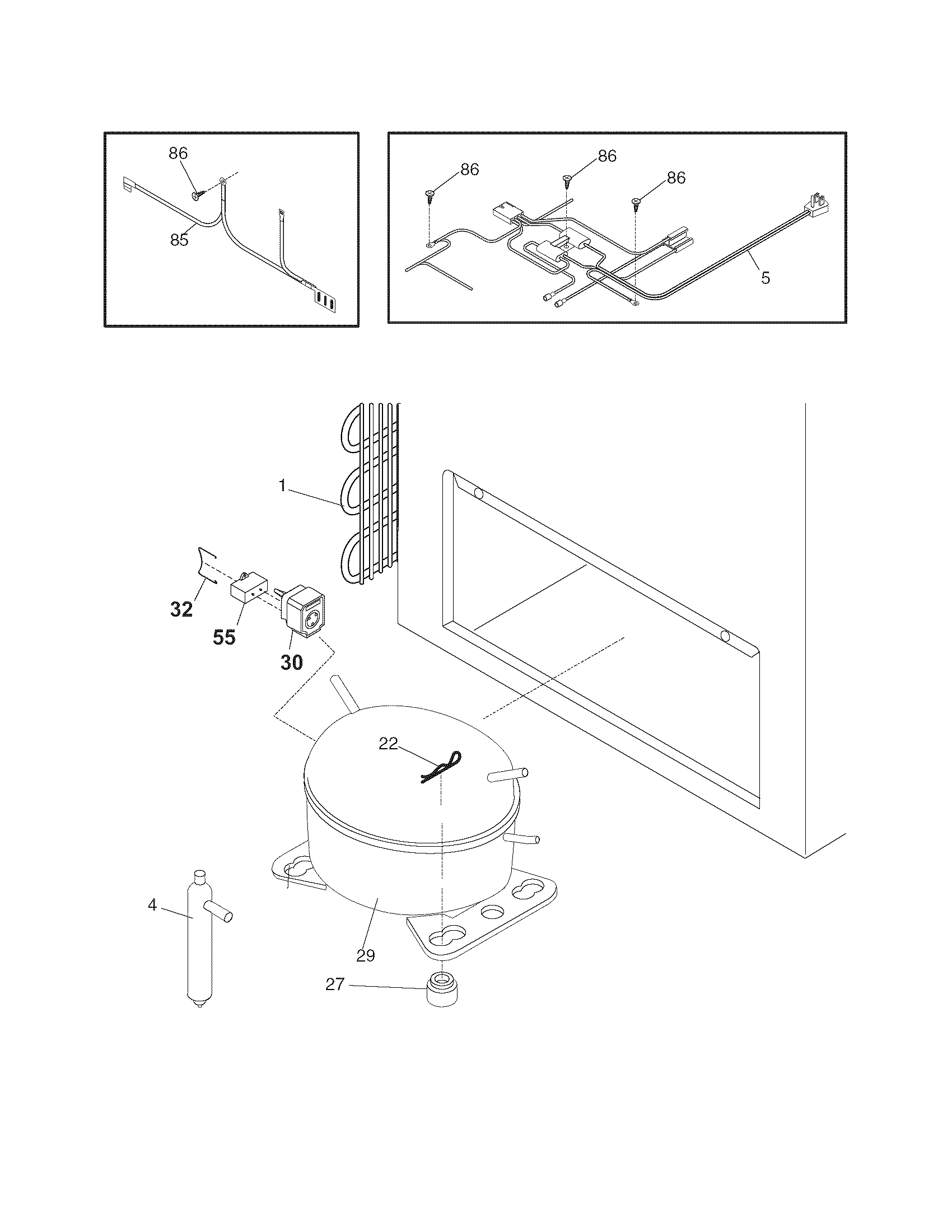

System Diagram

Freezer condenser coil

Part #5300120779

$182.37

In Stock

Wire-groun

#85

System Diagram

Wire-groun

Part #216818300

$24.86

In Stock

Refrigerator Compressor Overload and Relay Clamp

#32

System Diagram

Refrigerator compressor overload and relay clamp

Part #297030500
This item is not returnable

$6.27

In Stock

Refrigerator Electronic Control Board

#30

System Diagram

$25.43

In Stock

Freezer Lid Outer Panel (White)

#11

Door Diagram

$171.62

In Stock

Freezer Lid Hole Plug

#10

Door Diagram

Freezer lid hole plug

Part #216923001
This item is not returnable

$5.61

In Stock

Freezer Lid Gasket

#1

Door Diagram

Freezer lid gasket

Part #216480801

$61.80

Back Order

Symptoms common to all freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems

Repair guides for chest freezers

How to replace a freezer temperature control thermostat

The cold control thermostat regulates the freezer temperature. A defective cold control thermostat can prevent the compressor from cycling on or off. Follow these steps to replace a defective cold control thermostat.

Repair difficulty
Time required
 15 minutes or less
February 20, 2015
By Lyle Weischwill
How to replace a freezer compressor start relay

The compressor start relay starts the compressor. If the compressor won’t start, follow these steps to replace a defective compressor start relay.

Repair difficulty
Time required
 15 minutes or less
February 1, 2015
By Lyle Weischwill
How to replace a freezer lid gasket

The lid gasket prevents air and moisture from entering the freezer when the lid is closed. Follow these steps to replace a torn or damaged lid gasket.

Repair difficulty
Time required
 30 minutes or less
