Model #JGB660SEJ5SS GE free standing gas range

Here are the diagrams and repair parts for GE JGB660SEJ5SS free standing gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

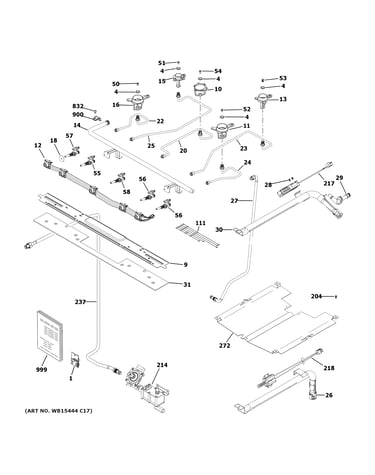

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 167 parts

    Range Surface Burner Grate Bumper

    See All Related Diagrams

    Range surface burner grate bumper

    Part #WB02X24790
    BEST SELLER
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Range Surface Burner Cap#150

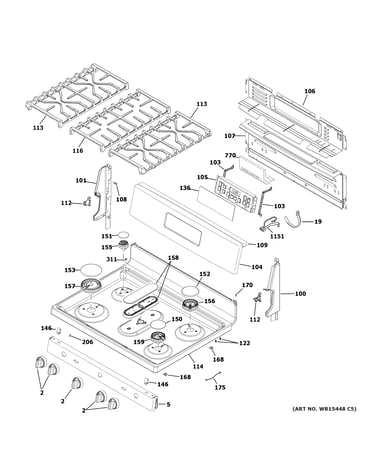

    Control panel & cooktop Diagram

    Range surface burner cap

    Part #WB29K10023
    BEST SELLER
    In Stock
    $19.49 |
    9% OFF
    Phone Price: $21.49
    Range Surface Burner Cap#152

    Control panel & cooktop Diagram

    Range surface burner cap

    Part #WB29K10024
    BEST SELLER
    In Stock
    $10.89 |
    16% OFF
    Phone Price: $12.89
    Range Surface Burner Cap#153

    Control panel & cooktop Diagram

    Range surface burner cap

    Part #WB28K10222
    BEST SELLER
    In Stock
    $18.29 |
    10% OFF
    Phone Price: $20.29
    Range Extra Large Surface Burner, 18,000-BTU#157

    Control panel & cooktop Diagram

    Range extra large surface burner, 18,000-btu

    Part #WB16X24722
    BEST SELLER
    This item is not returnable
    In Stock
    $29.09 |
    15% OFF
    Phone Price: $34.09
    Range Surface Burner Knob#2

    Control panel & cooktop Diagram

    Range surface burner knob

    Part #WB03X24818
    BEST SELLER
    In Stock
    $28.69 |
    10% OFF
    Was: $31.89
    Range Oven Rack#200

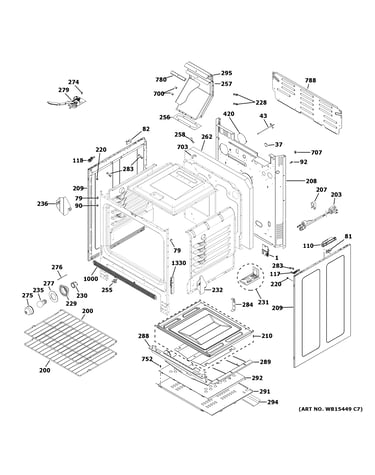

    Body parts Diagram

    Range oven rack

    Part #WB48X20249
    BEST SELLER
    In Stock
    $86.19 |
    5% OFF
    Phone Price: $91.19
    Range Oven Door Outer Glass#338

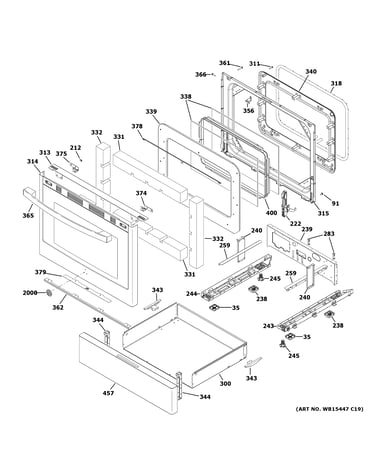

    Door & drawer parts Diagram
