Heating & Cooling Combined Unit

Model #PY2PNB030060AA Payne gas heating & electric cooling

Here are the diagrams and repair parts for Payne PY2PNB030060AA gas heating & electric cooling, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 83 parts

Panel

#15

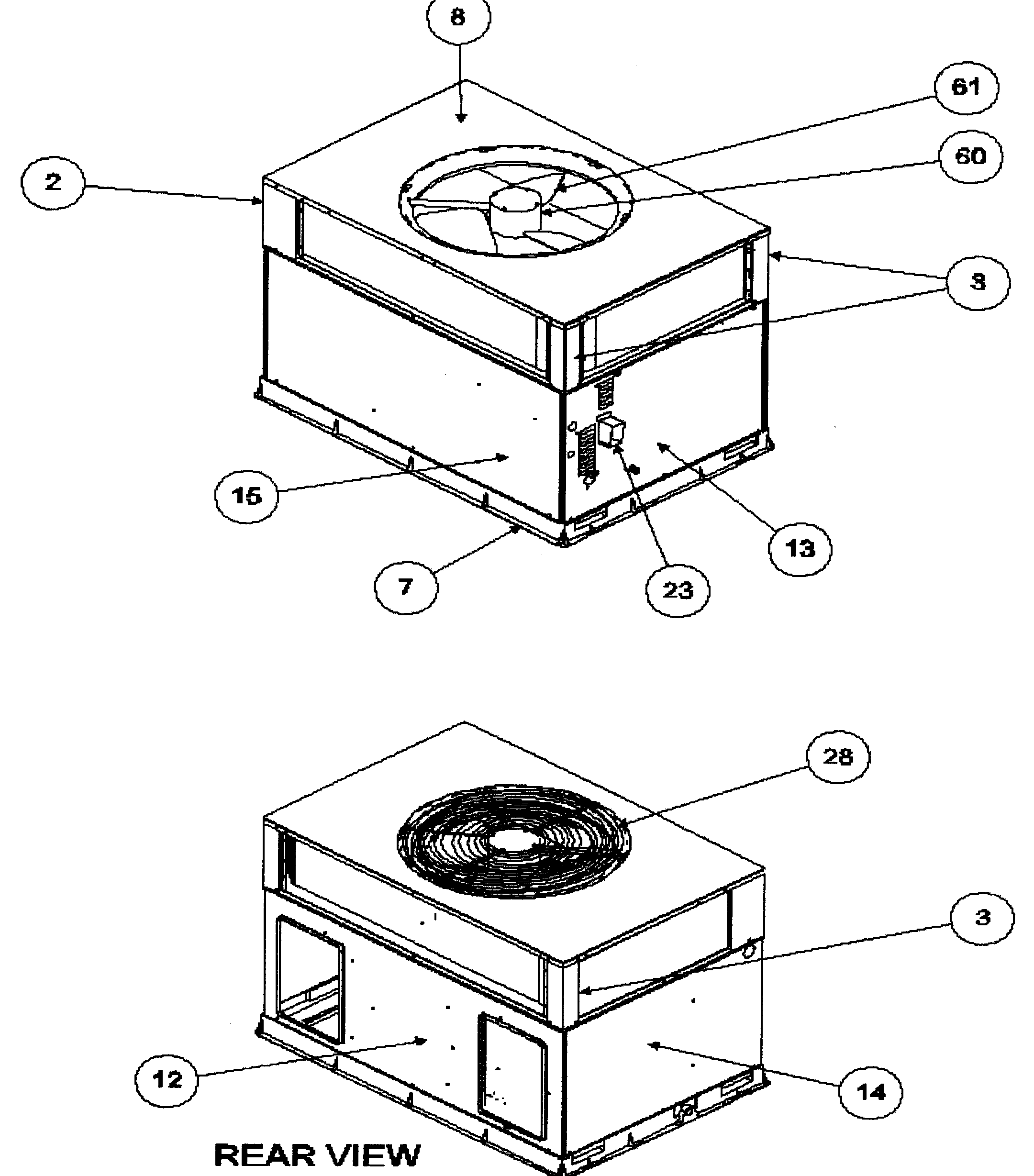

Rear view Diagram

Panel

Part #48GS500012
$59.49

In Stock

Baffle

#92

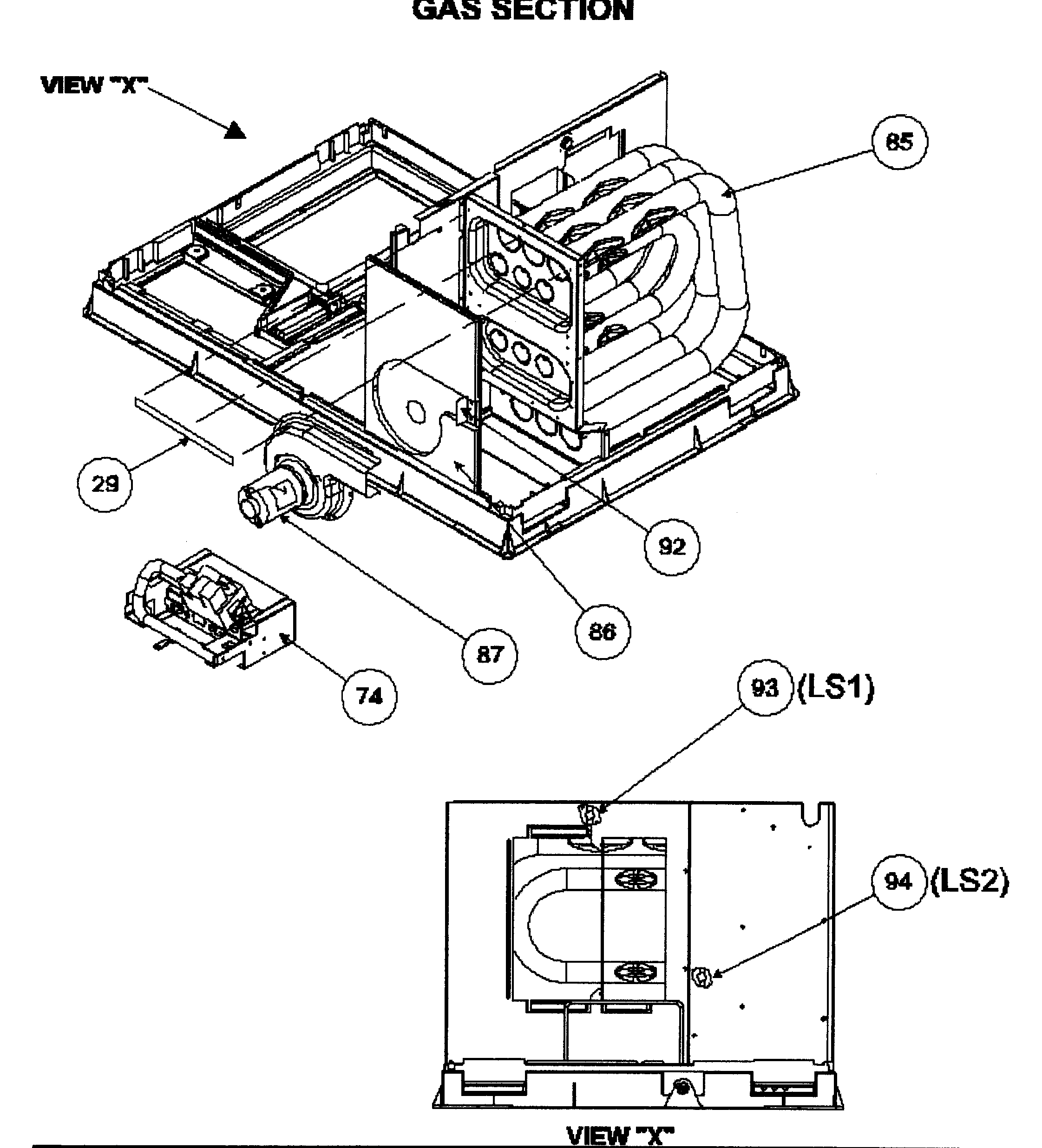

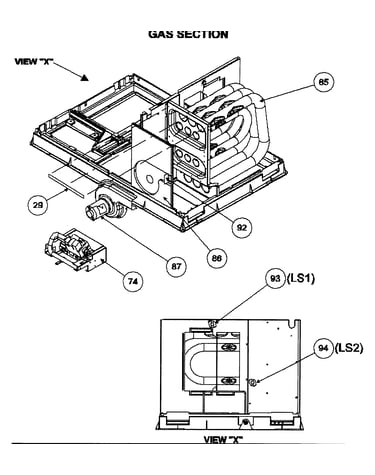

Gas section Diagram

Baffle

Part #48GS500114
This item is not returnable
$2.16

In Stock

Blower Assembly

#48

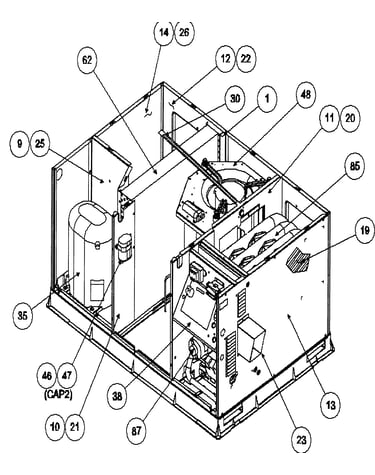

Inside view Diagram

Blower assembly

Part #48GS400090
$1038.96

In Stock

Panel

#3

Rear view Diagram

Panel

Part #48GS500367
$21.49

In Stock

Evaporator Coil

#62

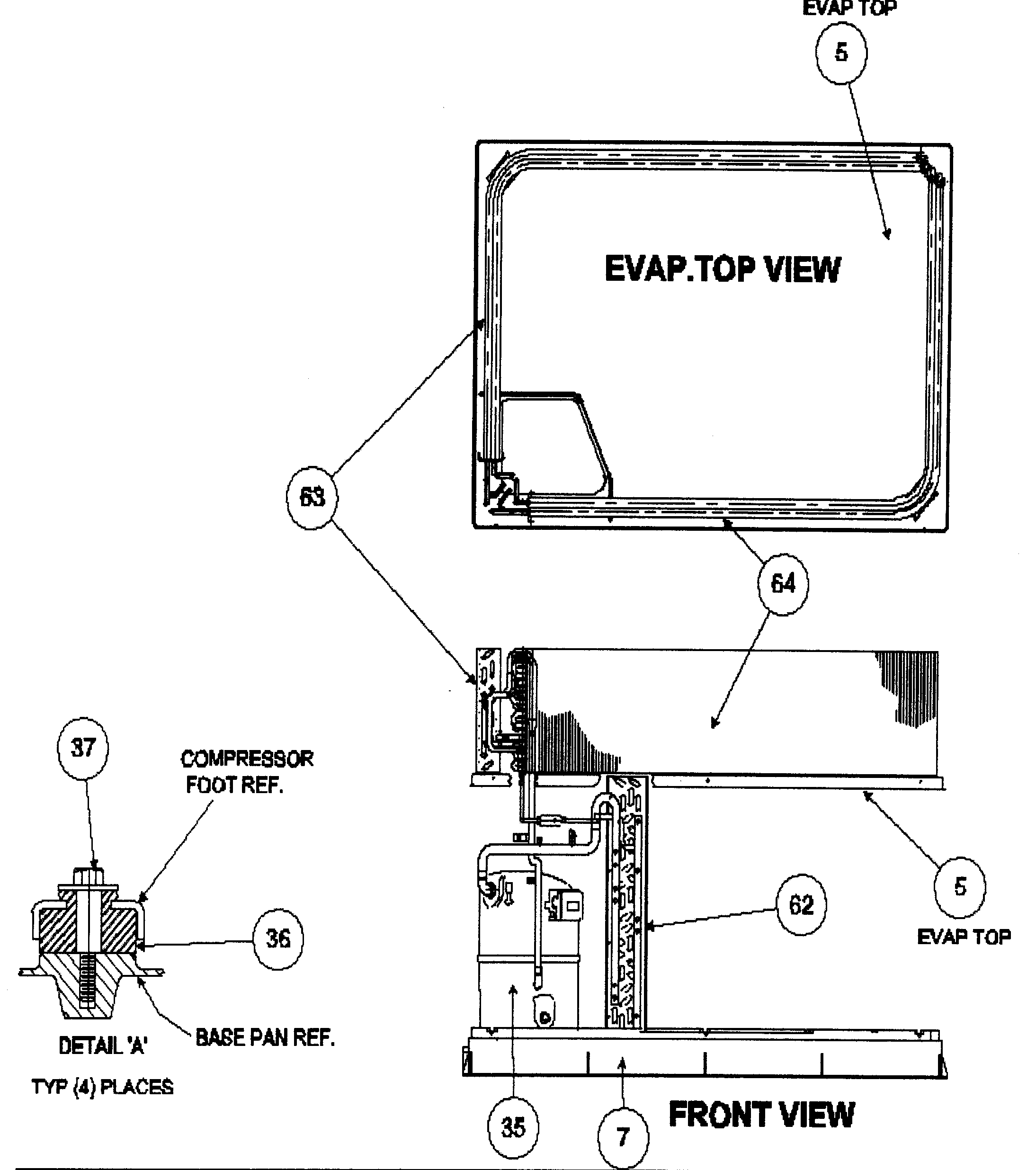

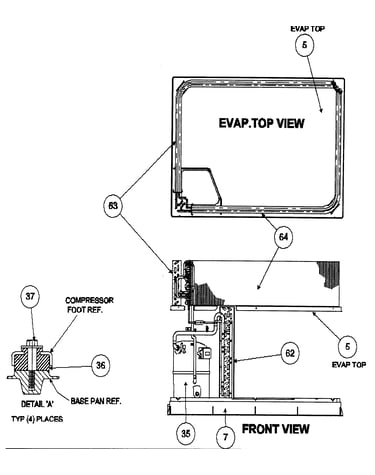

Evap top view/front view Diagram

Evaporator coil

Part #48GX400003
$627.99

In Stock

Panel

#12

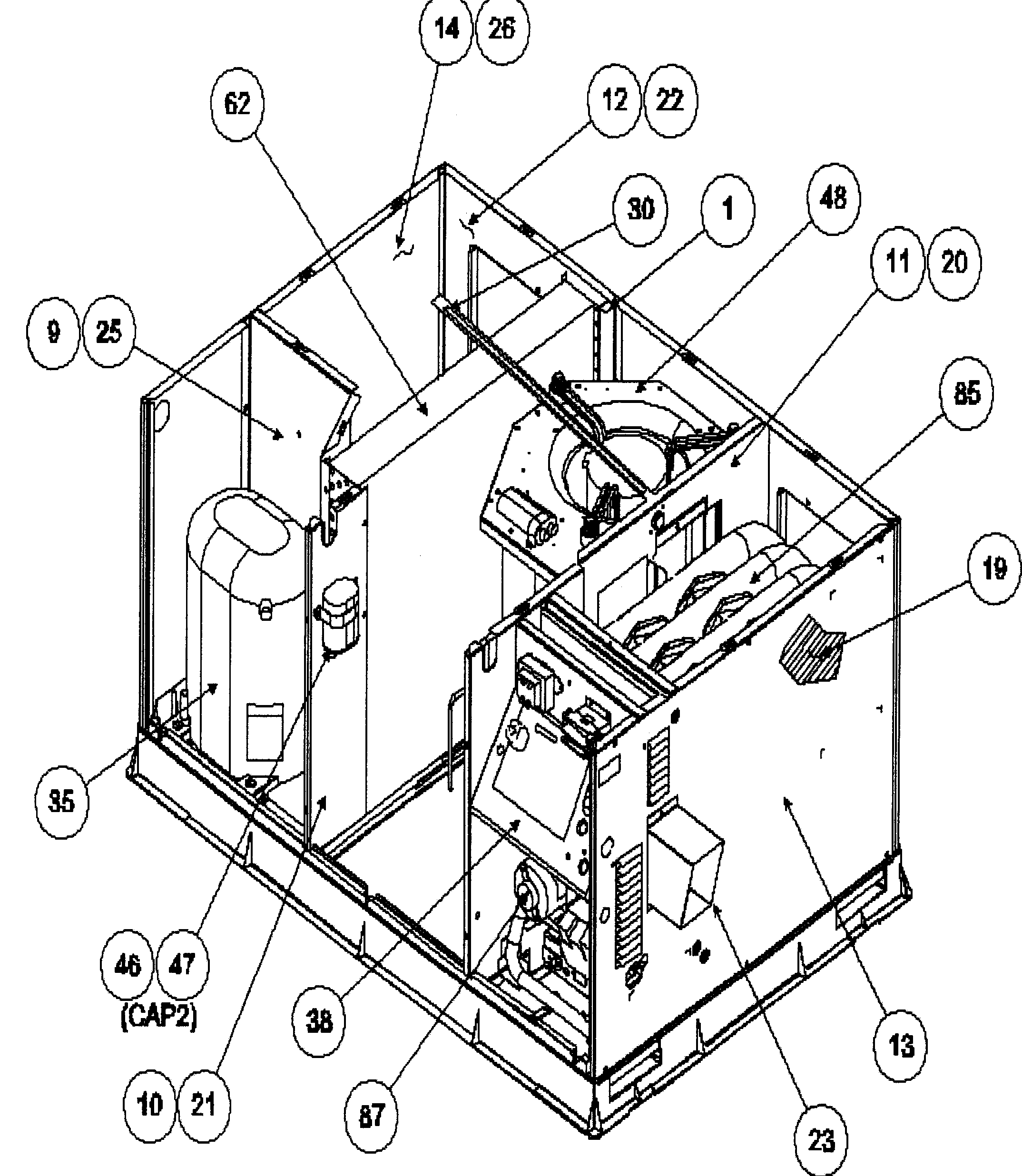

Inside view Diagram

Panel

Part #48GS500009
$58.99

In Stock

Grille

#28

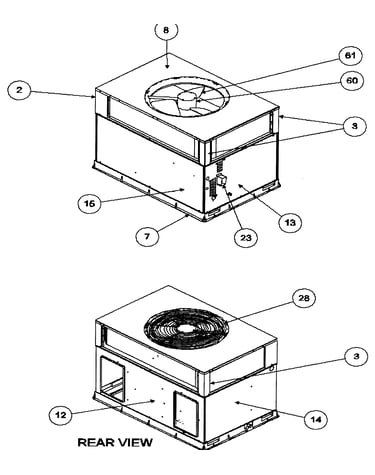

Rear view Diagram

Grille

Part #50HJ501200
$65.02

In Stock

Grommet

#36

Evap top view/front view Diagram

Grommet

Part #KA56TR057
This item is not returnable
$2.49

In Stock

Panel

#122

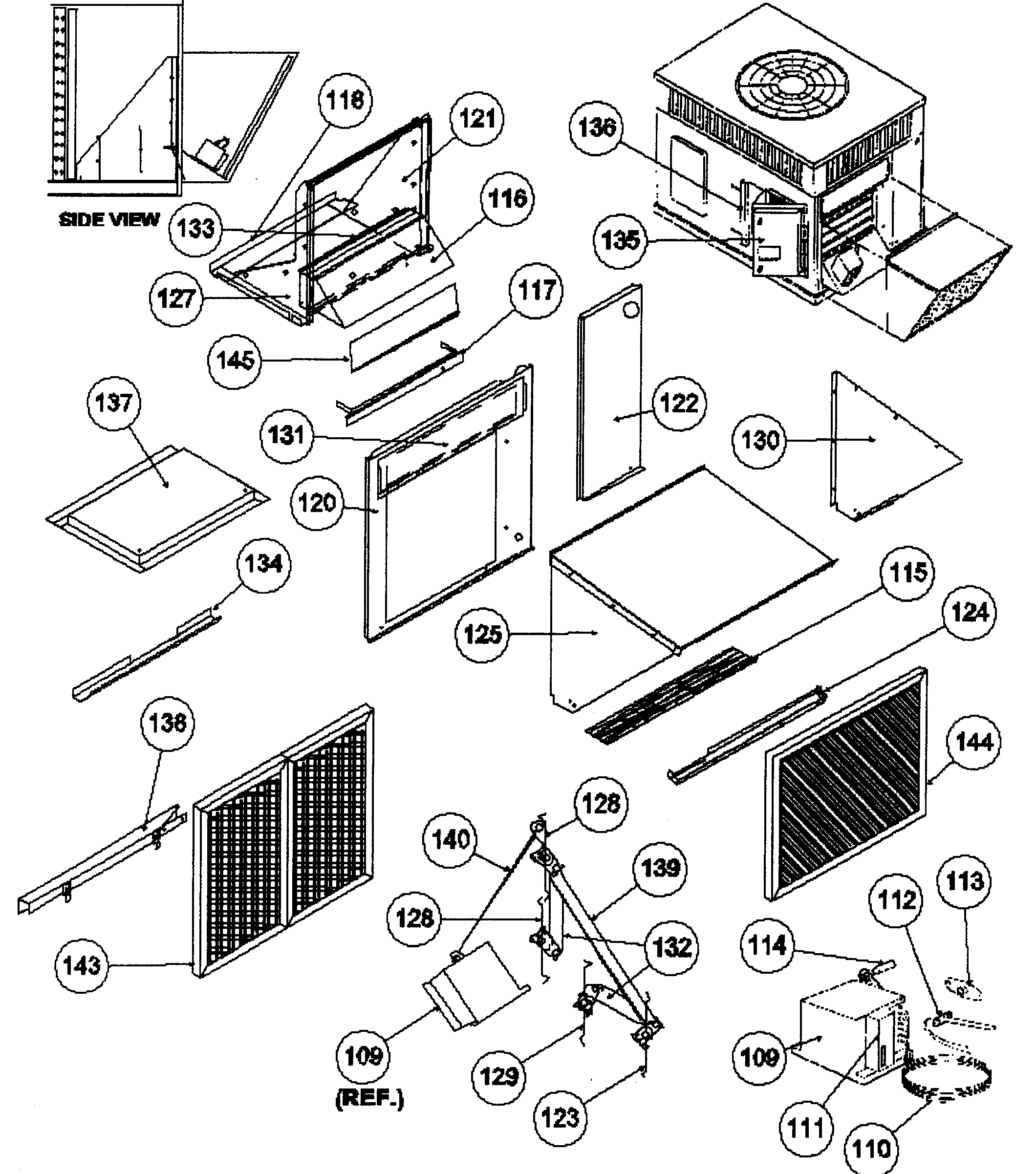

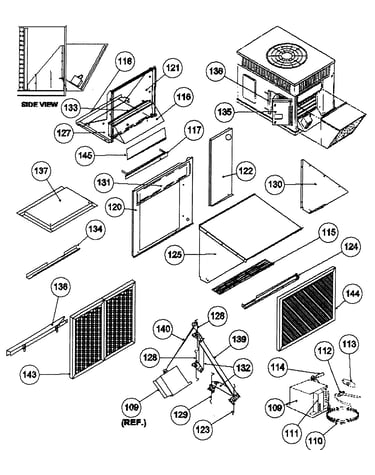

Accessory economizer Diagram

Panel

Part #0637009A
$23.99

In Stock

Rack

#156

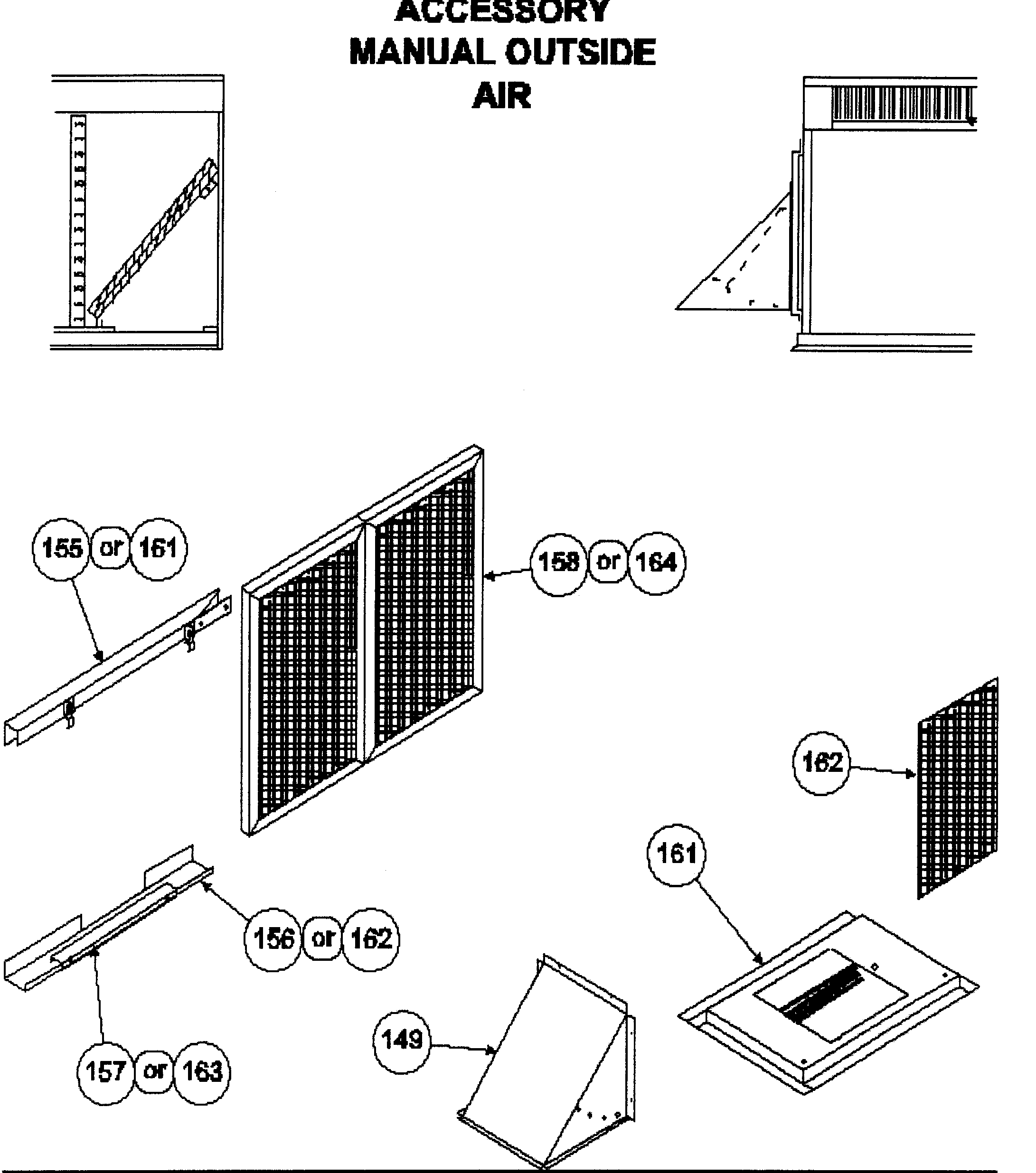

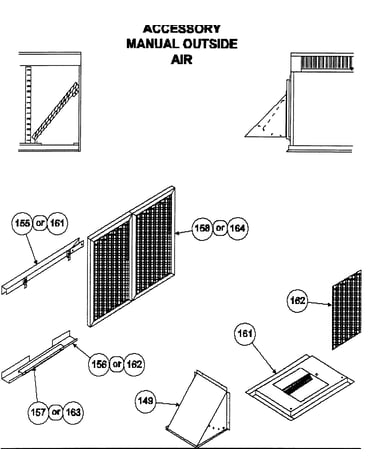

Accessory manual outside air Diagram

Rack

Part #0900002A
$71.99

In Stock
