Model # DWE43113 TYPE 1 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt DWE43113-TYPE-1 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
O N263699
#8

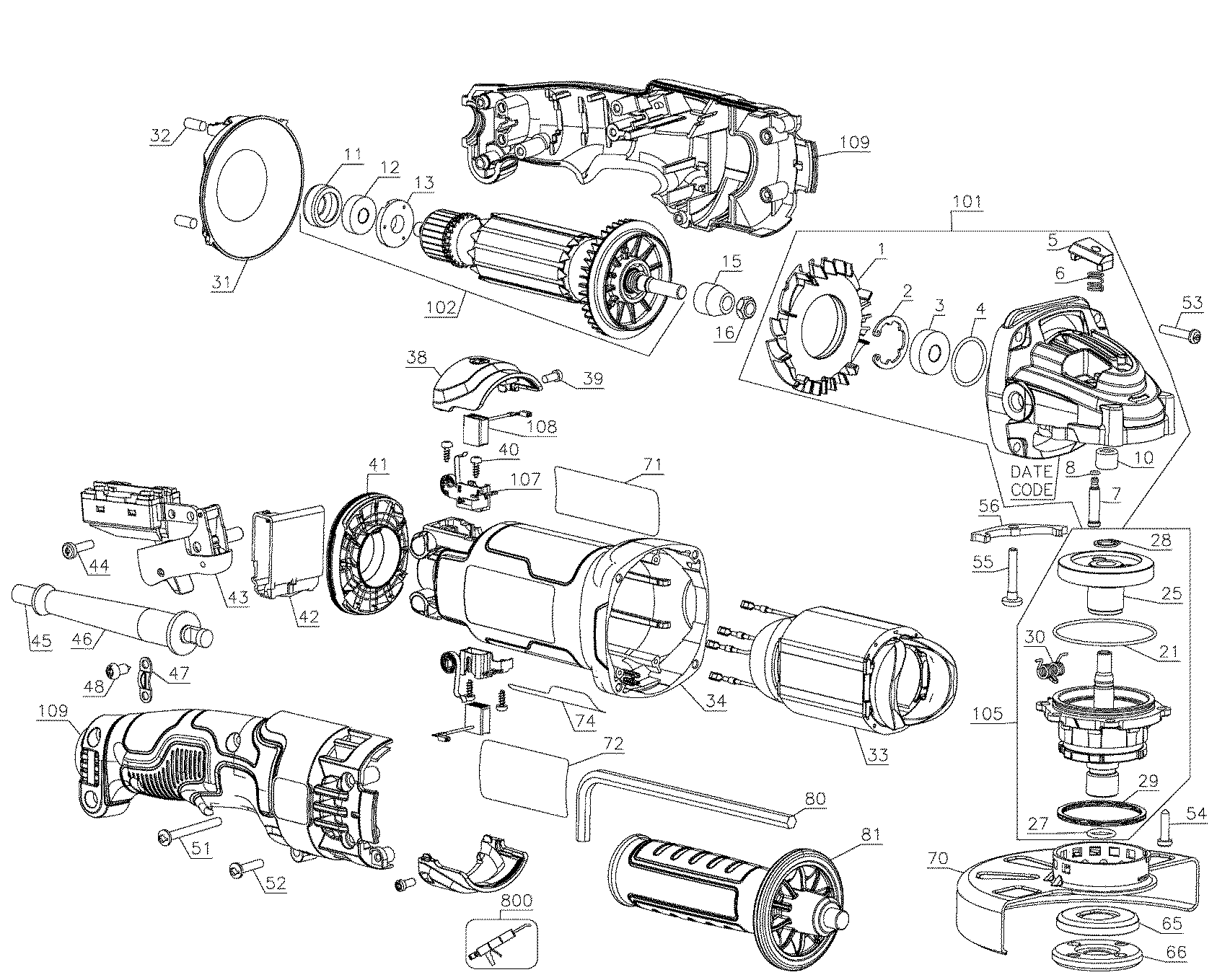

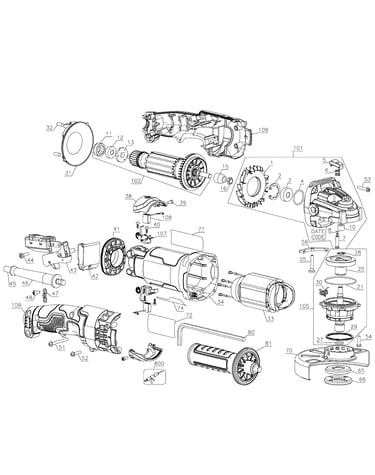

Angle grinder diagram

O

Part #N263699

The manufacturer no longer makes this part, and there's no substitute part

Stator N401958
#1

Angle grinder diagram

Stator

Part #N401958

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Side Handle N383283
#81

Angle grinder diagram

Angle grinder side handle

Part #N383283

The manufacturer no longer makes this part, and there's no substitute part

Bearing N130916
#12

Angle grinder diagram

Bearing

Part #N130916

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cup 641823-00
#11

Angle grinder diagram

Bearing cup

Part #641823-00

The manufacturer no longer makes this part, and there's no substitute part

Lever N442976
#56

Angle grinder diagram

Lever

Part #N442976

The manufacturer no longer makes this part, and there's no substitute part

Screw N371839
#53

Angle grinder diagram

Screw

Part #N371839

The manufacturer no longer makes this part, and there's no substitute part

Grease 7lb 429954-00
#800B

Angle grinder diagram

Grease 7lb

Part #429954-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 648777-00
#39

Angle grinder diagram

Screw

Part #648777-00

The manufacturer no longer makes this part, and there's no substitute part

Grease 30301914-01
#800

Angle grinder diagram

Grease

Part #30301914-01

The manufacturer no longer makes this part, and there's no substitute part
