Craftsman
Chainsaw

Model # 91760013 Official Craftsman chainsaw

Here are the diagrams and repair parts for Official Craftsman 91760013 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

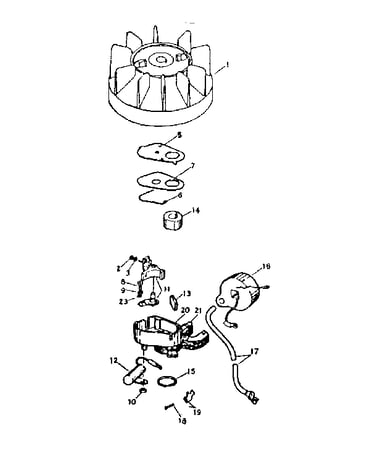

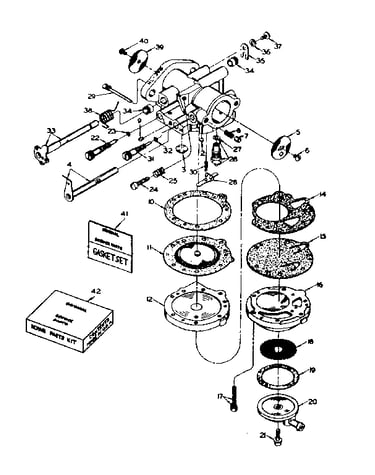

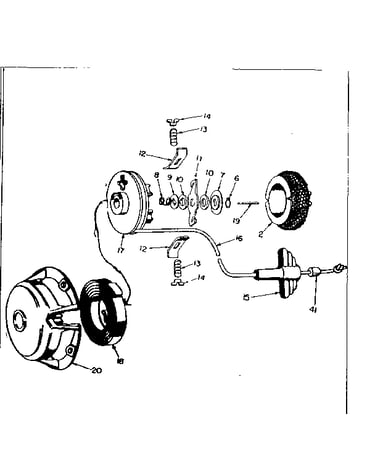

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 261 parts  |

Oil Seal 510105
#11

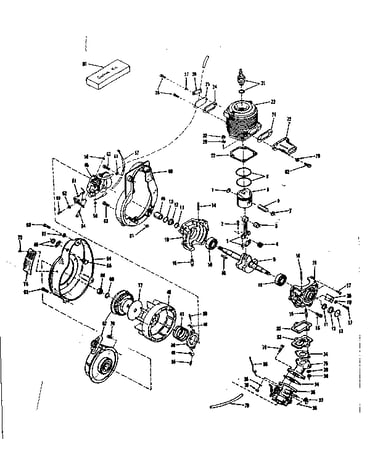

Engine type 1124-model ah47 diagram

Oil seal

Part #510105

Replaced by #510319

?
Manufacturer substitution
This part replaces 510105. Substitute parts can look different from the original.
In Stock
Retainer 510106
#12

Engine type 1124-model ah47 diagram

Retainer

Part #510106

Replaced by #510106A

?
Manufacturer substitution
This part replaces 510106. Substitute parts can look different from the original.
This item is not returnable
In Stock
Spring Retainer 510109
#13

Engine type 1124-model ah47 diagram

Spring retainer

Part #510109

Replaced by #510109A

?
Manufacturer substitution
This part replaces 510109. Substitute parts can look different from the original.
This item is not returnable
In Stock
Retaining Ring 310167
#7

Engine type 1124-model ah47 diagram

Retaining ring

Part #310167

Replaced by #310296

?
Manufacturer substitution
This part replaces 310167. Substitute parts can look different from the original.
This item is not returnable
In Stock
Nut 319H
#24

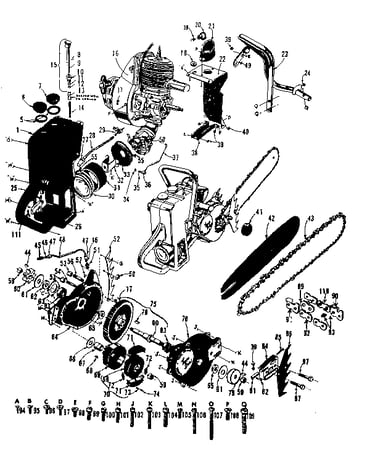

Main frame diagram

Nut

Part #319H

The manufacturer no longer makes this part, and there's no substitute part

Screw 650127
#26

Engine type 1124-model ah47 diagram

Screw

Part #650127

Replaced by #650597

?
Manufacturer substitution
This part replaces 650127. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 650350
#2

Engine type 1124-model ah47 diagram

Screw

Part #650350

Replaced by #650702

?
Manufacturer substitution
This part replaces 650350. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 650158
#63

Engine type 1124-model ah47 diagram

Screw

Part #650158

Replaced by #650454

?
Manufacturer substitution
This part replaces 650158. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 650309
#82

Engine type 1124-model ah47 diagram

Screw

Part #650309

Replaced by #650517

?
Manufacturer substitution
This part replaces 650309. Substitute parts can look different from the original.
This item is not returnable
In Stock
Flat Washer 650262
#81

Engine type 1124-model ah47 diagram

Flat washer

Part #650262

The manufacturer no longer makes this part, and there's no substitute part
