Whirlpool
Gas Range

Model #SF514EERW2 Whirlpool gas range

Here are the diagrams and repair parts for Whirlpool SF514EERW2 gas range, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

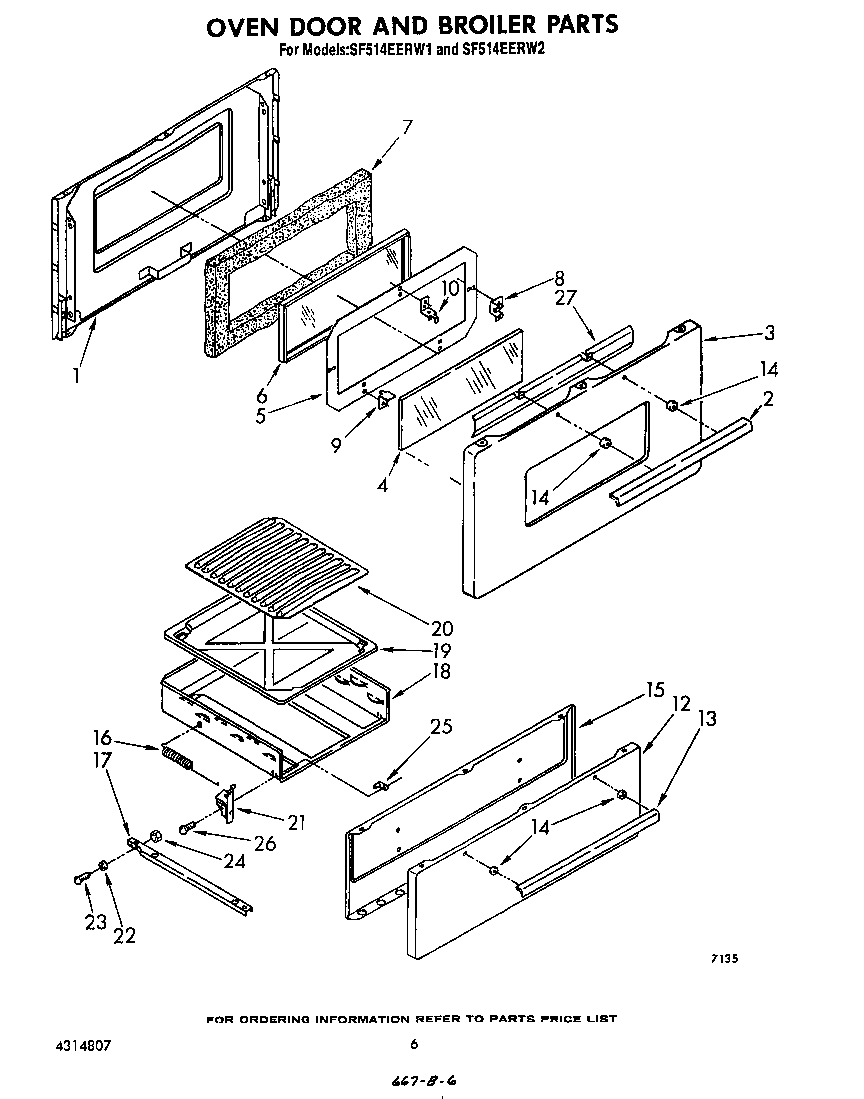

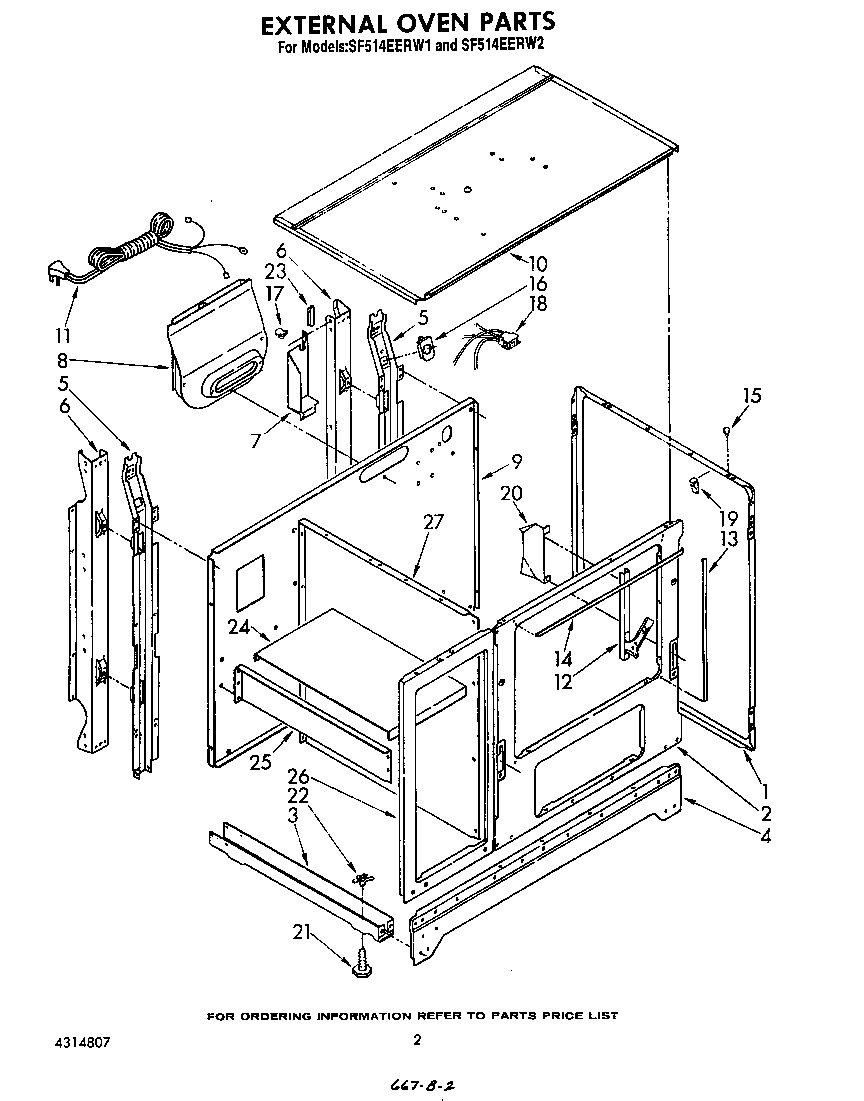

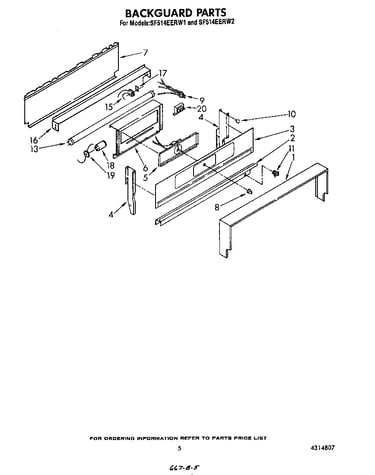

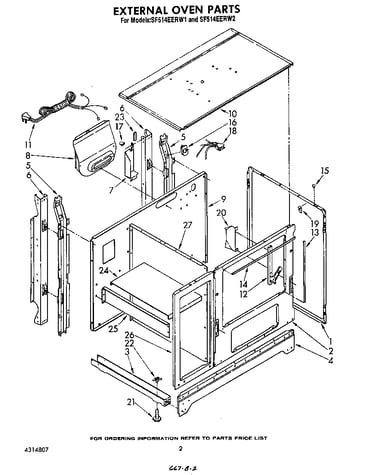

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 174 parts

Dryer Screw

#22A

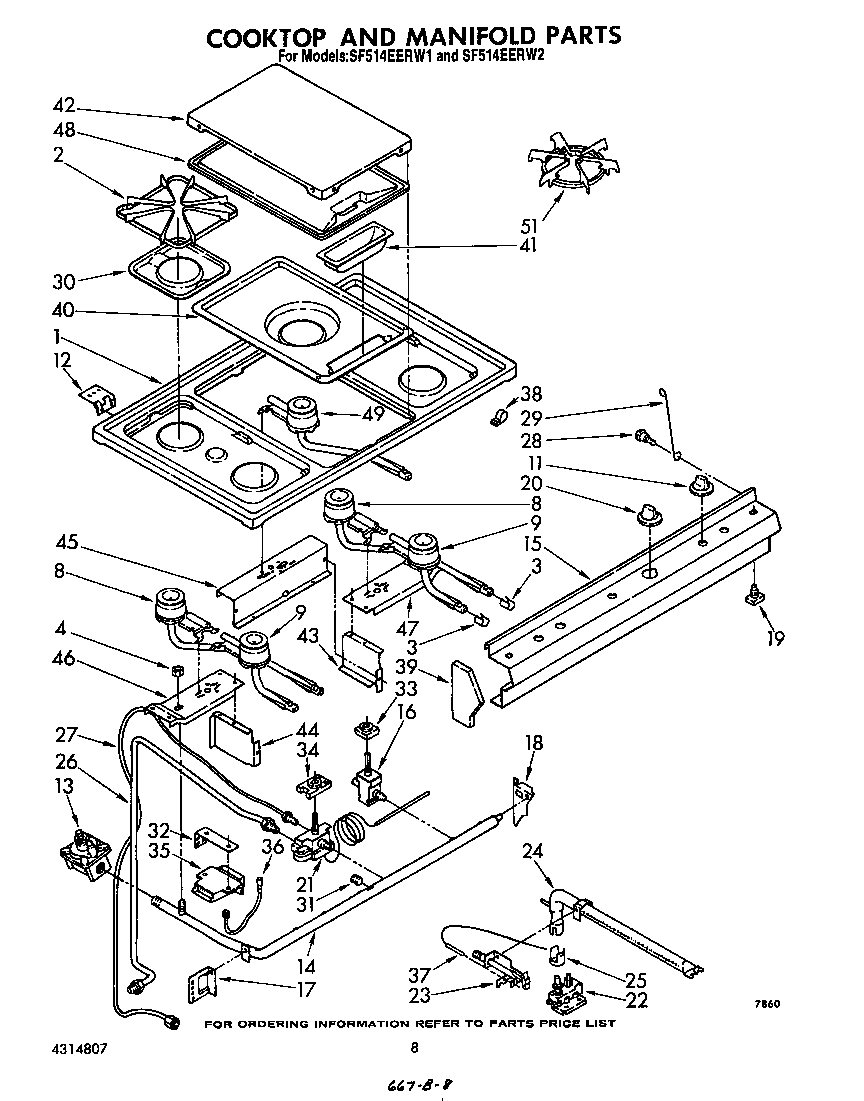

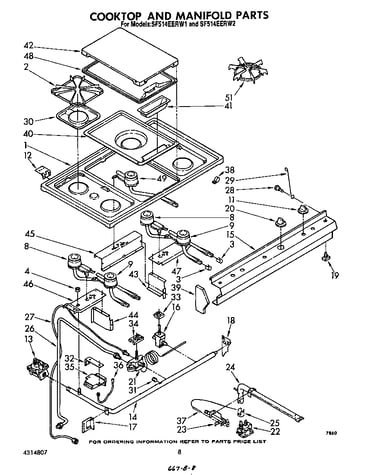

Cooktop and manifold Diagram

Dryer screw

Part #WP3387230
?
Manufacturer substitution
This part replaces 4157125. Substitute parts can look different from the original.
This part replaces 4157125
This item is not returnable
$3.21

In Stock

Igniter

#36A

Cooktop and manifold Diagram

Igniter

Part #WPY07491203
?
Manufacturer substitution
This part replaces 4157182. Substitute parts can look different from the original.
This part replaces 4157182
$30.29

In Stock

Range Screw

#12B

Cooktop and manifold Diagram

Range screw

Part #WP308685
?
Manufacturer substitution
This part replaces 4157111. Substitute parts can look different from the original.
This part replaces 4157111
This item is not returnable
$3.60

In Stock

Range Drip Pan

#30

Cooktop and manifold Diagram

Range drip pan

Part #WP786333
?
Manufacturer substitution
This part replaces 4157194. Substitute parts can look different from the original.
This part replaces 4157194
$10.19

In Stock

Range Oven Insulation

#NI

All parts Diagram

Range oven insulation

Part #WPW10208653
?
Manufacturer substitution
This part replaces 240132. Substitute parts can look different from the original.
This part replaces 240132
$28.67 |
13% OFF MSRP:$33.00

In Stock

Igniter

#36C

Cooktop and manifold Diagram

Igniter

Part #WPY07491203
?
Manufacturer substitution
This part replaces 4157792. Substitute parts can look different from the original.
This part replaces 4157792
$30.29

In Stock

Range Oven Temperature Knob (Black)

#20

Cooktop and manifold Diagram

Range oven temperature knob (black)

Part #WPY07506601
?
Manufacturer substitution
This part replaces 4157100. Substitute parts can look different from the original.
This part replaces 4157100
$21.09 |
27% OFF MSRP:$29.00

In Stock

Range Surface Burner Igniter Switch

#33

Cooktop and manifold Diagram

Range surface burner igniter switch

Part #WP4157180
?
Manufacturer substitution
This part replaces 4157180. Substitute parts can look different from the original.
This part replaces 4157180
$34.81 |
24% OFF MSRP:$46.00

In Stock

Range Screw

#7A

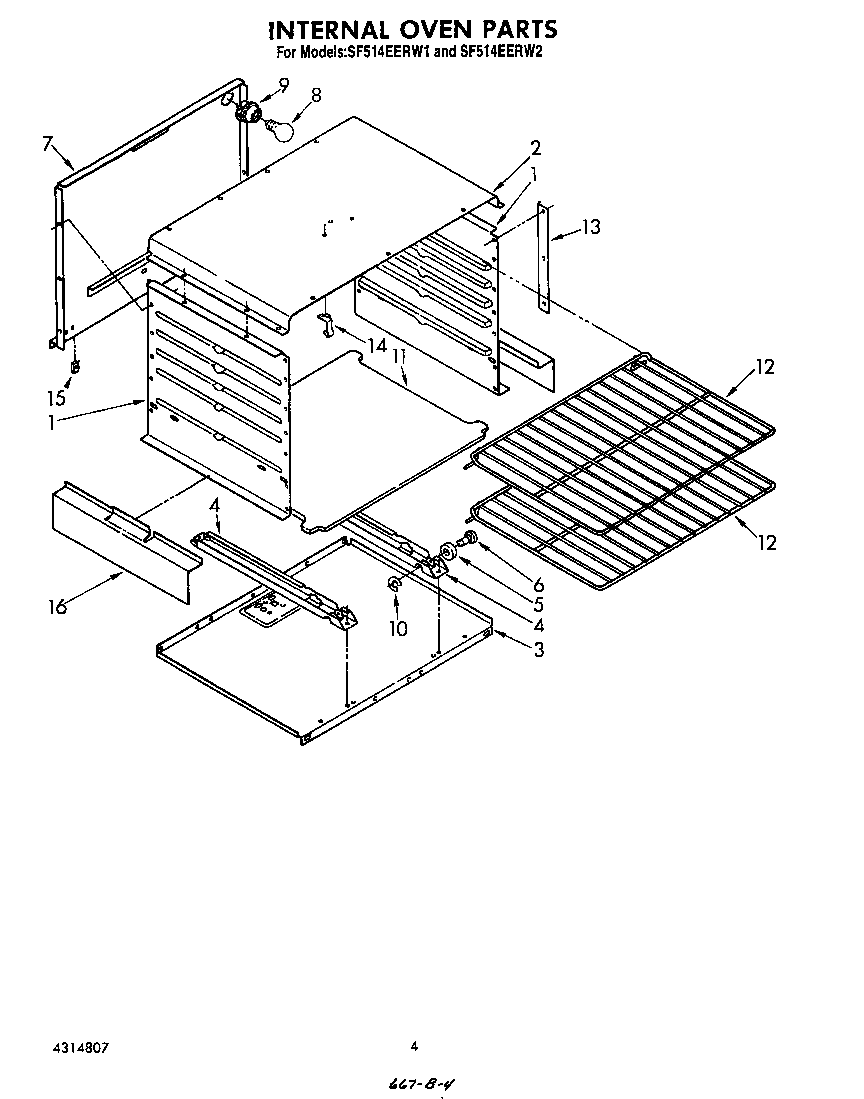

Internal oven Diagram

Range screw

Part #WP308685
?
Manufacturer substitution
This part replaces 4157117. Substitute parts can look different from the original.
This part replaces 4157117
This item is not returnable
$3.60

In Stock

Range Surface Burner Knob

#11

Cooktop and manifold Diagram

Range surface burner knob

Part #WP4179282
?
Manufacturer substitution
This part replaces 4157192. Substitute parts can look different from the original.
This part replaces 4157192
$15.49

In Stock

Symptoms common to all ranges

Choose a symptom to see related range repairs.

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleaning the door
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sensor, wiring failure
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner igniter
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner igniter, oven door problem
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sensor, wiring failure
