Amana
Countertop Microwave

Model # 1304.002 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 1304002 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Bushing M2D576
#1C

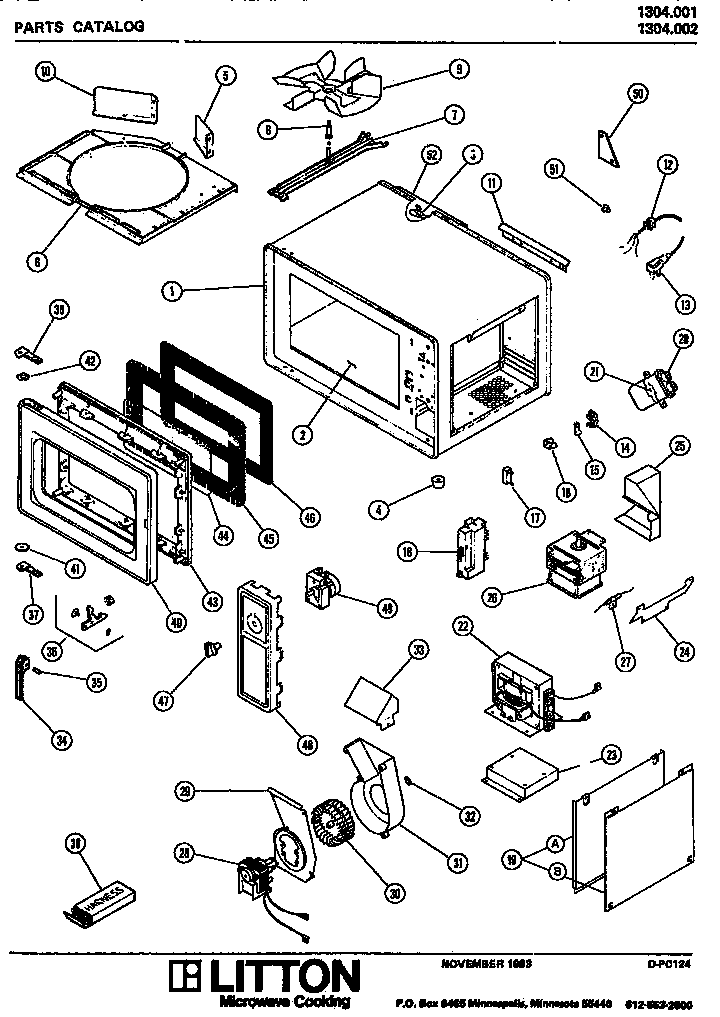

Microwave parts diagram

Bushing

Part #M2D576

The manufacturer no longer makes this part, and there's no substitute part

Duct - Blower Housing M65D264
#33A

Microwave parts diagram

Duct - blower housing

Part #M65D264

The manufacturer no longer makes this part, and there's no substitute part

Magnetron Support M8D247
#24A

Microwave parts diagram

Magnetron support

Part #M8D247

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover M45D29
#6A

Microwave parts diagram

Stirrer cover

Part #M45D29

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assembly (includes Ref. Nos. 2, 3, 4, 19, 52) M77D121
#1A

Microwave parts diagram

Cavity assembly (includes ref. nos. 2, 3, 4, 19, 52)

Part #M77D121

The manufacturer no longer makes this part, and there's no substitute part

Thermal Protector (magnetron) M4D101
#27

Microwave parts diagram

Thermal protector (magnetron)

Part #M4D101

The manufacturer no longer makes this part, and there's no substitute part

Shelf (includes Sealant) M50D39
#2A

Microwave parts diagram

Shelf (includes sealant)

Part #M50D39

The manufacturer no longer makes this part, and there's no substitute part

Dec Panel Assembly (includes Inlay) M7D618
#48A

Microwave parts diagram

Dec panel assembly (includes inlay)

Part #M7D618

The manufacturer no longer makes this part, and there's no substitute part

Wave Washer (upper Hinge Pin) M2D583
#42

Microwave parts diagram

Wave washer (upper hinge pin)

Part #M2D583

The manufacturer no longer makes this part, and there's no substitute part

Screw, Blower Motor Mounting M1D731
#28B

Microwave parts diagram

Screw, blower motor mounting

Part #M1D731

The manufacturer no longer makes this part, and there's no substitute part
