Craftsman
Drill/Driver

Model # 32010003 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 32010003 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Power Tool Screw 5610013000
#3

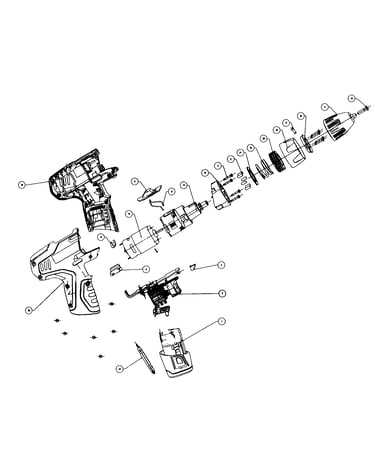

Drill diagram

Power tool screw

Part #5610013000

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 3124050000
#20

Drill diagram

Sleeve

Part #3124050000

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Control Board 4890454000
#7A

Drill diagram

Drill/driver control board

Part #4890454000

The manufacturer no longer makes this part, and there's no substitute part

Drill Battery Charger 800121000
#NI

Drill diagram

Drill battery charger

Part #800121000

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 3320667000
#18

Drill diagram

Housing assembly

Part #3320667000

The manufacturer no longer makes this part, and there's no substitute part

Mntng Plat 3420896000
#22

Drill diagram

Mntng plat

Part #3420896000

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver On/off Switch 4870380001
#7B

Drill diagram

Drill/driver on/off switch

Part #4870380001

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 3320666000
#16

Drill diagram

Housing assembly

Part #3320666000

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 3124051000
#15

Drill diagram

Clutch cap

Part #3124051000

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 5620179000
#12

Drill diagram

Drill chuck screw

Part #5620179000

The manufacturer no longer makes this part, and there's no substitute part
