Kenmore 9116128911 gas range Parts
Here are the diagrams and repair parts for Kenmore 9116128911 gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

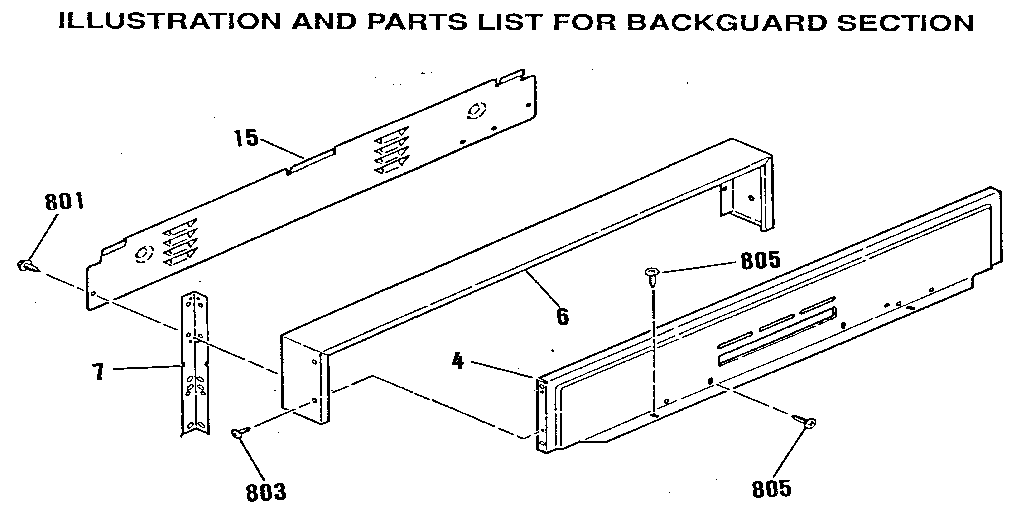

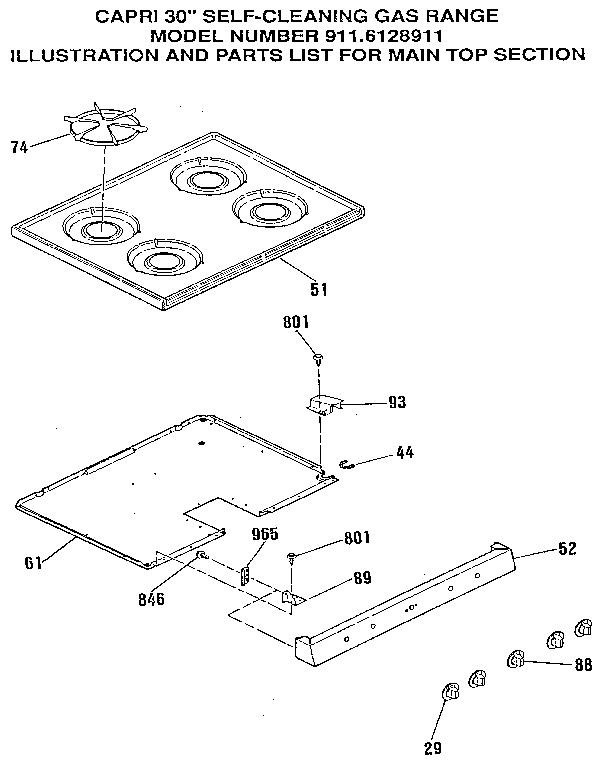

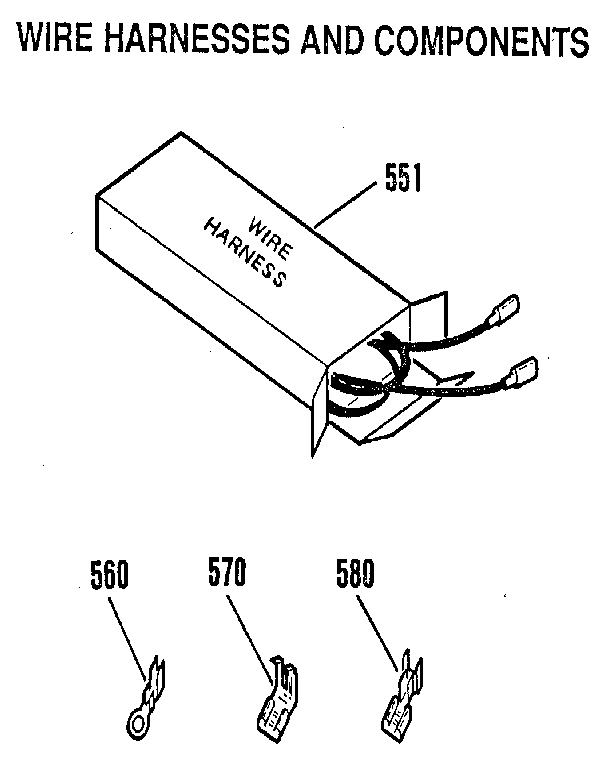

Browse Parts for 9116128911 Ranges

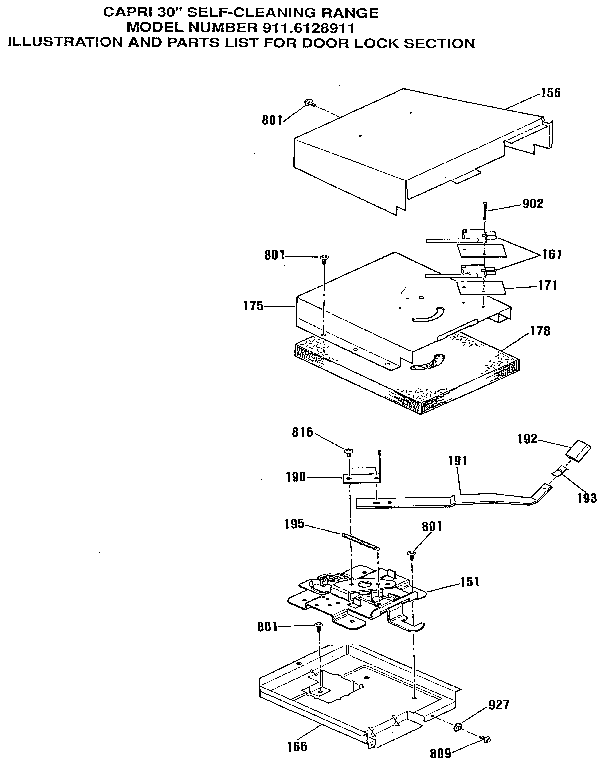

Door lock section diagram
Wire Cover
Part #WB02X9406Replaced by #WB2X9406
Manufacturer substitutionThis part replaces WB02X9406. Substitute parts can look different from the original.In Stock$47.13
Qty

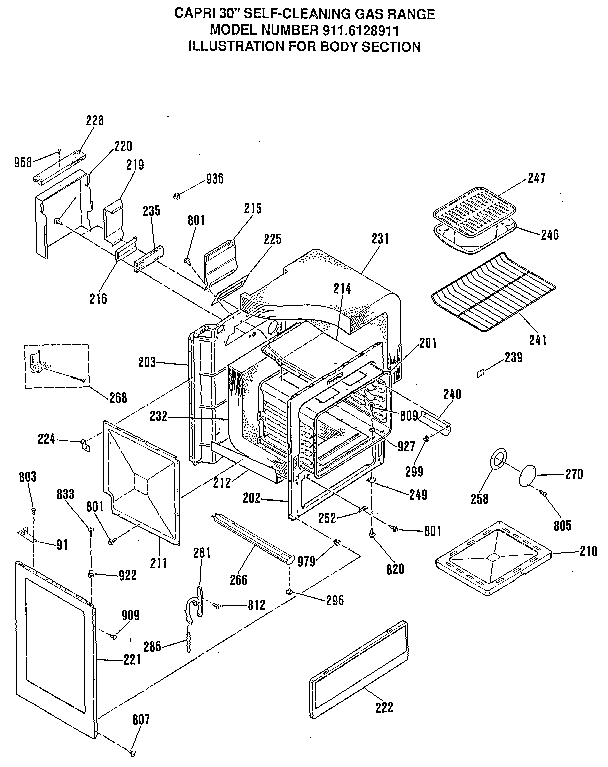

Body section diagram
Cover
Part #WB02X9451Replaced by #WB2X9451

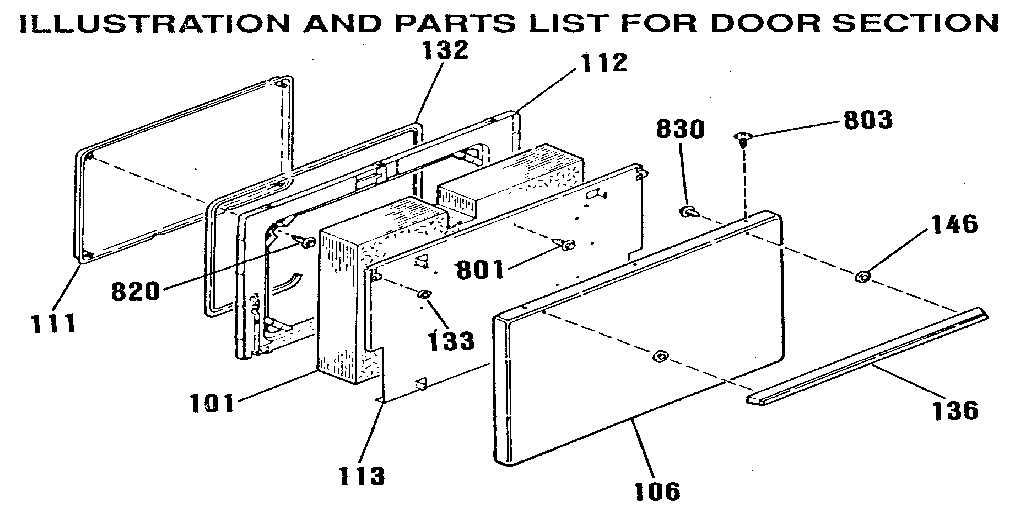

Manufacturer substitutionThis part replaces WB02X9451. Substitute parts can look different from the original.In Stock$43.98QtyDoor section diagram
Screw-10-32
Part #WB01X1135Replaced by #WB1X1130
Manufacturer substitutionThis part replaces WB01X1135. Substitute parts can look different from the original.In Stock$9.869% OFF Phone Price : $10.86
QtyDoor lock section diagram
Insulation Latch
Part #WB02X9405Replaced by #WB2X9405

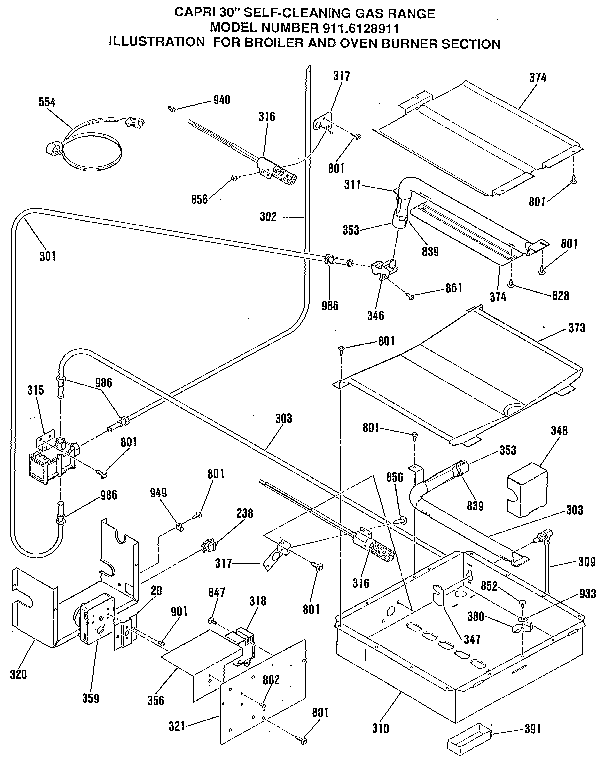

Manufacturer substitutionThis part replaces WB02X9405. Substitute parts can look different from the original.In Stock$36.61QtyBroiler and oven burner section diagram
Wire Cover
Part #WB34M0004Replaced by #WB34M4
Manufacturer substitutionThis part replaces WB34M0004. Substitute parts can look different from the original.In Stock$42.67QtyBroiler and oven burner section diagram
Bracket
Part #WB02X9162Replaced by #311689

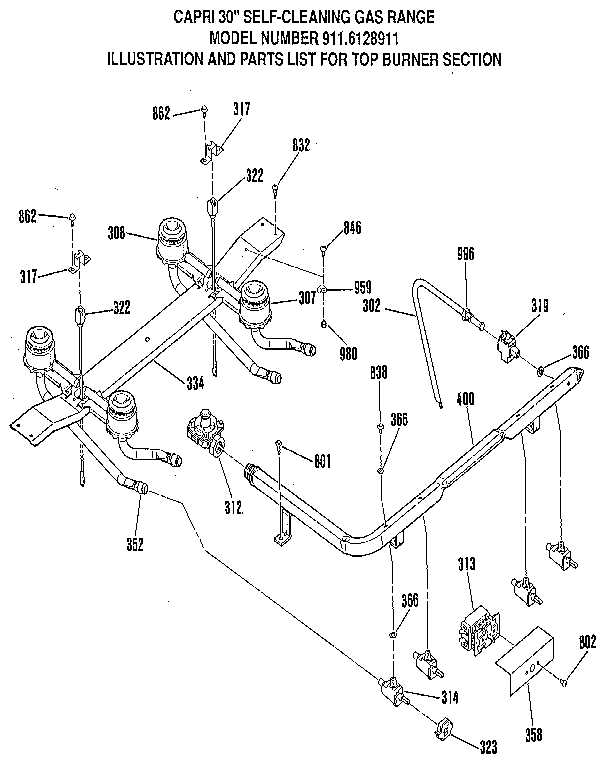

Manufacturer substitutionThis part replaces WB02X9162. Substitute parts can look different from the original.In Stock$37.03QtyTop burner section diagram
Burner Support
Part #WB02X9744Replaced by #WB2X9744
Manufacturer substitutionThis part replaces WB02X9744. Substitute parts can look different from the original.In Stock$32.68QtyTop burner section diagram
Screw-6-32t
Part #WB01X1118Replaced by #WB1X1118
Manufacturer substitutionThis part replaces WB01X1118. Substitute parts can look different from the original.In Stock$8.3811% OFF Phone Price : $9.38QtyDoor lock section diagram
Latch
Part #WB14X0125Replaced by #WB14X125
Manufacturer substitutionThis part replaces WB14X0125. Substitute parts can look different from the original.In Stock$118.56QtyInverted Nut
Part #WB01X1117Replaced by #WB1X1117
Manufacturer substitutionThis part replaces WB01X1117. Substitute parts can look different from the original.In Stock$38.45Qty
