Craftsman
Gas Walk-Behind Mower

Model # 917377091 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917377091 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 280 parts  |
Lawn Mower 21-in Deck 3-in-1 Blade (replaces 532189028, 5321890-28) 189028
#16

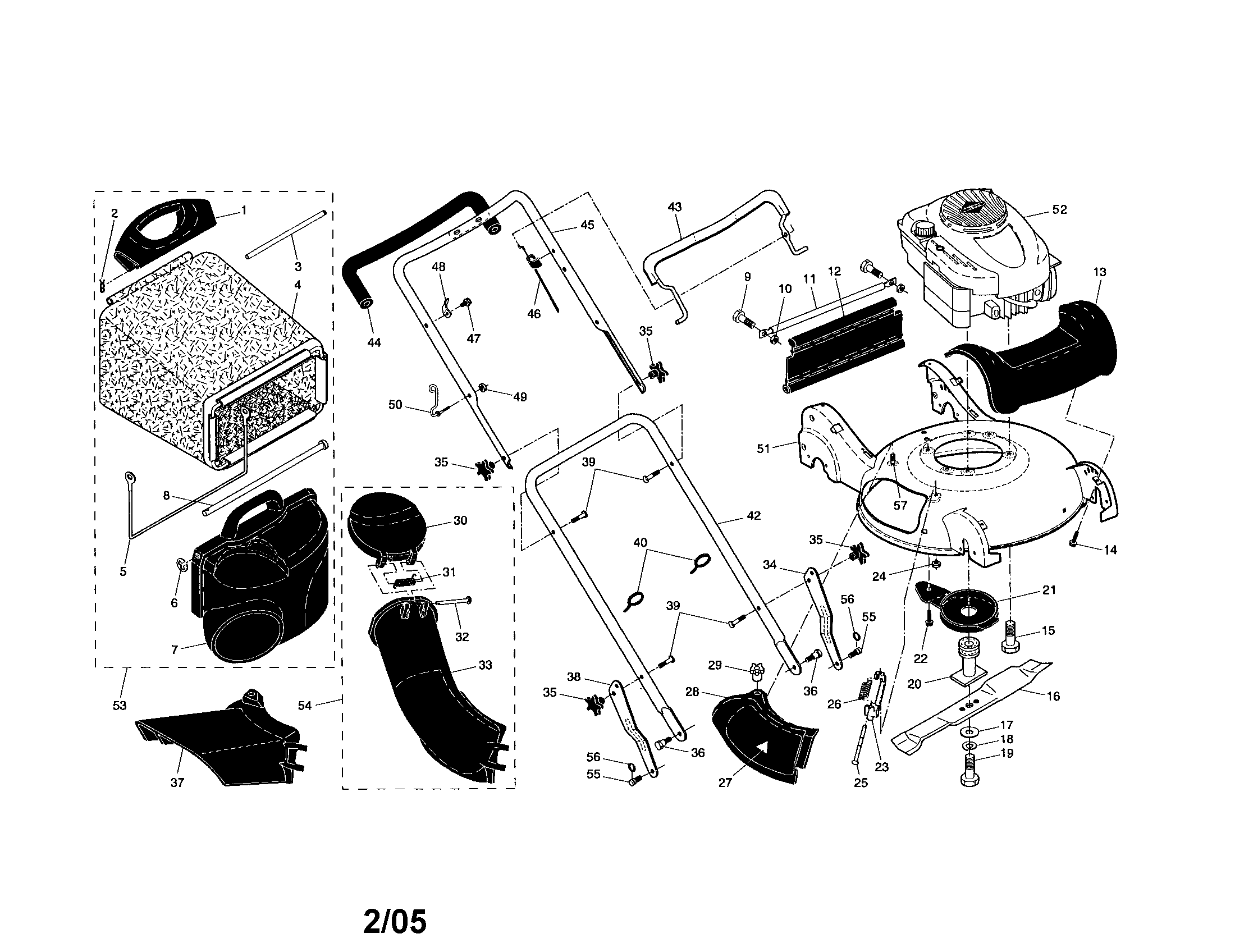

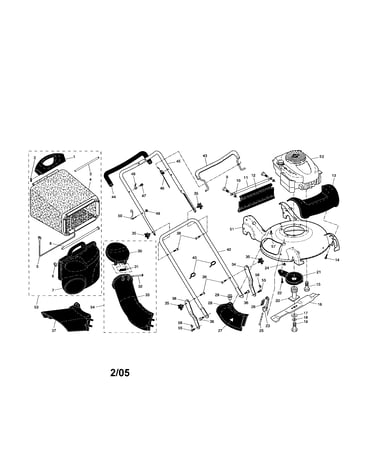

Engine/housing/handle/bag diagram

Lawn mower 21-in deck 3-in-1 blade (replaces 532189028, 5321890-28)

Part #189028

BEST SELLER

Get free shipping with Automatic Reorder

$12.13 |
39% OFF MSRP : $20.00
In Stock
Lock Nut 83923
#33

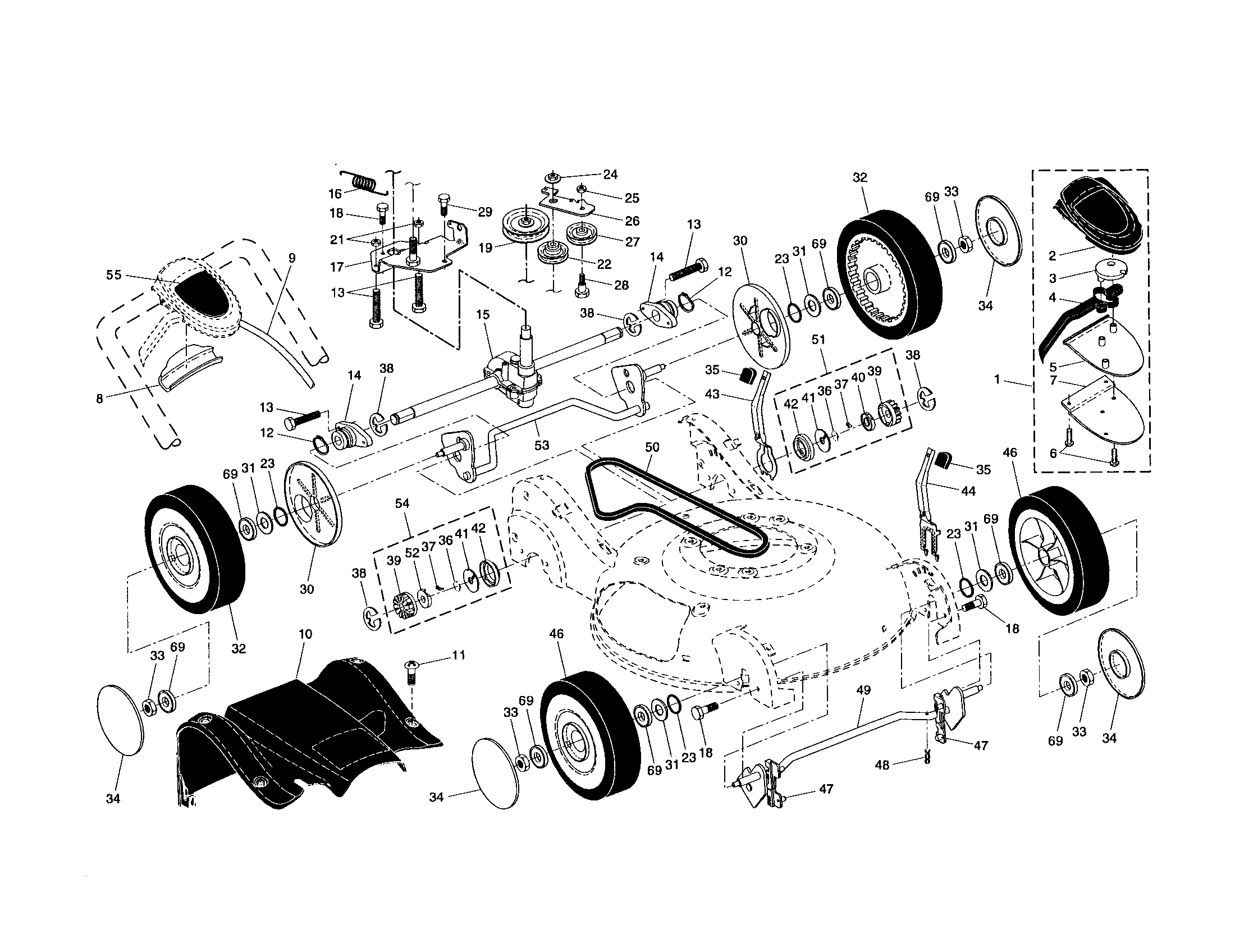

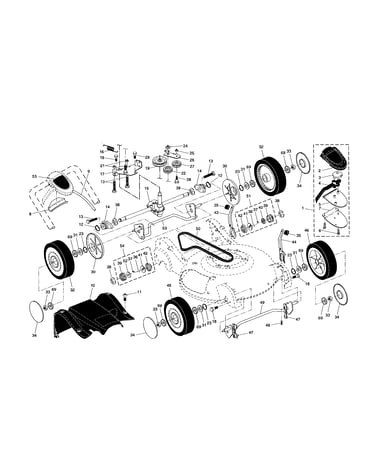

Wheels/tires/gearcase diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Hex Flange Lock Nut 145212
#24

Wheels/tires/gearcase diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Handle Bolt 191574
#39

Engine/housing/handle/bag diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.89 |
26% OFF Phone Price : $3.89
Back Order
Lawn Mower E-ring (replaces 12000057) 12000058
Lawn mower e-ring (replaces 12000057)

Part #12000058

BEST SELLER
This item is not returnable
$2.79 |
26% OFF Phone Price : $3.79
In Stock
Lawn Mower Drive Pawl (replaces 532175098, 5321750-98) 175098
#37

Wheels/tires/gearcase diagram

Lawn mower drive pawl (replaces 532175098, 5321750-98)

Part #175098

BEST SELLER
This item is not returnable
$2.20 |
31% OFF MSRP : $3.20
In Stock
Lawn Mower Drive Control Lever 190038
#4

Wheels/tires/gearcase diagram

Lawn mower drive control lever

Part #190038

Replaced by #583190501

?
Manufacturer substitution
This part replaces 190038. Substitute parts can look different from the original.
BEST SELLER
$14.42 |
42% OFF MSRP : $24.69
In Stock
Lawn Mower Ground Drive Belt, 5/16 X 34-5/8-in (replaces 532183688, 5321836-88) 183688
#50

Wheels/tires/gearcase diagram

Lawn mower ground drive belt, 5/16 x 34-5/8-in (replaces 532183688, 5321836-88)

Part #183688

The manufacturer no longer makes this part, and there's no substitute part

Spring 188291
#36

Wheels/tires/gearcase diagram

Spring

Part #188291

Replaced by #532188291

?
Manufacturer substitution
This part replaces 188291. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Mower Idler Pulley 166043
#27

Wheels/tires/gearcase diagram

Lawn mower idler pulley

Part #166043

$18.91 |
10% OFF Phone Price : $20.91
In Stock
