Model #A608S Maytag washer/dryer

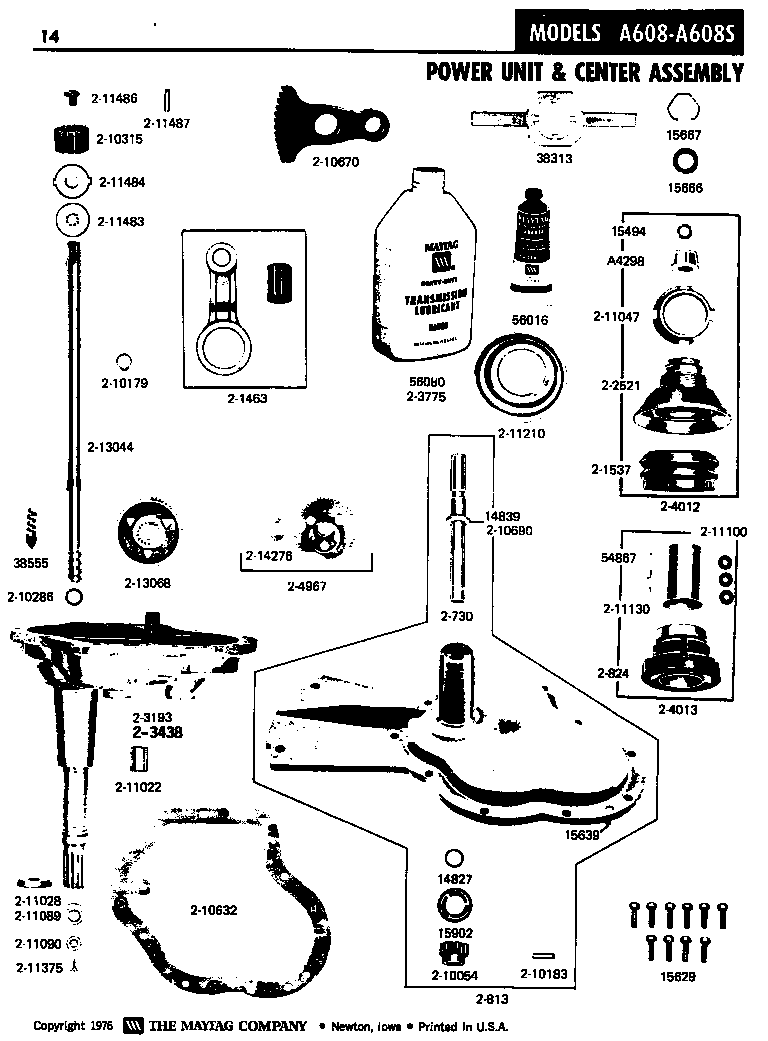

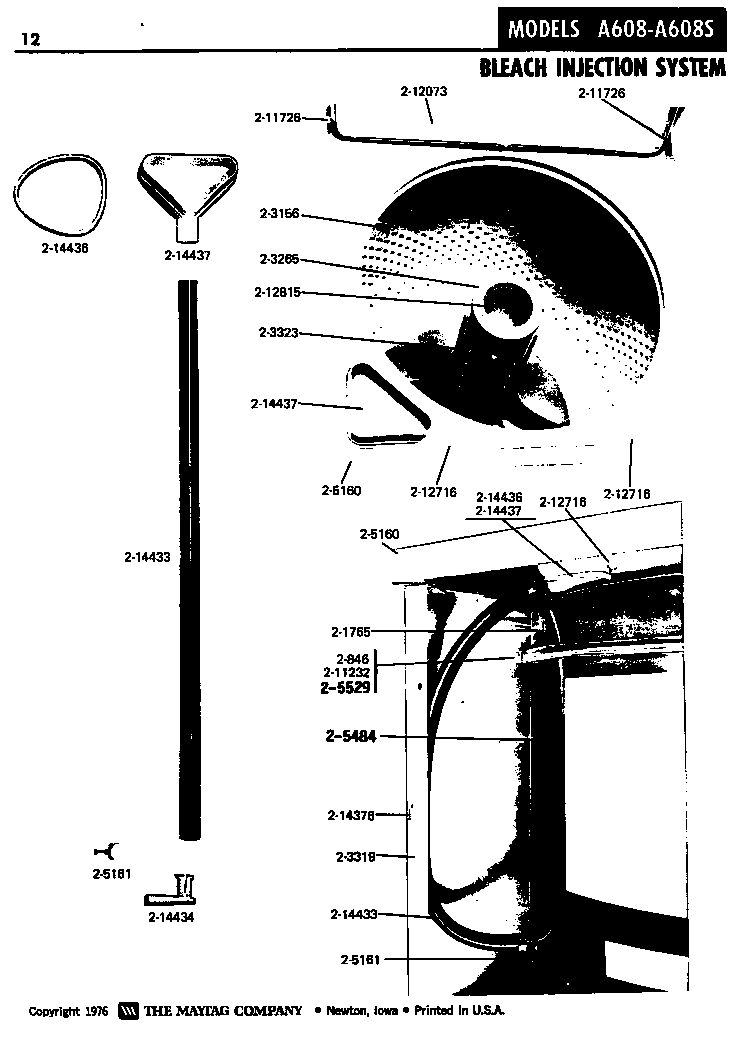

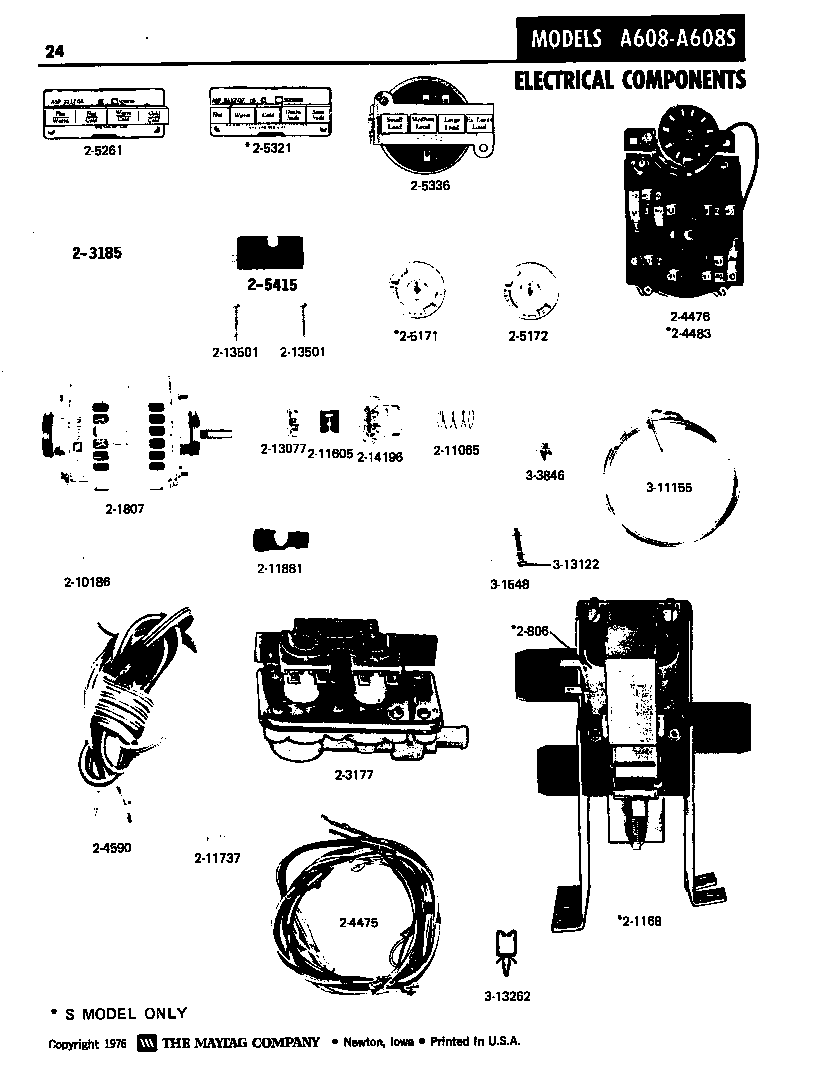

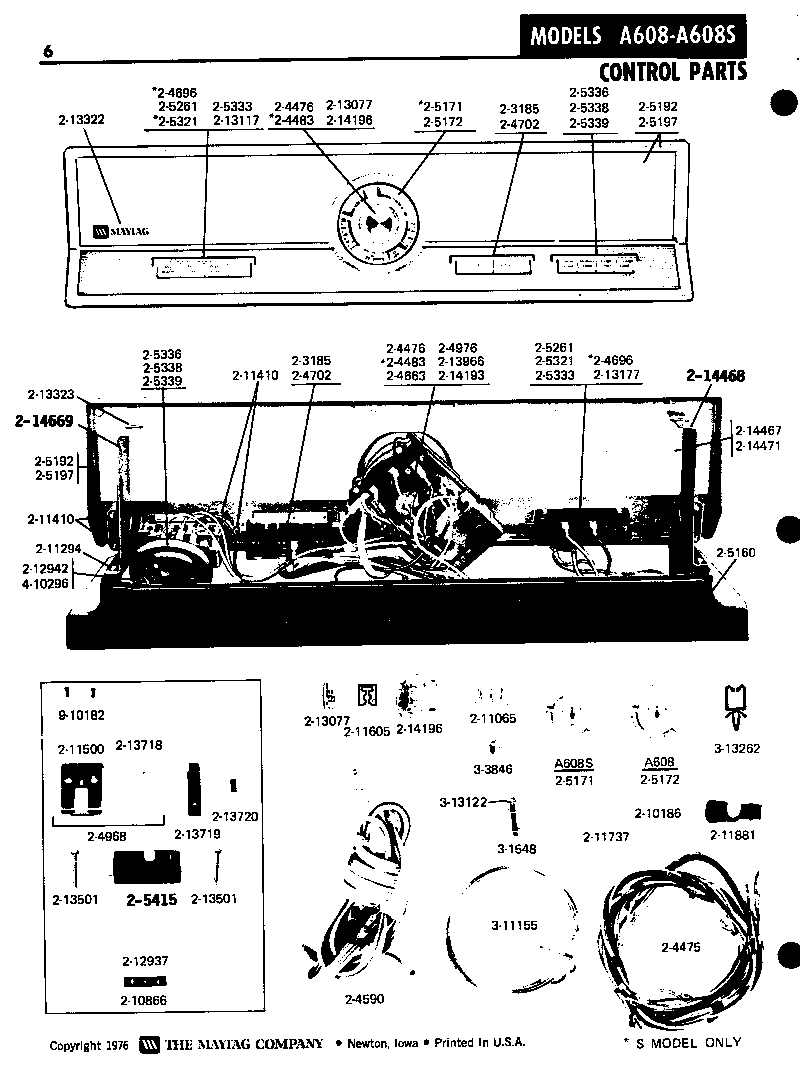

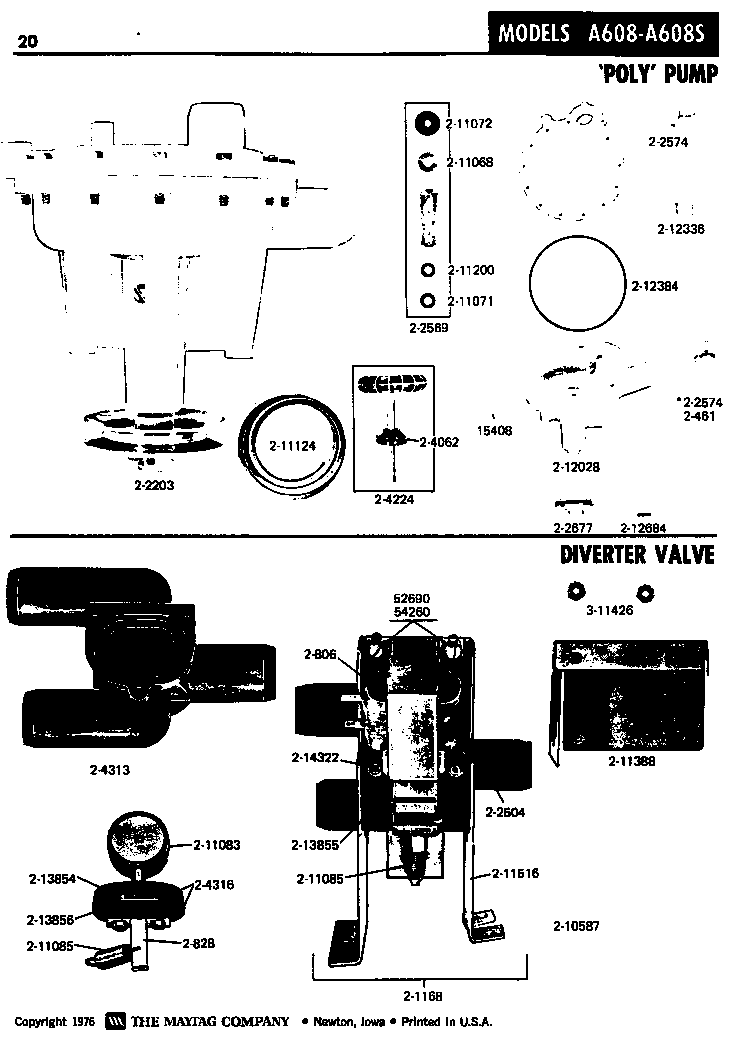

Here are the diagrams and repair parts for Maytag A608S washer/dryer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 258 parts

    Washer Moter Mount Roller and Spring Kit

    #29

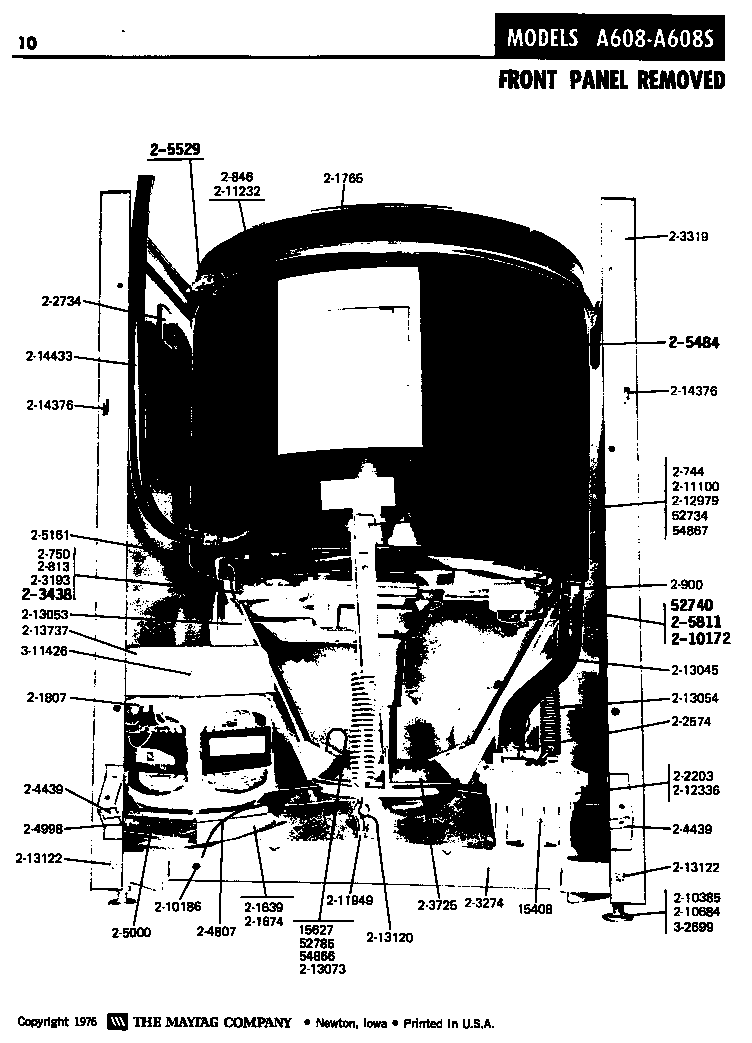

    Front panel removed Diagram

    $24.40 |
    30% OFF MSRP:$35.00

    In Stock

    Washer Injector Fill Hose and Tube

    #41

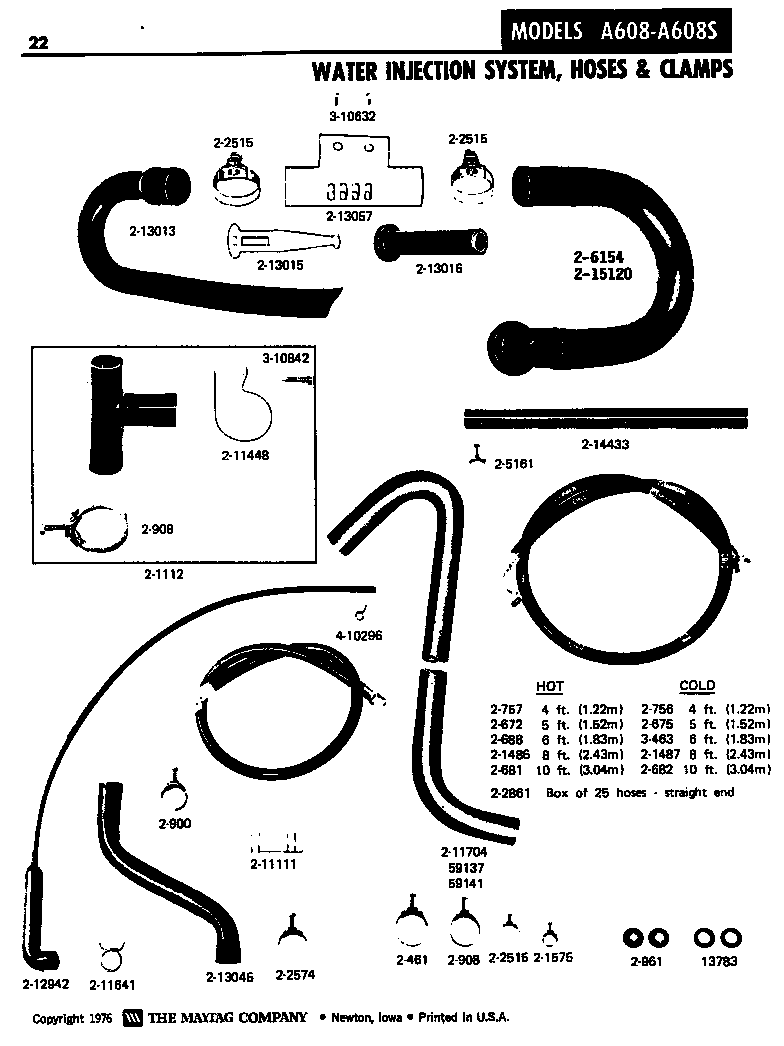

    Water injection system, hoses & clamps Diagram

    $49.81

    In Stock

    Washer Motor Tension Spring Set

    #17

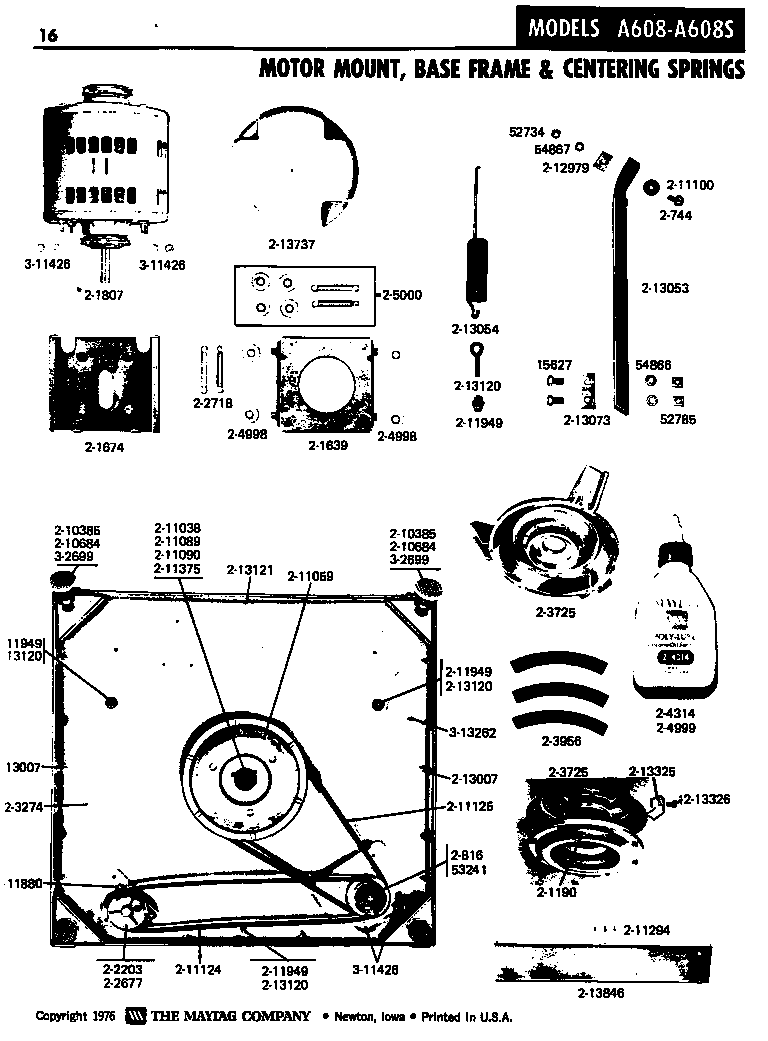

    Motor mount, base frame & centering sprs Diagram

    Washer motor tension spring set

    Part #202718
    This item is not returnable
    $3.50

    In Stock

    Cabinet Screw

    #25

    Front view Diagram

    Cabinet screw

    Part #213007
    $10.19

    In Stock

    Washer Damper Pad Kit

    #20

    Motor mount, base frame & centering sprs Diagram

    $28.63

    In Stock

    Nut & Bolt K

    #1

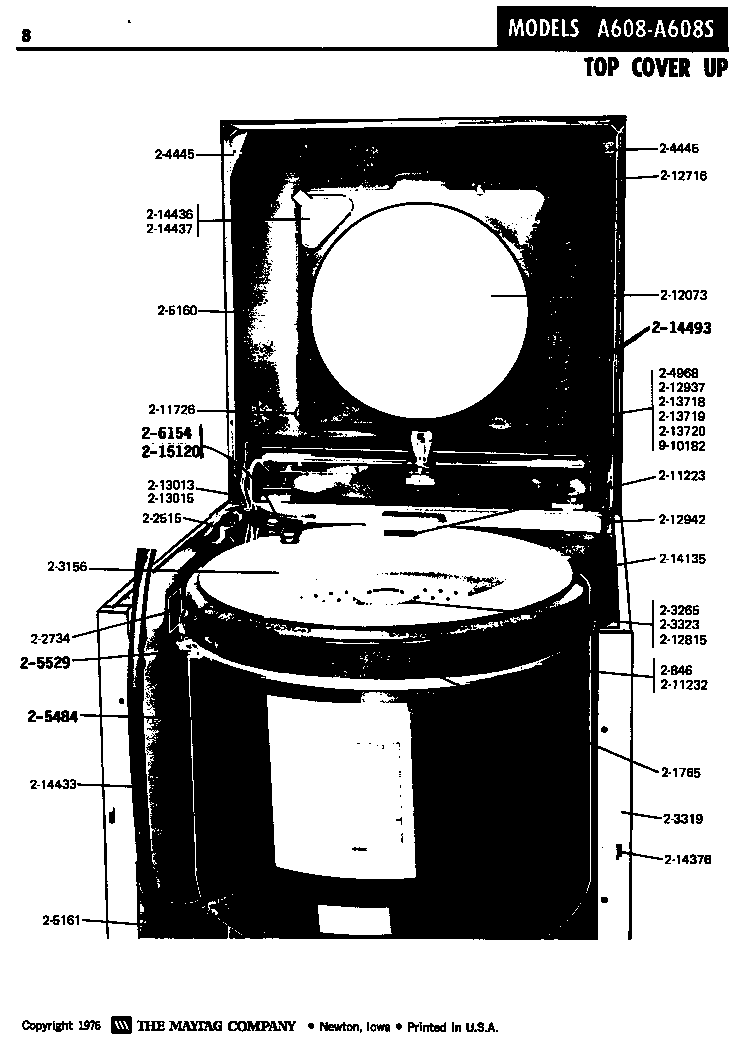

    Top cover up Diagram

    Nut & bolt k

    Part #205529
    This item is not returnable
    $4.78

    In Stock

    Washer Tub Cover Clamp

    #5

    Top cover up Diagram

    $45.71 |
    15% OFF MSRP:$54.00

    Back Order

    Washer Brake Assembly

    #8

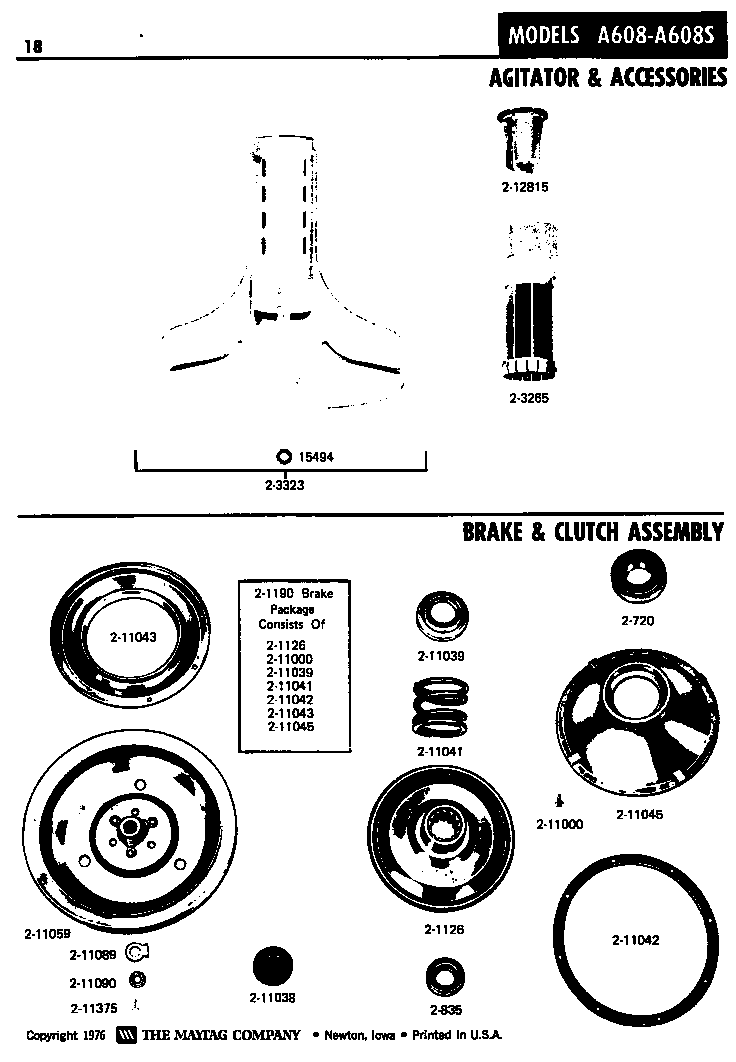

    Brake & clutch assembly Diagram

    Washer brake assembly

    Part #WP6-2011900
    ?
    Manufacturer substitution
    This part replaces 211041. Substitute parts can look different from the original.
    This part replaces 211041
    $87.79 |
    27% OFF MSRP:$120.00

    In Stock

    Washer Brake Assembly

    #10

    Brake & clutch assembly Diagram

    Washer brake assembly

    Part #WP6-2011900
    ?
    Manufacturer substitution
    This part replaces 211043. Substitute parts can look different from the original.
    This part replaces 211043
    $87.79 |
    27% OFF MSRP:$120.00

    In Stock

    Washer Stop Lug

    #13

    Brake & clutch assembly Diagram

    Washer stop lug

    Part #WP211089
    ?
    Manufacturer substitution
    This part replaces 211089. Substitute parts can look different from the original.
    This part replaces 211089
    This item is not returnable
    $6.29

    In Stock
