Model #GT530W Sunbeam outdoor grill

Here are the diagrams and repair parts for Sunbeam GT530W outdoor grill, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 40 parts

Gas Grill Igniter

#NI

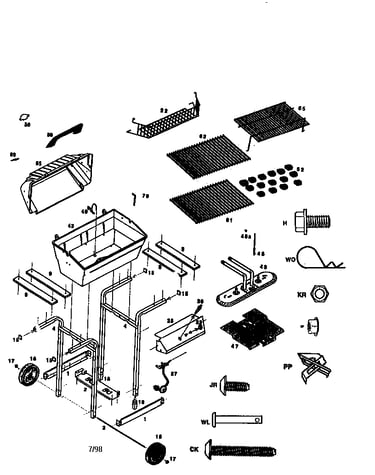

Gt530w Diagram

Gas grill igniter

Part #00404437
$7.99

In Stock

Gas Grill Cooking Grate

#63

Gt530w Diagram

$35.99

In Stock

Gas Grill Burner Assembly

#43

Gt530w Diagram

Gas grill burner assembly

Part #15102
?
Manufacturer substitution
This part replaces 35330100. Substitute parts can look different from the original.
This part replaces 35330100
$21.20

In Stock

Thread-Forming Screw, 8-pack

#43C

Gt530w Diagram

Thread-forming screw, 8-pack

Part #STD610805
?
Manufacturer substitution
This part replaces 00404422. Substitute parts can look different from the original.
This part replaces 00404422
This item is not returnable
$2.55

In Stock

Table

#9

Gt530w Diagram

Table

Part #1116011504

The manufacturer no longer makes this part, and there's no substitute part

Strap

#1

Gt530w Diagram

Strap

Part #0121043501

The manufacturer no longer makes this part, and there's no substitute part

Valve Assembly

#27

Gt530w Diagram

Valve assembly

Part #35170103

The manufacturer no longer makes this part, and there's no substitute part

Cylinder Retainer Pin

#78

Gt530w Diagram

Cylinder retainer pin

Part #32300109

The manufacturer no longer makes this part, and there's no substitute part

Basket

#22

Gt530w Diagram

Basket

Part #38220108

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Igniter Wire, 20-in

#NI

Gt530w Diagram

Gas grill igniter wire, 20-in

Part #402026

The manufacturer no longer makes this part, and there's no substitute part
