Are all refrigerators 36 inches wide?
No. Refrigerator widths vary by style and capacity, and many models are not 36 inches wide. For LG model LFXC24726D, the cabinet width is 35 3/4 inches (about 36 inches), as listed in the LFXC24726D owner's manual.
Most refrigerators fall into a few common width groups:
- 24 inches: compact and apartment-size models
- 28 to 33 inches: many top-freezer and smaller bottom-freezer models
- 33 to 36 inches: many French door and side-by-side models
- Over 36 inches: larger built-in or specialty configurations
“Width” is usually the cabinet width, but your fit depends on more than that.
| Measurement to check | Why it matters | Common gotcha |
|---|---|---|
| Cabinet width | Determines basic opening size | Trim kits and uneven walls reduce usable space |
| Door swing clearance | Ensures doors open fully | Nearby walls or islands block doors |
| Depth (with or without handles) | Prevents sticking out too far | Handles add noticeable depth |
| Front clearance | Allows drawers and doors to open | Tight kitchens limit access |
For LFXC24726D, the manual also calls out clearance needs such as at least 24 inches in front for door opening and about 2 inches behind for airflow and connections.
Choosing the right width and clearances prevents installation headaches, improves airflow around the condenser area, and helps your LG refrigerator cool efficiently without extra strain on components like the compressor.
Last updated: February 2026
What is the most common problem with an LG refrigerator?
The most common LG refrigerator complaint is not cooling well (fresh food too warm, freezer warming up, or temperatures that swing). On the LG LFXC24726D, this is often tied to airflow issues, doors not sealing, or the cooling system running longer than normal; use the LFXC24726D owner's manual troubleshooting tables to narrow it down.
- Give it time after power loss or install: cooling can take up to 24 hours to fully stabilize.
- Confirm doors close completely: frequent opening or doors not fully shut makes the compressor run longer.

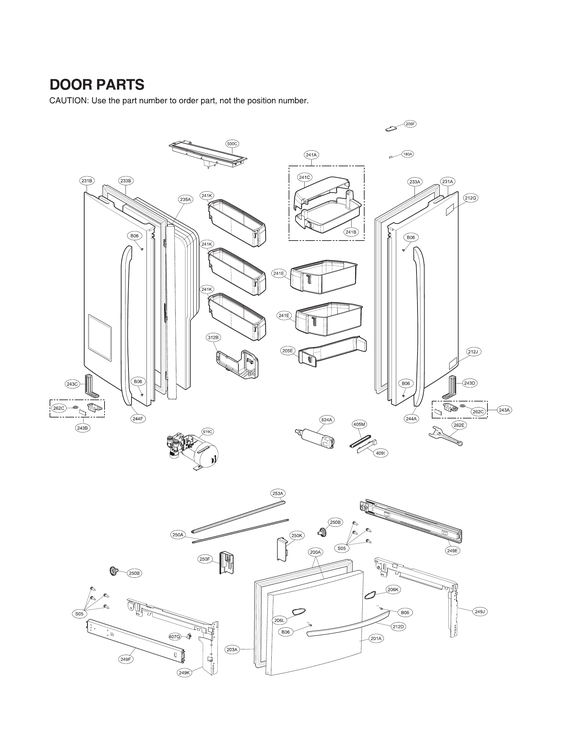

- Look for gasket problems: dirty or sticky gaskets can prevent a tight seal.
- Avoid overloading vents: blocked vents reduce airflow and cause warm spots.
- Listen for repeated clicking: clicking can point to a compressor start issue or a control problem.
| Symptom | Most likely cause | What to do next |
|---|---|---|
| Fridge warm, freezer also warming | Cooling system not removing heat efficiently | Clean airflow paths; if still warm, sealed-system diagnosis is next |
| Fridge slightly cool, freezer warm | Airflow/defrost issue in freezer section | Check for frost buildup and fan airflow; review manual troubleshooting |
| Clicking from rear, not cooling | Compressor struggling to start | Stop repeated restarts; have the compressor/start circuit checked |
| Runs “all the time” but temps drift | Doors opened often, warm food load, or poor sealing | Reduce door openings; verify gasket seal and door alignment |

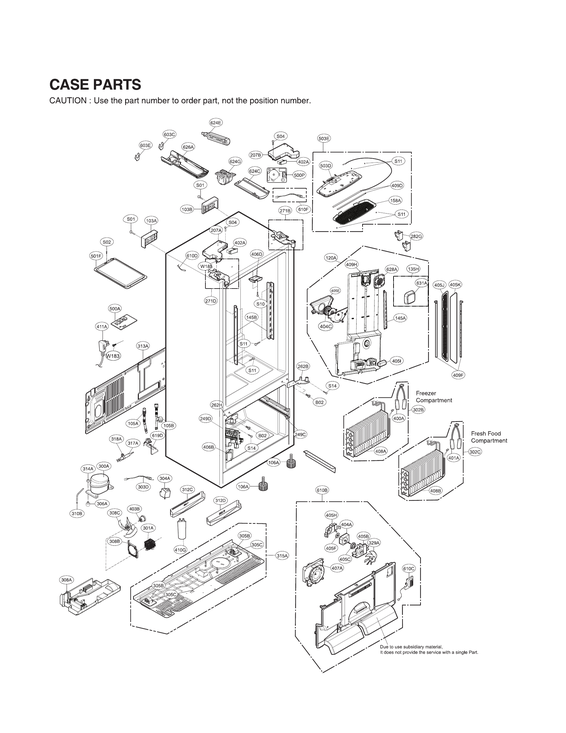

If basic checks do not restore normal temperatures, these model-specific parts are often involved in cooling complaints:
- Refrigerator compressor TCA38091801 (drives the sealed system)
- Refrigerator condenser coil ACG73645004 (rejects heat; restricted airflow hurts cooling)
- Refrigerator evaporator ADL73341411 (absorbs heat in the cooling cycle)
- Refrigerator defrost sensor assembly 6615JB2005R (defrost sensing issues can lead to frost and poor airflow)
Running warm can spoil food quickly and also forces the compressor to run longer, which increases wear and energy use. Catching door-seal and airflow problems early is the fastest way to prevent bigger cooling-system repairs.
Last updated: February 2026
Why is my LG refrigerator leaking from the bottom?
On an LG LFXC24726D bottom-mount refrigerator, a leak from the bottom is usually caused by defrost water not draining into the drain pan (most often a clogged or frozen defrost drain), or by water/ice maker issues that overflow and run down to the base of the cabinet.

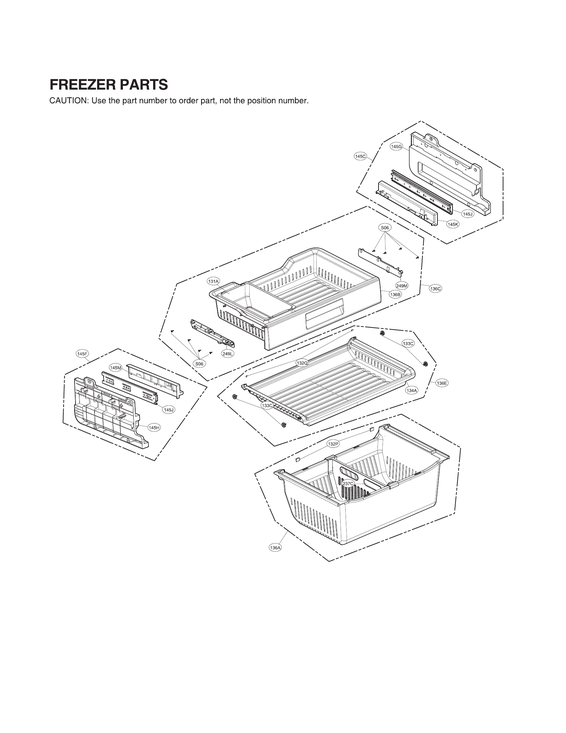

- Look for a sheet of ice or standing water under the freezer drawer; that points to a clogged defrost drain.
- Check for water pooling under the front kick plate area; that can be the drain pan overflowing.
- If the ice maker has been OFF for more than a few hours, empty the ice bin to prevent melting and leaking.
- Inspect the water supply line connection at the back for drips.

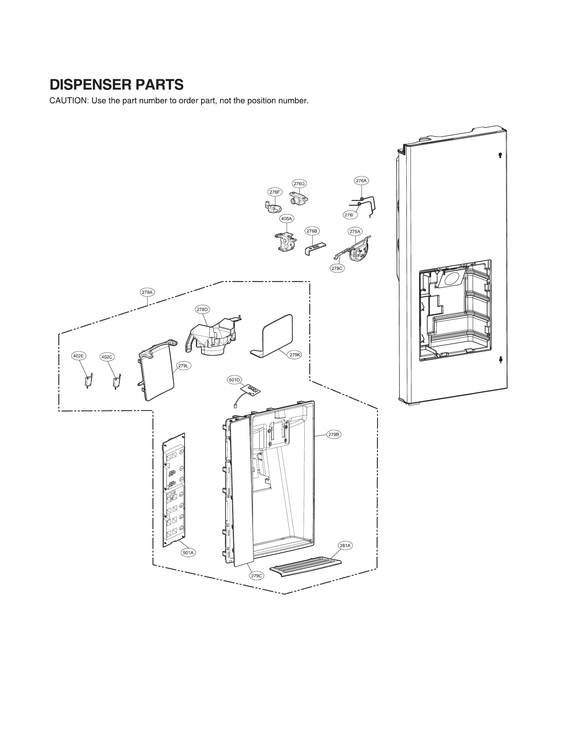

- If the leak happens only when dispensing water or making ice, focus on the inlet valve and dispenser/ice maker circuit.
| Likely cause | What you’ll notice | What we recommend |
|---|---|---|
| Clogged/frozen defrost drain | Water under freezer, then leaking out the bottom | Clear the drain opening and flush with hot water; confirm water flows to the drain pan |

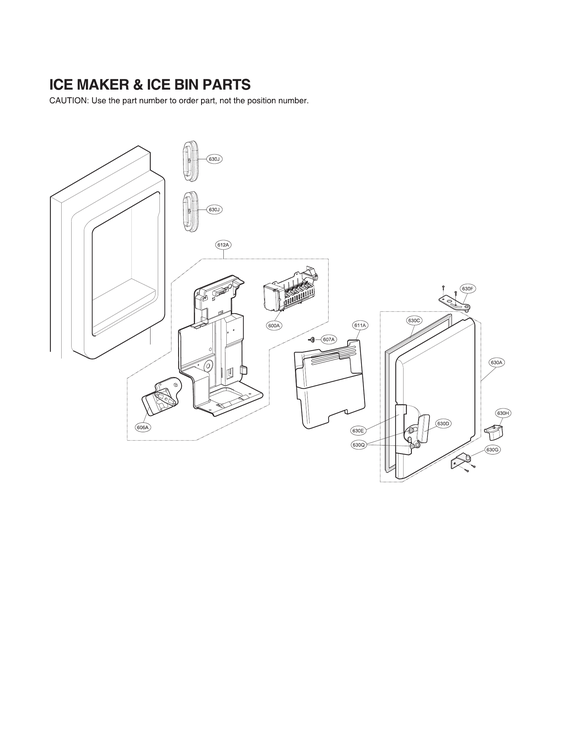

| Ice maker melt or overflow | Leak after ice maker is turned OFF, or heavy frost in ice path | Empty the bin when ice maker is OFF; clear frost in the ice passage |

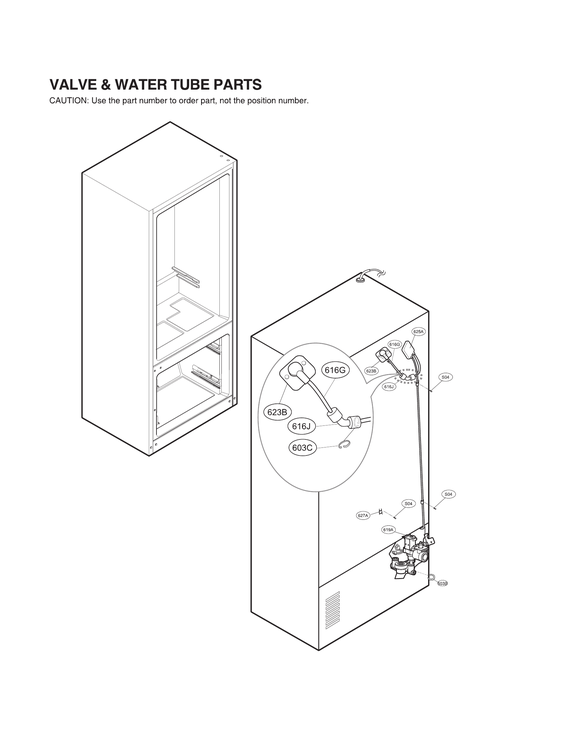

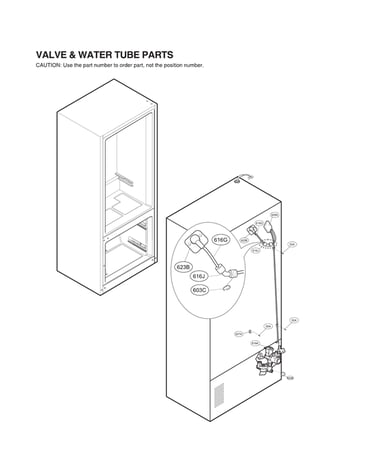

| Water inlet valve leaking or not closing | Slow drip, puddles near back/bottom, ice maker overfills | Test/replace the valve if it seeps when not energized |
- Refrigerator drain tube 5251JA3003D (helps route defrost water; damage or blockage can contribute to leaks)
- LG refrigerator water inlet valve AJU72992603 (controls water to the dispenser and ice maker)
- Refrigerator water inlet valve assembly AJU74532703 (alternate valve assembly used on some configurations)
A bottom leak can lead to floor damage and can also create ice buildup under the freezer drawer, which can interfere with door sealing and airflow. Fixing the drain path or water supply issue quickly prevents repeat leaks.
- Use the owner's manual for ice bin handling and operating guidance (including preventing melt-related leaks when the ice maker is OFF).
- For step-by-step prevention and diagnosis, follow how to prevent water dispenser and ice maker problems.
Last updated: February 2026
