Whirlpool WRFF3436RZ00 bottom-mount refrigerator Parts

Bottom-mount refrigerators like the Whirlpool WRFF3436RZ00 are “better” for many households because the fresh-food section sits at eye and waist level, so you reach less for everyday items. The tradeoff is that frozen foods are lower, so you bend more to access the freezer drawer.

What “better” usually means in day-to-day use

• More ergonomic fresh-food access: milk, produce, and leftovers are easier to see and grab.

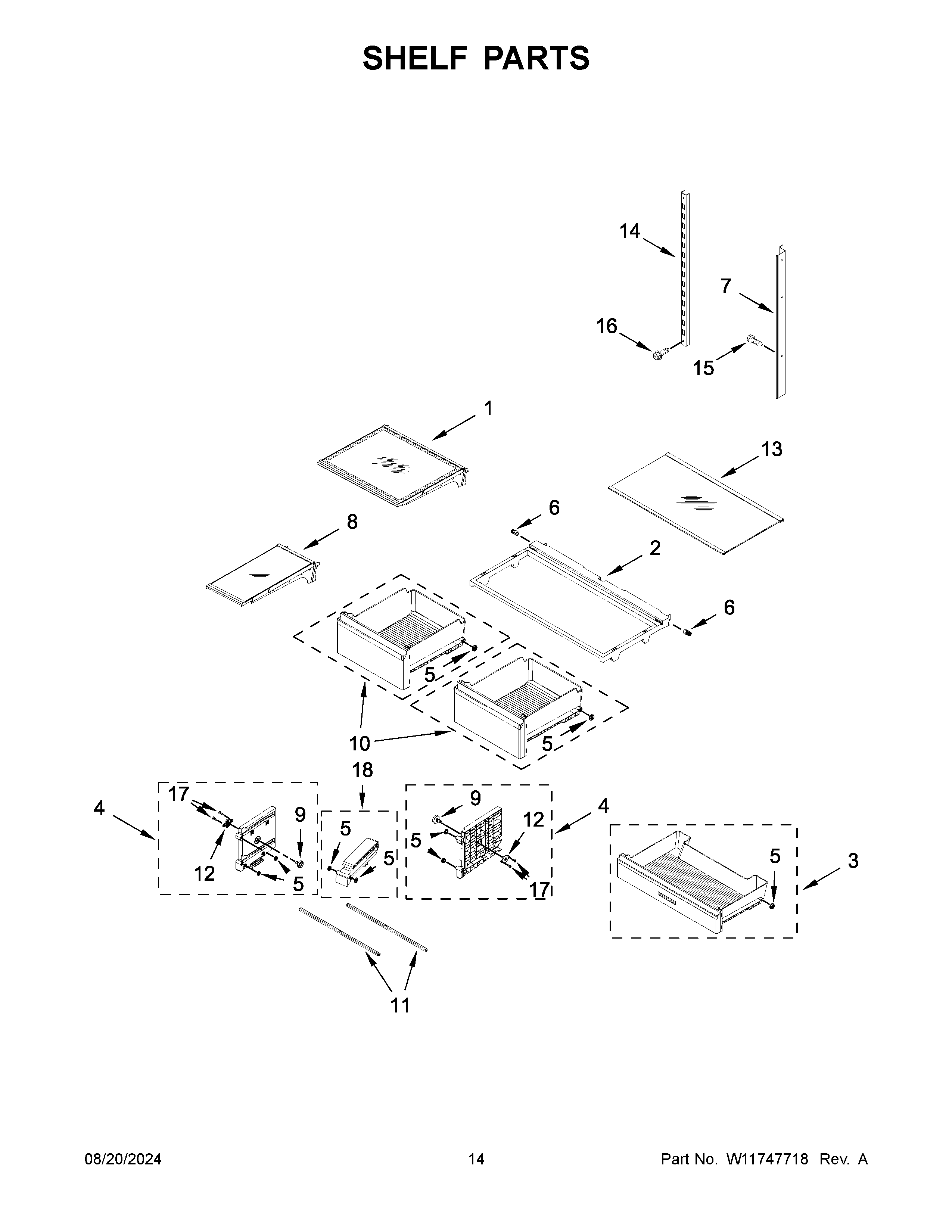

• Improved organization: wide shelves and crisper drawers make meal prep and grocery storage simpler.
• Freezer drawer storage: good for bulk items, but you may need to dig or stack bins.
• Good fit for frequent cooks: fresh ingredients stay front-and-center.
• Similar cooling performance: overall cooling depends more on airflow, seals, and maintenance than freezer location.

Quick comparison: bottom-mount vs top-freezer

Feature	Bottom-mount (like WRFF3436RZ00)	Top-freezer
Fresh-food access	Higher, easier reach	Lower, more bending
Freezer access	Lower drawer	Upper door/shelf
Organization	Often more flexible	Often simpler, fewer zones
Typical buyer	Cooks often, wants convenience	Budget-focused, wants simplicity

When a bottom-mount is the right choice

A bottom-mount is a strong pick if you:

• open the refrigerator section far more than the freezer
• want better visibility of fresh foods (less forgotten produce)
• prefer drawer-style freezer storage for bags, boxes, and bulk items

Why it matters

Layout affects how often doors stay open and how easily you keep food organized. Better organization and faster access can help temperatures stay steadier and reduce wear on components like door switches and gaskets.

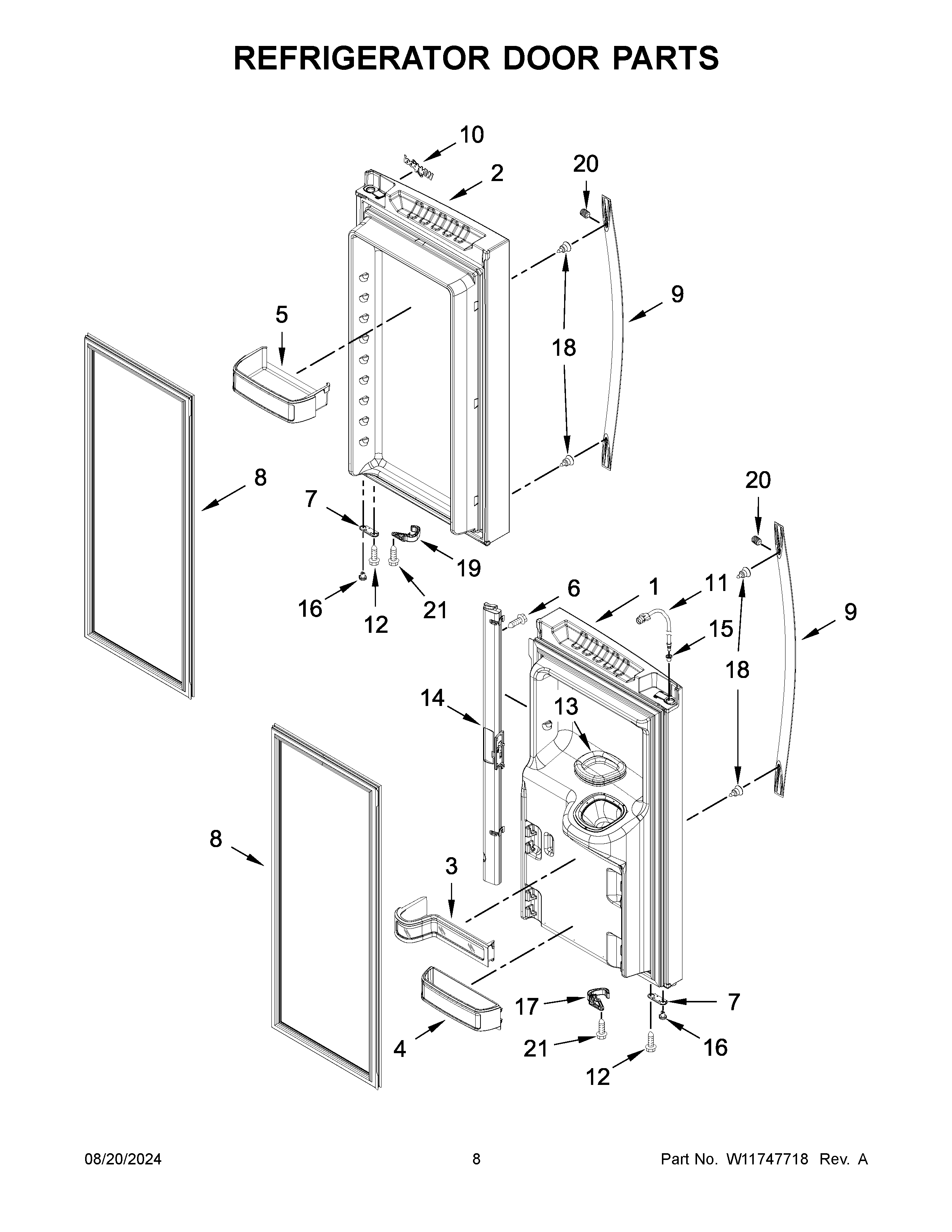

If you are troubleshooting door-related issues that affect cooling or lights, the refrigerator door switch W11396033 is a common wear item to check on this model.

Last updated: January 2026

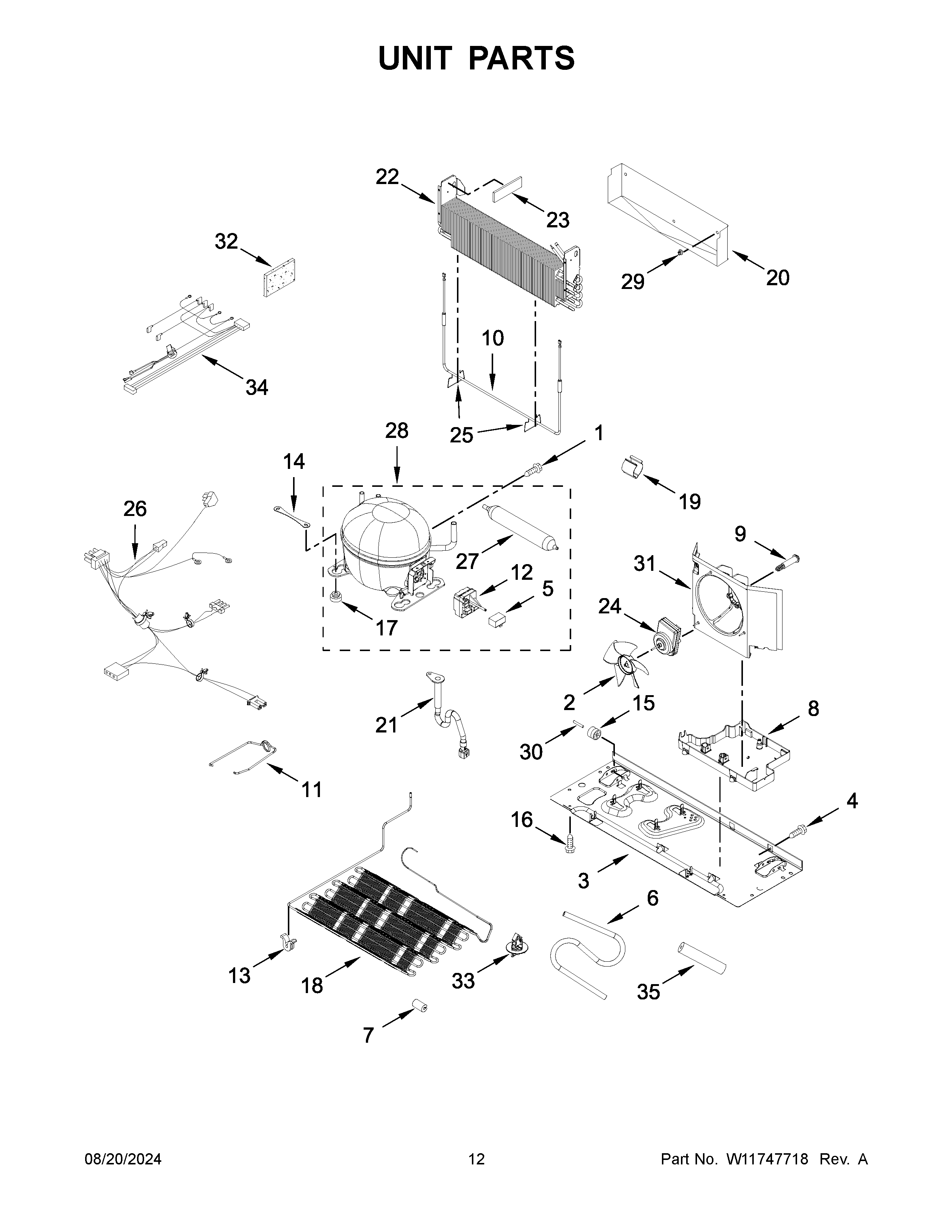

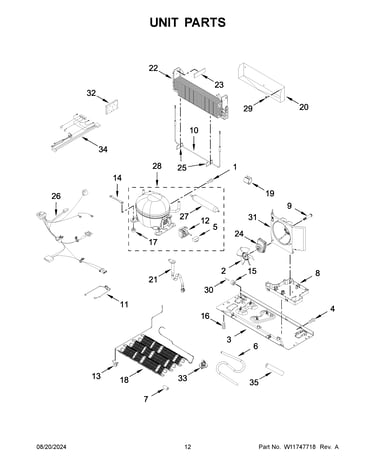

The most common Whirlpool refrigerator problem is a cooling complaint: the fridge is warm, the freezer is warm, or the unit runs constantly. On the Whirlpool WRFF3436RZ00, the most frequent root causes are airflow restrictions (dirty condenser coils, blocked vents) or a failed airflow component such as the refrigeration appliance evaporator fan motor and wire harness W11661931.

What to check first (fast, no-parts steps)

• Confirm temperature settings: about 37°F for fresh food and 0°F for freezer.
• Make sure air vents inside both compartments are not blocked by food packages.
• Clean condenser coils and the area around the condenser fan (dust buildup is a top cause of poor cooling).
• Verify both doors close fully; look for gaps, torn gasket areas, or a door that bounces open.

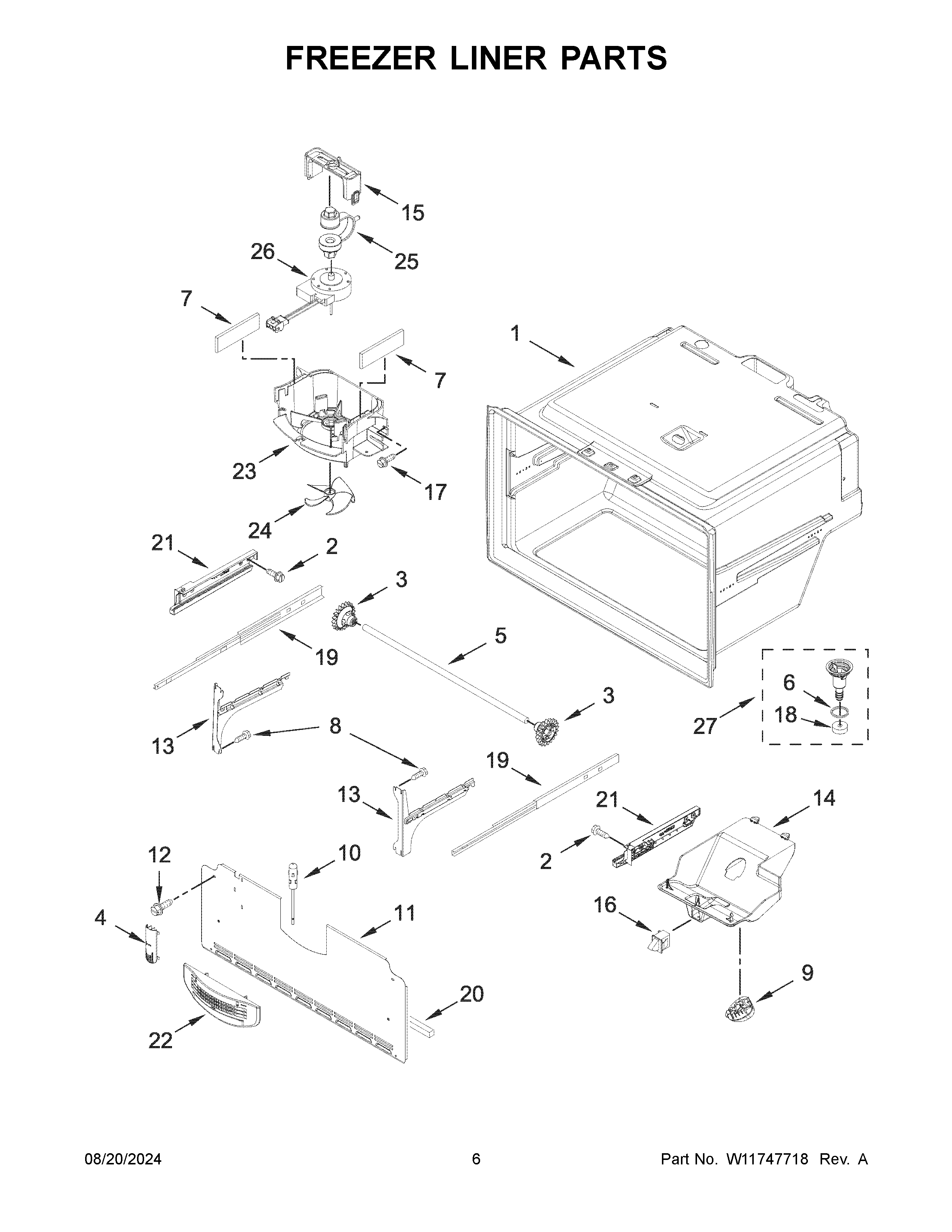

• Listen for the evaporator fan in the freezer area; a failed fan often means weak cooling in the refrigerator section.

Common Whirlpool refrigerator issues and what they usually point to

Symptom	Most common cause	Typical fix

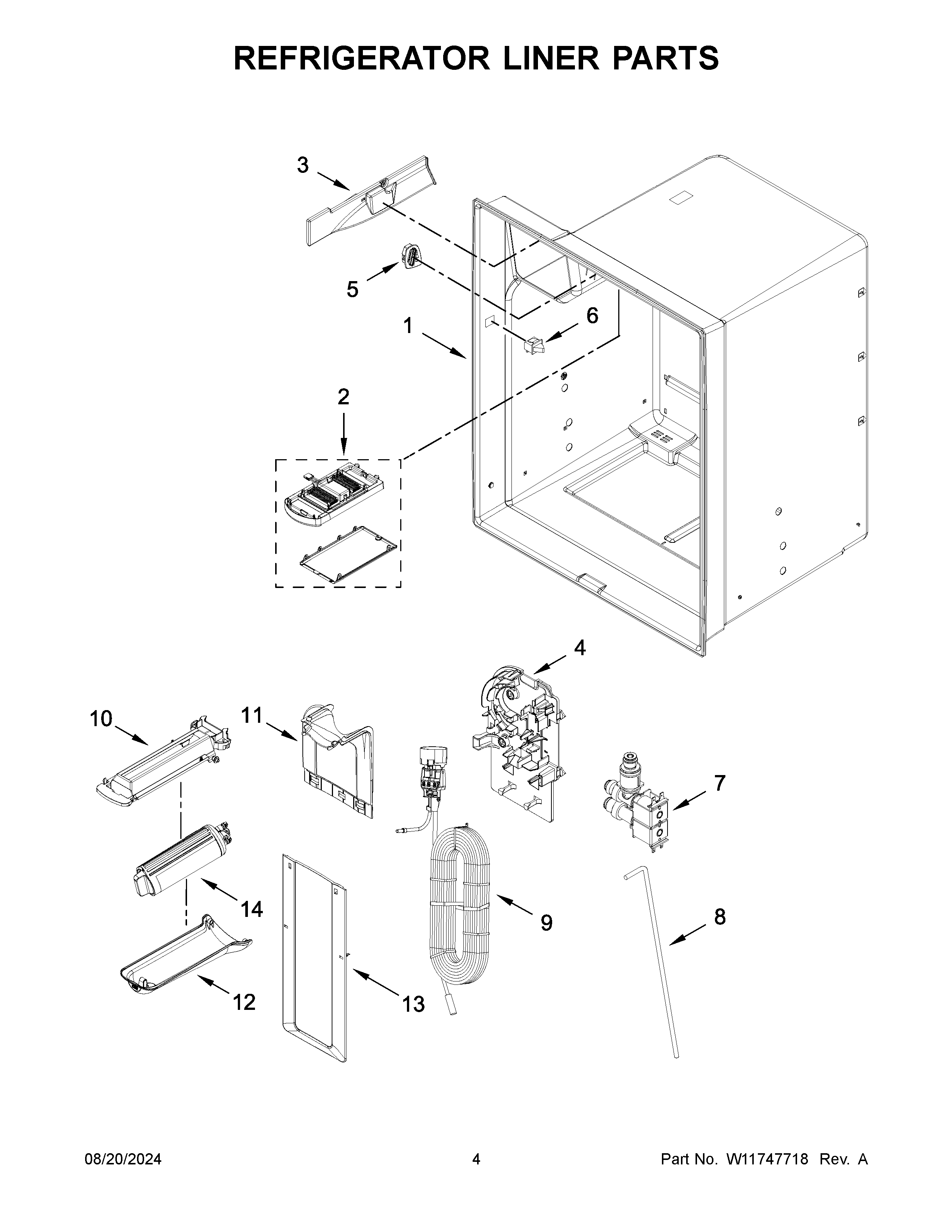

Refrigerator warm, freezer OK	Poor airflow from freezer to fridge	Check damper and evaporator fan; consider refrigerator damper control assembly WPW10196393
Both sections warm, runs a lot	Dirty coils or airflow restriction	Clean coils; improve clearance
Lights do not work when door opens	Door switch issue	Test/replace refrigerator door switch W11396033
Frost buildup, weak airflow	Evaporator fan issue or defrost problem	Inspect fan, clear ice, service as needed

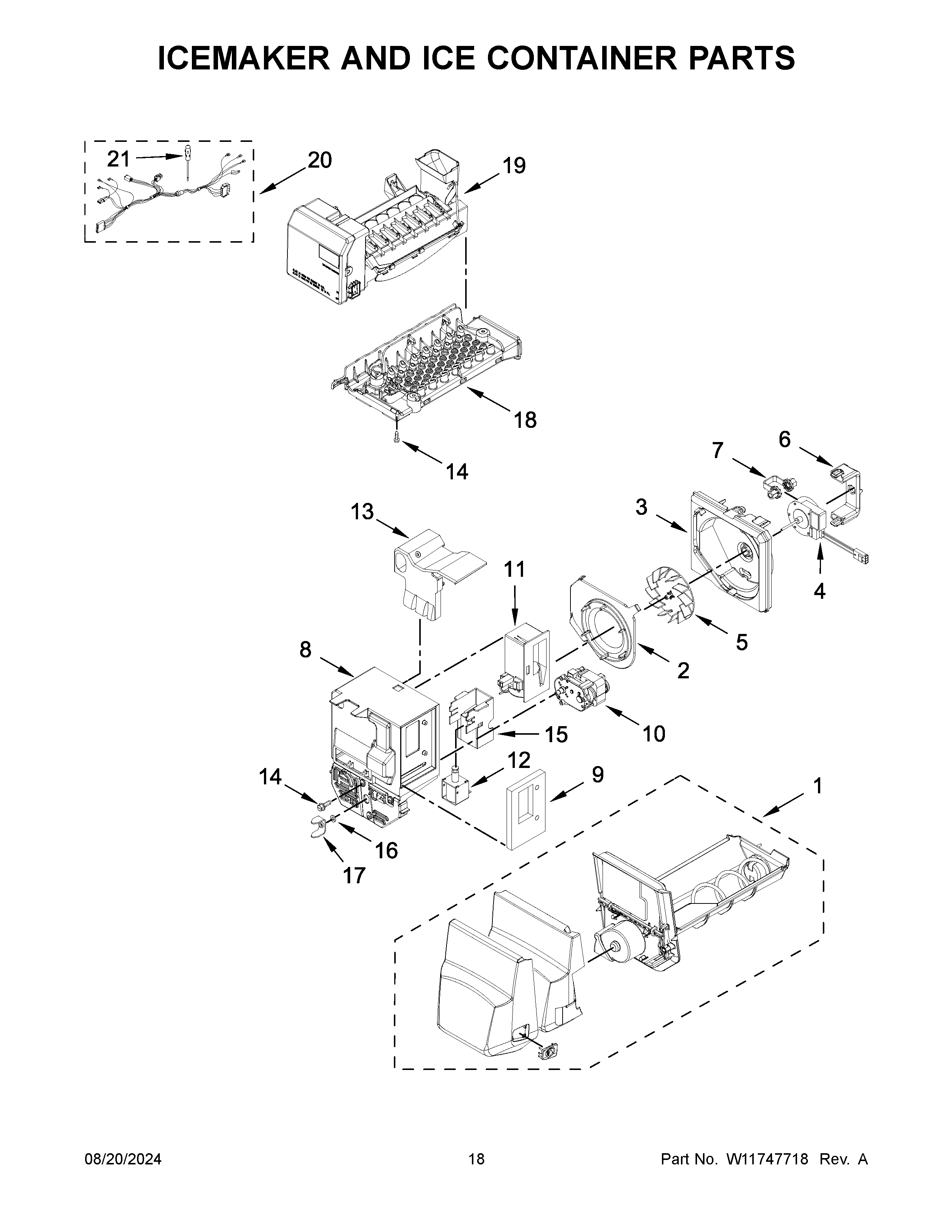

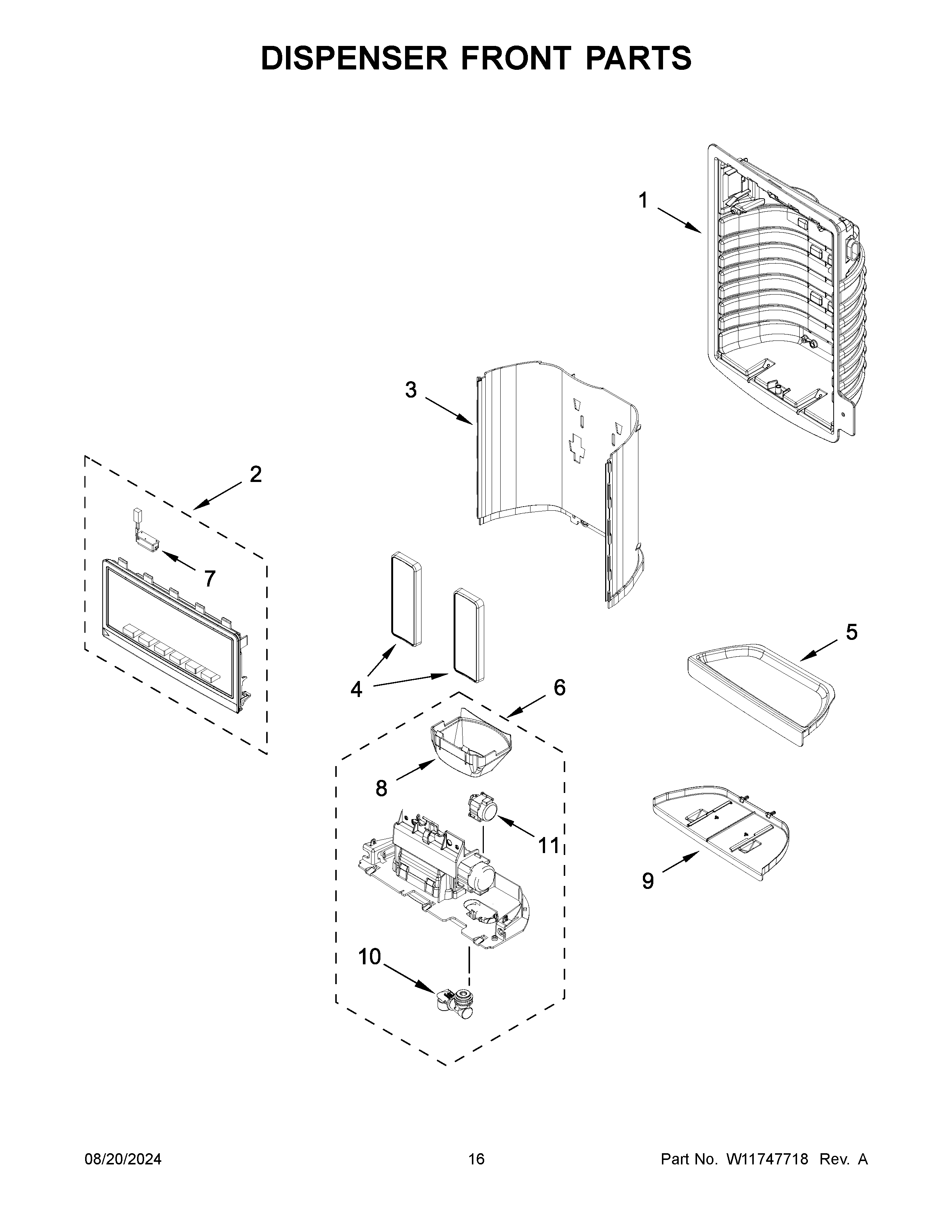

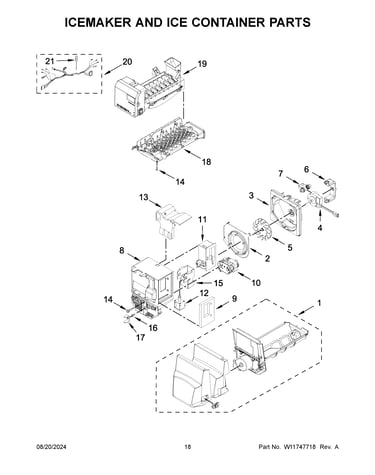

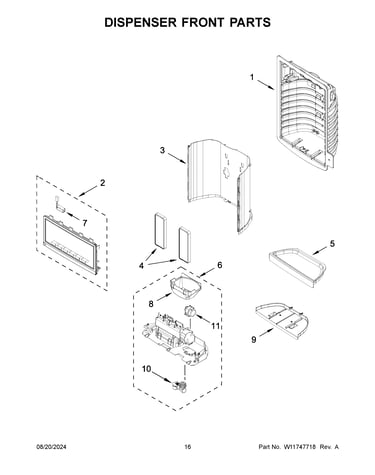

Ice maker or dispenser problems	Water supply, filter, or dispenser drive issues	Follow how to prevent water dispenser and ice maker problems

Why it matters

Cooling problems can quickly lead to food spoilage and can also overwork the compressor. Addressing airflow and coil cleanliness early often restores normal temperatures and reduces run time.

When a part is likely needed

Replace or service a component when you see one of these:

• Evaporator fan not running but compressor is running
• Damper not opening or airflow into fresh food section is weak
• Door switch does not click or does not change the light behavior

Last updated: January 2026

Your Whirlpool bottom-mount refrigerator’s model number is printed on the appliance’s rating label. On WRFF3436RZ00 units, that label is typically inside the fresh food compartment on a side wall or near the ceiling; match the full model exactly for correct parts.

Where to look on a bottom-mount refrigerator

Check these common rating-label locations first:

• Inside the refrigerator compartment on the left or right side wall (often near the crisper area)
• On the ceiling of the fresh food compartment near the light housing
• Along the door opening (the cabinet frame) behind the refrigerator door gasket
• Inside the freezer drawer opening on the cabinet frame (less common)

What the label looks like and what to copy

The rating label usually includes the model and serial information together. Copy the model number exactly as shown.

Label item	What to do	Why it matters
Model number	Write it exactly (example: WRFF3436RZ00)	Ensures diagrams and parts match your exact build
Serial number	Record it too	Helps confirm production run when parts vary
Electrical info	Leave as reference	Useful for troubleshooting and service

Tips to avoid ordering the wrong part

Once you find the label, use the model number to select parts that fit WRFF3436RZ00.

• Use the full suffix (the “00” at the end matters)
• Do not use a similar-looking family number from the door badge
• If the label is hard to read, take a clear photo and zoom in
• When replacing common items (like a door switch), match by model first, then by part ID

If you are troubleshooting a door light issue while you are checking the label, the parts list for this model includes the refrigerator door switch W11396033.

Why it matters

Whirlpool refrigerators often have small design changes across revisions; using the exact WRFF3436RZ00 model number is the fastest way to get the correct door gasket, damper control, ice maker, or lighting parts.

Last updated: March 2026
