Thermador
Refrigerator

Model # T24BR70FS-03 Official Thermador built-in refrigerator column

Here are the diagrams and repair parts for Official Thermador T24BR70FS-03 built-in refrigerator column, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

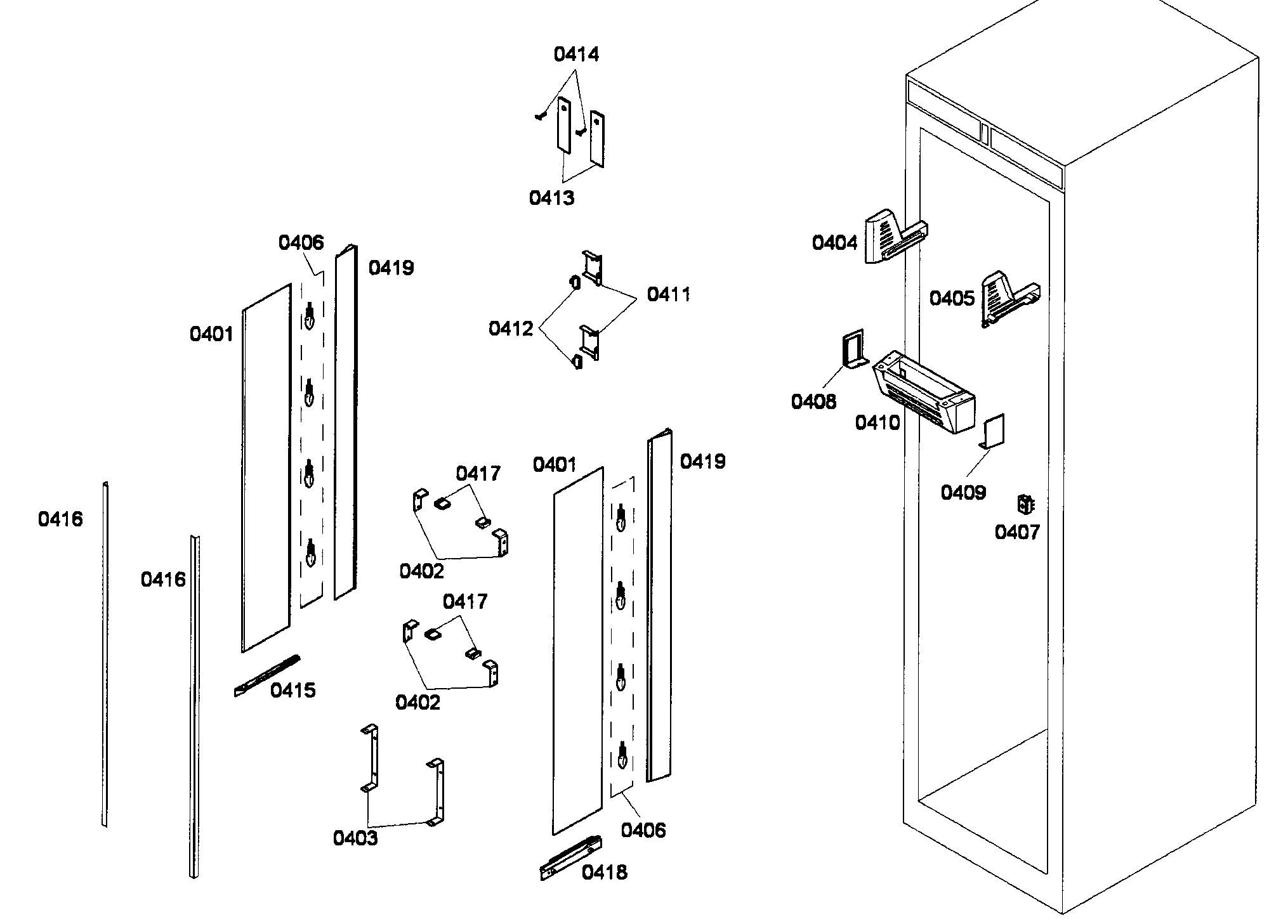

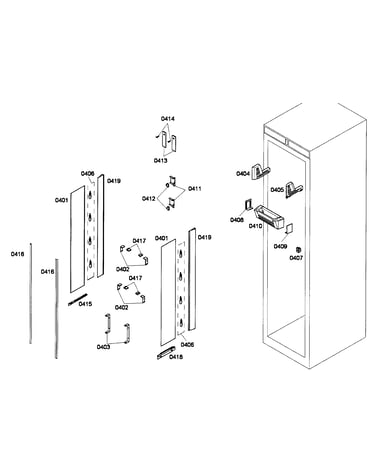

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |

Fan 643804
#534

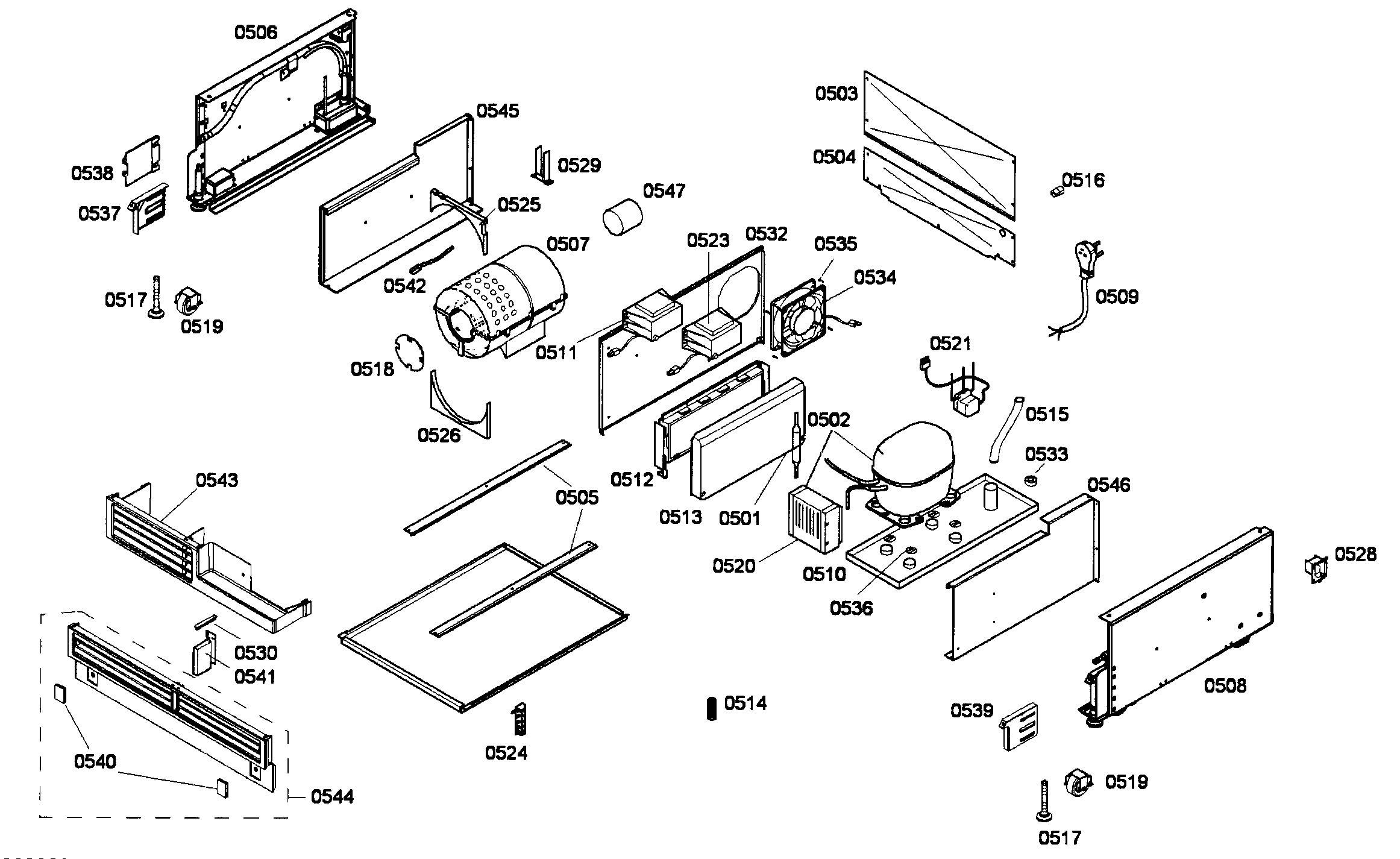

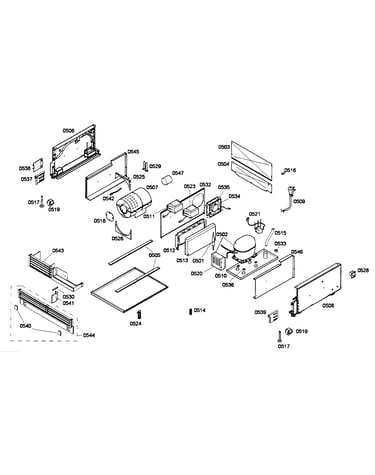

Compressor diagram

Fan

Part #643804

Replaced by #00652338

?
Manufacturer substitution
This part replaces 643804. Substitute parts can look different from the original.
$97.79
9% OFF Phone Price : $107.79
In Stock
Refrigerator Tray 661361
#223

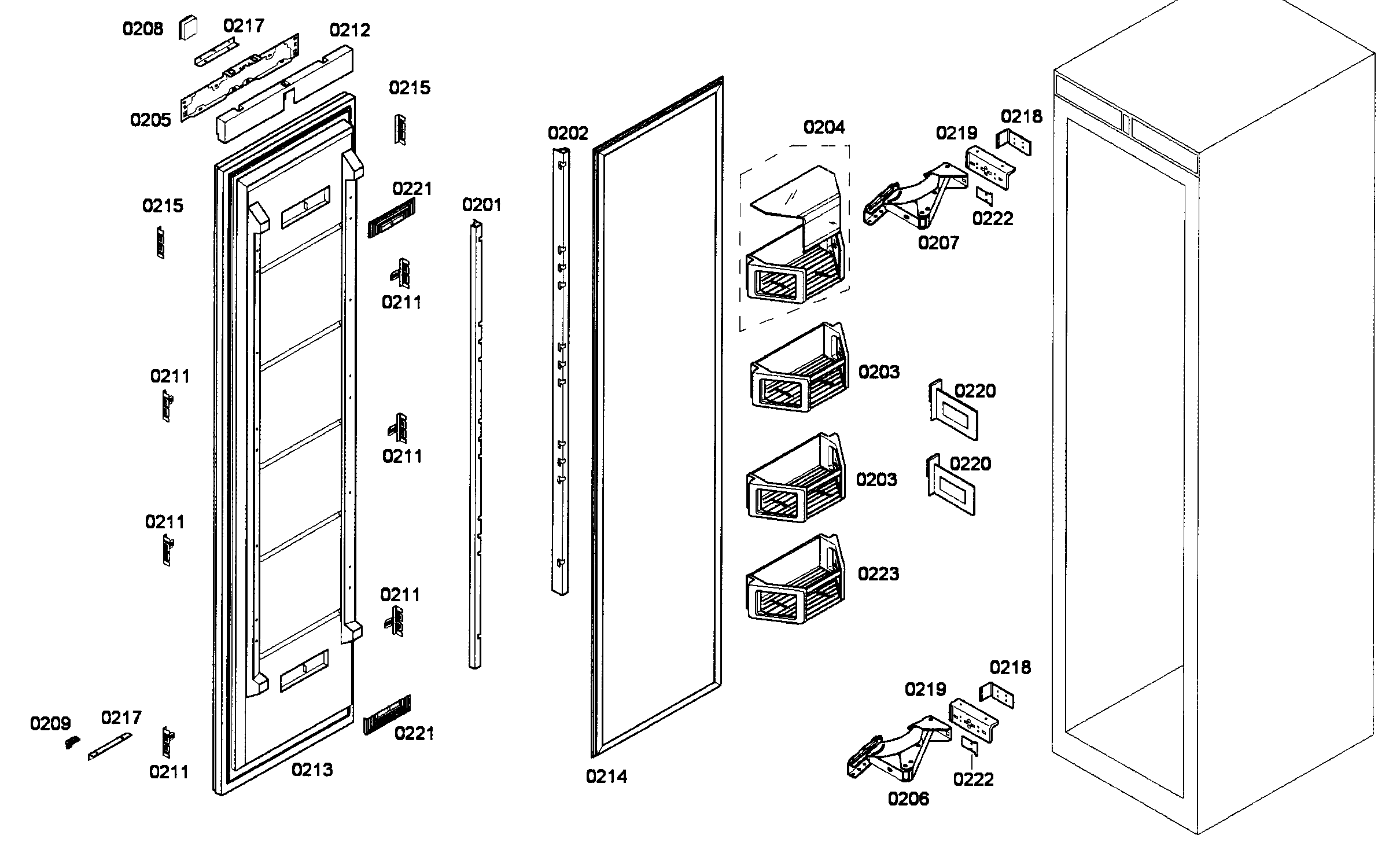

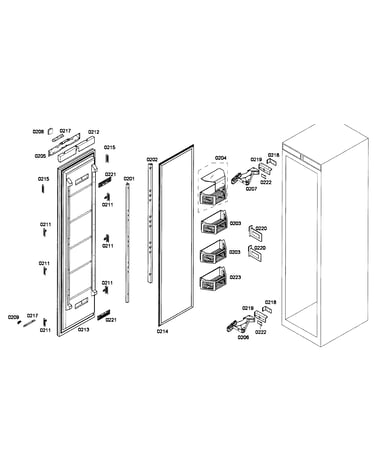

Door assy diagram

Refrigerator tray

Part #661361

Replaced by #00661361

?
Manufacturer substitution
This part replaces 661361. Substitute parts can look different from the original.
Back Order
Sensor 617203
#130

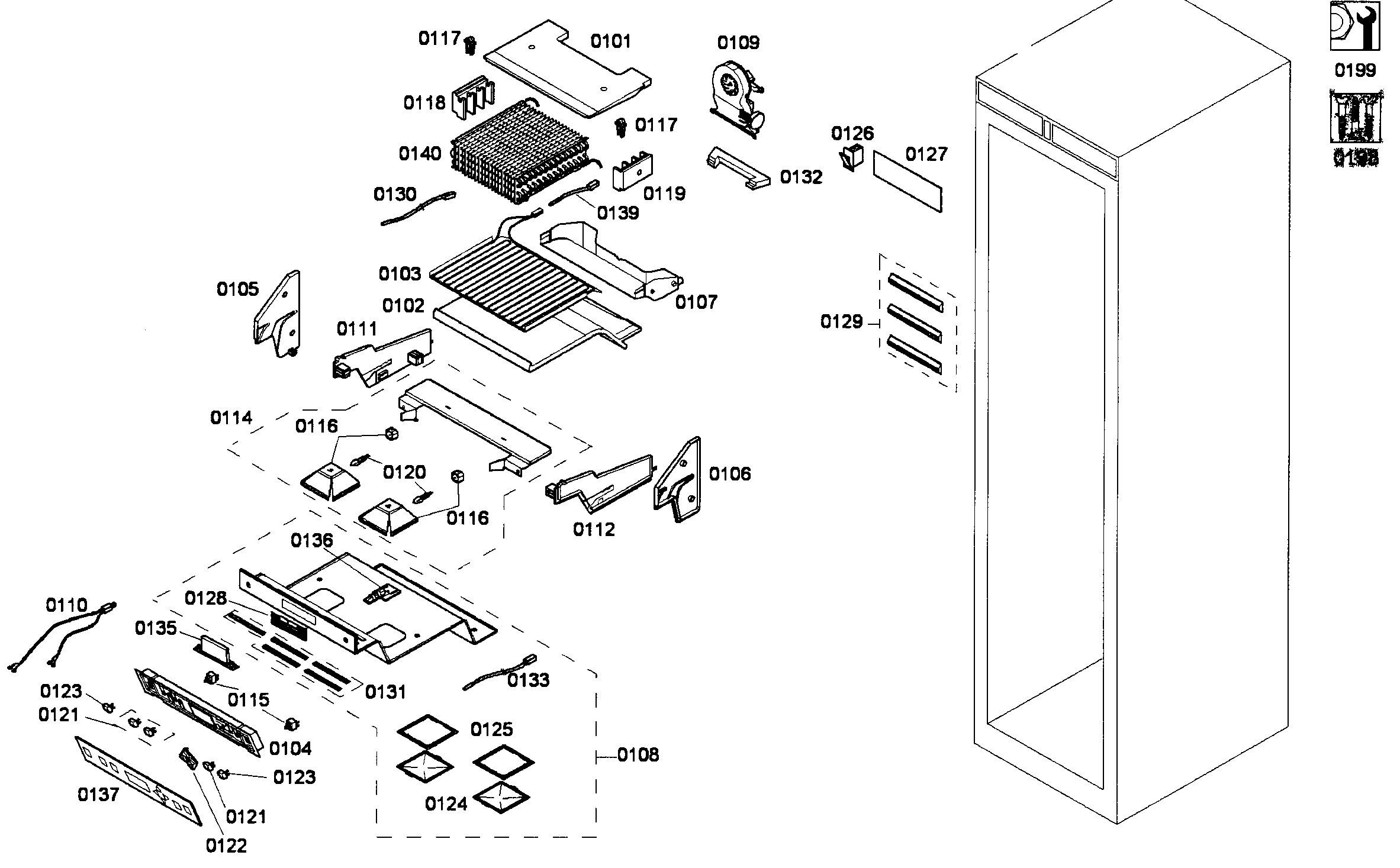

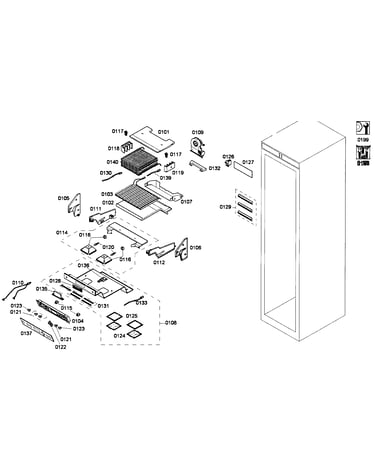

Cabinet assy diagram

Sensor

Part #617203

Replaced by #00617203

?
Manufacturer substitution
This part replaces 617203. Substitute parts can look different from the original.
This item is not returnable
$23.59
17% OFF Phone Price : $28.59
In Stock
Transformer 499928
#511

Compressor diagram

Transformer

Part #499928

Replaced by #11006454

?
Manufacturer substitution
This part replaces 499928. Substitute parts can look different from the original.
In Stock
Fixing Kit 604240
#209

Door assy diagram

Fixing kit

Part #604240

Replaced by #00635355

?
Manufacturer substitution
This part replaces 604240. Substitute parts can look different from the original.
In Stock
Door Seal 247252
#214

Door assy diagram

Door seal

Part #247252

Replaced by #00716384

?
Manufacturer substitution
This part replaces 247252. Substitute parts can look different from the original.
$142.09
7% OFF Phone Price : $152.09
In Stock
Refrigerator Fan Motor 676779
#109A

Cabinet assy diagram

Refrigerator fan motor

Part #676779

Replaced by #11025496

?
Manufacturer substitution
This part replaces 676779. Substitute parts can look different from the original.
$252.59
$10.00 OFF Phone Price : $262.59
In Stock
Pcb 605679
#325

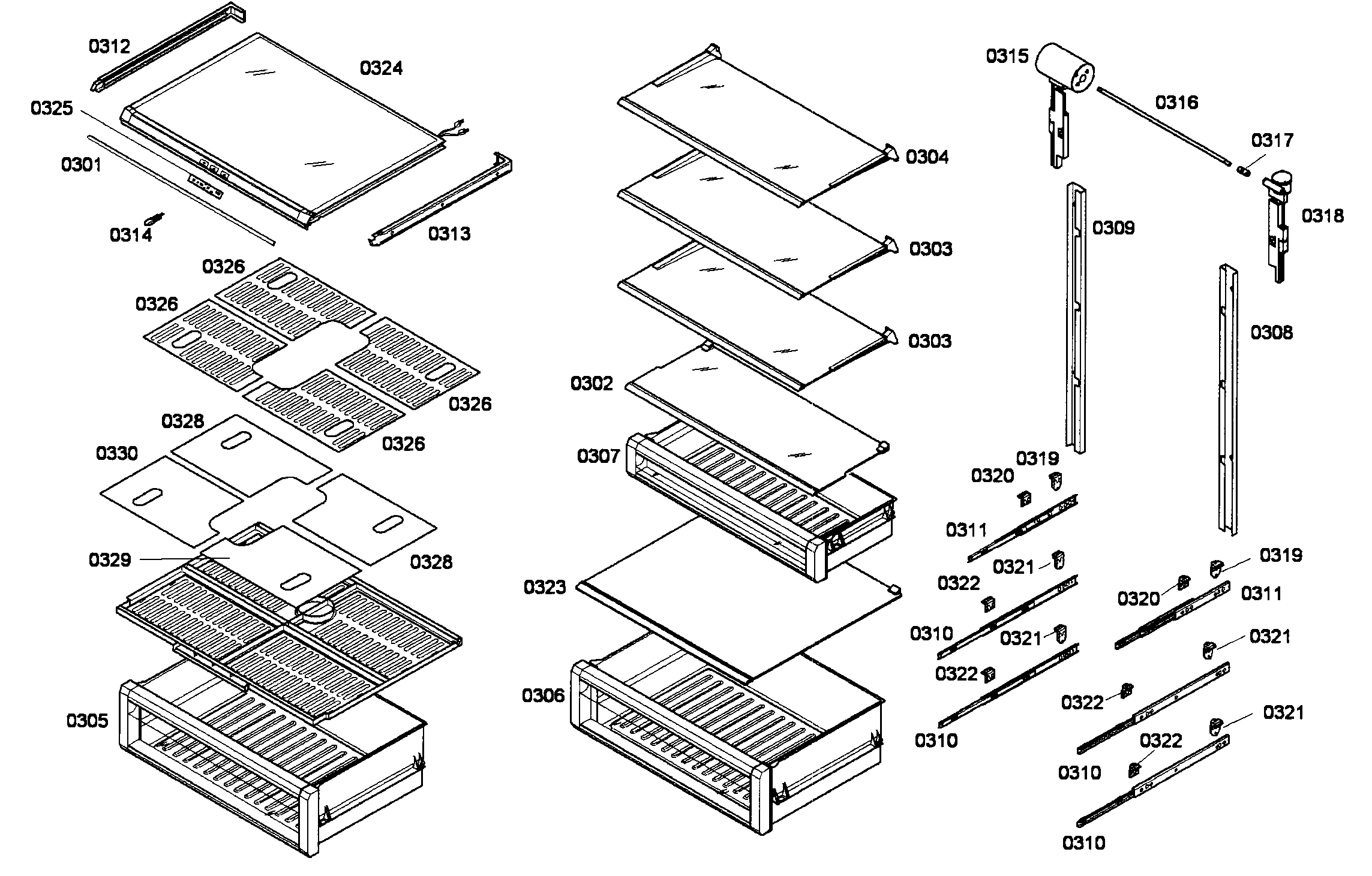

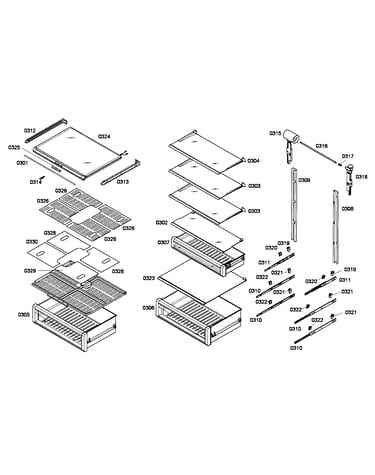

Shelfs assy diagram

Pcb

Part #605679

Replaced by #00637527

?
Manufacturer substitution
This part replaces 605679. Substitute parts can look different from the original.
In Stock
Fuse Therm 615792
#139

Cabinet assy diagram

Fuse therm

Part #615792

Replaced by #00615792

?
Manufacturer substitution
This part replaces 615792. Substitute parts can look different from the original.
In Stock
Refrigerator Fan Motor 671889
#109

Cabinet assy diagram

Refrigerator fan motor

Part #671889

Replaced by #11025496

?
Manufacturer substitution
This part replaces 671889. Substitute parts can look different from the original.
$252.59
$10.00 OFF Phone Price : $262.59
In Stock
