Model # 21759310 Official Craftsman 5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 21759310 5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

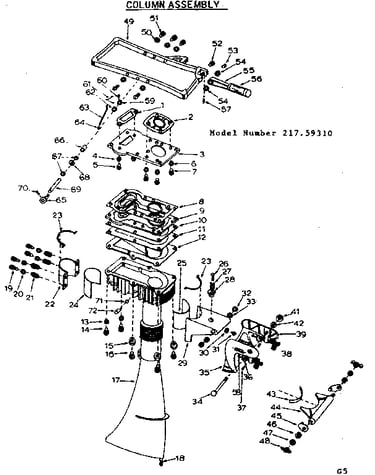

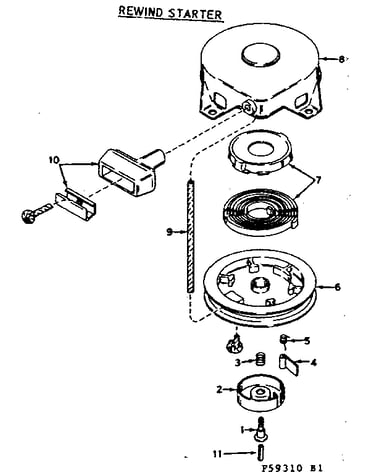

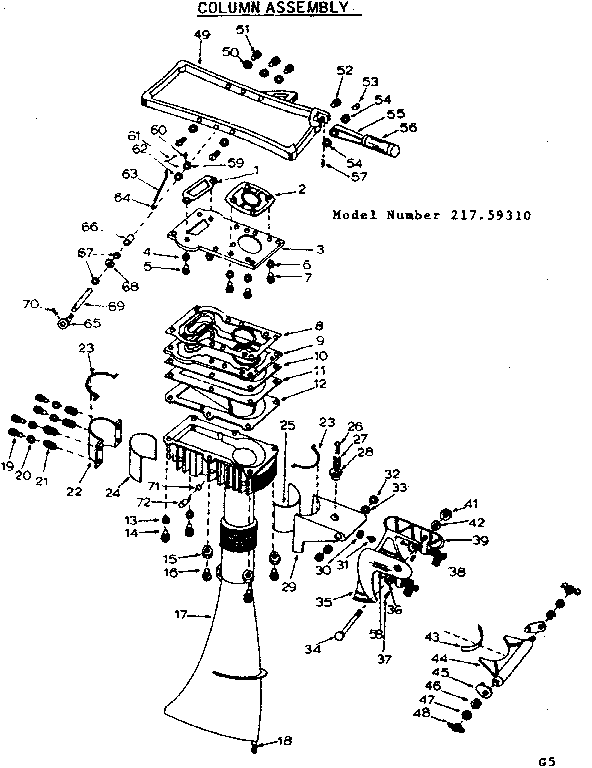

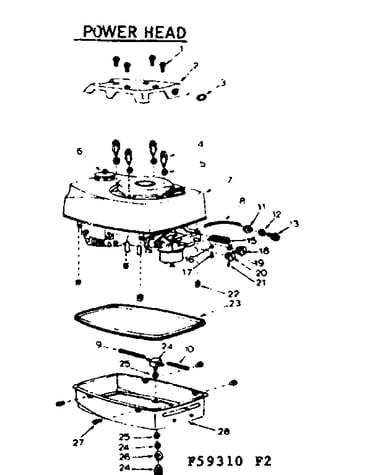

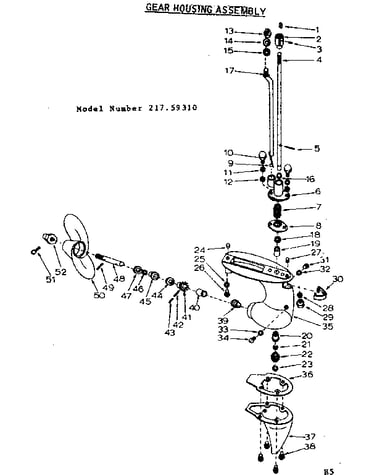

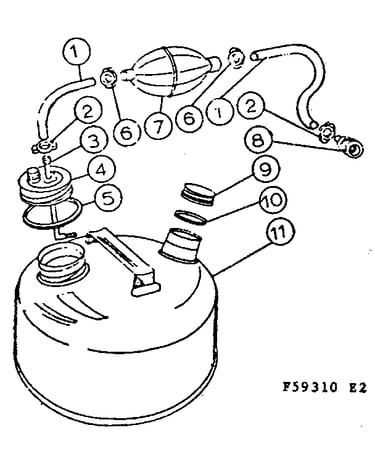

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 284 parts  |

Gasket 631028
#25

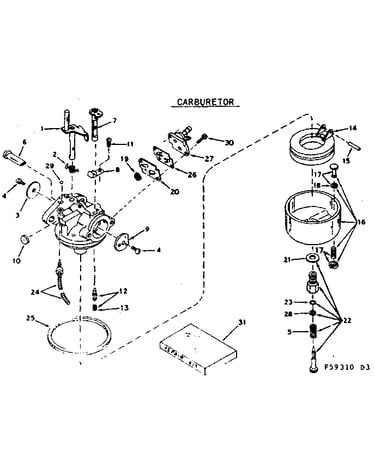

Carburetor diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Fuel Line 29774
#58

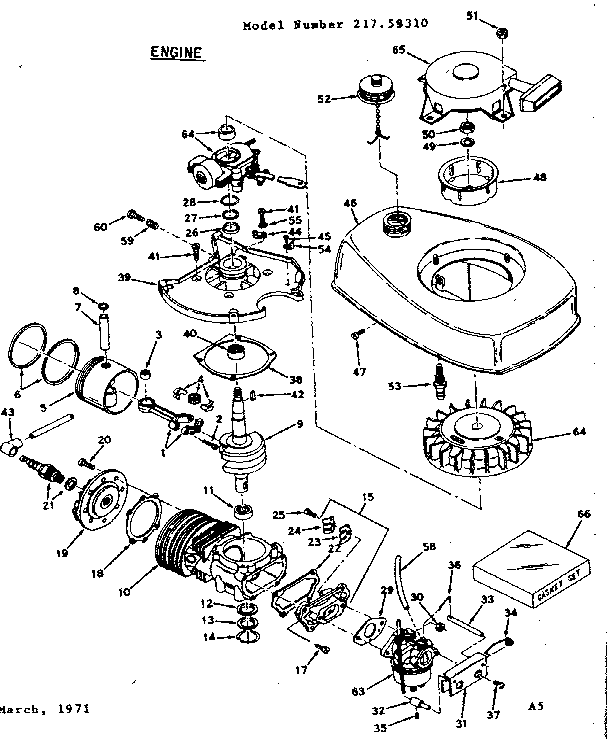

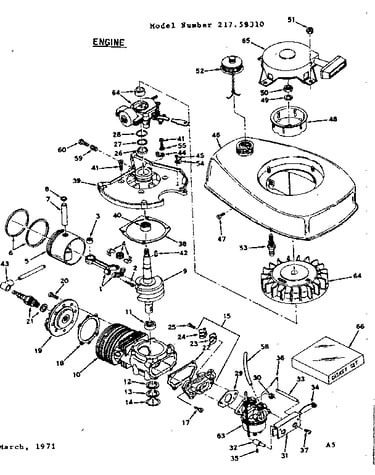

Engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Cover 610118
#43

Engine diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

Seal 510105
#26

Engine diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

Retainer 510106
#27

Engine diagram

Retainer

Part #510106

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#18

Carburetor diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

Spring 630738
#5

Carburetor diagram

Spring

Part #630738

The manufacturer no longer makes this part, and there's no substitute part

Spring 510109
#28

Engine diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part

Coil Assembly 30560
#11

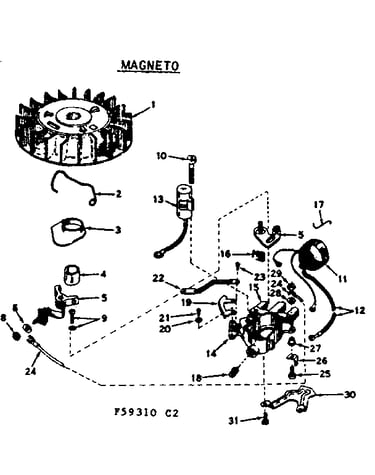

Magneto diagram

Coil assembly

Part #30560

The manufacturer no longer makes this part, and there's no substitute part

Washer 630739
#28

Carburetor diagram

Washer

Part #630739

The manufacturer no longer makes this part, and there's no substitute part
