Model # DUH30162UC/01 Official Bosch range hood

Here are the diagrams and repair parts for Official Bosch DUH30162UC-01 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Range Hood Lamp Cover 421967
#114

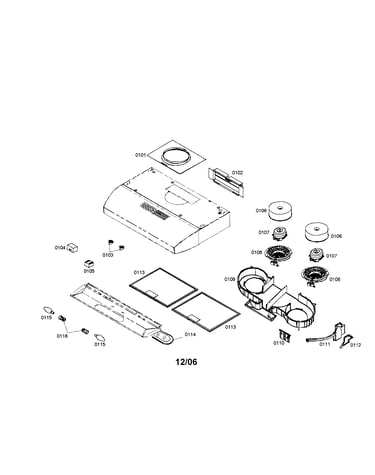

Range hood diagram

Range hood lamp cover

Part #421967

Replaced by #00421967

?
Manufacturer substitution
This part replaces 421967. Substitute parts can look different from the original.
$29.19 |
15% OFF Phone Price : $34.19
In Stock
Cover 605495
#112

Range hood diagram

Cover

Part #605495

Replaced by #00605495

?
Manufacturer substitution
This part replaces 605495. Substitute parts can look different from the original.
$12.71
In Stock
Lamp 605510
#115

Range hood diagram

Lamp

Part #605510

Replaced by #00605510

?
Manufacturer substitution
This part replaces 605510. Substitute parts can look different from the original.
$69.99 |
7% OFF Phone Price : $74.99
In Stock
Housing 144549
#109

Range hood diagram

Housing

Part #144549

Replaced by #00144549

?
Manufacturer substitution
This part replaces 144549. Substitute parts can look different from the original.
$94.07
In Stock
Knob 605488
#103

Range hood diagram

Knob

Part #605488

Replaced by #00605488

?
Manufacturer substitution
This part replaces 605488. Substitute parts can look different from the original.
$53.49
In Stock
Range Hood Filter 144550
#113

Range hood diagram

Range hood filter

Part #144550

Replaced by #00144550

?
Manufacturer substitution
This part replaces 144550. Substitute parts can look different from the original.
$130.09 |
7% OFF Phone Price : $140.09
In Stock
Switch 605577
#104

Range hood diagram

Switch

Part #605577

The manufacturer no longer makes this part, and there's no substitute part

Installation Manual 698422

#NI01

All parts diagram

Installation manual

Part #698422

The manufacturer no longer makes this part, and there's no substitute part

Hrdwre Kit 605492
#150

Range hood diagram

Hrdwre kit

Part #605492

The manufacturer no longer makes this part, and there's no substitute part

Motor 641008
#107

Range hood diagram

Motor

Part #641008

The manufacturer no longer makes this part, and there's no substitute part
