Kenmore 867736332 gas-fired forced air wall furnace Parts

Name: Kenmore 867736332 Parts | Diagrams | Sears PartsDirect
Brand: Kenmore
SKU: 867736332
Availability: InStock

Here are the diagrams and repair parts for Kenmore 867736332 gas-fired forced air wall furnace, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

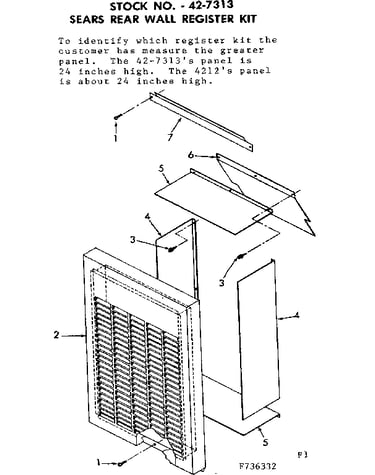

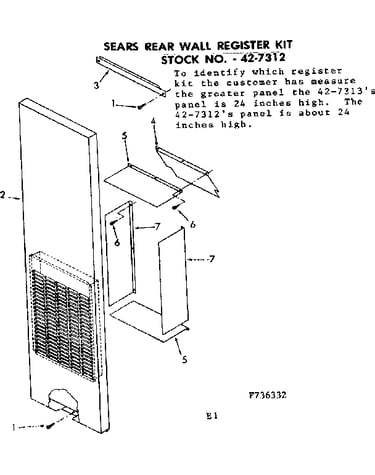

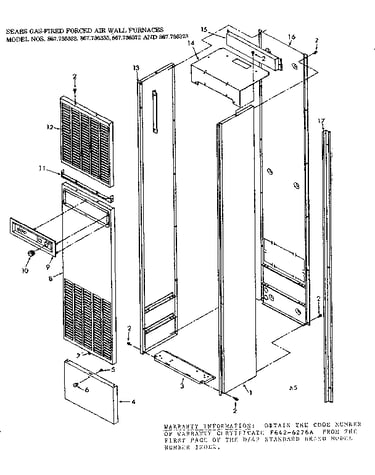

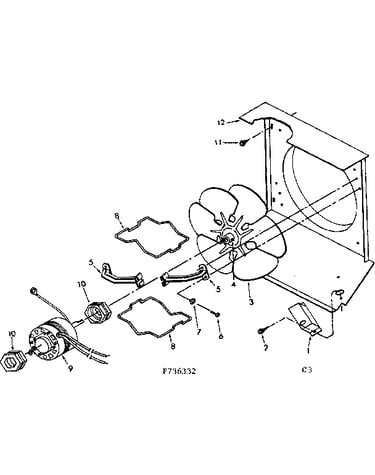

Browse Parts for 867736332 Gas-Fired Forced Air Wall Furnace

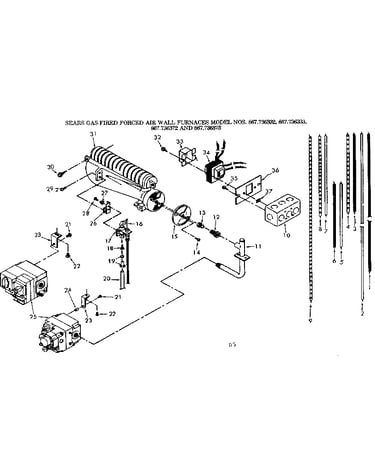

Gas burners and manifold diagram
Thermocouple
Part #503076
Replaced by #H06E-36
Manufacturer substitution
This part replaces 503076. Substitute parts can look different from the original.
In Stock
$17.41
10% OFF Phone Price : $19.41
Qty
Gas burners and manifold diagram
Transformer
Part #86852
The manufacturer no longer makes this part, and there's no substitute part

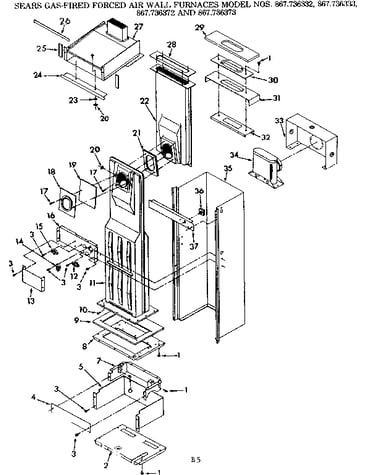

Combustion chamber diagram
Fan Control
Part #502169
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Thermostat
Part #504871
The manufacturer no longer makes this part, and there's no substitute part
Gas burners and manifold diagram
Pilot Tube
Part #90655
Replaced by #100108370
Manufacturer substitution
This part replaces 90655. Substitute parts can look different from the original.
In Stock
$64.56
Qty
Combustion chamber diagram
Switch
Part #502171
Replaced by #505962
Manufacturer substitution
This part replaces 502171. Substitute parts can look different from the original.
In Stock
$191.37
Qty
Gas burners and manifold diagram
Ferrule Nut
Part #29441
Replaced by #100108370
Manufacturer substitution
This part replaces 29441. Substitute parts can look different from the original.
In Stock
$64.56
Qty
#NI
All parts diagram
Kit
Part #506591
The manufacturer no longer makes this part, and there's no substitute part
Gas burners and manifold diagram
Pilot Burner
Part #503470
The manufacturer no longer makes this part, and there's no substitute part
Gas burners and manifold diagram
Pilot Burner
Part #503469
The manufacturer no longer makes this part, and there's no substitute part
