On an LG LFXC22596D refrigerator, IFE (often shown as 1F E or ER IF) indicates a problem with the ice fan circuit, most commonly the ice room fan not running or not reaching the expected speed due to frost buildup, a wiring issue, or a failing fan motor.

What to check first (safe, no-tools steps)

• Power reset: unplug the refrigerator (or switch off the breaker) for 2 minutes, then restore power.
• Make sure the ice room area is not overpacked; blocked vents can reduce airflow.
• Check for frost or ice buildup around the ice room vents; heavy frost can stop the fan.
• Confirm the doors fully close and seal; warm air leaks can cause frost that interferes with the ice fan.
• If the error returns quickly, note whether the ice maker is still producing ice and whether the dispenser area feels unusually warm.

Likely causes and what they mean

What you notice	Most likely cause	Typical fix direction
Loud buzzing or grinding near the ice room	Ice fan hitting frost or a failing fan	Defrost ice buildup; inspect fan area
Error appears after doors were left open	Frost buildup restricting fan	Improve door sealing and airflow
Intermittent error, especially after moving the unit	Loose connection in the fan circuit	Inspect wiring connections (service-level)
No improvement after defrost/reset	Fan motor or control issue	Diagnose fan circuit; replace failed part

Parts that can be involved

If troubleshooting points to the dispenser or ice room components, these model-matched parts are commonly related:

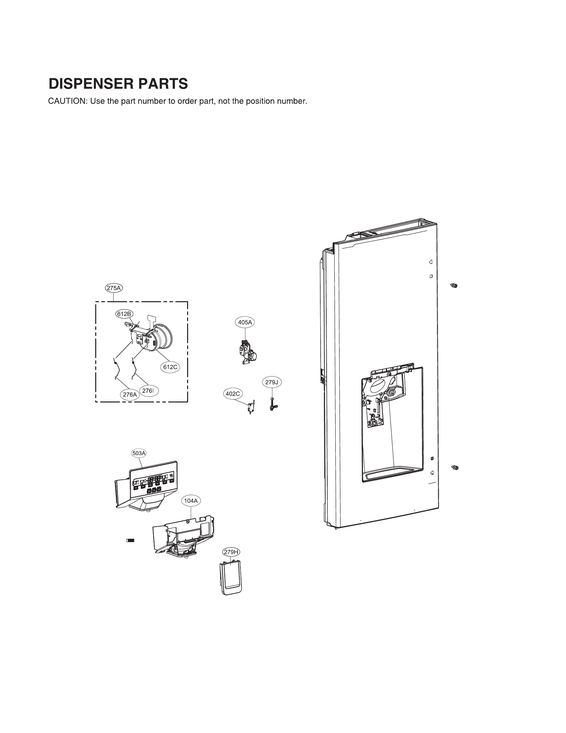

• Refrigerator dispenser ice chute door motor EAU59551204 (helps control the ice chute door; issues can contribute to icing and airflow problems)

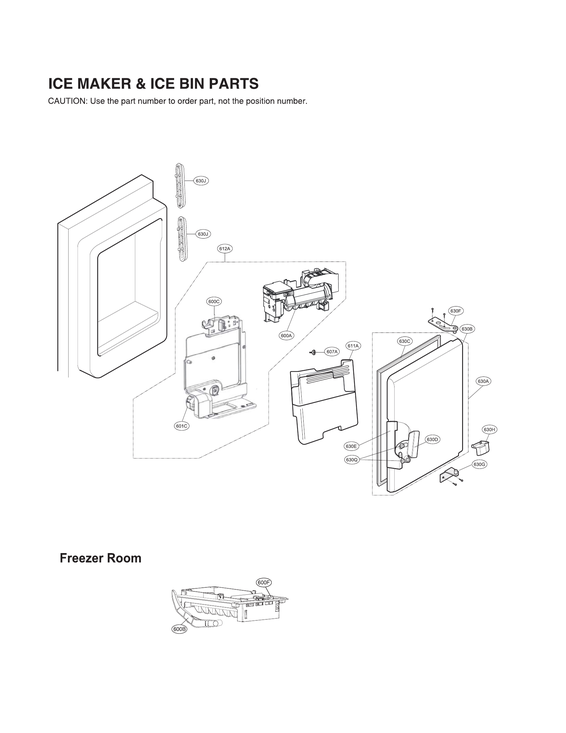

• Ice maker assembly (AEQ72909602) - refrigerator ice maker part by LG AEQ72909602 (ice production issues can accompany ice room airflow problems)

For wiring diagrams, error code behavior, and component locations specific to LG LFXC22596D, use the owner's manual.

Why it matters

The ice fan moves cold air through the ice room; when it cannot run correctly, ice can melt and refreeze, airflow drops, and temperatures can drift. Addressing IFE early helps prevent recurring frost buildup and inconsistent ice production.

You can order model-specific replacement parts from the parts list for LG LFXC22596D, or search by model number on Sears PartsDirect.

Last updated: February 2026

Ice building up on the bottom of the freezer in your LG LFXC22596D is typically caused by a clogged or frozen defrost drain; defrost water cannot flow to the drain pan, so it pools and refreezes into a sheet of ice. Use the LFXC22596D owner's manual for access and disassembly guidance, then clear the drain.

What’s happening

During defrost, melted frost should run into a drain hole and down a tube to the drain pan. When that path is blocked, water backs up and freezes on the freezer floor.

Common signs

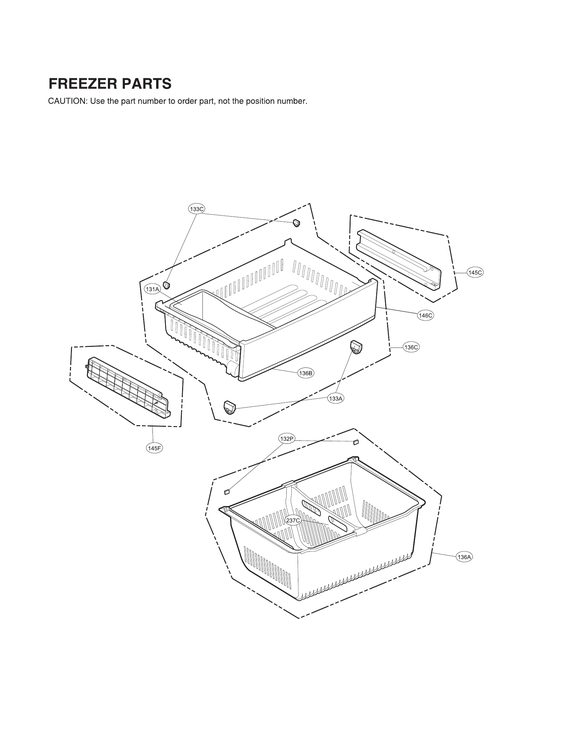

• Solid ice sheet under the lower basket/drawer
• Water on the floor when the ice melts
• Ice returns within days after chipping it out
• Drawer hard to close because it rides on ice

Fix: clear the defrost drain

• Unplug the refrigerator (or turn off the breaker).
• Remove the freezer drawer/bins; protect the floor with towels.
• Melt the ice on the freezer floor (warm air on low, kept moving, plus towels).
• Find the drain trough and drain hole at the back/bottom of the freezer compartment.
• Flush the drain with hot water using a squeeze bottle or turkey baster until it drains freely.
• If it still drains slowly, gently work a flexible plastic zip tie into the drain to loosen debris (no metal tools).

Parts that can help if the problem keeps returning

If the drain line is restricted, cracked, or not seated correctly, replacing the drain component often stops repeat icing. A common related part for this model is the refrigerator drain tube 5251JA3003D.

Quick diagnosis table

What you see	Most likely cause	Next step
Ice only on freezer floor	Clogged/frozen defrost drain	Defrost and flush drain with hot water
Ice returns fast (1 to 3 days)	Partial blockage or drain refreezing	Deep-clean drain; check drain tube fit
Water under refrigerator	Drain not reaching pan or obstructed	Inspect drain tube routing and obstructions

Why it matters

A blocked drain causes repeat leaks, odors, and ice that can damage drawer operation. Restoring proper drainage prevents recurring ice sheets and keeps temperatures stable.

Replacement parts for LG LFXC22596D can be ordered from the parts list for this model, or you can search by model number on Sears PartsDirect.

Last updated: February 2026

If your LG LFXC22596D freezer is not freezing, the most common causes are poor airflow from frost buildup, a condenser fan problem, a temperature-sensing issue, or a sealed-system/compressor problem. Start with simple checks (settings, door seal, airflow) before testing parts; see the LFXC22596D owner's manual for control and temperature guidance.

Quick checks we recommend first

• Confirm the freezer is set near 0°F and the refrigerator near 37°F.
• Make sure vents inside the freezer are not blocked by food packages.
• Check that the doors close fully and the gasket seals all the way around.
• Listen for the condenser fan near the compressor area; it should run when the unit is cooling.
• Look for heavy frost on the back freezer panel (often points to a defrost/airflow issue).

Parts that commonly cause “not freezing” symptoms

These parts are on the parts list for LG LFXC22596D and are frequently involved in cooling complaints:

Symptom you notice	Likely area	Example part to inspect/replace
Fridge warm and freezer warm, fan area quiet	Heat removal at condenser	Refrigerator condenser fan motor EAU63923602
Temps swing, unit runs too long or not long enough	Temperature sensing/control input	Refrigerator temperature sensor 6500JB2002X

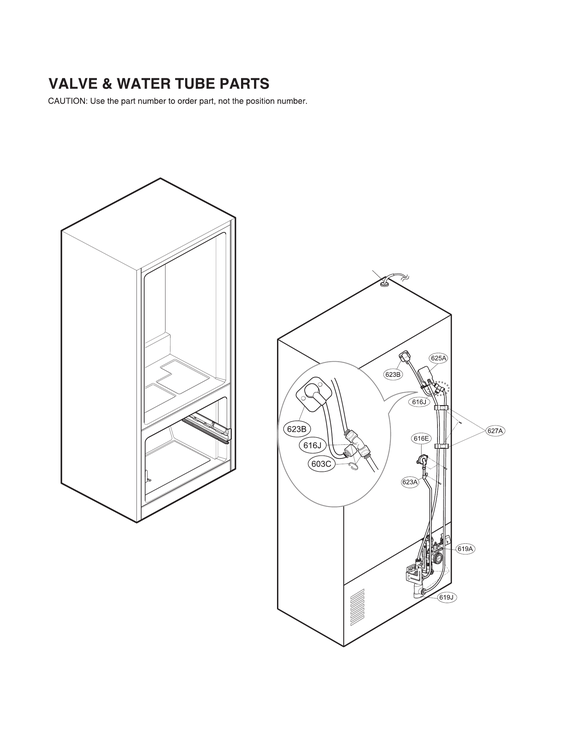

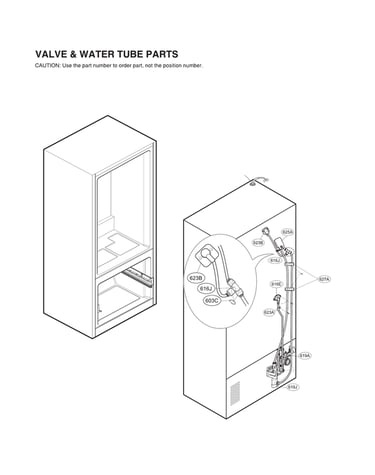

Ice maker issues plus weak freezing (sometimes after water events)	Water system can contribute to icing/airflow issues	LG refrigerator water inlet valve AJU72992601

Why it matters

A freezer that cannot hold temperature can lead to food thawing and refreezing, ice buildup that blocks airflow, and longer run times that stress the compressor and condenser system. Fixing airflow or a failing fan early often prevents bigger cooling failures.

When to move from checks to repair

Use this simple decision guide:

What you find	What it usually means	What to do next
Heavy frost behind freezer panel	Defrost/airflow problem	Defrost fully, then check sensors and airflow; review LG bottom freezer refrigerator error codes if codes appear
No condenser fan operation while cooling	Fan motor or wiring issue	Inspect and replace the fan motor if needed
Freezer and fridge both warm, compressor runs but no improvement	Sealed system/compressor issue	Have a service technician diagnose the sealed system; you can still order model-correct parts through Sears PartsDirect
