Craftsman
Lawn Edger

Model #316772370 Craftsman lawn edger

Here are the diagrams and repair parts for Craftsman 316772370 lawn edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 100 parts

    Lawn & Garden Equipment Engine Spark Plug#24

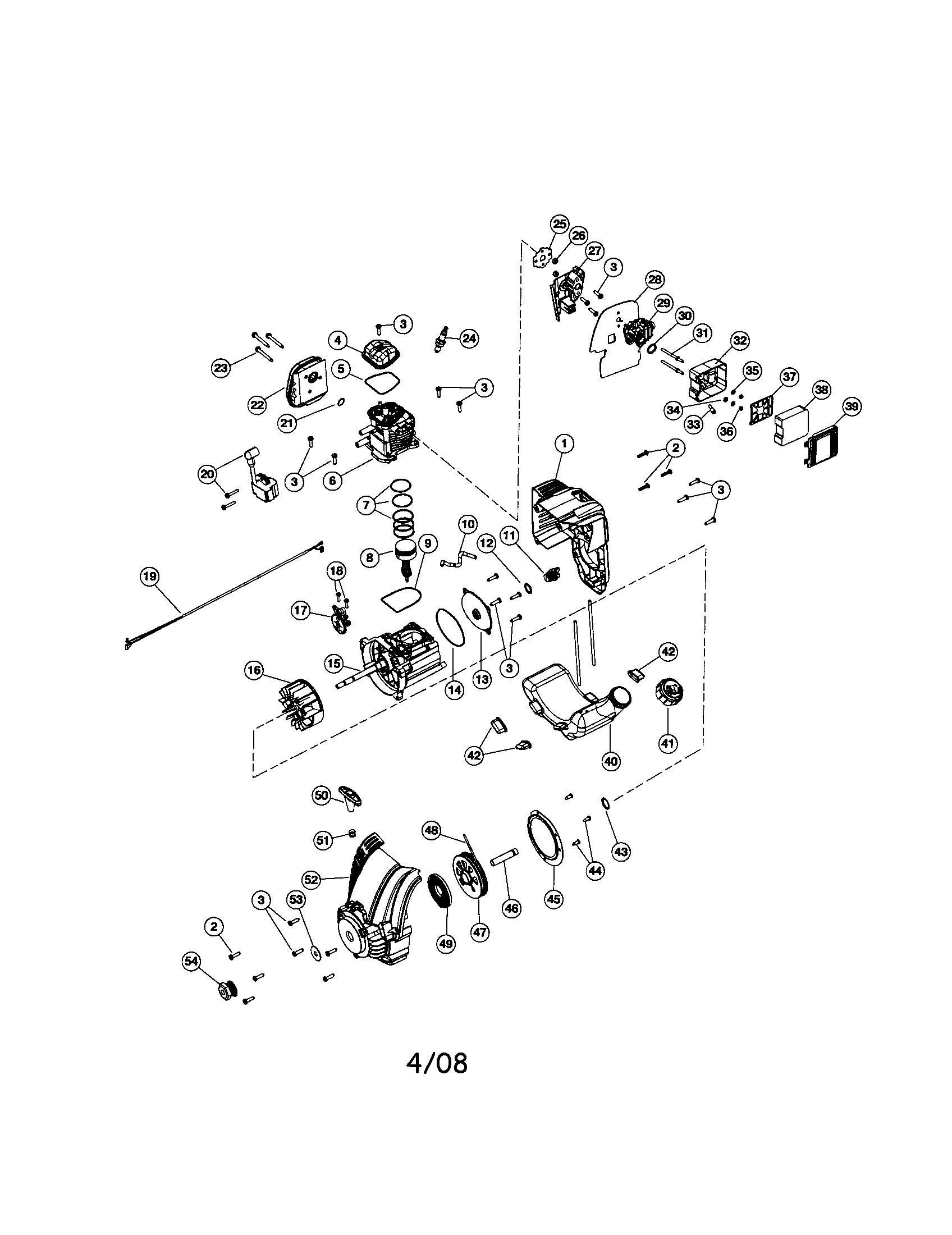

    Engine cover/crankcase/cylinder Diagram

    Lawn & garden equipment spark plug

    Part #753-05255
    Replaced by #794-00082
    ?
    Manufacturer substitution
    This part replaces 753-05255. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $3.49 |
    10% OFF
    Was: $3.89
    Lawn & Garden Equipment Hex Flange Nut#45

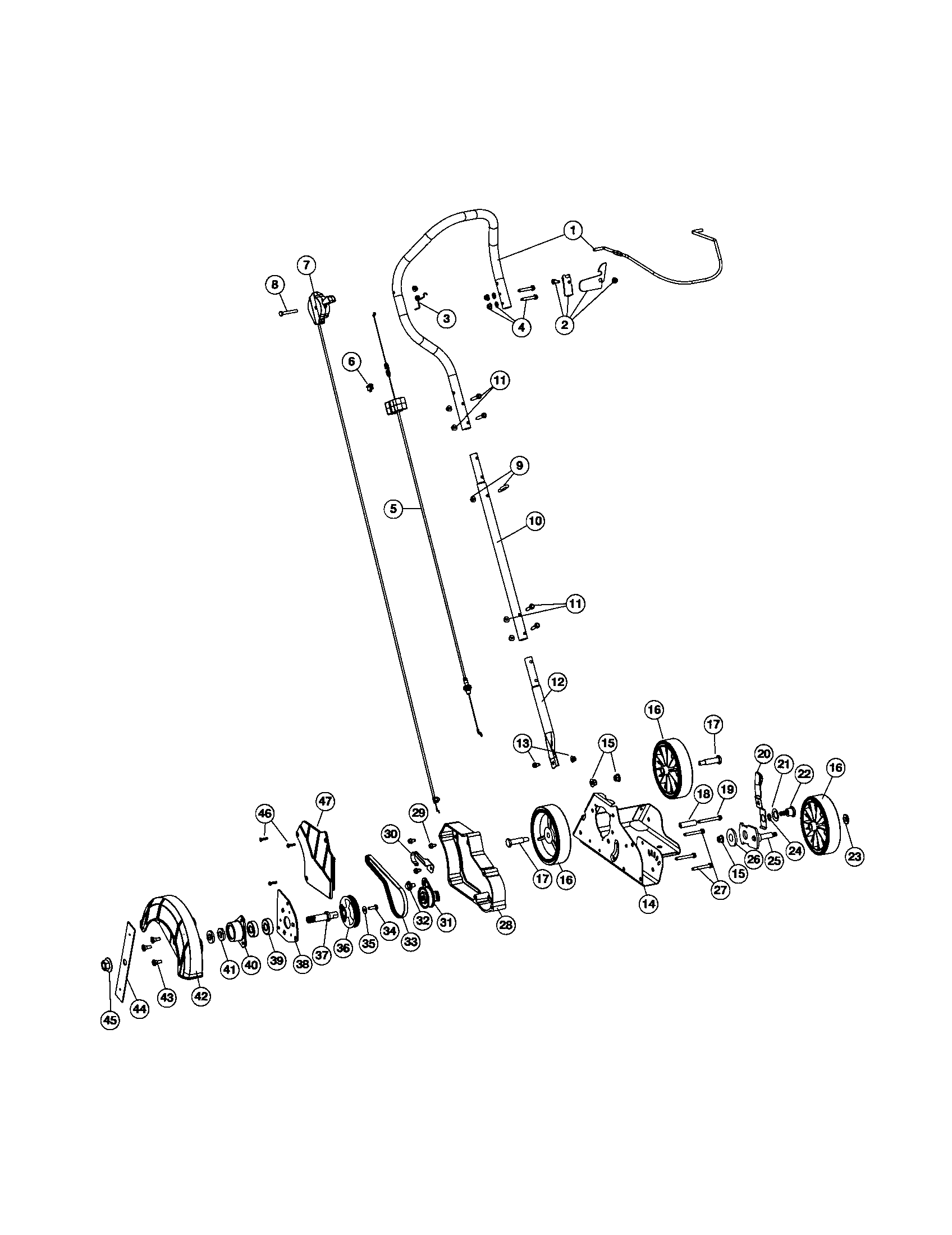

    Handle/wheels Diagram

    Flange nut

    Part #753-05549
    Replaced by #712-0417A
    ?
    Manufacturer substitution
    This part replaces 753-05549. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $4.69 |
    20% OFF
    Was: $5.89
    Lawn & Garden Equipment Engine Start/Stop Switch#6

    Handle/wheels Diagram

    In Stock
    $7.89 |
    7% OFF
    Was: $8.49
    Edger Drive Belt#33

    Handle/wheels Diagram

    Belt

    Part #753-05560
    Replaced by #754-04149
    ?
    Manufacturer substitution
    This part replaces 753-05560. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    In Stock
    $41.29
    Line Trimmer Fuel Tank#40

    Engine cover/crankcase/cylinder Diagram

    Line trimmer fuel tank

    Part #753-05256
    BEST SELLER
    In Stock
    $40.89 |
    23% OFF
    MSRP: $53.00
    Lawn & Garden Equipment Engine Carburetor#29

    Engine cover/crankcase/cylinder Diagram

    Carburetor

    Part #753-05830
    Replaced by #753-05440
    ?
    Manufacturer substitution
    This part replaces 753-05830. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $54.99 |
    20% OFF
    MSRP: $69.00
    Edger Spindle Pulley#36

    Handle/wheels Diagram

    Pulley

    Part #753-05542
    Replaced by #756-04087B
    ?
    Manufacturer substitution
    This part replaces 753-05542. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $18.99
    Edger Blade#44

    Handle/wheels Diagram

    Lawn edger blade

    Part #753-05562
    Replaced by #787-01503-0637
    ?
    Manufacturer substitution
    This part replaces 753-05562. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $32.19
    Lawn & Garden Equipment Carburetor Gasket#28

    Engine cover/crankcase/cylinder Diagram

    Lawn & garden equipment carburetor gasket

    Part #753-05366
    This item is not returnable
    In Stock
    $22.89
    Edger Blade Guard#42

    Handle/wheels Diagram

    Blade guard

    Part #753-05547
    Replaced by #731P05064
    ?
    Manufacturer substitution
    This part replaces 753-05547. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $31.79
