Model # KHM Official KitchenAid hand mixer

Here are the diagrams and repair parts for Official KitchenAid KHM hand mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Beater-mxr 3181106
#2

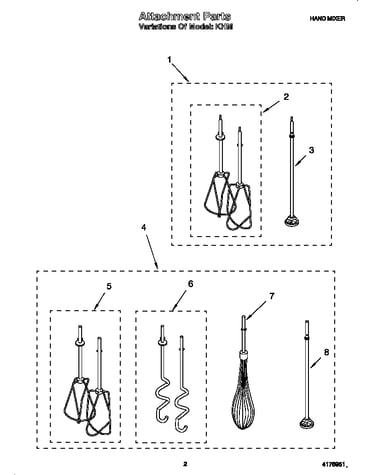

Attachment parts diagram

Beater-mxr

Part #3181106

Replaced by #WPW10490648

?
Manufacturer substitution
This part replaces 3181106. Substitute parts can look different from the original.
This item is not returnable
$20.51 |
23% OFF Phone Price : $26.51
In Stock
Wire Whip 9702832
#7

Attachment parts diagram

Wire whip

Part #9702832

Replaced by #W11035281

?
Manufacturer substitution
This part replaces 9702832. Substitute parts can look different from the original.
$22.89
In Stock
Blender Rod 9702818
#8

Attachment parts diagram

Blender rod

Part #9702818

Replaced by #W10908279

?
Manufacturer substitution
This part replaces 9702818. Substitute parts can look different from the original.
$16.89
In Stock
Beater-mxr 9702829
#5

Attachment parts diagram

Beater-mxr

Part #9702829

Replaced by #WPW10490648

?
Manufacturer substitution
This part replaces 9702829. Substitute parts can look different from the original.
This item is not returnable
$20.51 |
23% OFF Phone Price : $26.51
In Stock
Repair Parts List LIT4176951

#NI

All parts diagram

Repair parts list

Part #LIT4176951

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 9703942
#2B

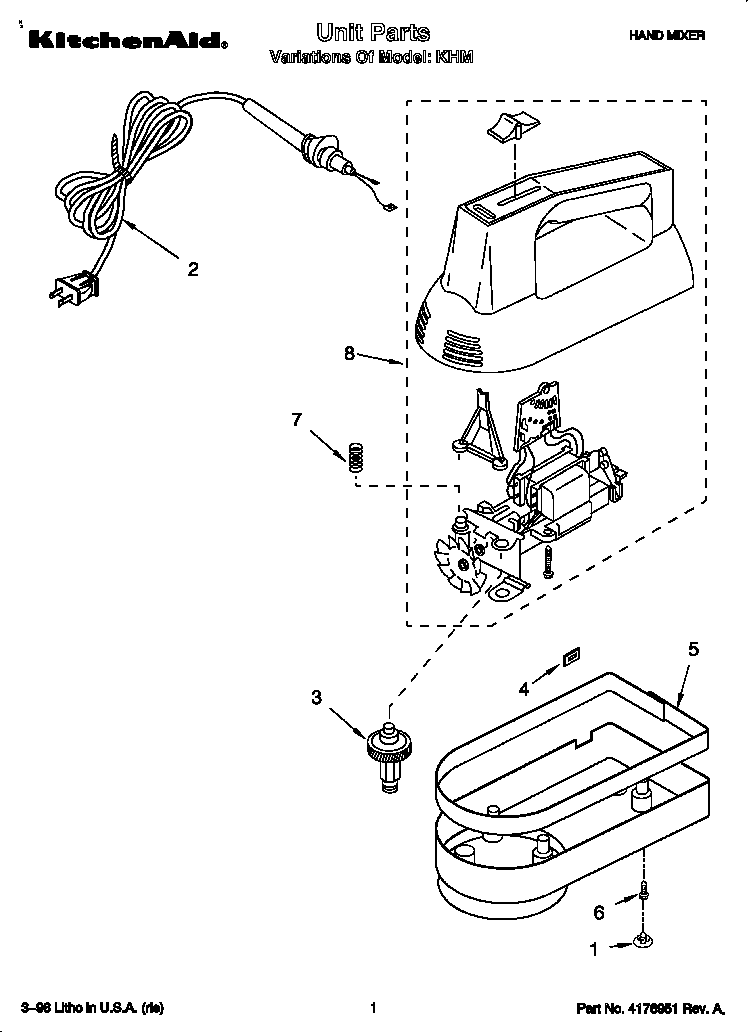

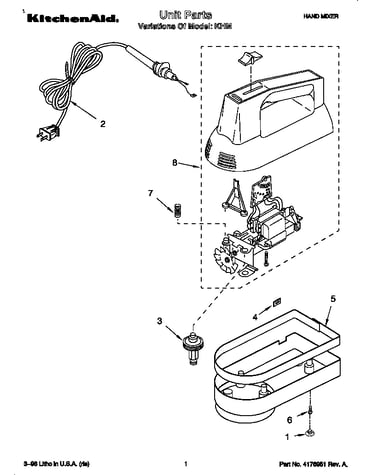

Unit parts diagram

Power cord

Part #9703942

The manufacturer no longer makes this part, and there's no substitute part

Cover, Screw, Onyx Black 9702838
#1D

Unit parts diagram

Cover, screw, onyx black

Part #9702838

The manufacturer no longer makes this part, and there's no substitute part

Cover 9702835
#1A

Unit parts diagram

Cover

Part #9702835

The manufacturer no longer makes this part, and there's no substitute part

Dough Hook 9702885
#6

Attachment parts diagram

Dough hook

Part #9702885

The manufacturer no longer makes this part, and there's no substitute part

Trim Band 9702848
#5

Unit parts diagram

Trim band

Part #9702848

The manufacturer no longer makes this part, and there's no substitute part
