Jenn-Air JBZFL24IGX00 upright freezer Parts

Here are the diagrams and repair parts for Jenn-Air JBZFL24IGX00 upright freezer, as well as links to manuals and error code tables, if available.

Jenn-Air JBZFL24IGX00 upright freezer
By Schematic
By Part

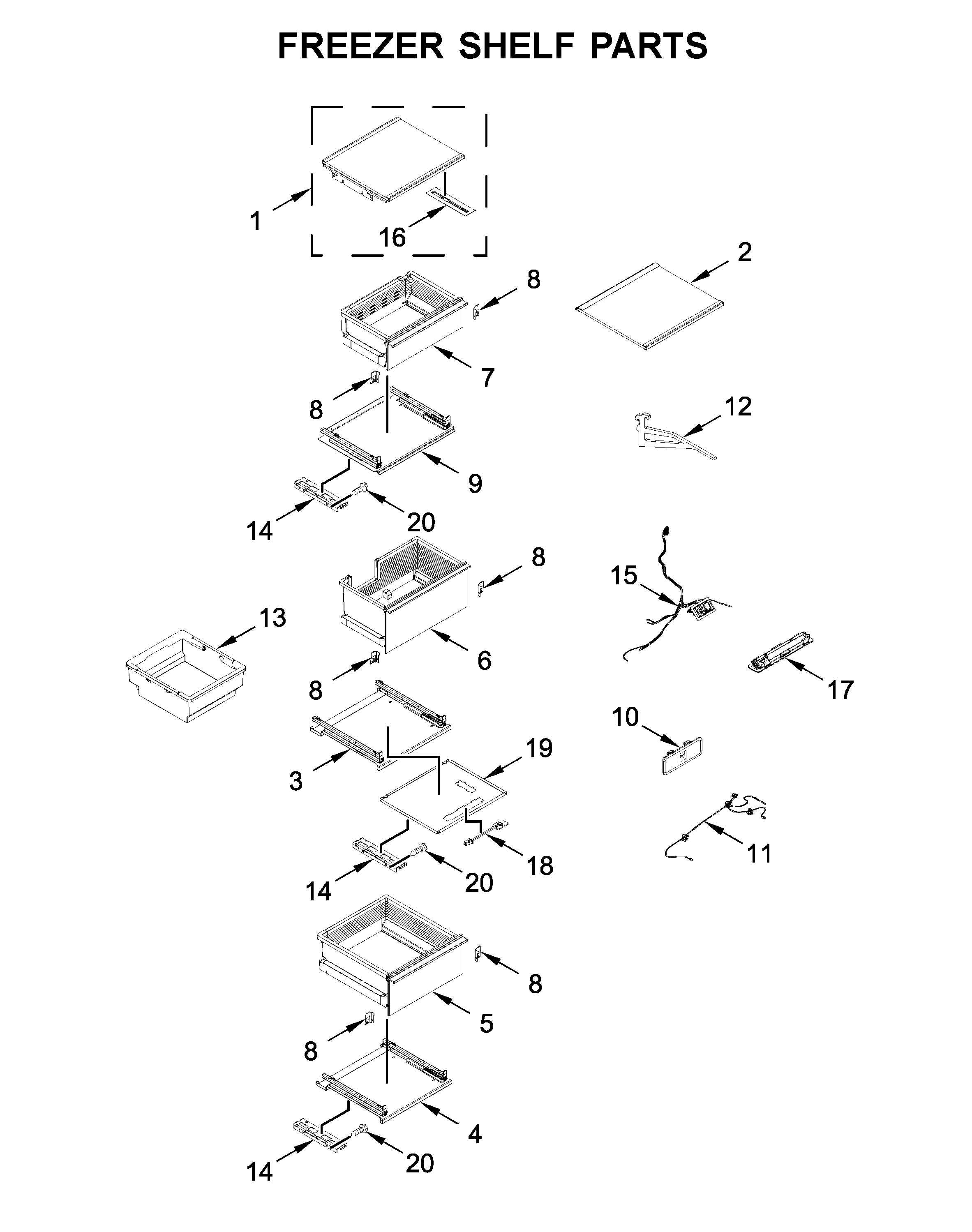

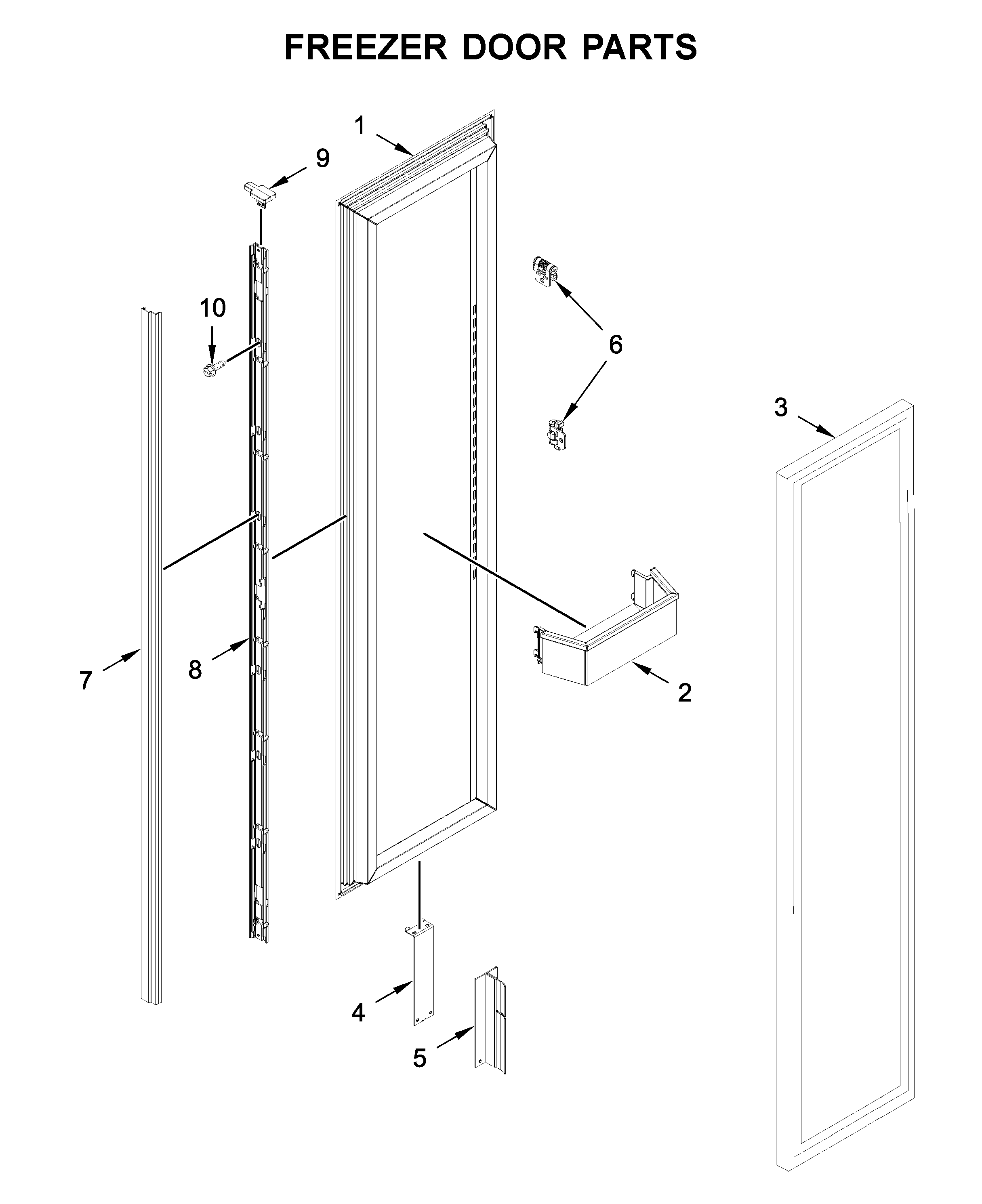

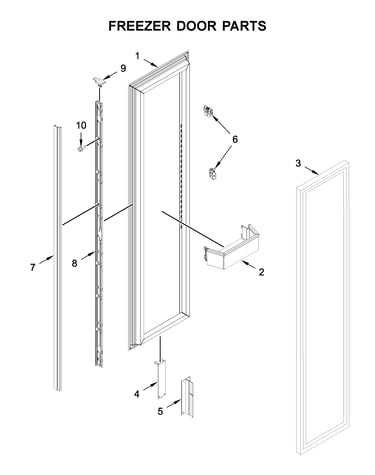

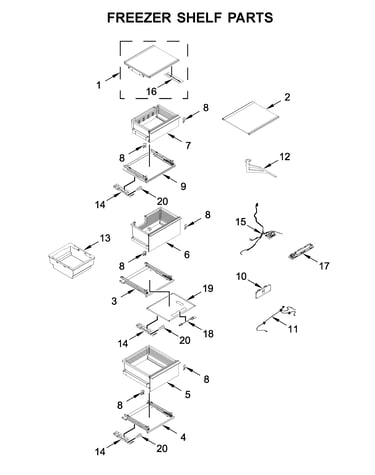

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JBZFL24IGX00 Freestanding Freezers

  • Whirlpool Everydrop 2 Refrigerator Water Filter for Jenn-Air JBZFL24IGX00 - Part EDR2RXD1

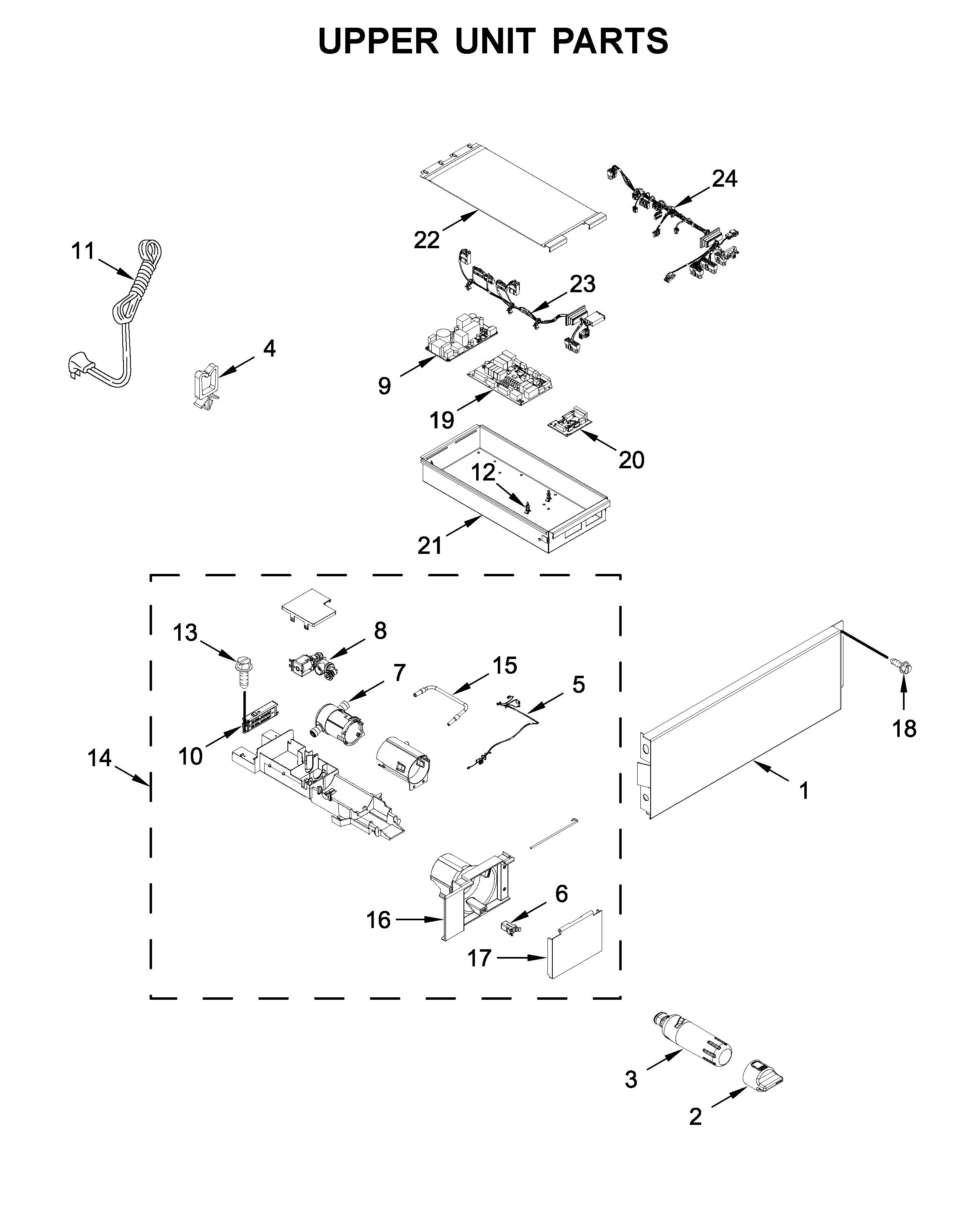

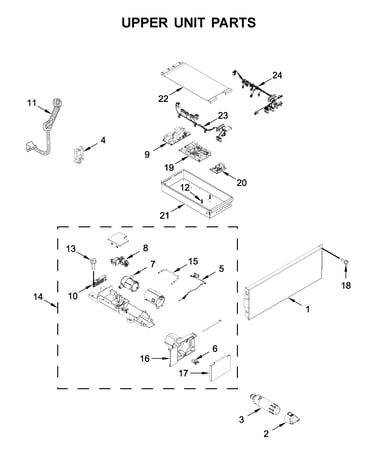

    Upper unit parts diagram

    Refrigerator Cartridge Wrap Assembly

    Part #W10680605

    Replaced by #EDR2RXD1

    Info Icon
    Manufacturer substitution
    This part replaces W10680605. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $66.37
    15% OFF Phone Price : $78.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Power Control Board for Jenn-Air JBZFL24IGX00 - Part WPW10624574

    Upper unit parts diagram

    Control-ps,v

    Part #W10624574

    Replaced by #WPW10624574

    Info Icon
    Manufacturer substitution
    This part replaces W10624574. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $153.31
    18% OFF Was : $186.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Power Switch for Jenn-Air JBZFL24IGX00 - Part WP2266802

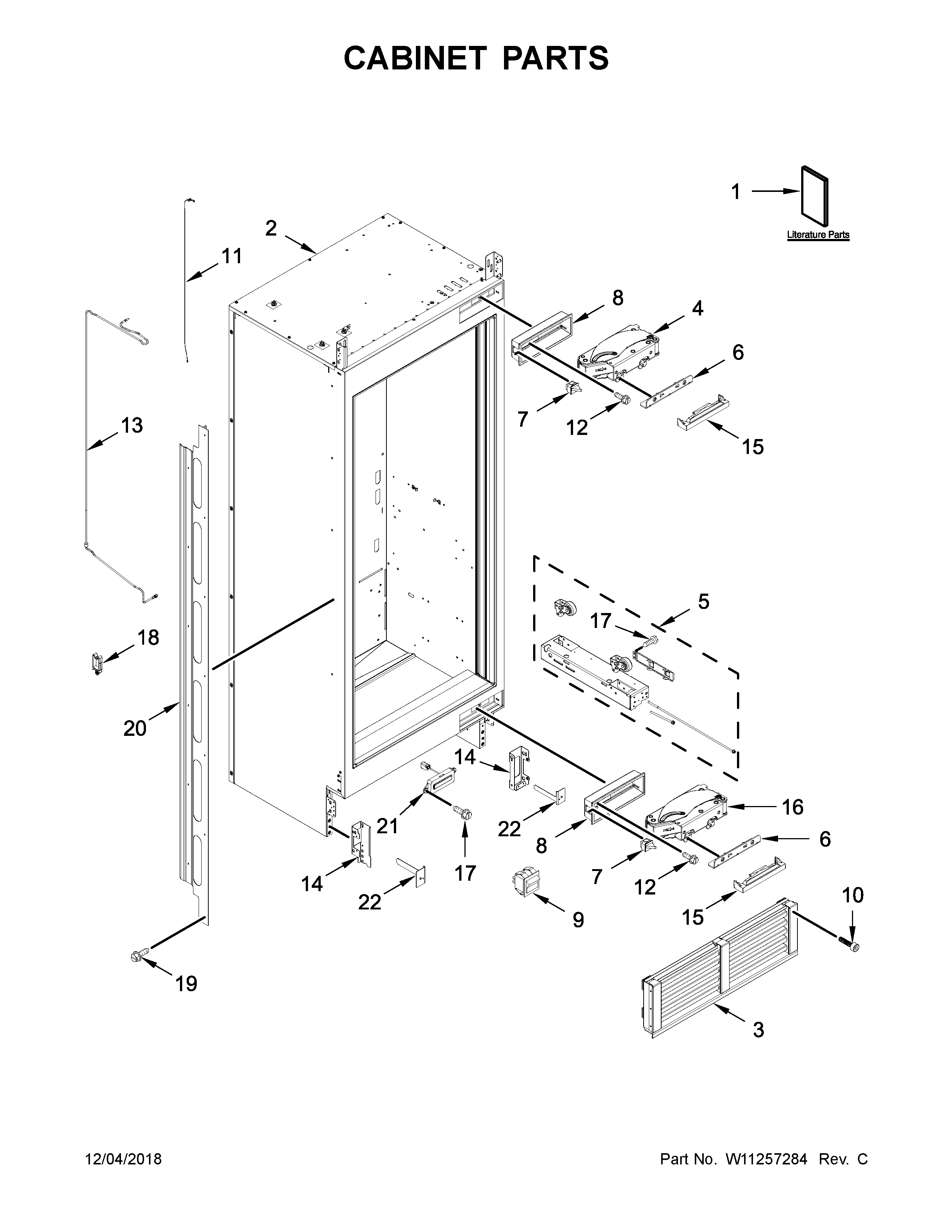

    Cabinet parts diagram

    Refrigerator Power Switch

    Part #2266802

    Replaced by #WP2266802

    Info Icon
    Manufacturer substitution
    This part replaces 2266802. Substitute parts can look different from the original.
    In Stock
    $45.68
    12% OFF Phone Price : $51.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Sears Refrigerator Service Valve for Jenn-Air JBZFL24IGX00 - Part 876764

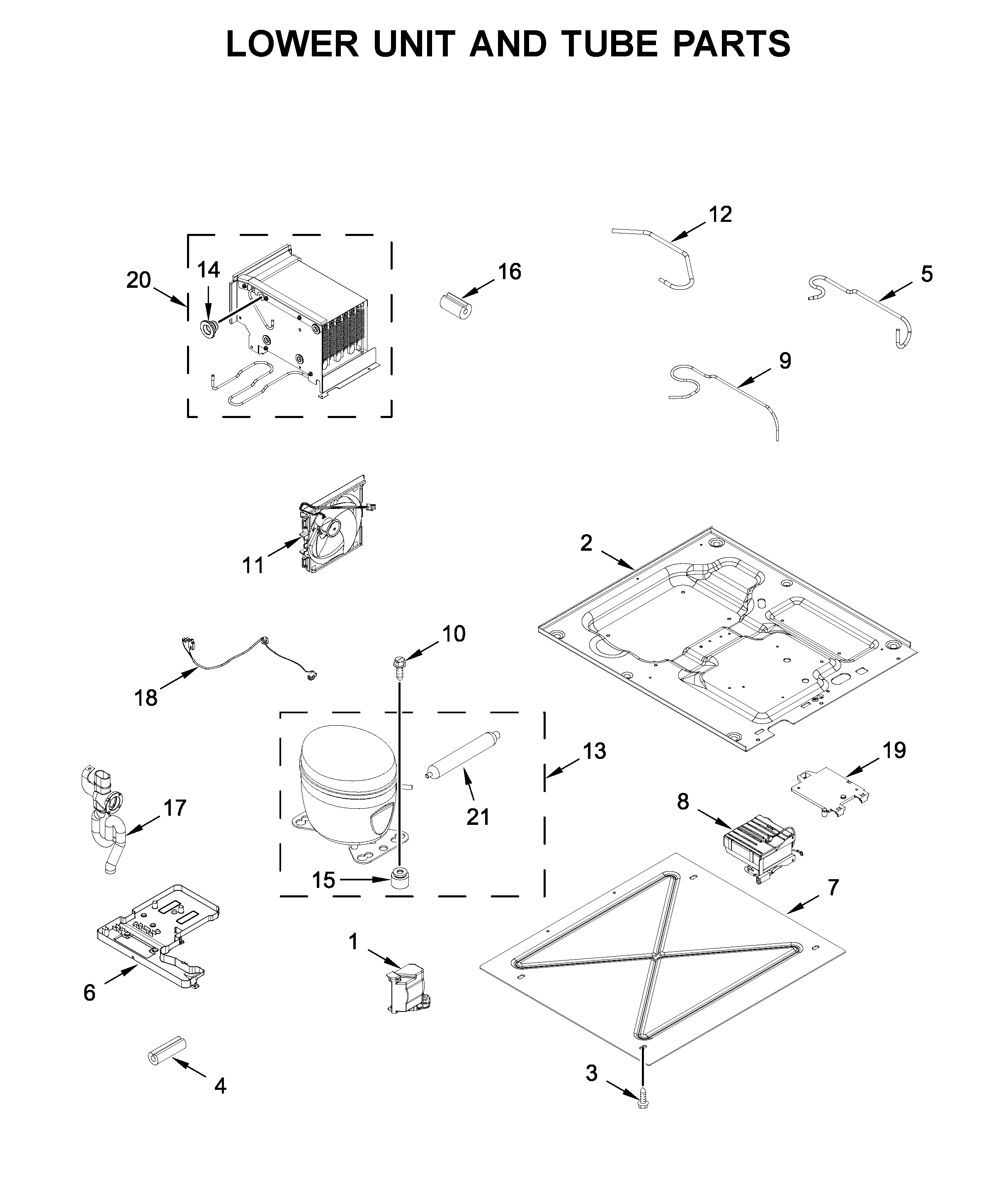

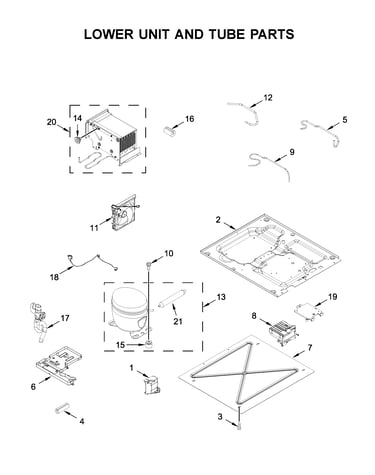

    Lower unit and tube parts diagram

    Sears Refrigerator Service Valve

    Part #876764
    In Stock
    $37.25
    14% OFF Phone Price : $43.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Jenn-Air JBZFL24IGX00 - Part 67006425

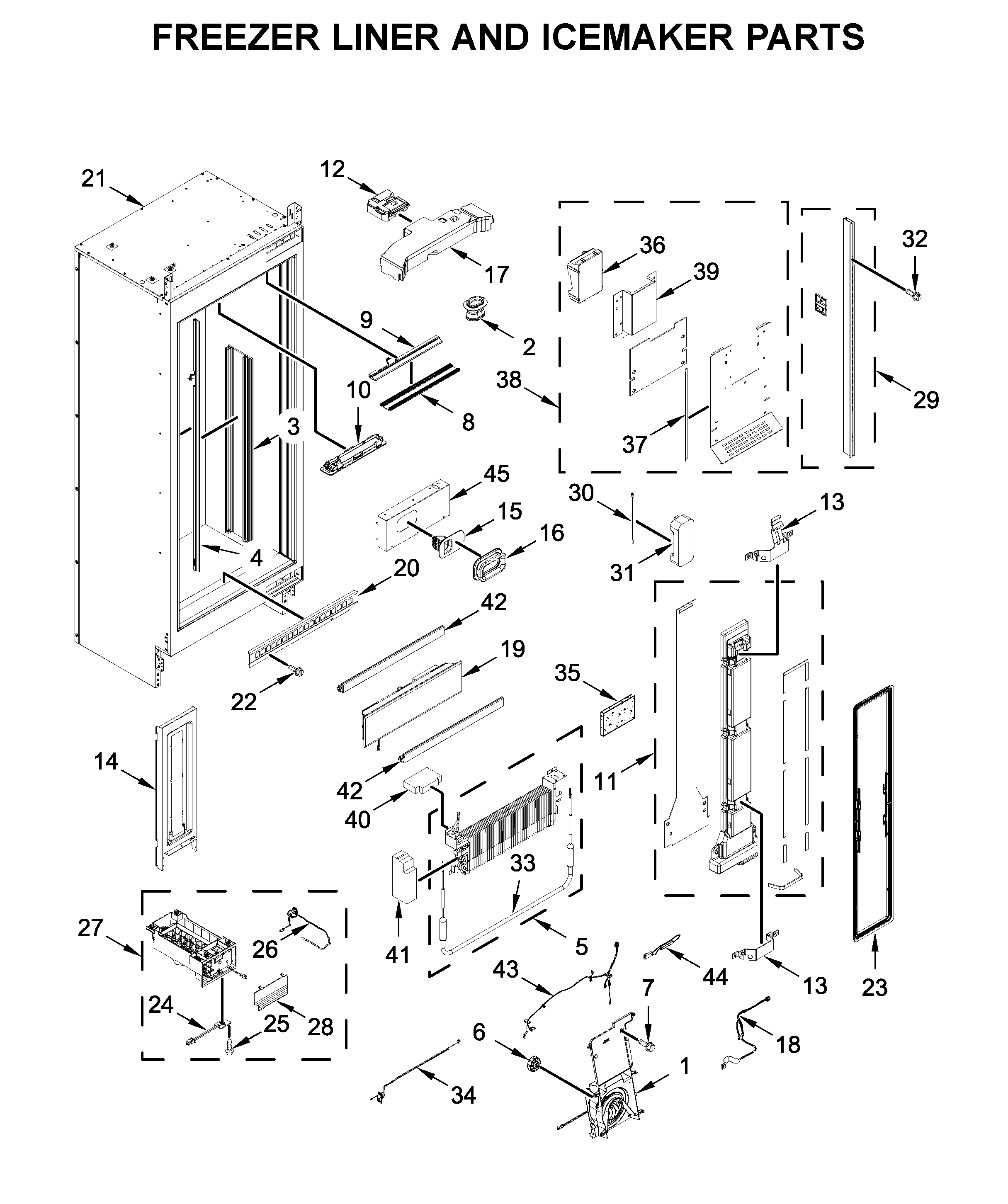

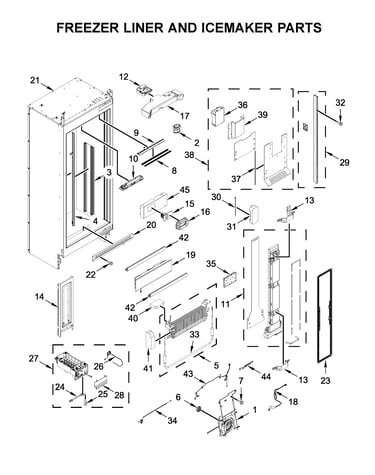

    Freezer liner and icemaker parts diagram

    Refrigerator Screw

    Part #12990511

    Replaced by #67006425

    Info Icon
    Manufacturer substitution
    This part replaces 12990511. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.76
    17% OFF Phone Price : $5.76Info Icon
    Minus Item
    Qty
    Plus Item

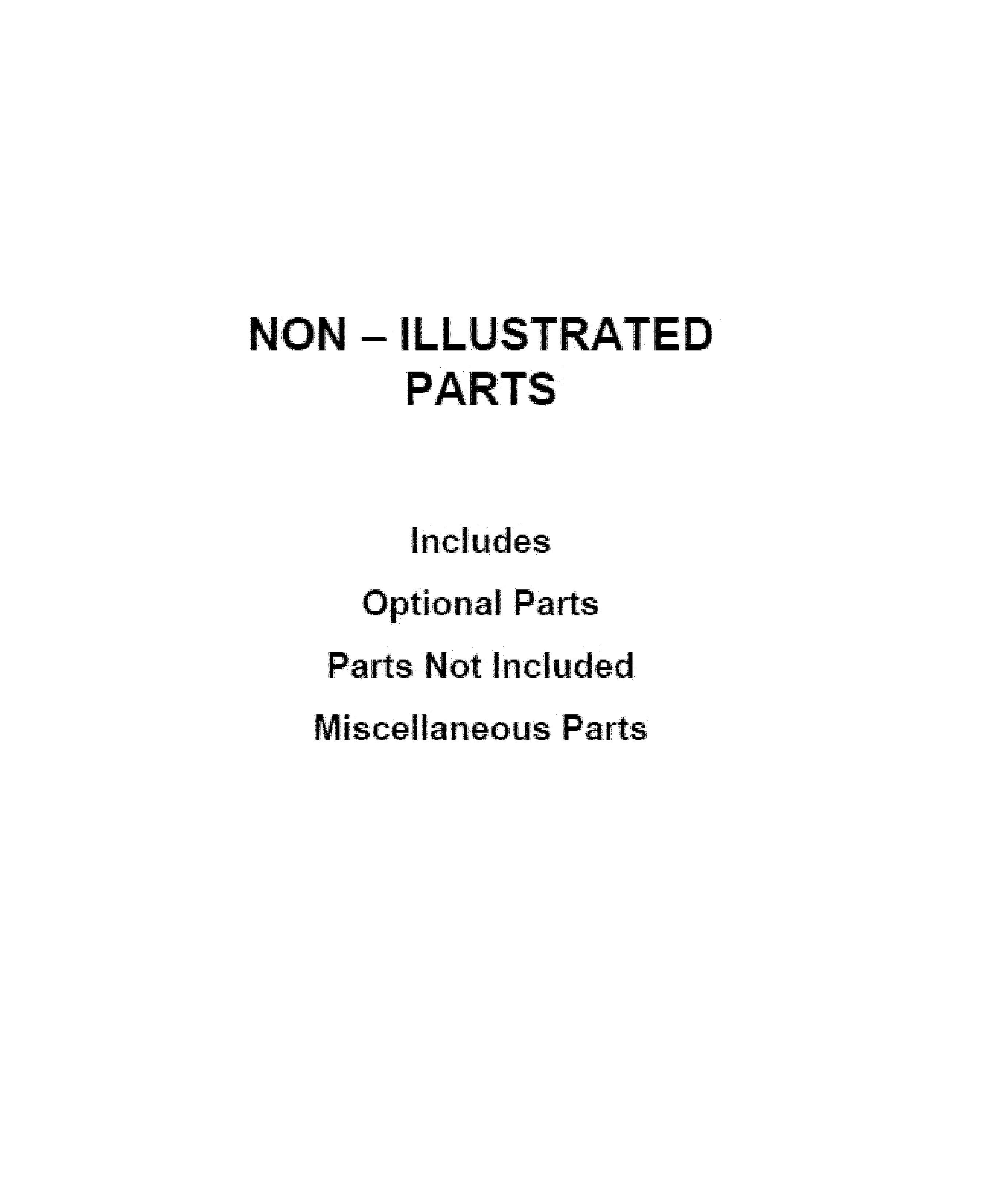

  • Refrigerator Ice Maker Installation Kit for Jenn-Air JBZFL24IGX00 - Part 8003RP

    Optional parts diagram

    Refrigerator Ice Maker Installation Kit

    Part #8003RP
    In Stock
    $38.37
    14% OFF Phone Price : $44.37Info Icon
    Minus Item
    Qty
    Plus Item
  • Wire Assembly for Jenn-Air JBZFL24IGX00 - Part W10602825

    Freezer liner and icemaker parts diagram

    Wire Assembly

    Part #W10602825
    In Stock
    $27.91
    18% OFF Phone Price : $33.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Sears Refrigerator Permagum Sealer for Jenn-Air JBZFL24IGX00 - Part 212643

    Optional parts diagram

    Sears Refrigerator Permagum Sealer

    Part #212643
    This item is not returnable
    In Stock
    $43.86
    12% OFF Phone Price : $49.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Insulation for Jenn-Air JBZFL24IGX00 - Part W11553819

    Freezer liner and icemaker parts diagram

    Insulation

    Part #2169104

    Replaced by #W11553819

    Info Icon
    Manufacturer substitution
    This part replaces 2169104. Substitute parts can look different from the original.
    In Stock
    $18.61
    10% OFF Phone Price : $20.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Jenn-Air JBZFL24IGX00 - Part WPW10141645

    Cabinet parts diagram

    Refrigerator Screw

    Part #W10141645

    Replaced by #WPW10141645

    Info Icon
    Manufacturer substitution
    This part replaces W10141645. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.67
    12% OFF Phone Price : $8.67Info Icon
    Minus Item
    Qty
    Plus Item
