Kenmore 9114204791 coil module Parts
Here are the diagrams and repair parts for Kenmore 9114204791 coil module, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for 9114204791 Coil Module

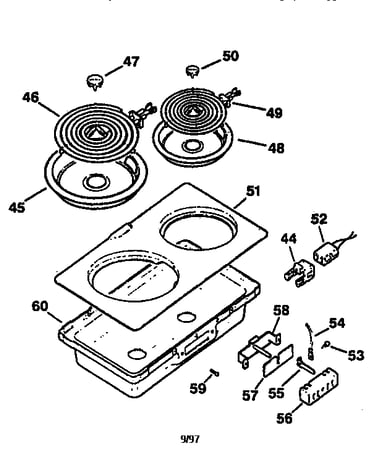

Coil modules diagram
Bowl Brnr 6"
Part #WB32X5083Replaced by #WB31T10014
Manufacturer substitutionThis part replaces WB32X5083. Substitute parts can look different from the original.In Stock$11.8314% OFF Phone Price : $13.83
Qty
Coil modules diagram
Clip Receptacle
Part #WB02X8228Replaced by #WB2X8228
Manufacturer substitutionThis part replaces WB02X8228. Substitute parts can look different from the original.This item is not returnableIn Stock$35.5914% OFF Phone Price : $41.59QtyCoil modules diagram
8" Surf Elem
Part #WB30M0002Replaced by #WB30M2
Manufacturer substitutionThis part replaces WB30M0002. Substitute parts can look different from the original.In Stock$59.199% OFF Phone Price : $65.19QtyCoil modules diagram
6" Surf Elem
Part #WB30M0001Replaced by #WB30M1
Manufacturer substitutionThis part replaces WB30M0001. Substitute parts can look different from the original.In Stock$42.3412% OFF Phone Price : $48.34QtyCoil modules diagram
Bowl Brnr 8"
Part #WB32X5085Replaced by #WB31T10015
Manufacturer substitutionThis part replaces WB32X5085. Substitute parts can look different from the original.In Stock$19.409% OFF Phone Price : $21.40QtyCoil modules diagram
Pan Unit
Part #WB49X5420
The manufacturer no longer makes this part, and there's no substitute part
Coil modules diagram
Cooktop Element Receptacle
Part #WB17X5124
The manufacturer no longer makes this part, and there's no substitute part
Coil modules diagram
Plate
Part #WB62X5433
The manufacturer no longer makes this part, and there's no substitute part
Coil modules diagram
8" Ctr Trim
Part #WB32X5080
The manufacturer no longer makes this part, and there's no substitute part
Coil modules diagram
Barrier
Part #WB02X6952
The manufacturer no longer makes this part, and there's no substitute part
