Model # JVB64SBL Official GE range hood

Here are the diagrams and repair parts for Official GE JVB64SBL range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Screw WB01X10190
#50

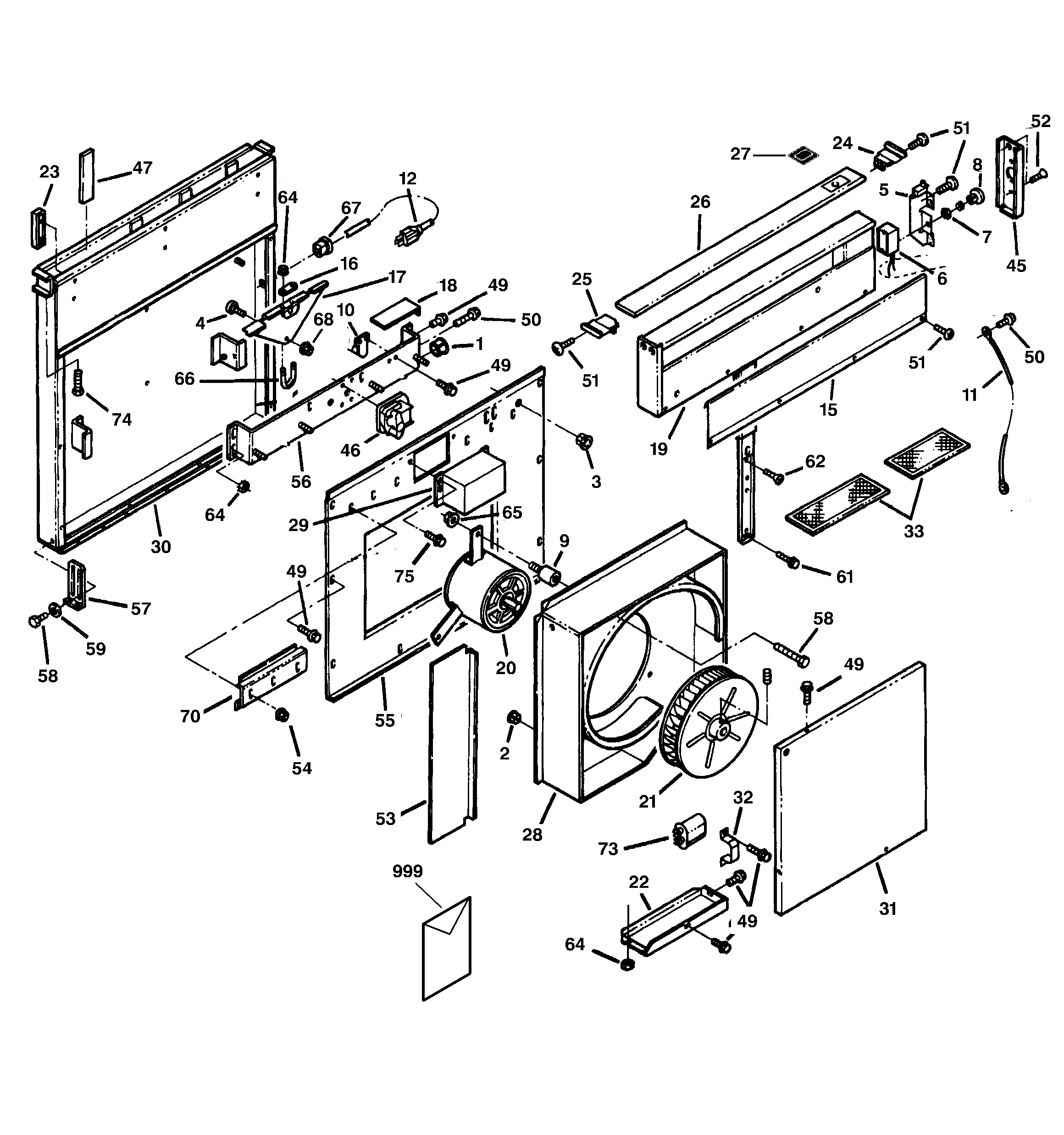

Range hood diagram

Screw

Part #WB01X10190

This item is not returnable
$2.49
In Stock
Screw,ph Trh WB01X5884
#51

Range hood diagram

Screw,ph trh

Part #WB01X5884

The manufacturer no longer makes this part, and there's no substitute part

Black Top36" WB07X2225
#26

Range hood diagram

Black top36"

Part #WB07X2225

The manufacturer no longer makes this part, and there's no substitute part

Screw #10-24 WB01X10188
#62

Range hood diagram

Screw #10-24

Part #WB01X10188

The manufacturer no longer makes this part, and there's no substitute part

Screw, #8-18 WB01X10189
#75

Range hood diagram

Screw, #8-18

Part #WB01X10189

The manufacturer no longer makes this part, and there's no substitute part

End Cap WB07X7226
#45

Range hood diagram

End cap

Part #WB07X7226

The manufacturer no longer makes this part, and there's no substitute part

Lh White WB02X8340
#25

Range hood diagram

Lh white

Part #WB02X8340

The manufacturer no longer makes this part, and there's no substitute part

Motor WB26X5099
#20

Range hood diagram

Motor

Part #WB26X5099

The manufacturer no longer makes this part, and there's no substitute part

Screw #10-24 WB01X10187
#61

Range hood diagram

Screw #10-24

Part #WB01X10187

The manufacturer no longer makes this part, and there's no substitute part

Hex Keps Nut WC01X5148
#64

Range hood diagram

Hex keps nut

Part #WC01X5148

The manufacturer no longer makes this part, and there's no substitute part
