Craftsman 137415030 table saw Parts

On the Craftsman table saw model 137415030, the reset is the overload reset button on the ON/OFF switch assembly (not on the motor end caps). If the motor shuts off from overload or low voltage, let it cool about 5 minutes, then press the reset button and restart.

How to reset the motor overload (model 137415030)

• Turn the saw OFF.
• Unplug the power cord.
• Wait about 5 minutes for the motor to cool.
• Press the overload reset button on the switch.
• Plug the saw back in.
• Insert the safety switch key, then turn the saw ON.

For the switch layout and overload protection details, use the 137415030 owner's manual.

What to check if it keeps tripping

Overload trips usually mean the motor is working too hard or the power supply is weak. Check these common causes:

• Dull or dirty blade (forces the motor to draw more current)
• Blade height too low for the cut (too much tooth engaged)
• Fence or blade misalignment causing binding and burn marks
• Material issues (wet lumber, warped stock, knots)
• Extension cord problems (too long, too small gauge, or damaged)

If the blade bogs down before it trips, follow the troubleshooting steps in table saw blade spins too slow.

Quick reference: overload reset vs. safety key

Item	Where it is	What it does
Safety switch key	In the ON/OFF switch	Prevents the saw from being turned on without the key
Overload reset button	On/near the ON/OFF switch	Resets the motor after an overload or low-voltage shutdown

Why it matters

Using the correct reset procedure helps prevent accidental starting and reduces repeat overload trips that can overheat the motor, damage the blade, and lead to poor cut quality.

Last updated: February 2026

For the Craftsman 137415030 table saw, do not cut freehand, do not use the rip fence and miter gauge together, and do not rip warped or twisted boards; these mistakes are leading causes of kickback and severe injury. Follow the safety rules and setup checks in the owner's manual.

Never do these high-risk actions

• Never perform freehand cutting; always guide the work with the rip fence or the miter gauge.
• Never use the miter gauge and rip fence at the same time.
• Never stand with your body in line with the blade path.
• Never rip lumber that is warped, bowed, or twisted, or that lacks a straight edge against the fence.
• Never reverse out of a cut with the blade running.
• Never pull the workpiece backward during a cut.
• Never leave the saw running unattended; wait for the blade to stop completely.

Quick “do this instead” safety checklist

Before each session, we recommend:

• Confirm the blade is tight on the arbor and the lock knob is tightened.
• Lock the rip fence and verify it is parallel to the blade and aligned correctly.
• Make sure the blade guard, riving knife, and anti-kickback pawls are installed, aligned, and working.
• Set blade height appropriately (a common target is about 1/8 inch above the workpiece for many cuts).
• Support long or wide stock at the rear and sides to prevent tipping and binding.

Why these rules matter (kickback prevention)

Kickback happens when the workpiece binds or contacts the back of the blade and gets thrown toward you. The most common contributors are freehand cuts, poor alignment, and unstable stock. Keeping the fence parallel, using the guard and riving knife, and feeding the work fully past the blade greatly reduces risk.

Common “don’t” vs “do” comparison

Situation	Don’t do this	Do this instead
Ripping	Use miter gauge with fence	Use the rip fence only; keep it parallel
Crosscutting	Pull stock backward mid-cut	Use the miter gauge; push through and stop after the blade
Stock condition	Rip twisted/warped boards	Joint or select straight stock with a true edge
Cut control	Freehand guide by hand	Use fence or miter gauge; keep hands out of blade path

Last updated: February 2026

Yes; Craftsman table saws are a good choice for many DIYers because they deliver solid cutting capability and practical features at a reasonable price. On the Craftsman 137415030 10-inch portable table saw, “good” mostly comes down to correct setup, alignment, and using the built-in safety system as shown in the 137415030 owner's manual.

What “good” looks like in real use

A table saw is performing well when it starts reliably, holds blade height and bevel settings, and cuts straight without burning or binding.

Common strengths:

• Good value for ripping and crosscutting
• Portable size for small shops and jobsites
• Straightforward upkeep (cleaning, blade changes)
• Capable results when tuned and used correctly

Common limitations:

• Fence and miter gauge accuracy may need careful tuning
• Lightweight saws can shift if not mounted securely
• A dull or wrong blade makes any saw cut poorly

What matters most on model 137415030

The manual calls out several items that directly affect accuracy and safety:

• Mount the saw to a bench or stand before cutting
• Use a dedicated 120 V, 15-amp circuit with proper protection
• Use the blade guard, anti-kickback pawls, and riving knife for through-cuts
• Clear sawdust often; use dust collection when possible

Quick comparison: DIY vs. heavier use

Use case	Fit for a portable Craftsman saw	Main focus
DIY projects	Strong fit	Setup, blade choice, safe technique
Hobby woodworking	Good fit	Fence alignment, repeatability
Daily production	Mixed	Stand stability, adjustment speed

If your cuts are not accurate

• Confirm the saw is firmly mounted and not rocking
• Replace a dull blade
• Re-check fence alignment and miter technique
• Verify blade height and bevel mechanisms move smoothly

For symptom-based troubleshooting, use table saw bad angle cuts.

Why it matters

Most “bad saw” complaints come from alignment, blade condition, or unsafe feeding that causes binding and kickback. When the guard system and riving knife are set correctly, the 137415030 can produce clean, repeatable cuts for typical DIY work.

Last updated: February 2026

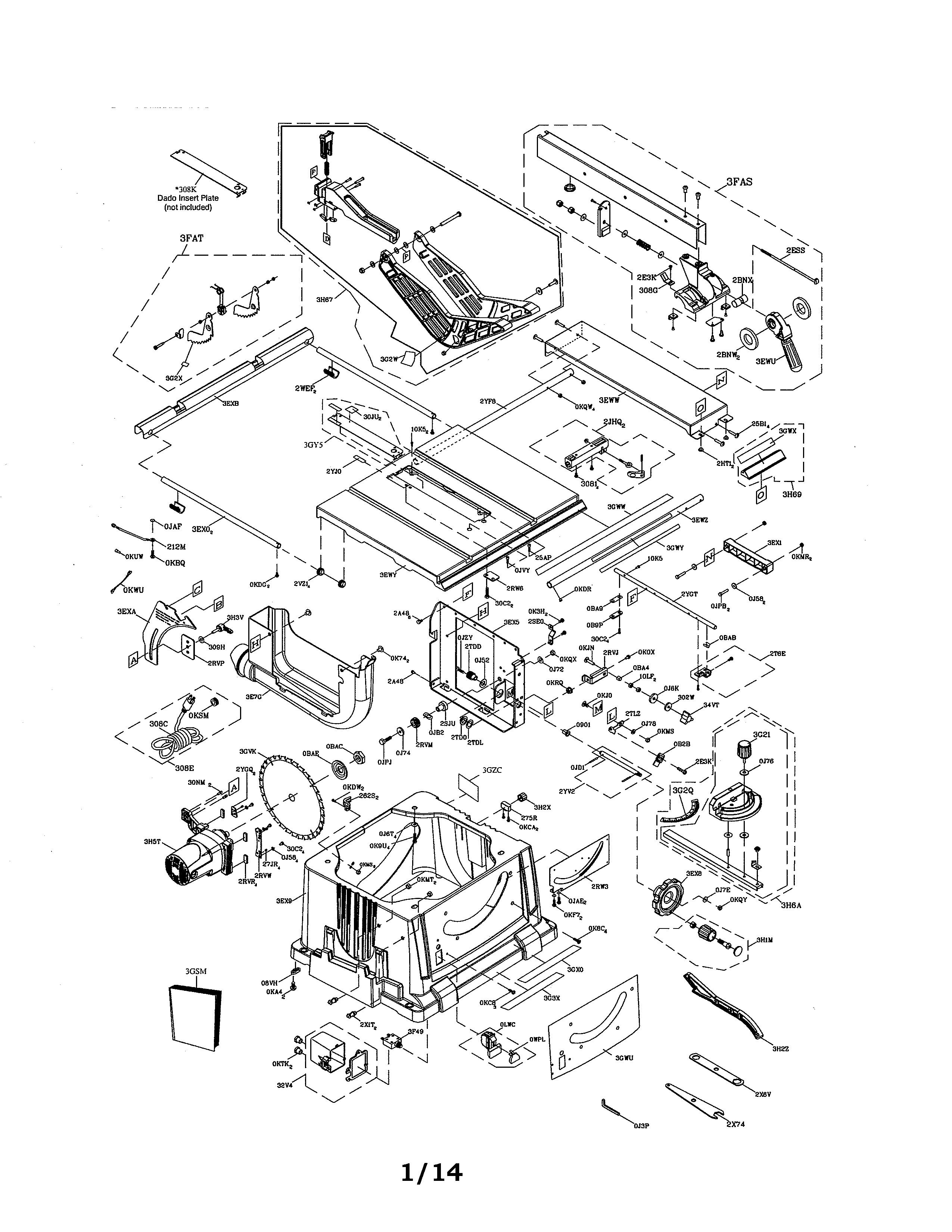

On the Craftsman 137415030 table saw, the main parts include the table saw assembly plus key cutting and safety components like the rip fence, miter gauge, blade, and blade guard system (riving knife and anti-kickback pawls). For the complete parts breakdown, use the 137415030 owner's manual.

Core parts you will see on this model

These are the primary components called out in the loose-parts list for the Craftsman 137415030:

• Table saw assembly (tabletop and base)
• Rip fence (guides rip cuts parallel to the blade)
• Miter gauge (guides crosscuts at set angles)
• Blade (the cutting tool)
• Blade guard assembly (covers the blade during cutting)
• Riving knife assembly (helps reduce kickback by keeping the kerf open)
• Anti-kickback pawls assembly (helps resist workpiece kickback)
• Push stick (keeps hands safely away from the blade)

Adjustment and setup parts (common “controls”)

Most portable table saws like this Craftsman use these parts to set cut depth and angle:

• Handwheel and handle (used to raise and lower the blade mechanism)
• Bevel and height mechanisms (gears, worm gear, and related hardware that move the blade)
• Blade wrenches and hex wrench (used for blade changes and adjustments)

Quick guide: what each part does

Part	What it’s for	When you use it
Rip fence	Straight rip cuts	Ripping boards to width
Miter gauge	Crosscuts and miters	Cutting to length or angles
Riving knife	Kickback reduction	Anytime the blade is installed
Blade guard	Contact protection	Most through-cuts
Push stick	Safer feeding	Narrow rips and small stock

Why it matters

Knowing the names of the rip fence, miter gauge, riving knife, and blade guard parts helps you set the saw up correctly, troubleshoot issues (like bad cuts or binding), and use the right safety accessories for each cut.

Helpful DIY reading

If you are diagnosing cut quality or alignment issues, use our table saw bad angle cuts guide.

Last updated: February 2026
