Kenmore Elite 79032713411 gas cooktop Parts

On the Kenmore Elite gas cooktop model 79032713411, you typically lift the top only after removing the removable burner pieces (grates and caps) and any fasteners that secure the burner heads or burner box to the main top. Follow the access steps in the installation guide for safe handling and proper re-seating.

• Turn all burner knobs to OFF and let the cooktop cool completely.
• Shut off the gas supply at the manual shutoff valve.
• Unplug the cooktop (or switch off the circuit) if it has electric ignition.
• Clear the countertop and protect it with a towel or cardboard.
• Take a quick photo of burner cap and grate placement so reassembly is easy.

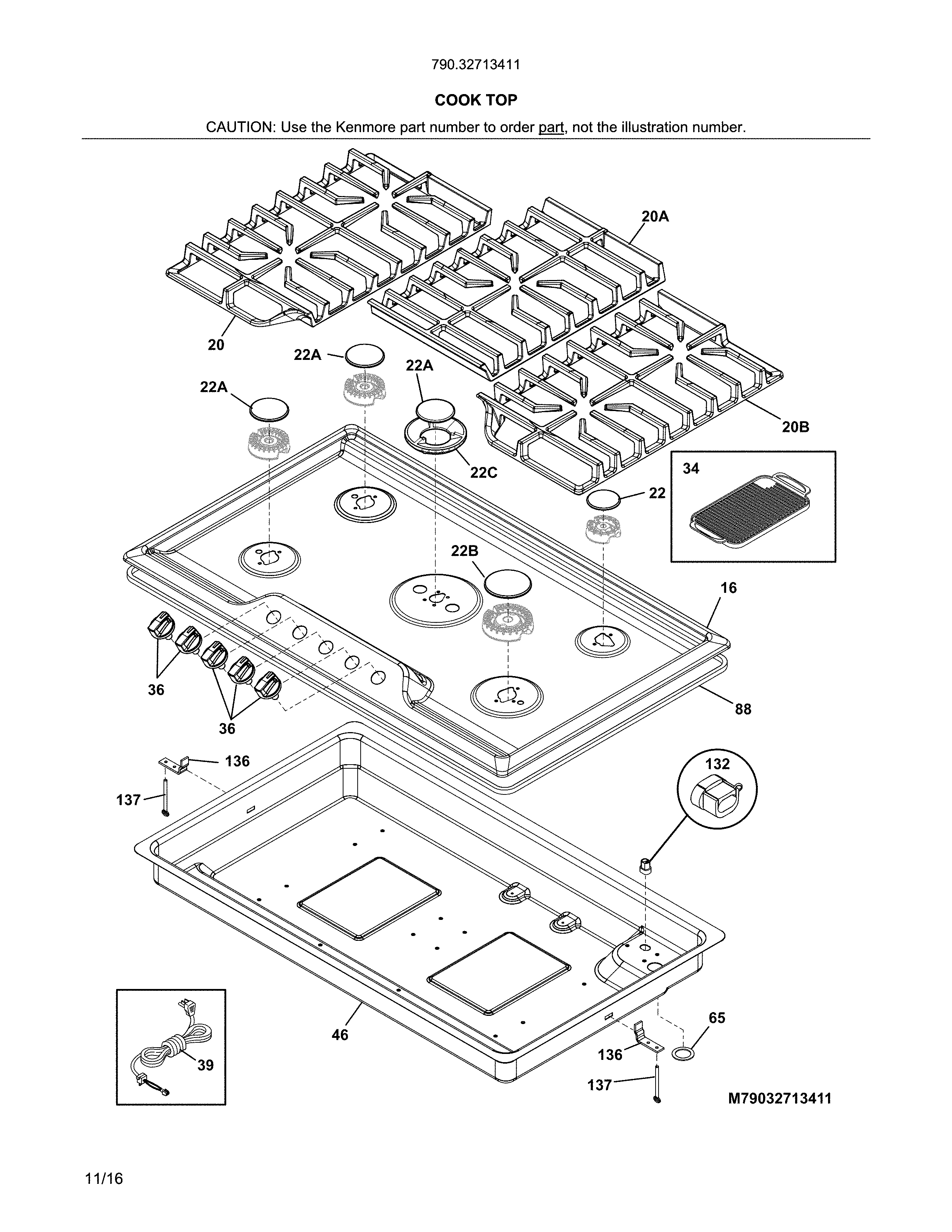

1. Remove the grates and set them aside.
2. Lift off the burner caps (they are usually not fastened).
3. If your model uses burner heads that are screwed down, remove the mounting screws that hold the burner heads/bases to the top.
4. If there are burner tubes or brackets tied to the underside of the top, remove the screws securing them.
5. Carefully raise the main top just enough to access components; support it so you do not strain the igniter wires or gas tubing.

Lifting the cooktop top incorrectly can pinch an igniter harness, misalign a burner head, or create a poor burner-cap seal that causes uneven flames. Correct disassembly also helps you avoid damaging the stainless or porcelain surface.

If a screw is corroded or strips, replace it rather than reusing it. For this model, we commonly see fasteners like the range screw 316240600 used in assemblies.

Last updated: February 2026

Kenmore Elite is a Kenmore brand line, and Kenmore has used multiple manufacturers over the years; some Kenmore Elite appliances (especially certain refrigerators) were produced by LG, but it is not true for every Kenmore Elite product. For the Kenmore Elite gas cooktop model 79032713411, the maker is best confirmed by the identification information and documentation in the 79032713411 owner's manual.

For cooktop repairs, the most important factor is the exact model number and the part ID, not which company built the unit. When you match parts to 79032713411, you get the correct fit and gas performance.

• Use the model number 79032713411 when searching parts diagrams and lists
• Match by part ID and description (example: burner cap vs burner head)
• Replace like-for-like BTU-rated parts when applicable (burner caps, valves, igniters)
• Follow the shutoff and safety steps in the manual before servicing
• If you are converting fuel type (natural gas to LP), follow the conversion instructions exactly

The fastest way to confirm the correct documentation and parts family is the rating/serial plate information referenced in the manual.

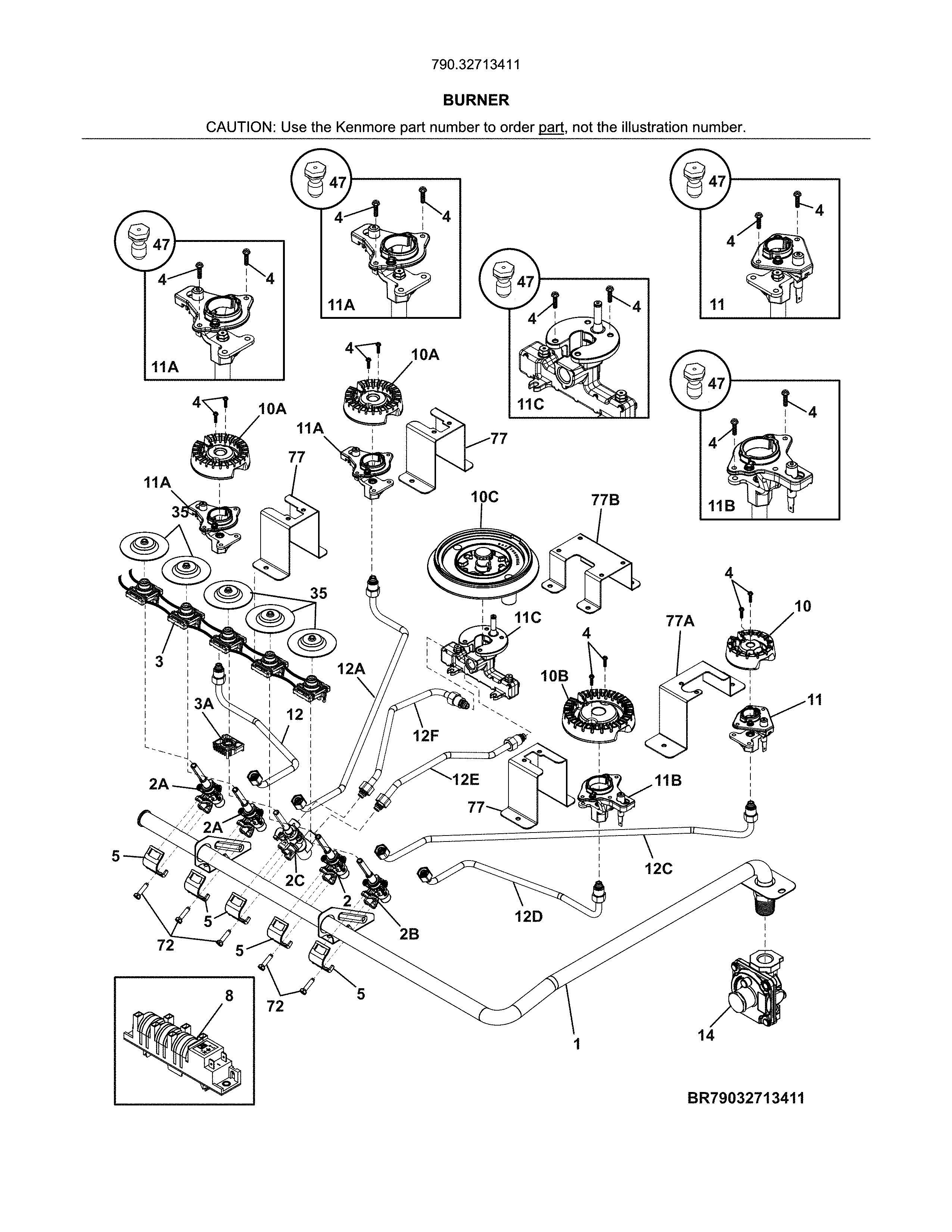

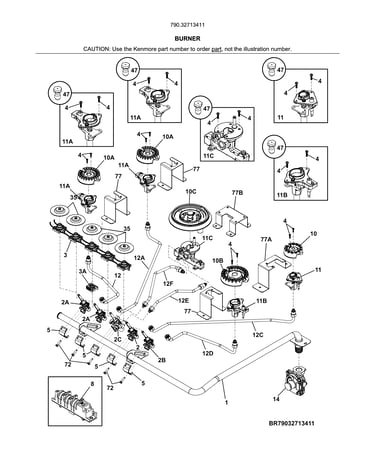

If you are troubleshooting ignition, uneven flame, or damaged burner hardware, these are examples of model-matched parts shown for this cooktop:

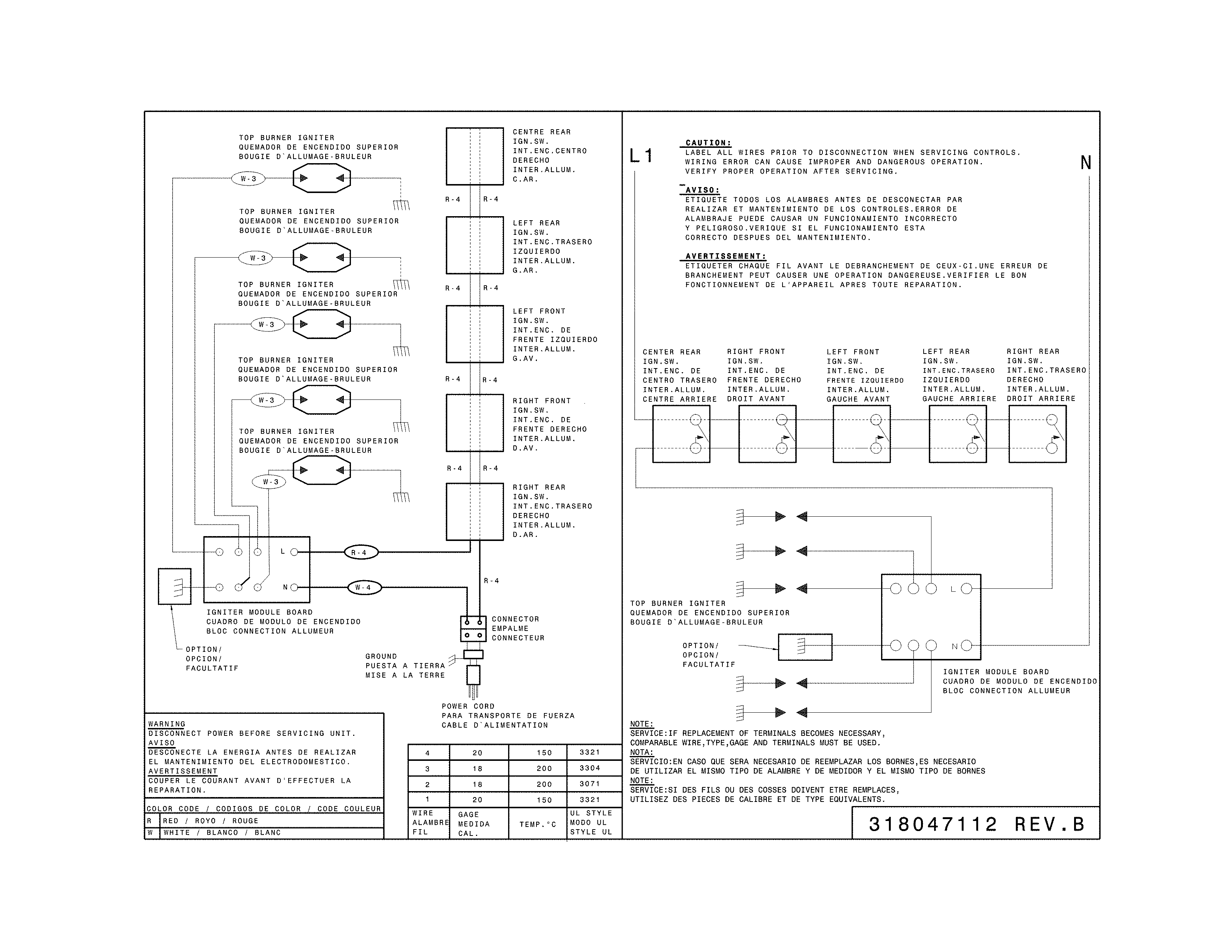

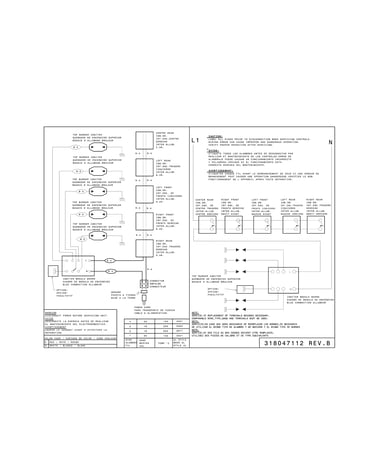

• Cooktop igniter wire harness 318199780 (spark issues, damaged leads)
• Cooktop pressure regulator 5304519943 (gas pressure regulation)
• Cooktop burner igniter and orifice holder, 5,000-btu 5304498786 (burner ignition and gas metering)
• Kenmore pro cooktop burner cap, 5,000-btu (black) 5304508441 (proper flame pattern and stability)

Kenmore Elite sourcing can vary by product and year, so “made by LG” is not a reliable way to pick parts. Using the exact model number 79032713411 and the correct part IDs prevents fit problems, ignition failures, and unsafe flame characteristics.

Last updated: February 2026

A Kenmore Elite gas cooktop like model 79032713411 typically lasts 15 years with normal household use and basic maintenance (keeping burners clean, preventing boilovers, and addressing ignition issues early). Proper gas pressure and correct installation also help it reach that lifespan.

• Cleaning habits: clogged burner ports and heavy grease buildup shorten component life.
• Ignition wear: frequent clicking, moisture, or spills can stress igniters and the spark system.
• Gas supply health: incorrect pressure or a failing regulator can cause poor combustion.
• Cookware and heat use: constant high-heat cooking accelerates wear on caps, heads, and valves.
• Ventilation: good airflow reduces heat stress on internal parts.

• Clean burner caps and heads regularly; keep ports clear and dry.
• After a boilover, dry the cooktop before using to prevent ignition problems.
• Confirm burner caps sit flat and centered after cleaning.
• If clicking continues after burners are off, stop using the cooktop and troubleshoot the ignition circuit.
• Use the care and cleaning steps in the 79032713411 owner's manual.

Replacing the cooktop is usually the better value when you have repeated gas/ignition failures plus cosmetic or structural wear (damaged main top, multiple burners acting up). If the issue is isolated, replacing a single part often restores normal operation.

A cooktop that is near end-of-life often shows flame quality changes (uneven, weak, or noisy flames) and ignition problems first. Catching those early helps prevent soot, poor cooking performance, and avoidable part wear.

Last updated: March 2026
