Model # R-9H94B Official Sharp convection microwave

Here are the diagrams and repair parts for Official Sharp R-9H94B convection microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Magnetron RV-MZA114WRE0
#1-19

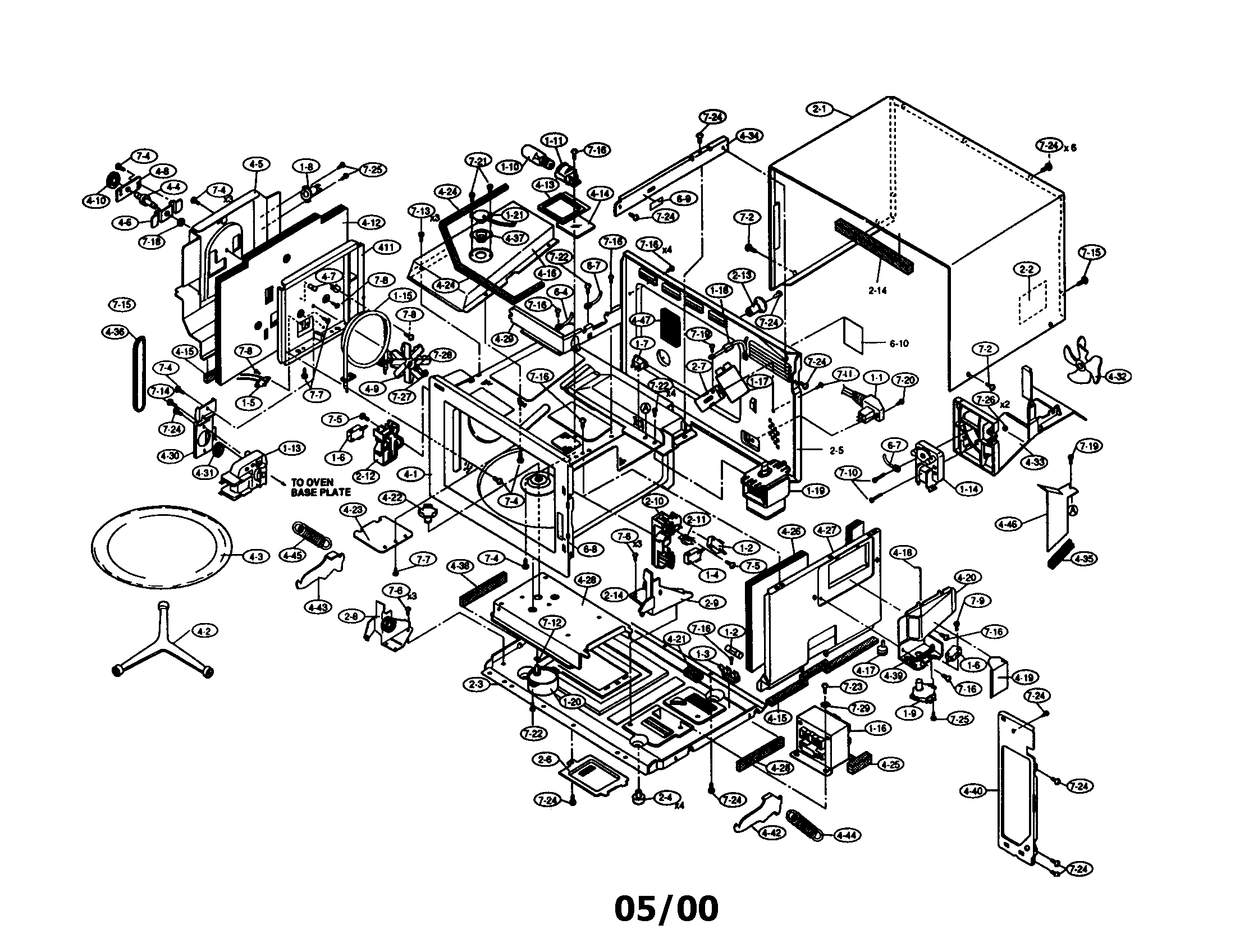

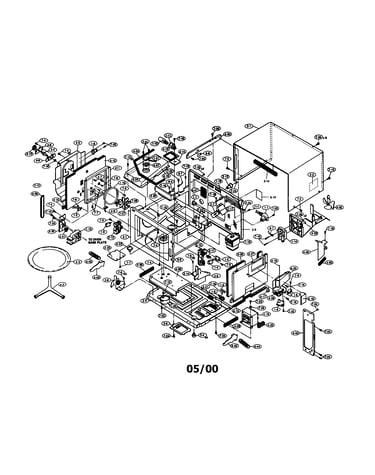

Oven and cabinet diagram

Magnetron

Part #RV-MZA114WRE0

The manufacturer no longer makes this part, and there's no substitute part

Cover PCOVPA301WRE0
#4-23

Oven and cabinet diagram

Cover

Part #PCOVPA301WRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor RC-QZA134WRE0
#1-17

Oven and cabinet diagram

Capacitor

Part #RC-QZA134WRE0

The manufacturer no longer makes this part, and there's no substitute part

Pulley NPLYBA021WRF0
#4-31

Oven and cabinet diagram

Pulley

Part #NPLYBA021WRF0

The manufacturer no longer makes this part, and there's no substitute part

Cover GCOVHA330WRF0
#5-2

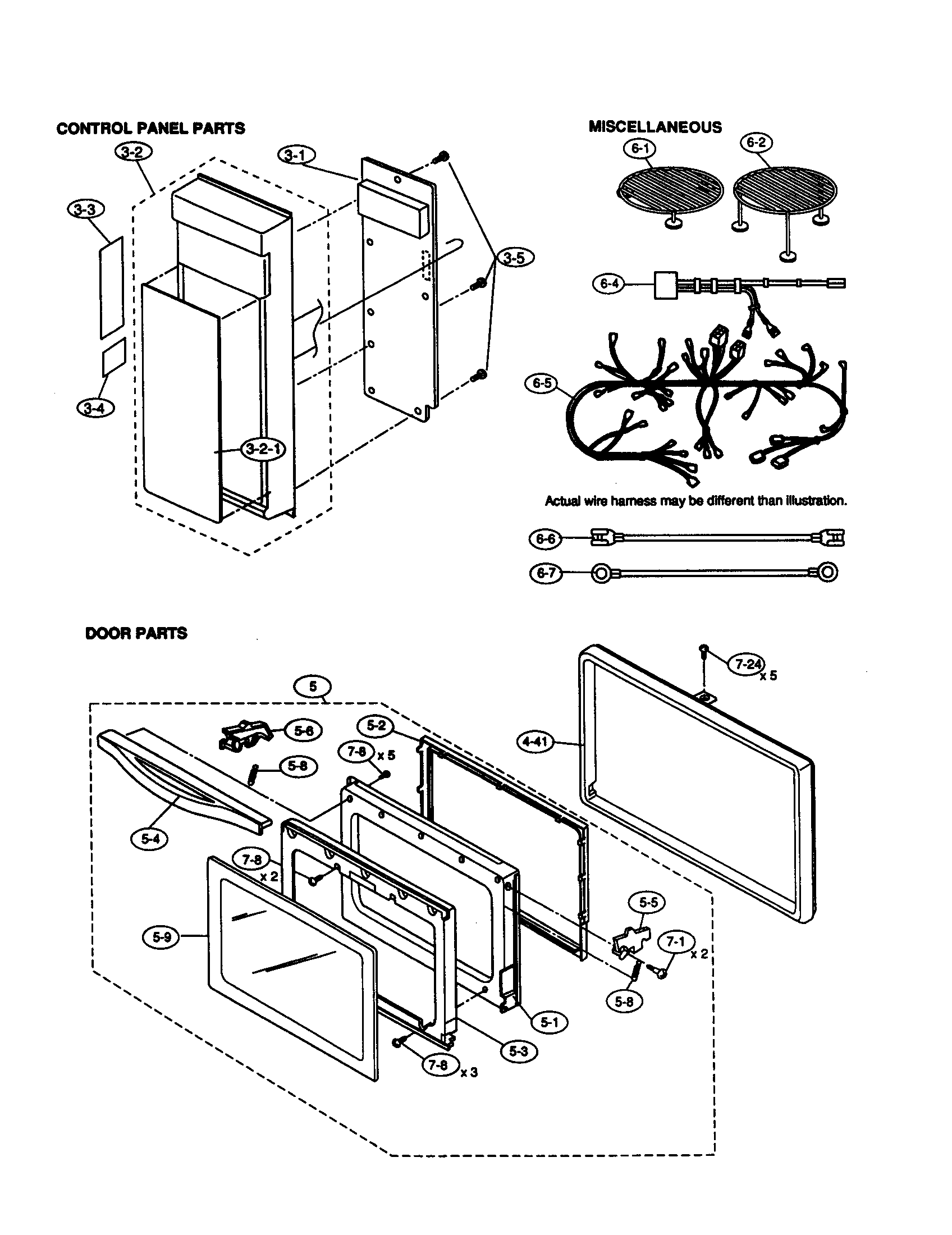

Control panel/door diagram

Cover

Part #GCOVHA330WRF0

The manufacturer no longer makes this part, and there's no substitute part

Transformer RTRN-A325WRE0
#1-16

Oven and cabinet diagram

Transformer

Part #RTRN-A325WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor Coupler NCPL-A021WRFO
#4-22

Oven and cabinet diagram

Microwave turntable motor coupler

Part #NCPL-A021WRFO

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Spring MSPRTA160WRE0
#5-8

Control panel/door diagram

Microwave door latch spring

Part #MSPRTA160WRE0

The manufacturer no longer makes this part, and there's no substitute part

Pulley NPLYBA020WRF0
#4-10

Oven and cabinet diagram

Pulley

Part #NPLYBA020WRF0

The manufacturer no longer makes this part, and there's no substitute part

Fan Belt NBLTKA005WRE0
#4-36

Oven and cabinet diagram

Fan belt

Part #NBLTKA005WRE0

The manufacturer no longer makes this part, and there's no substitute part
