KitchenAid KCGC500JSS00 gas counter unit Parts
Here are the diagrams and repair parts for KitchenAid KCGC500JSS00 gas counter unit, as well as links to manuals and error code tables, if available.
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for KCGC500JSS00 Cooktops

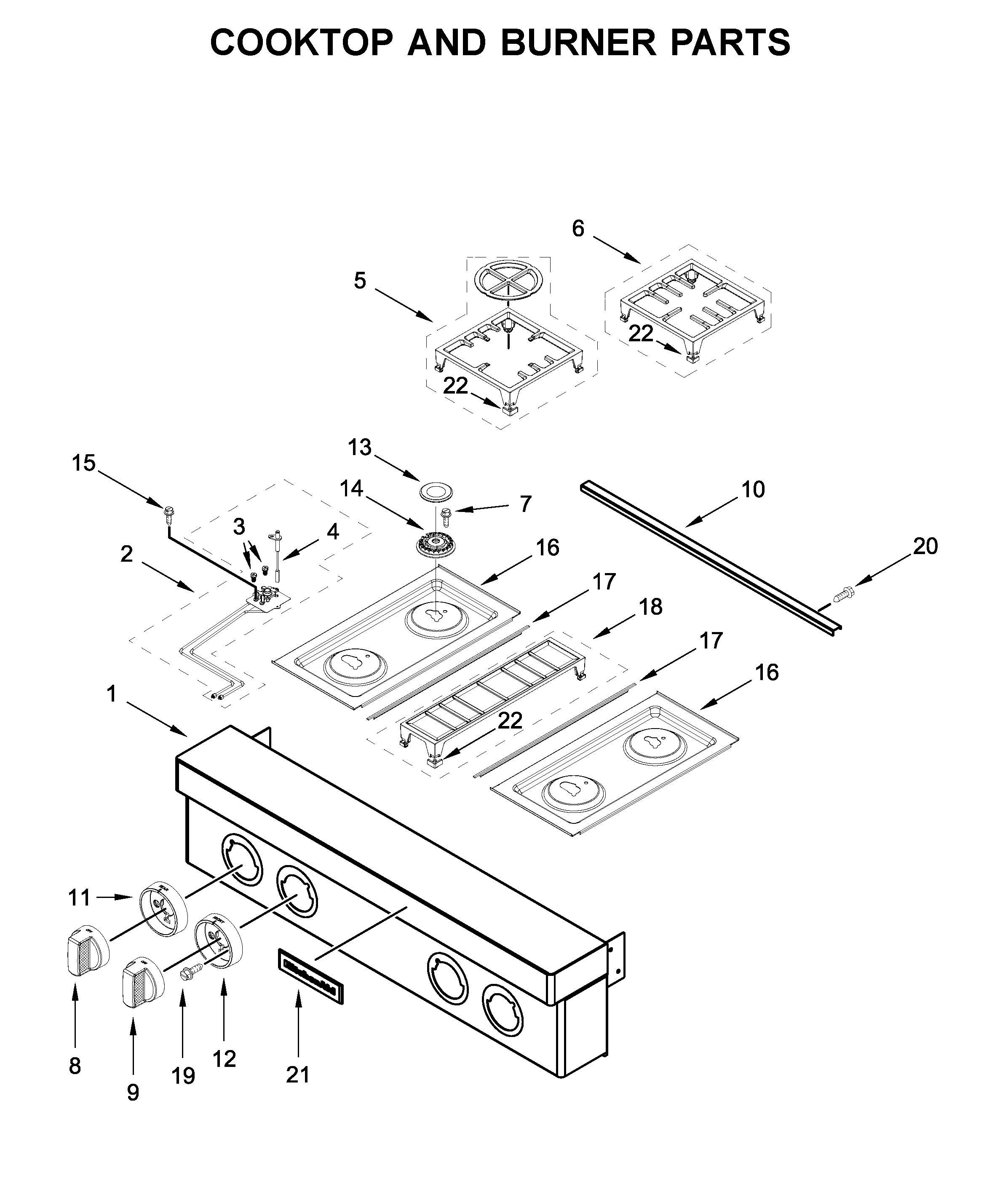

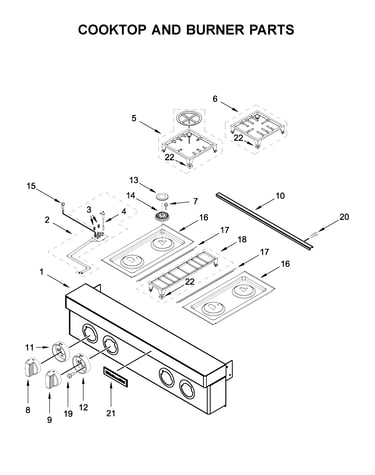

Cooktop and burner parts diagram
Screw
Part #7101P426-60Replaced by #WP90767
Manufacturer substitutionThis part replaces 7101P426-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88
Qty

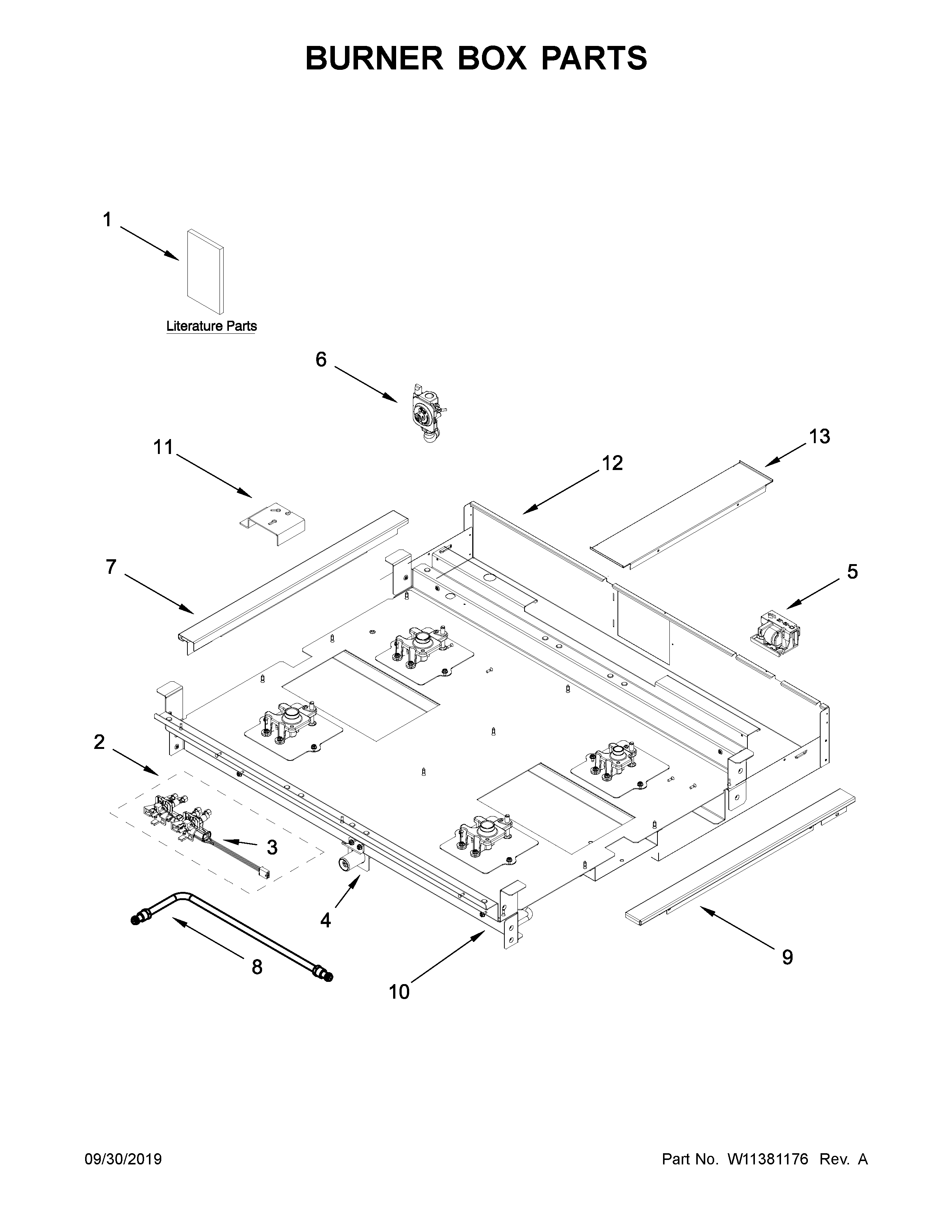

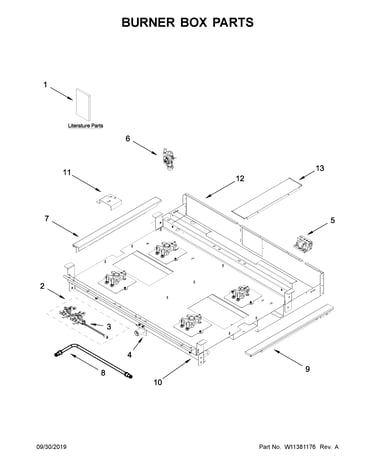

Burner box parts diagram
Pressure Regulator
Part #W10449140Replaced by #W11106948
Manufacturer substitutionThis part replaces W10449140. Substitute parts can look different from the original.In Stock$138.778% OFF Phone Price : $150.77QtyCooktop and burner parts diagram
Screw
Part #7101P338-60Replaced by #W11233072
Manufacturer substitutionThis part replaces 7101P338-60. Substitute parts can look different from the original.In Stock$17.63QtyCooktop and burner parts diagram
Whirlpool Igniter (left Rear, Center Front, Center Rear, Right Rear)
Part #W10892340Replaced by #W11628654
Manufacturer substitutionThis part replaces W10892340. Substitute parts can look different from the original.In Stock$54.28QtyCooktop and burner parts diagram
Asm,orif Hld
Part #W10892771Replaced by #W11337062
Manufacturer substitutionThis part replaces W10892771. Substitute parts can look different from the original.In Stock$58.949% OFF Phone Price : $64.94QtyCooktop and burner parts diagram
Spreader-fla
Part #W10891746Replaced by #W11344539
Manufacturer substitutionThis part replaces W10891746. Substitute parts can look different from the original.In Stock$17.8984% OFF Was : $109.82QtyBurner box parts diagram
Module, Spark
Part #W11121317Replaced by #W11319687
Manufacturer substitutionThis part replaces W11121317. Substitute parts can look different from the original.In Stock$129.129% OFF Phone Price : $141.12QtyBurner box parts diagram
Switch, Harness
Part #W10903728Replaced by #W11344433
Manufacturer substitutionThis part replaces W10903728. Substitute parts can look different from the original.In Stock$141.02QtyBurner box parts diagram
Mounting Bracket
In Stock$96.13QtyCooktop and burner parts diagram
Grate-brnr
In Stock$137.76Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Whirlpool Range Main Top Trim
In Stock
$182.50
Qty
Whirlpool Range Wok Ring
In Stock
$35.60
14% OFF Phone Price : $41.60
Qty
Most common symptoms to help you fix your cooktops
Choose a symptom to see related cooktop repairs.
Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…
