Gibson
Upright Freezer

Model # GFU20F7GW0 Official Gibson freezer

Here are the diagrams and repair parts for Official Gibson GFU20F7GW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |

Filter Drier 216099900
#4

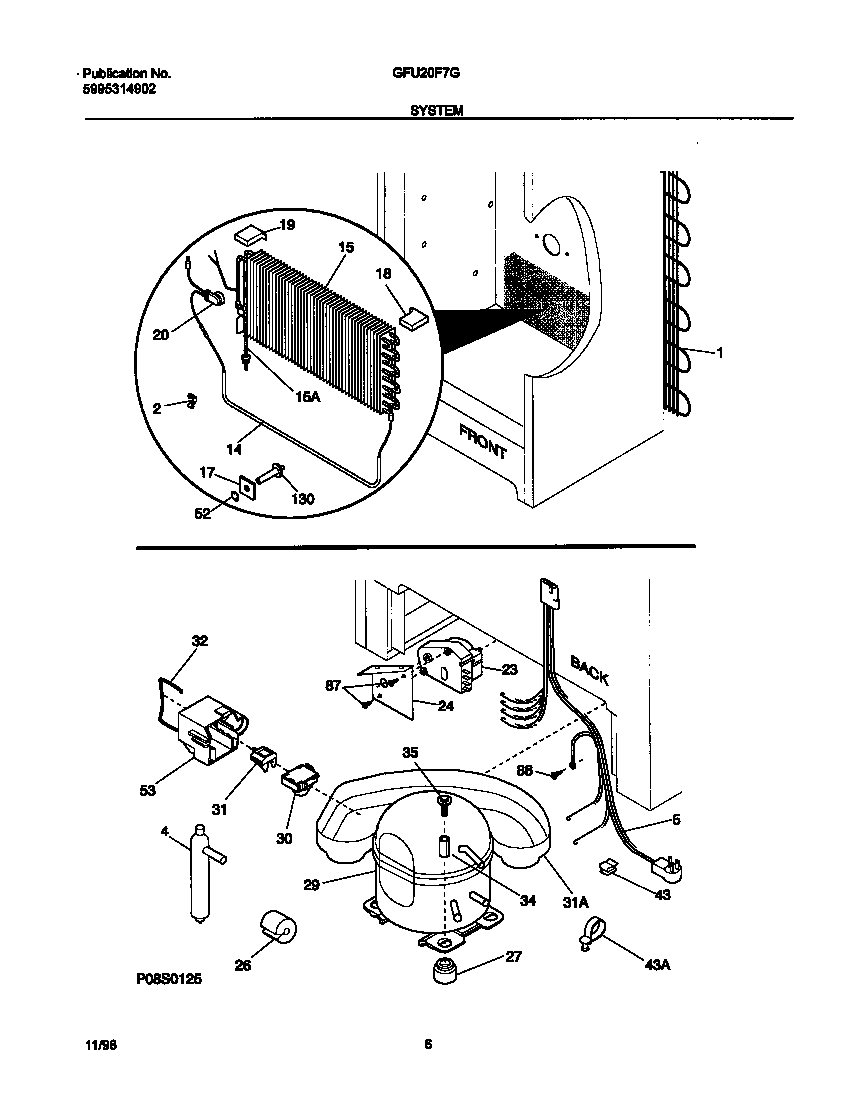

System diagram

Filter drier

Part #216099900

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216099900. Substitute parts can look different from the original.
BEST SELLER
$12.71
22% OFF MSRP : $16.34
In Stock
Key 216388700
#5

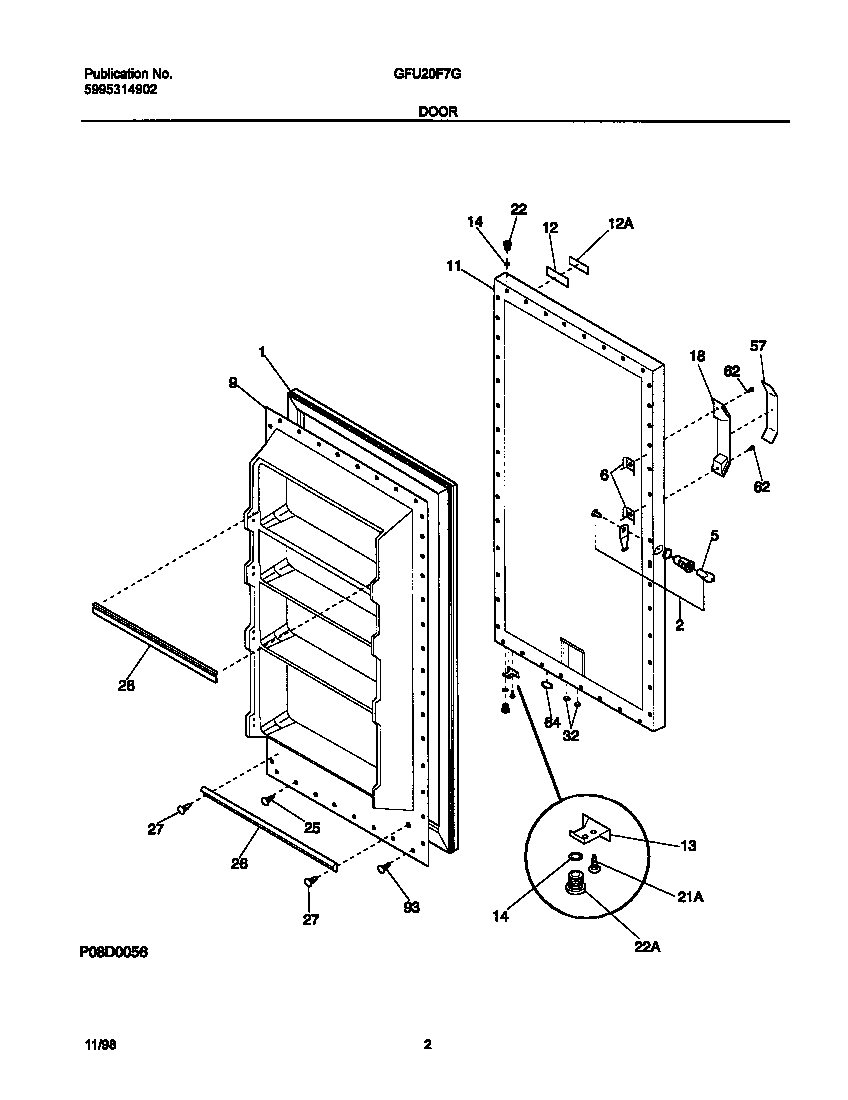

Door diagram

Key

Part #216388700

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216388700. Substitute parts can look different from the original.
BEST SELLER
$10.14
16% OFF Phone Price : $12.14
In Stock
Blade 216325600
#5

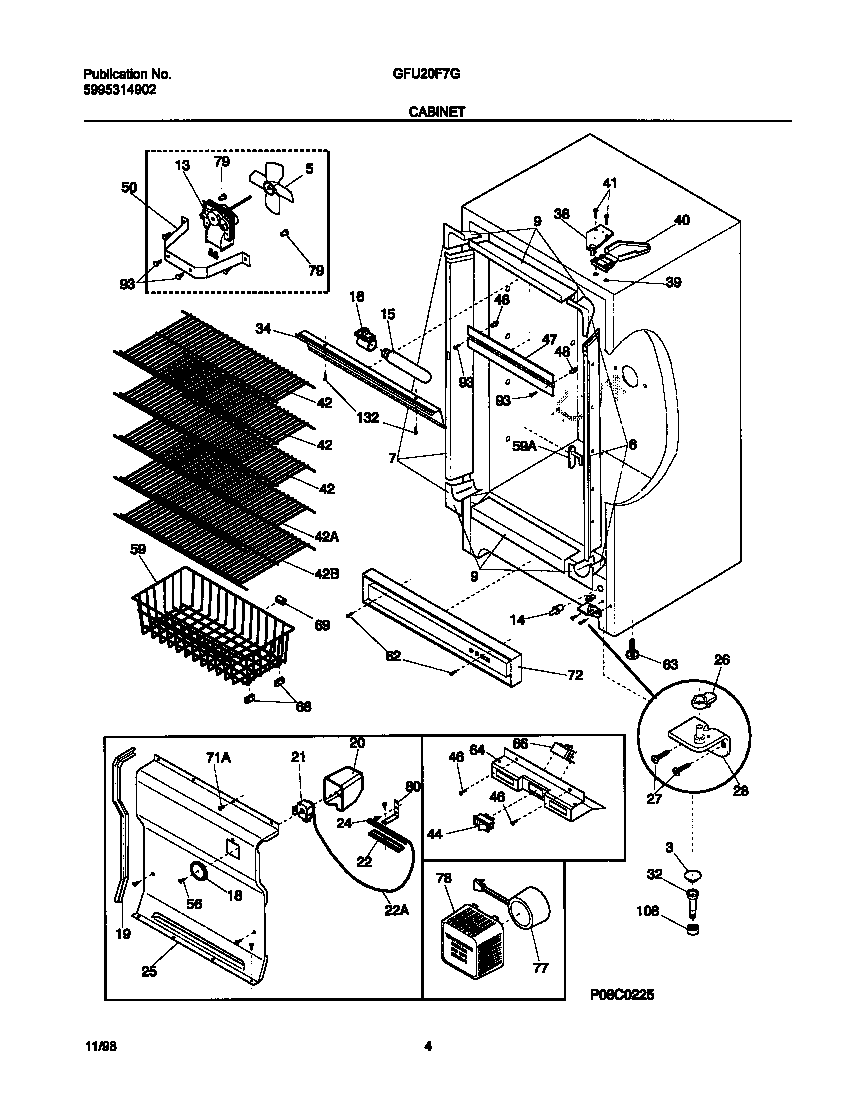

Cabinet diagram

Blade

Part #216325600

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 216325600. Substitute parts can look different from the original.
BEST SELLER
$39.93
11% OFF Phone Price : $44.93
In Stock
Upright Freezer Defrost Timer 216517400
#23

System diagram

Upright freezer defrost timer

Part #216517400

Replaced by #5304518034

?
Manufacturer substitution
This part replaces 216517400. Substitute parts can look different from the original.
BEST SELLER
$42.93
10% OFF Phone Price : $47.93
In Stock
Defrost Thermostat 5304404743
#20

System diagram

Defrost thermostat

Part #5304404743

Replaced by #297216600

?
Manufacturer substitution
This part replaces 5304404743. Substitute parts can look different from the original.
BEST SELLER
$19.38
9% OFF Phone Price : $21.38
In Stock
Compressor 216526300
#29

System diagram

Compressor

Part #216526300

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 216526300. Substitute parts can look different from the original.
BEST SELLER
$363.79
$10.00 OFF Phone Price : $373.79
In Stock
Freezer Door Closer Bearing 216503300
#26

Cabinet diagram

Freezer door closer bearing

Part #216503300

BEST SELLER
This item is not returnable
$8.49
11% OFF Phone Price : $9.49
In Stock
Lamp Bulb 216222700
#15

Cabinet diagram

Lamp bulb

Part #216222700

Replaced by #216846400

?
Manufacturer substitution
This part replaces 216222700. Substitute parts can look different from the original.
$40.15
11% OFF Phone Price : $45.15
In Stock
Light Plunger 216472300
#14

Cabinet diagram

Light plunger

Part #216472300

Replaced by #297243800

?
Manufacturer substitution
This part replaces 216472300. Substitute parts can look different from the original.
$19.99
9% OFF Phone Price : $21.99
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49
9% OFF Phone Price : $21.49
In Stock
