CONFIRM THE PART FITS

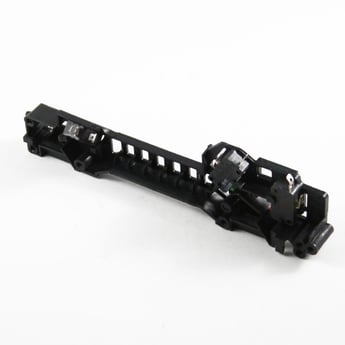

Microwave Door Latch Housing and Interlock Switch Assembly 3501W1A019D
Part #3501W1A019D
Part Information
This door latch housing and interlock switch assembly (part number 3501W1A019D) is for microwaves.
Door latch housing and interlock switch assembly 3501W1A019D engages the door latch when the door is closed, and includes the switches that prevent the microwave from starting if the door is opened. The assembly includes multiple parts; refer to your parts diagram for a complete list of parts included.
Because high-voltage capacitors in a microwave can retain a lethal electrical charge even when the microwave is unplugged, a service technician should install this part.
Frequently Used Together
- $100.60 |9% OFF Phone Price : $110.60
- $8.73 |10% OFF Phone Price : $9.73
- $7.62 |12% OFF Phone Price : $8.62
- $9.76 |9% OFF Phone Price : $10.76
- $27.47 |15% OFF Phone Price : $32.47
- $23.98 |17% OFF Phone Price : $28.98
- $6.13 |14% OFF Phone Price : $7.13
- $12.16 |14% OFF Phone Price : $14.16
- $55.97 |8% OFF Phone Price : $60.97
- $91.94 |5% OFF Phone Price : $96.94
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #LMV1683ST/00 LG microwave/hood combo | LMV1683ST/00 | Latch board parts |
Model #LMV1683SW/00 LG microwave/hood combo | LMV1683SW/00 | Latch board parts |
Model #LMV1683SB/00 LG microwave/hood combo | LMV1683SB/00 | Latch board parts |
Model #72180529500 Kenmore microwave/hood combo | 72180529500 | Latch board parts |
Model #72180403402 Kenmore microwave/hood combo | 72180403402 | Latch board parts |
Model #72185029010 Kenmore microwave/hood combo | 72185029010 | Latchboard parts assembly |
Model #MV1610WW Goldstar microwave/hood combo | MV1610WW | Installation parts |
Model #72180042700 Kenmore microwave/hood combo | 72180042700 | Latch board |
Model #72180044700 Kenmore microwave/hood combo | 72180044700 | Latch board |
Model #72181043700 Kenmore microwave/hood combo | 72181043700 | Latch board |
Reviews
Fast delivery!
It was a fast delivery, exact part we needed, and easy install. Saved $ doing it ourselves!
TerKat, Yorktown, VA
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
microwave door closure part
It was easy to navigate the web site to find tbe replacement part. Bit of a challenge to remove tbe wires from the part. Very easy to remvove and reinstall the replacement part.
bill12345, Dallas, TX
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
easy install
When I opened microwave door, the fan would come on.
Pamela r, gainesvllle fl
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Easy to install
It was pretty easy to install this assembly. Open the microwave door, remove a couple screws on top of the black plastic cover at the top front of the microwave. Remove the two screws that hold the control panel on. Remove the two screws that hold the old assembly in, and unclip the wires from it. Reverse the order to reinstall! Only took me about ten minutes to do!
IanQ, Knoxville, TN
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Exactly what I ordered. It installed perfectly.
I learned a lot about repairing microwaves in the process.
Jimmy6, Pinellas Park, Fl
1 person thought this review was helpful.
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
Door latch asm
Easy to install 2 screws . Being careful to adjust latch properly.
Kenneth, Virginia
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
