Model # 517473120 Official Sears lightweight bicycle

Here are the diagrams and repair parts for Official Sears 517473120 lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Adjusting Screw 2981-1001-1
#6

Shimano rear derailleur diagram

Adjusting screw

Part #2981-1001-1

The manufacturer no longer makes this part, and there's no substitute part

Straddle Cable Bridge Complete 9472-0000070
#69

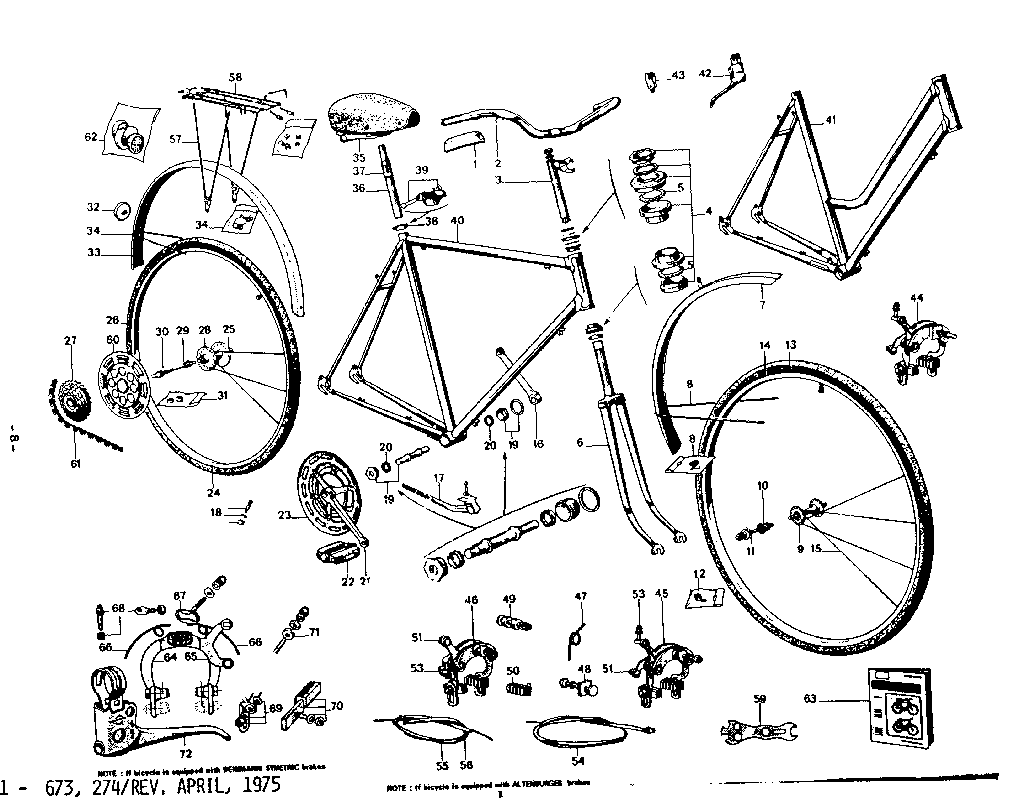

Unit parts diagram

Straddle cable bridge complete

Part #9472-0000070

The manufacturer no longer makes this part, and there's no substitute part

Rear Brake Transmission (for Men) 227065071
#55

Unit parts diagram

Rear brake transmission (for men)

Part #227065071

The manufacturer no longer makes this part, and there's no substitute part

Handlebar 7246
#2

Unit parts diagram

Handlebar

Part #7246

The manufacturer no longer makes this part, and there's no substitute part

Fork Compl. For Men 35137W
#6

Unit parts diagram

Fork compl. for men

Part #35137W

The manufacturer no longer makes this part, and there's no substitute part

Seat Post 4162
#36

Unit parts diagram

Seat post

Part #4162

The manufacturer no longer makes this part, and there's no substitute part

Straining Spring 105725600
#47

Unit parts diagram

Straining spring

Part #105725600

The manufacturer no longer makes this part, and there's no substitute part

Pulley Cap 2981-2700
#13

Shimano rear derailleur diagram

Pulley cap

Part #2981-2700

The manufacturer no longer makes this part, and there's no substitute part

Cable Clamp Nut 4281-181
#181

Shimano front derailleur diagram

Cable clamp nut

Part #4281-181

The manufacturer no longer makes this part, and there's no substitute part

Clip Bolt 4281-178
#178

Shimano front derailleur diagram

Clip bolt

Part #4281-178

The manufacturer no longer makes this part, and there's no substitute part
