Kenmore 587721400 undercounter dishwasher Parts
Here are the diagrams and repair parts for Kenmore 587721400 undercounter dishwasher, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 587721400 Undercounter Dishwasher

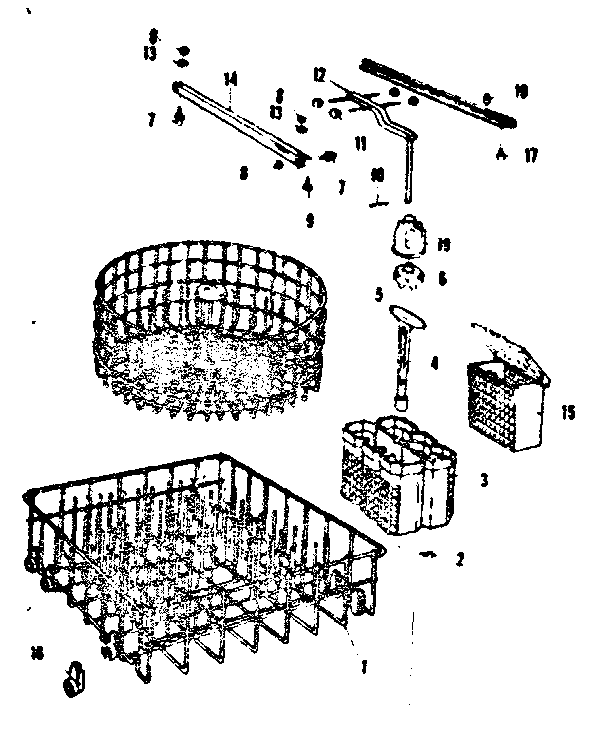

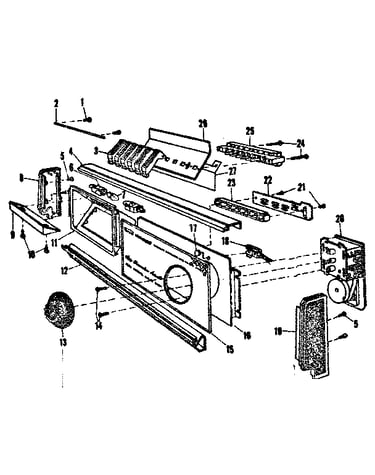

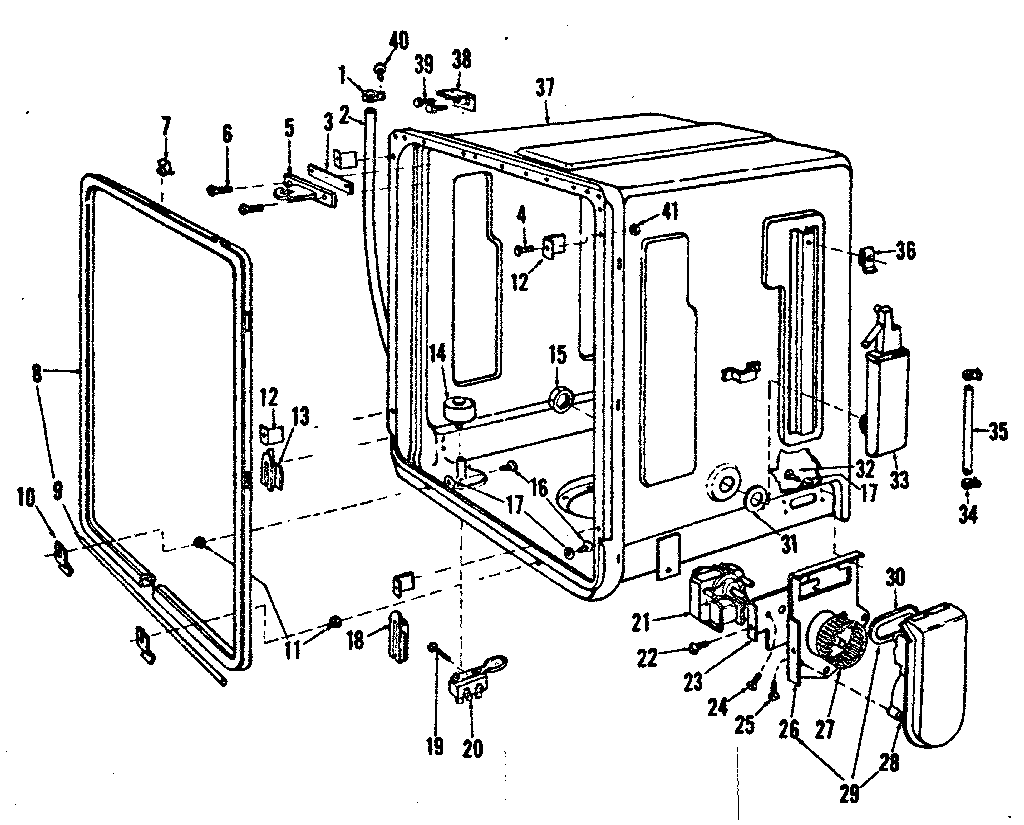

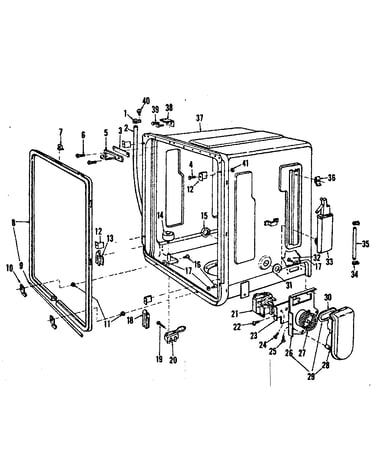

Tub diagram
Screw
Part #806890Replaced by #131302901
Manufacturer substitutionThis part replaces 806890. Substitute parts can look different from the original.This item is not returnableIn Stock$5.7115% OFF Phone Price : $6.71
Qty

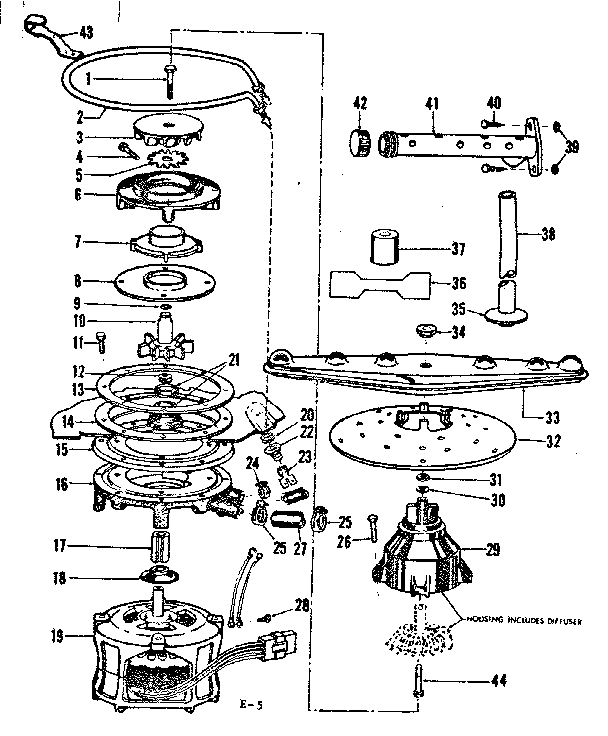

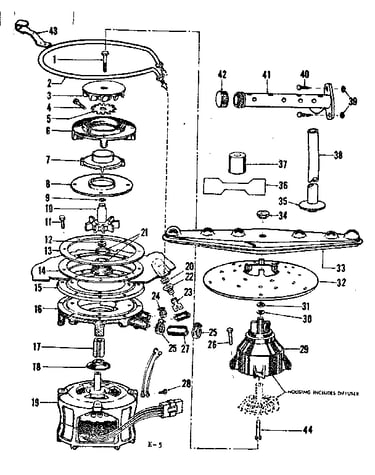

Motor, heater, and spray arm details diagram
Lock Washer
Part #804526Replaced by #5300804526
Manufacturer substitutionThis part replaces 804526. Substitute parts can look different from the original.This item is not returnableIn Stock$5.4216% OFF Phone Price : $6.42QtyMotor, heater, and spray arm details diagram
Shroud Impeller
Part #806267Replaced by #5300806267

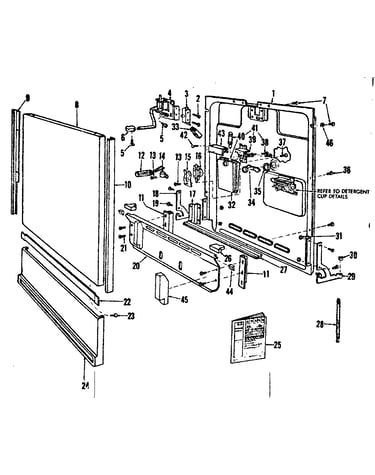

Manufacturer substitutionThis part replaces 806267. Substitute parts can look different from the original.In Stock$48.62QtyDoor and access panel diagram
Gasket
Part #806110Replaced by #5300806110
Manufacturer substitutionThis part replaces 806110. Substitute parts can look different from the original.In Stock$34.97QtyDoor and access panel diagram

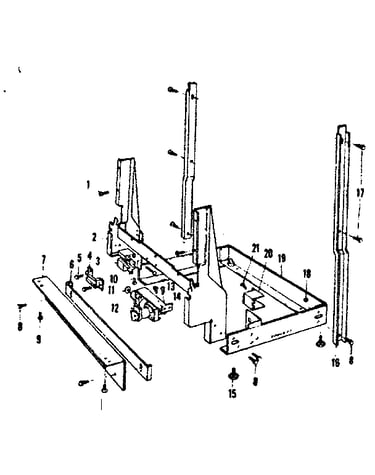

Thermostat
Part #806848Replaced by #5300807464
Manufacturer substitutionThis part replaces 806848. Substitute parts can look different from the original.In Stock$45.82QtyFrame diagram
Cover
Part #800222Replaced by #5300800222
Manufacturer substitutionThis part replaces 800222. Substitute parts can look different from the original.In Stock$39.41QtyMotor, heater, and spray arm details diagram
Plate Pump
Part #806390Replaced by #5300807884
Manufacturer substitutionThis part replaces 806390. Substitute parts can look different from the original.In Stock$67.75QtyMotor, heater, and spray arm details diagram
Clamp
Part #806090Replaced by #154611101
Manufacturer substitutionThis part replaces 806090. Substitute parts can look different from the original.In Stock$14.4812% OFF Phone Price : $16.48QtyDoor and access panel diagram

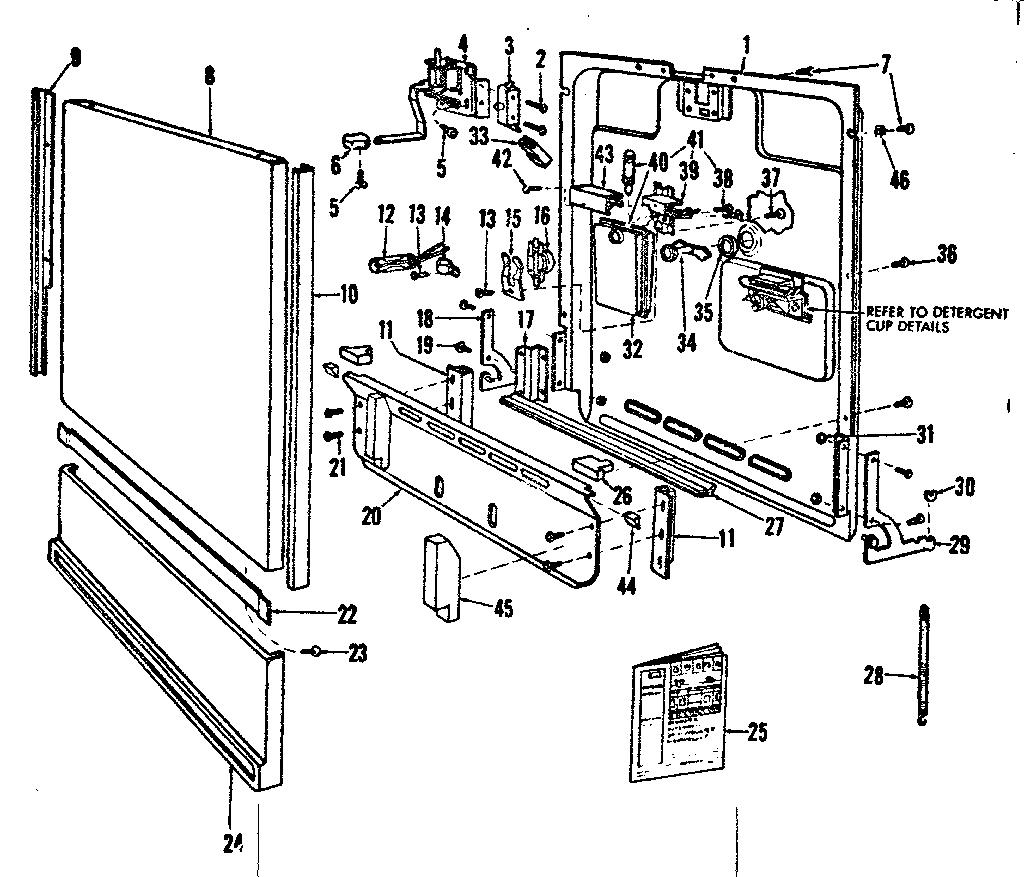

Door Panel
Part #806367Replaced by #5300807265

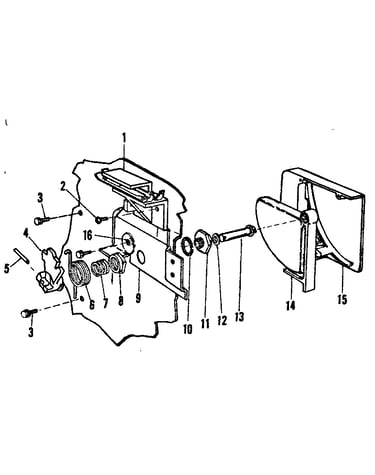

Manufacturer substitutionThis part replaces 806367. Substitute parts can look different from the original.In Stock$125.36QtyDetergent cup diagram
Shaft
Part #806648Replaced by #5300808973
Manufacturer substitutionThis part replaces 806648. Substitute parts can look different from the original.In Stock$49.33Qty
