Craftsman
Gas Snowblower

Model #536884820 Craftsman snow thrower

Here are the diagrams and repair parts for Craftsman 536884820 snow thrower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 197 parts

Snowblower Trunnion Bearing

#56

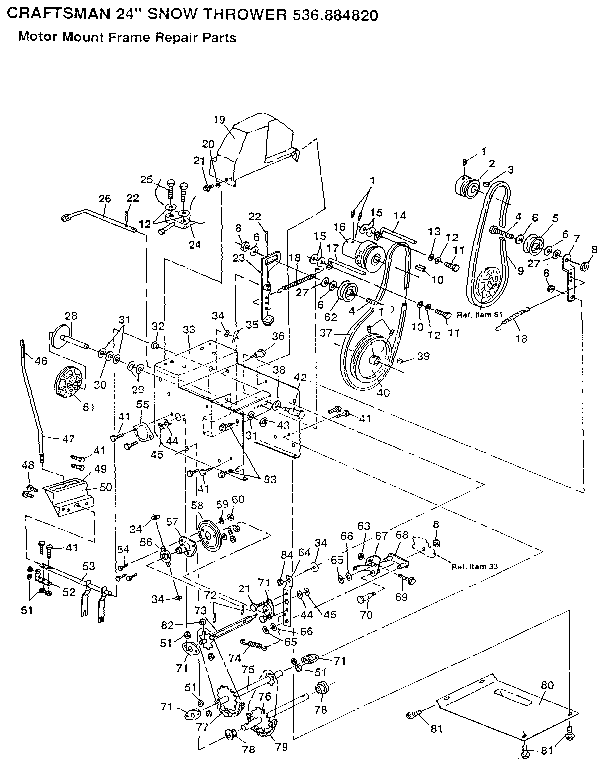

Motor mount frame Diagram

Snowblower trunnion bearing

Part #85501MA
?
Manufacturer substitution
This part replaces 85501. Substitute parts can look different from the original.
This part replaces 85501
$45.57 |
24% OFF MSRP:$60.00

In Stock

Snowblower Wing Bolt

#2

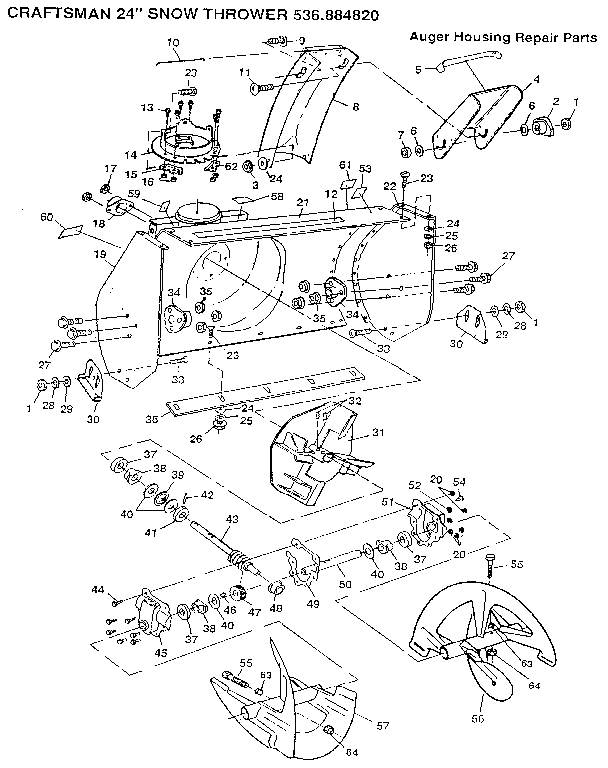

Auger housing Diagram

Snowblower wing bolt

Part #1501260MA
?
Manufacturer substitution
This part replaces 57171. Substitute parts can look different from the original.
This part replaces 57171
$8.70

In Stock

Lawn & Garden Equipment Nut

#20

Handle assembly Diagram

Lawn & garden equipment nut

Part #780029MA
?
Manufacturer substitution
This part replaces 71035. Substitute parts can look different from the original.
This part replaces 71035
This item is not returnable
$3.60 |
16% OFF MSRP:$4.30

In Stock

Lawn & Garden Equipment Carriage Bolt

#23

Auger housing Diagram

Lawn & garden equipment carriage bolt

Part #002X39MA
?
Manufacturer substitution
This part replaces 302623. Substitute parts can look different from the original.
This part replaces 302623
This item is not returnable
$2.74 |
6% OFF MSRP:$2.90

In Stock

Snowblower Gearbox Oil Seal

#37

Auger housing Diagram

Snowblower gearbox oil seal

Part #9566MA
?
Manufacturer substitution
This part replaces 24274. Substitute parts can look different from the original.
This part replaces 24274
$15.67

In Stock

Lawn & Garden Equipment Screw

#25

Motor mount frame Diagram

Lawn & garden equipment screw

Part #302636MA
?
Manufacturer substitution
This part replaces 302636. Substitute parts can look different from the original.
This part replaces 302636
This item is not returnable
$3.91 |
22% OFF MSRP:$5.00

In Stock

Lawn & Garden Equipment Woodruff Key

#46

Auger housing Diagram

Lawn & garden equipment woodruff key

Part #703891
?
Manufacturer substitution
This part replaces 431787. Substitute parts can look different from the original.
This part replaces 431787
This item is not returnable
$3.16 |
27% OFF MSRP:$4.30

In Stock

Snowblower Gearbox Housing Gasket

#49

Auger housing Diagram

Snowblower gearbox housing gasket

Part #51279MA
?
Manufacturer substitution
This part replaces 51279. Substitute parts can look different from the original.
This part replaces 51279
$9.50 |
21% OFF MSRP:$12.00

In Stock

Snowblower Auger Drive Belt

#37

Motor mount frame Diagram

Snowblower auger drive belt

Part #313820MA
?
Manufacturer substitution
This part replaces 302706. Substitute parts can look different from the original.
This part replaces 302706
$24.89 |
11% OFF MSRP:$28.00

In Stock

Snowblower Flat Washer

#30

Handle assembly Diagram

Snowblower flat washer

Part #309312MA
?
Manufacturer substitution
This part replaces 309312. Substitute parts can look different from the original.
This part replaces 309312
This item is not returnable
$3.23 |
25% OFF MSRP:$4.30

In Stock
