Craftsman
Air Compressor

Model # 919167812 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919167812 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 85 parts  |
Bracket
#4

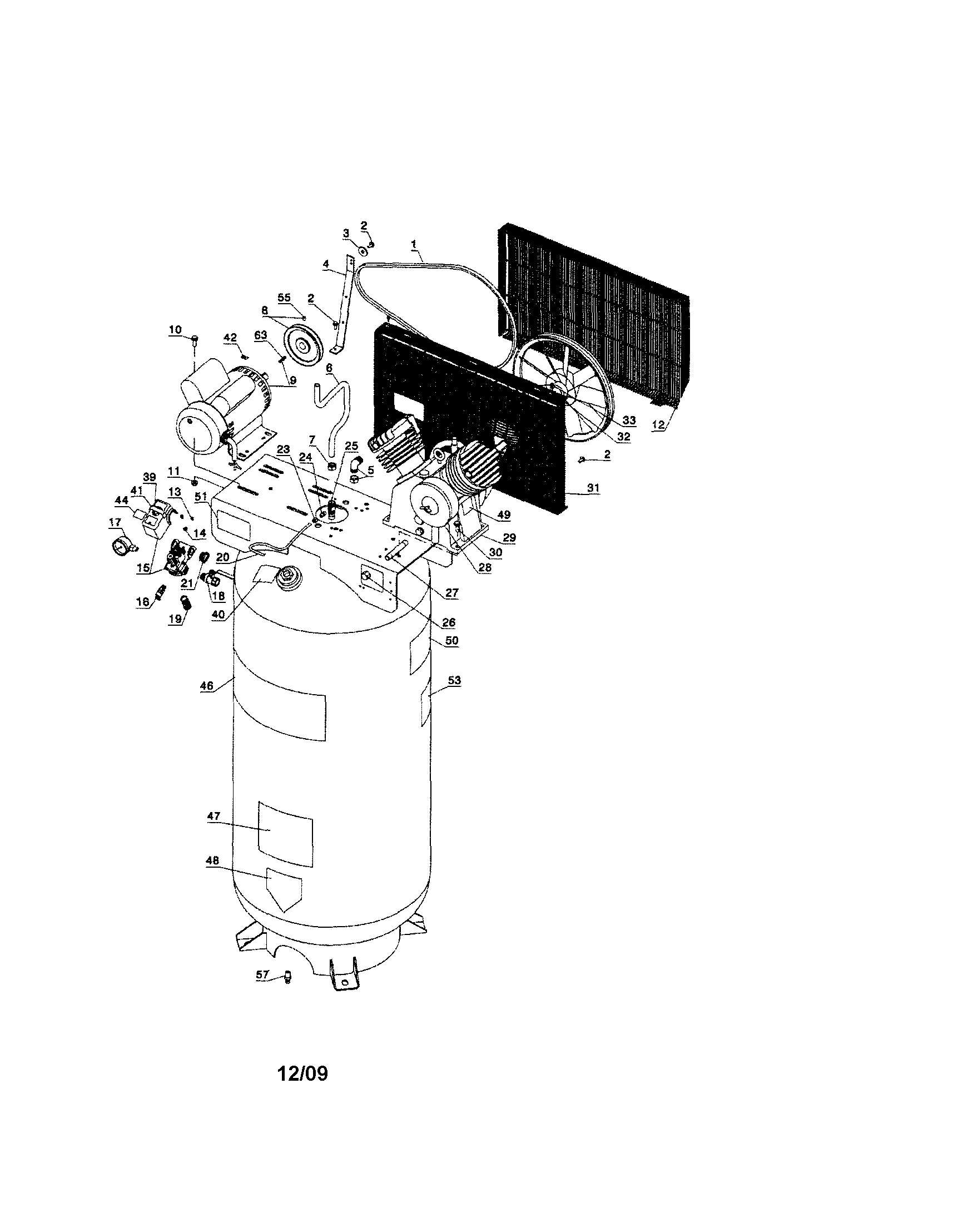

Main unit diagram

Bracket

Part #AC-0485

The manufacturer no longer makes this part, and there's no substitute part

Drain Plug
#148

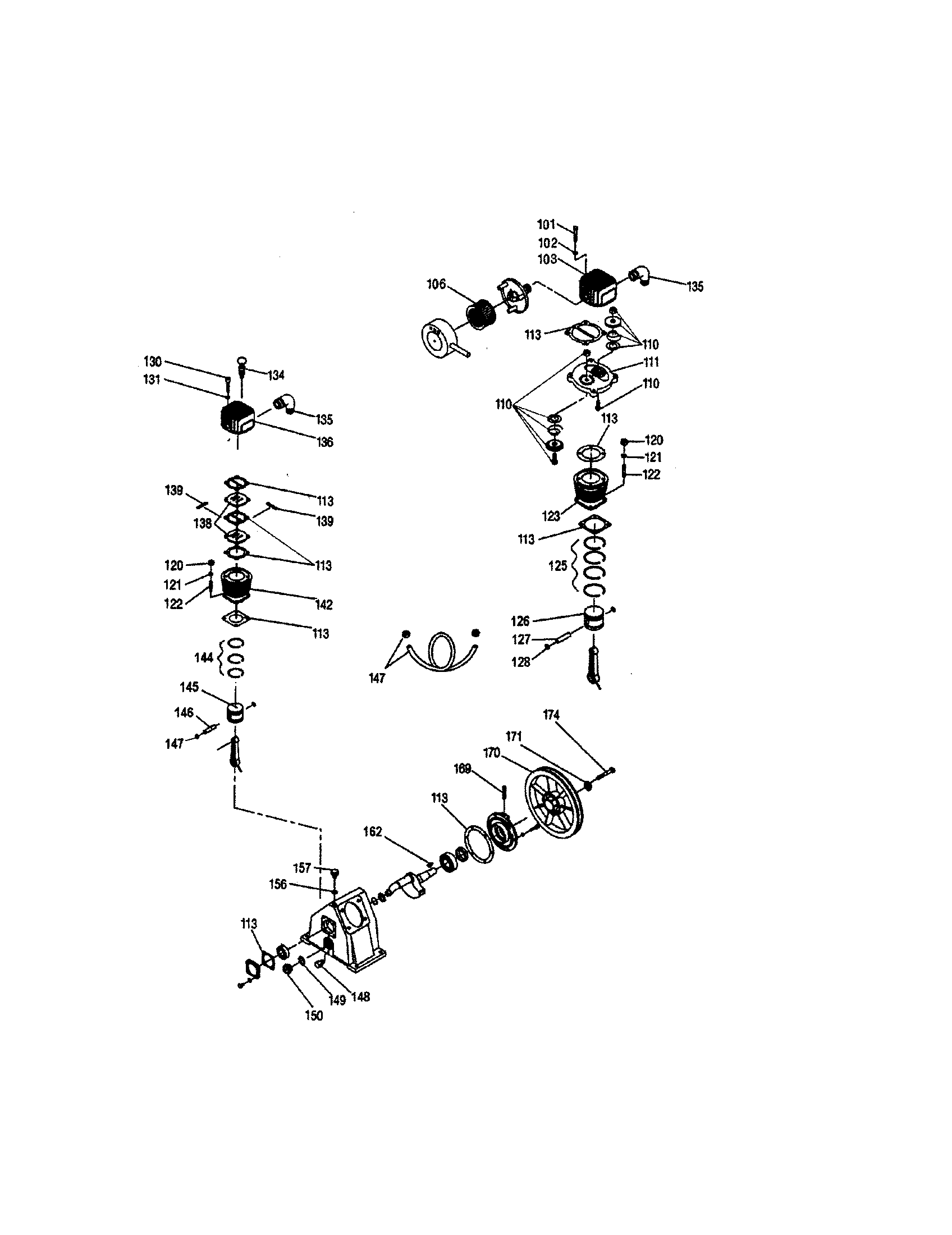

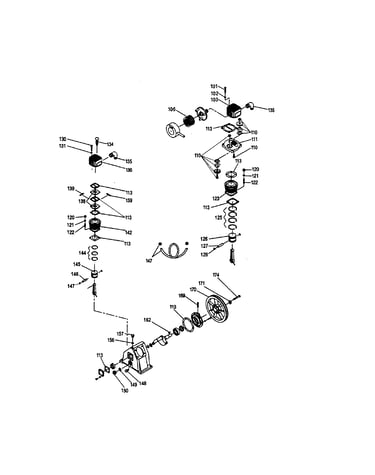

Pump diagram

Drain plug

Part #5140030-59

The manufacturer no longer makes this part, and there's no substitute part

Oil Label
#51

Main unit diagram

Oil label

Part #A00771

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Pump
#29

Main unit diagram

Air compressor pump

Part #A03155

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Air Filter
#28

Main unit diagram

Air compressor air filter

Part #A03157

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Piston
#126

Pump diagram

Air compressor piston

Part #5140030-52

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Pressure Relief Valve
#16

Main unit diagram

Air compressor pressure relief valve

Part #TIA-4200

The manufacturer no longer makes this part, and there's no substitute part

Belt Guard
#31

Main unit diagram

Belt guard

Part #AC-0433

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer
#102

Pump diagram

Lock washer

Part #A04422

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Pressure Relief Valve
#134

Pump diagram

Air compressor pressure relief valve

Part #A04430

The manufacturer no longer makes this part, and there's no substitute part
