KitchenAid YKMHS120EBS5 microwave/hood combo Parts

Here are the diagrams and repair parts for KitchenAid YKMHS120EBS5 microwave/hood combo, as well as links to manuals and error code tables, if available.

KitchenAid YKMHS120EBS5 microwave/hood combo
By Schematic

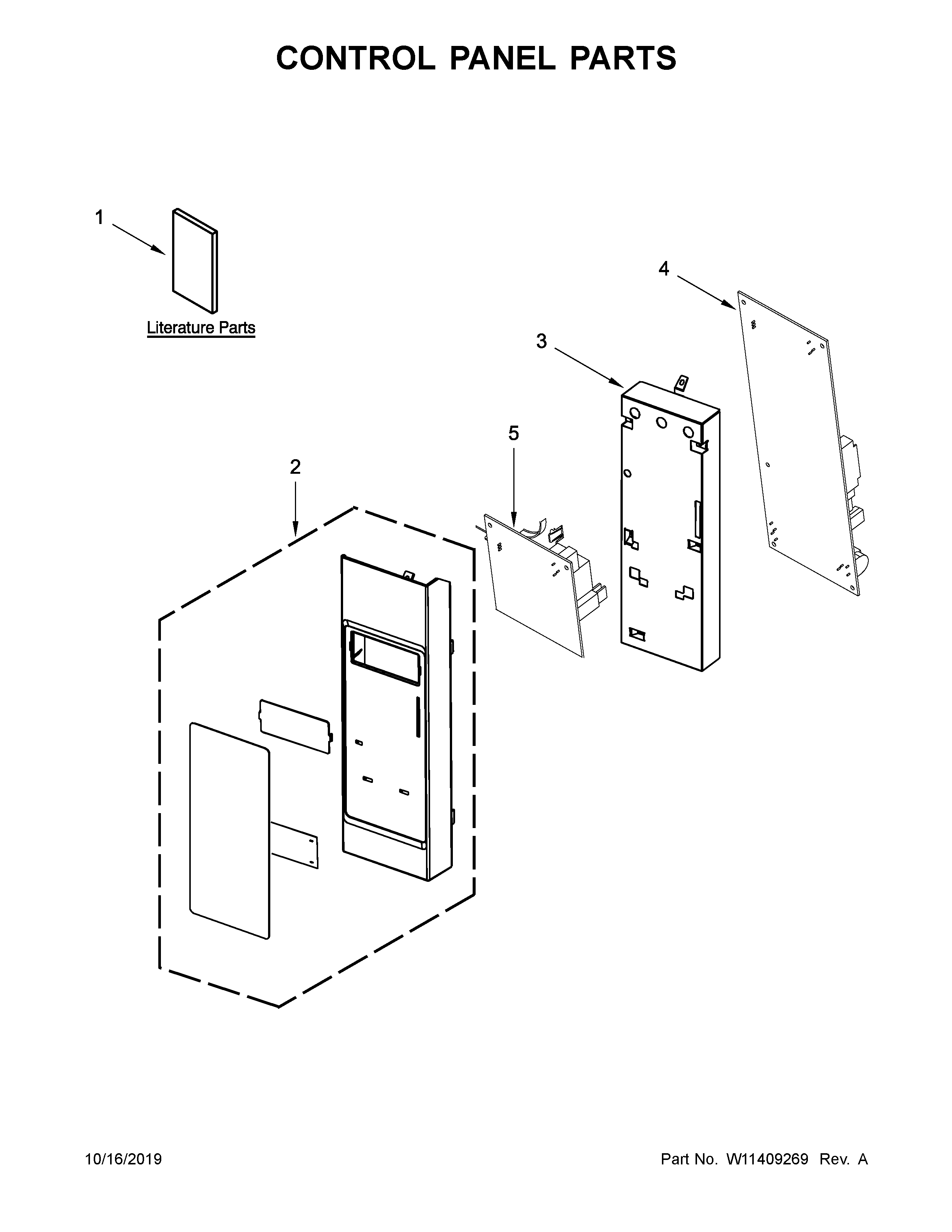

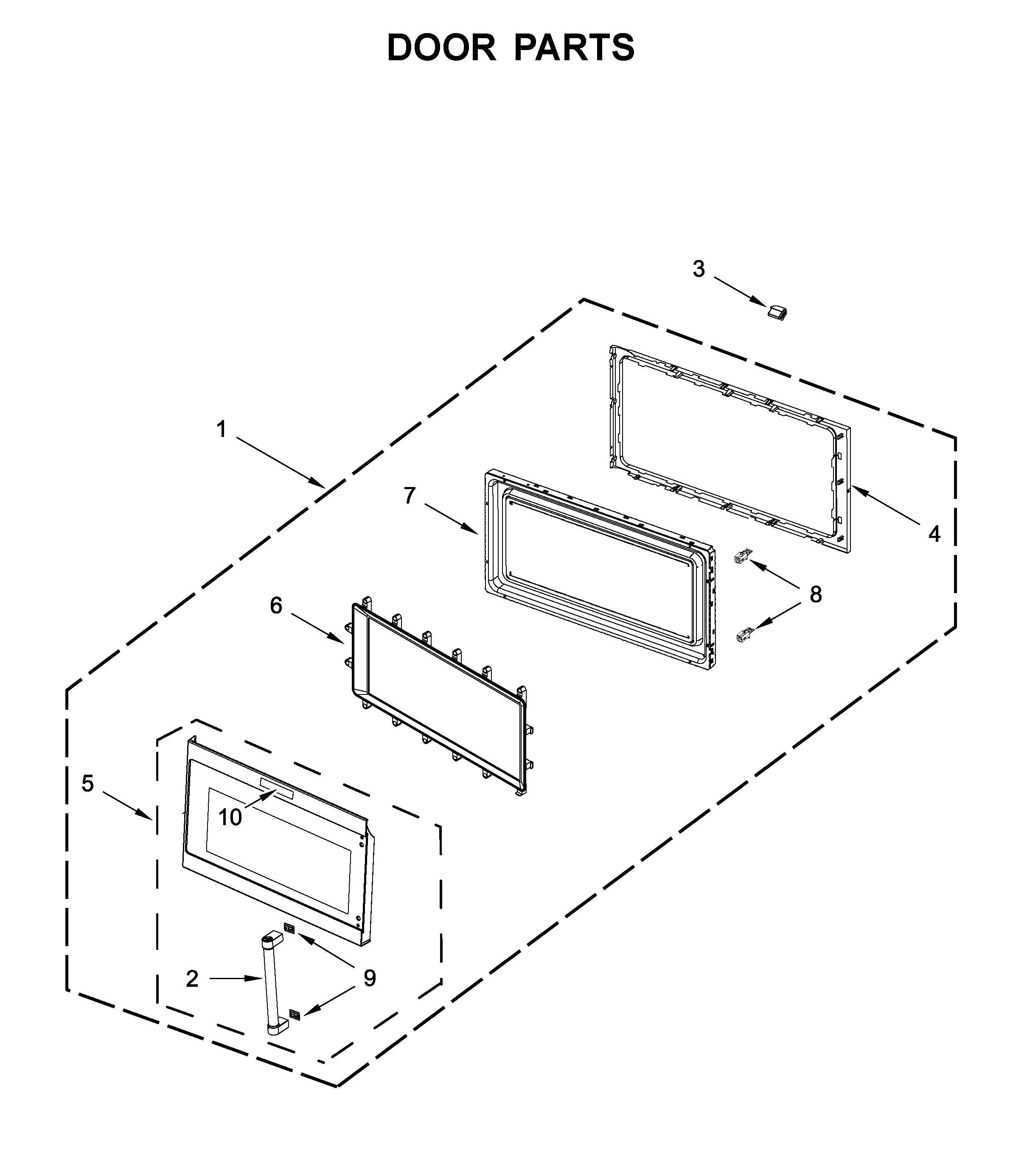

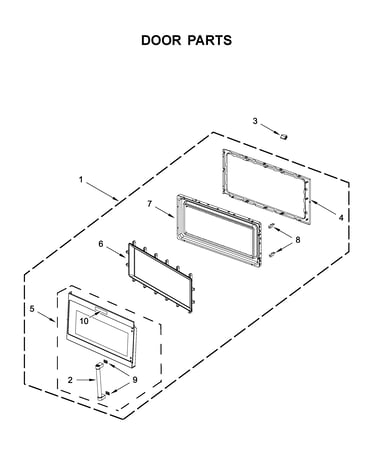

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for YKMHS120EBS5 Microwave/Hood Combo

  • R Ceramic Fu for KitchenAid YKMHS120EBS5 - Part W11707984

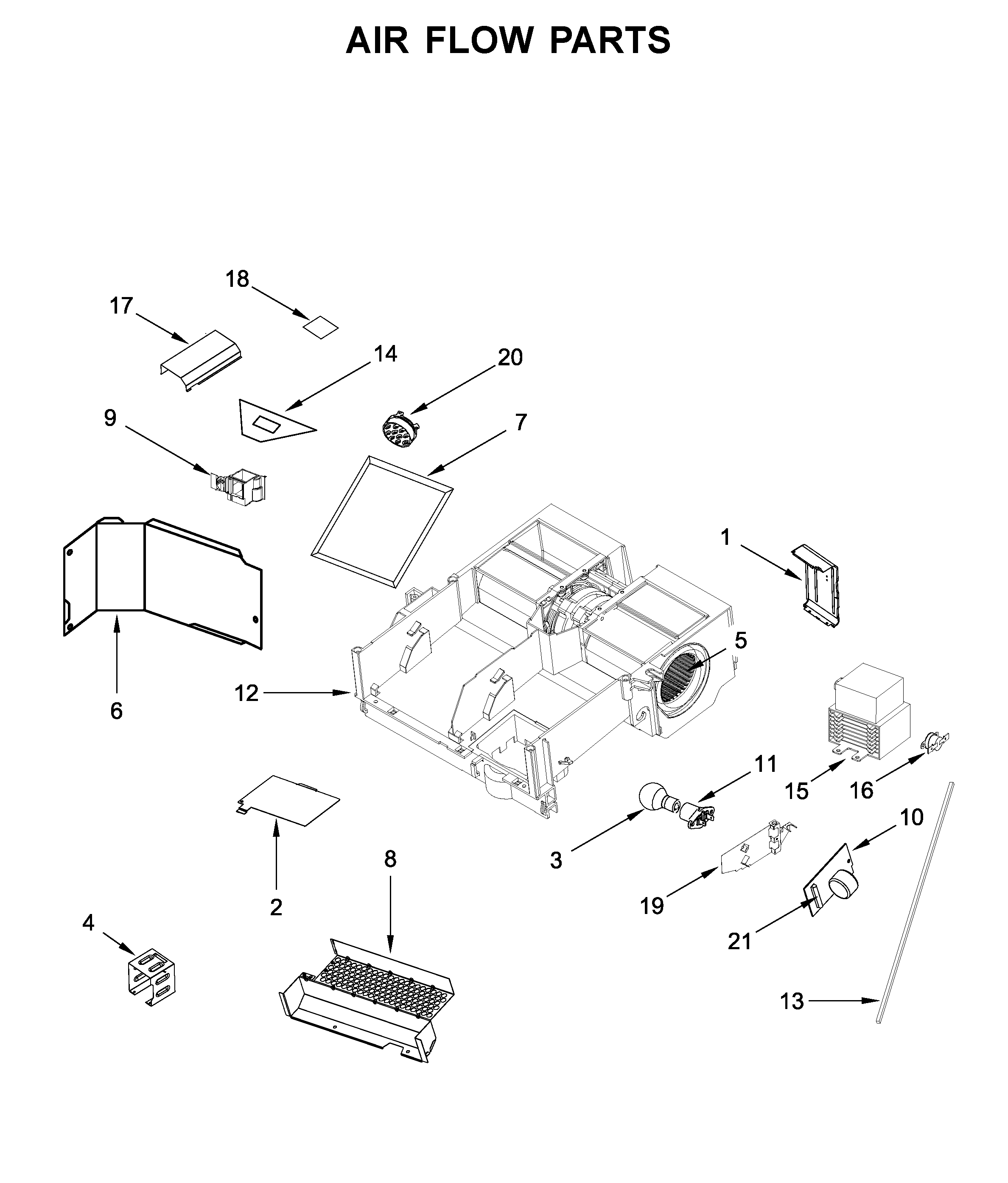

    Air flow parts diagram

    Microwave Fuse

    Part #W10138793

    Replaced by #W11707984

    Info Icon
    Manufacturer substitution
    This part replaces W10138793. Substitute parts can look different from the original.
    In Stock
    $73.63
    8% OFF Phone Price : $79.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Surface Light Bulb, 40-watt for KitchenAid YKMHS120EBS5 - Part 8206232A

    Air flow parts diagram

    Lamp Assembly

    Part #4393681

    Replaced by #8206232A

    Info Icon
    Manufacturer substitution
    This part replaces 4393681. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.73
    15% OFF Phone Price : $6.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Surface Light Bulb, 40-watt for KitchenAid YKMHS120EBS5 - Part 8206232A

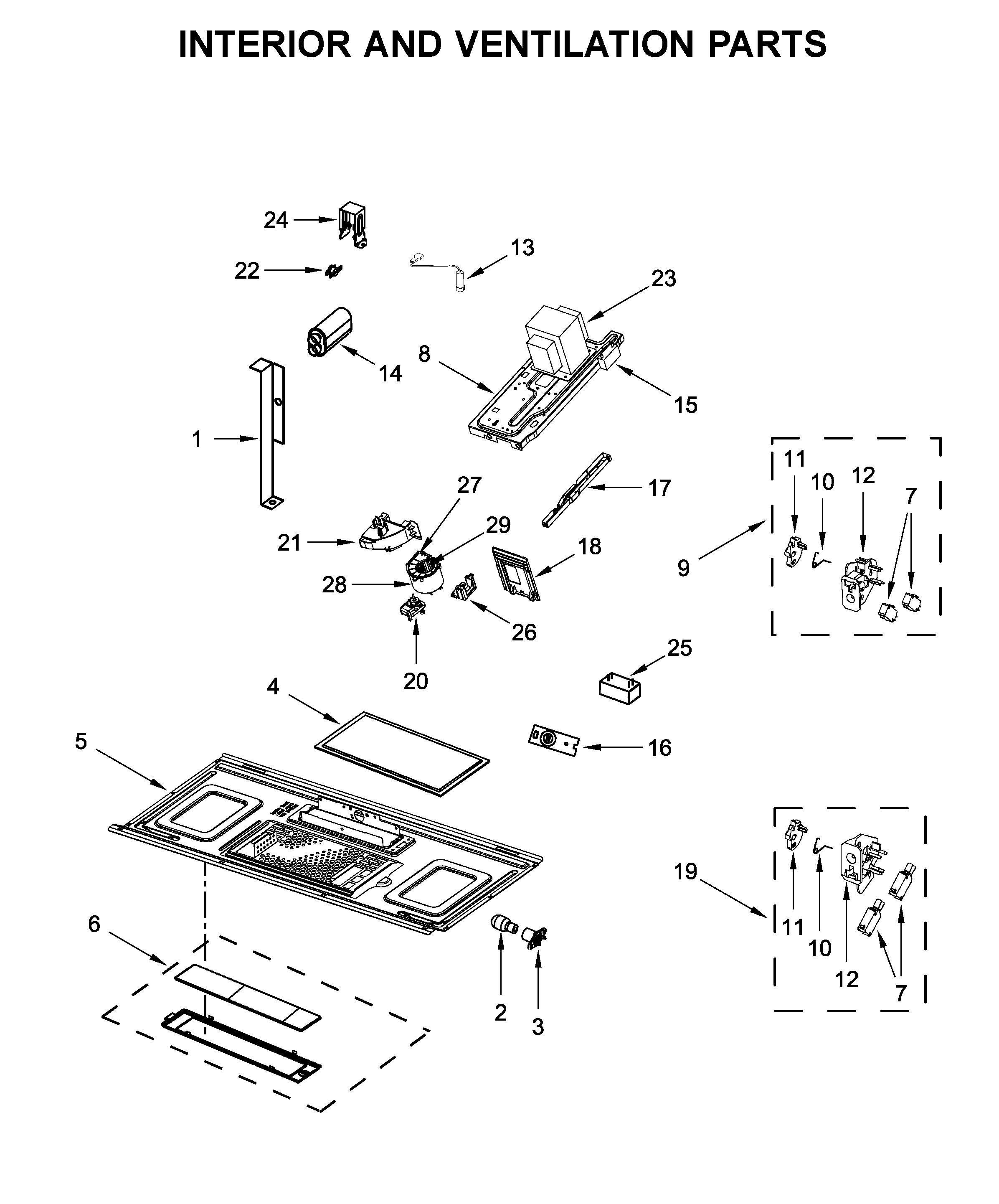

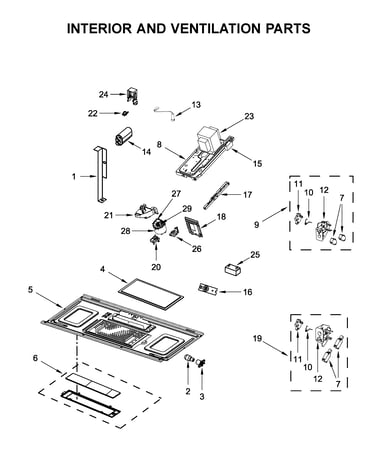

    Interior and ventilation parts diagram

    Microwave/hood Light Bulb

    Part #8206232

    Replaced by #8206232A

    Info Icon
    Manufacturer substitution
    This part replaces 8206232. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.73
    15% OFF Phone Price : $6.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Support, Upper for KitchenAid YKMHS120EBS5 - Part WP8206419

    Interior and ventilation parts diagram

    Microwave Door Interlock Support, Upper

    Part #8206419

    Replaced by #WP8206419

    Info Icon
    Manufacturer substitution
    This part replaces 8206419. Substitute parts can look different from the original.
    In Stock
    $13.31
    13% OFF Phone Price : $15.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Light Socket for KitchenAid YKMHS120EBS5 - Part W10210871

    Interior and ventilation parts diagram

    Microwave Light Socket

    Part #W10210871
    In Stock
    $8.39
    11% OFF Phone Price : $9.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Charcoal Filter for KitchenAid YKMHS120EBS5 - Part 8206230A

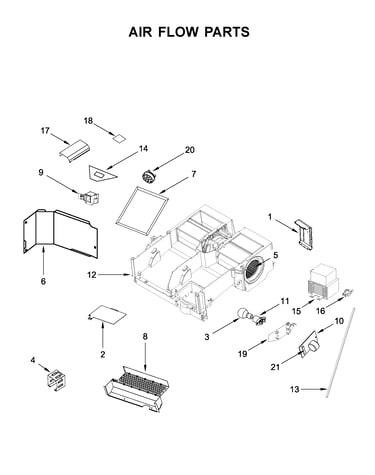

    Air flow parts diagram

    Filter

    Part #8206230

    Replaced by #8206230A

    Info Icon
    Manufacturer substitution
    This part replaces 8206230. Substitute parts can look different from the original.
    In Stock
    $12.76
    14% OFF Phone Price : $14.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Grease Filter for KitchenAid YKMHS120EBS5 - Part W10208631A

    Interior and ventilation parts diagram

    Filter

    Part #W10208631

    Replaced by #W10208631A

    Info Icon
    Manufacturer substitution
    This part replaces W10208631. Substitute parts can look different from the original.
    In Stock
    $26.62
    18% OFF Phone Price : $32.62Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Vent Grille (black) for KitchenAid YKMHS120EBS5 - Part W10701697

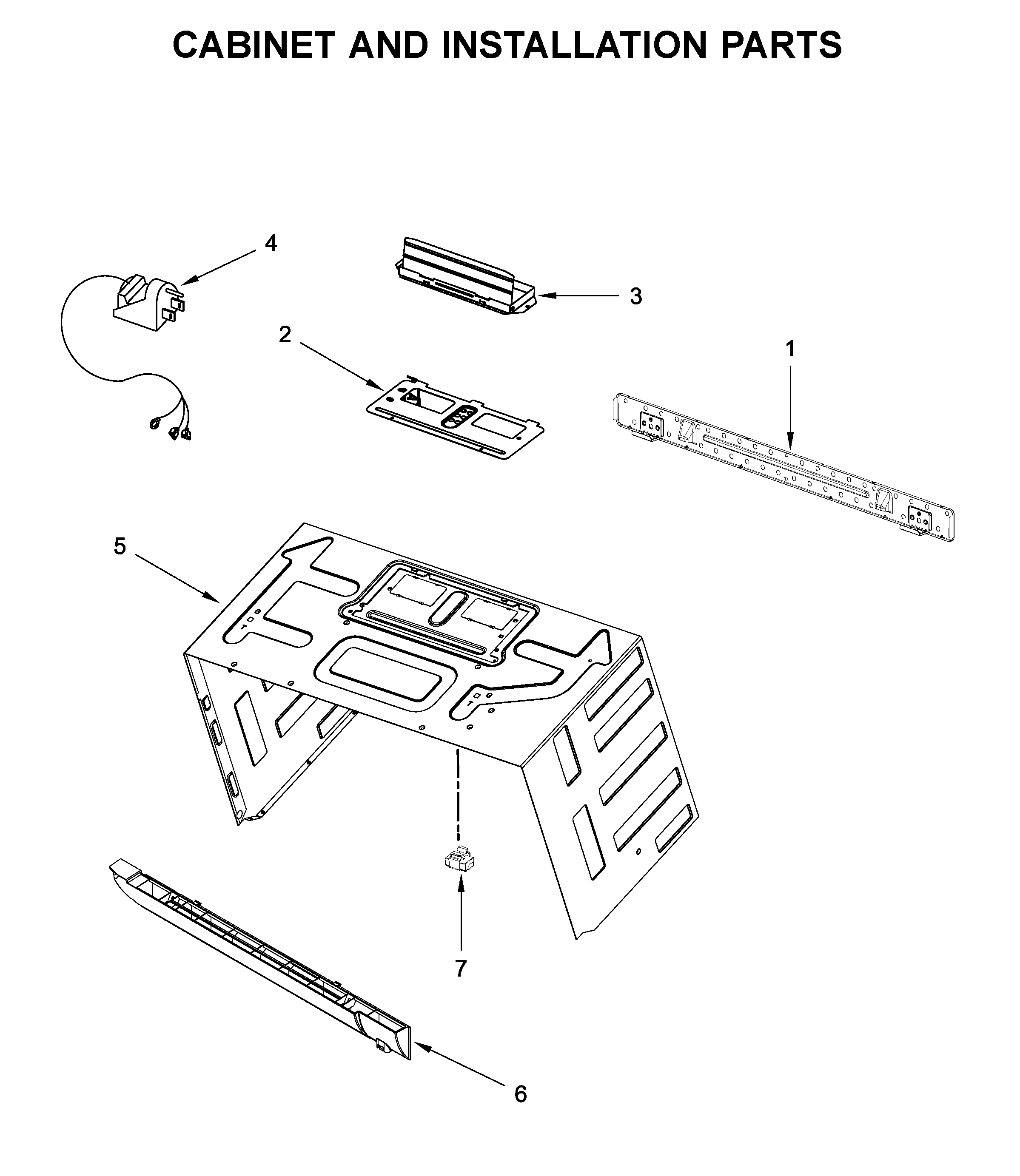

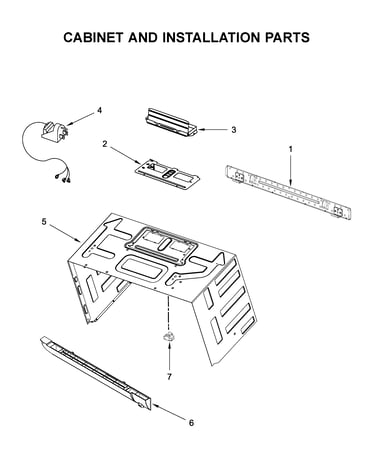

    Cabinet and installation parts diagram

    Microwave Vent Grille (black)

    Part #W10701697
    In Stock
    $42.39
    12% OFF Phone Price : $48.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Jenn-air Microwave Waveguide Cover for KitchenAid YKMHS120EBS5 - Part W11193296

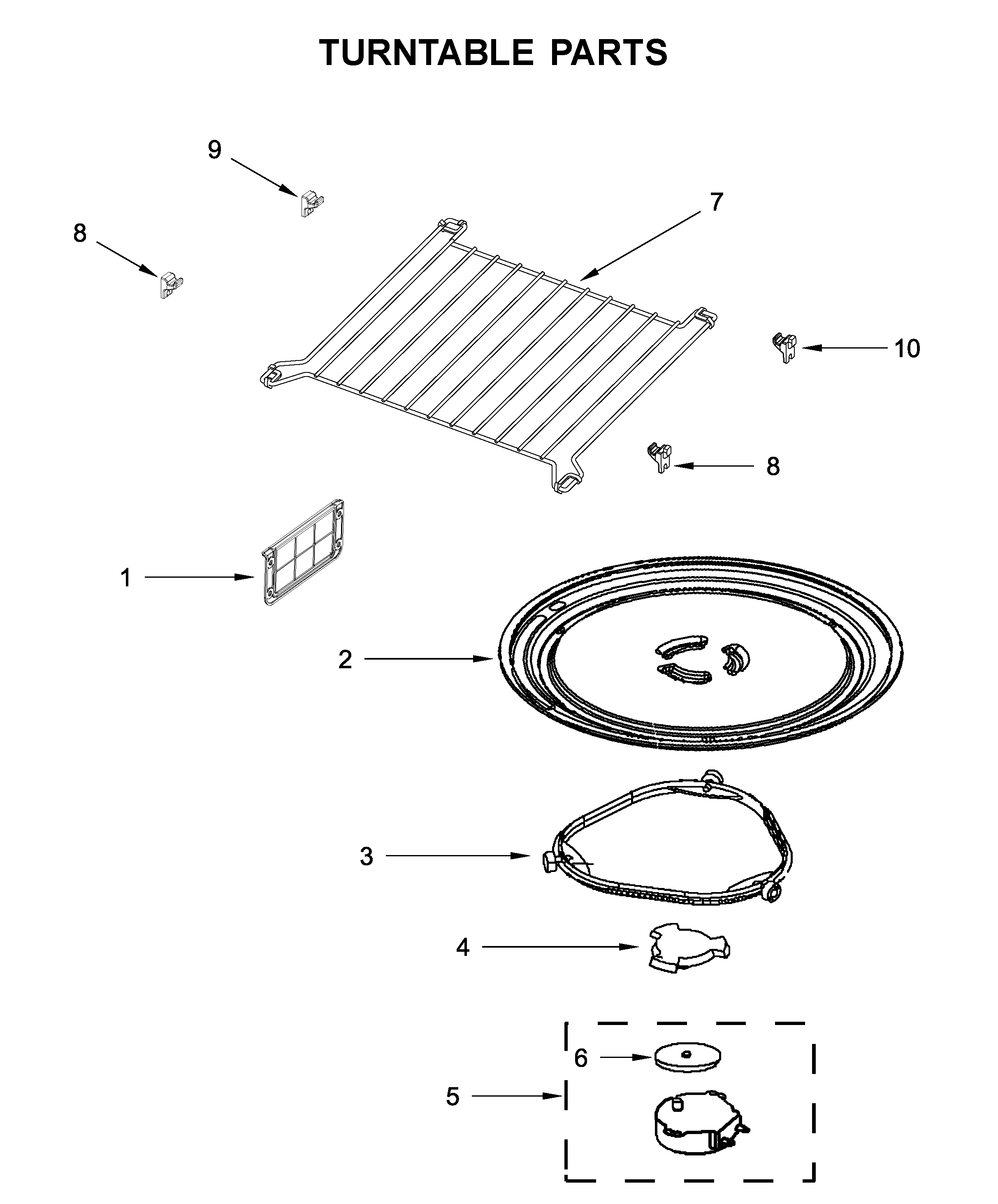

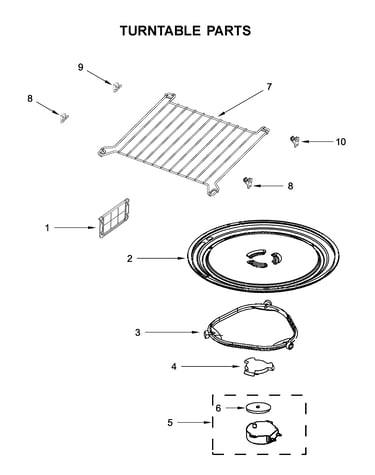

    Turntable parts diagram

    Jenn-air Microwave Waveguide Cover

    Part #W11193296
    In Stock
    $40.90
    13% OFF Phone Price : $46.90Info Icon
    Minus Item
    Qty
    Plus Item
  • Interlock for KitchenAid YKMHS120EBS5 - Part W11252187

    Interior and ventilation parts diagram

    Lower Interl

    Part #W11219776

    Replaced by #W11252187

    Info Icon
    Manufacturer substitution
    This part replaces W11219776. Substitute parts can look different from the original.
    In Stock
    $25.56
    19% OFF Phone Price : $31.56Info Icon
    Minus Item
    Qty
    Plus Item
