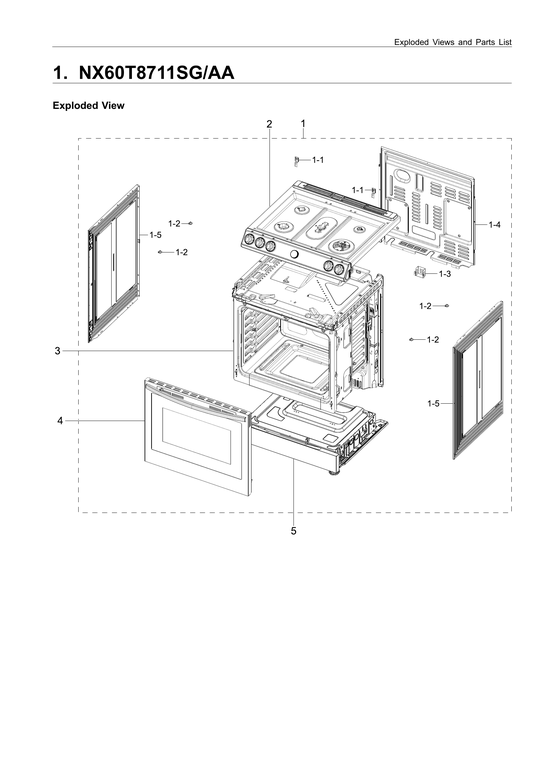

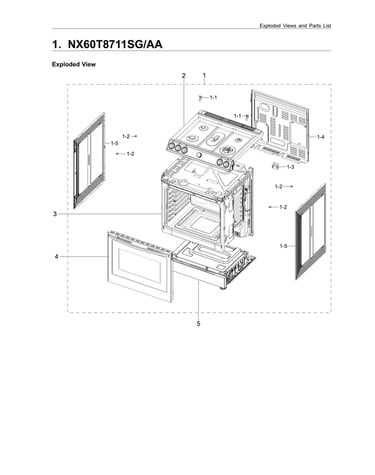

Samsung NX60T8711SG/AA-00 gas range Parts

Yes. Samsung makes ranges in multiple widths, including 24-inch models, but the Samsung NX60T8711SG gas range this page covers is a full-size unit (it has a 6.0 cu. ft. oven and a 5-burner cooktop). For exact fit and cutout requirements, use the NX60T8711SG owner's manual.

How to confirm a 24-inch Samsung range is the right fit

• Measure the opening width at the front and back of the cutout.
• Check countertop depth and rear clearance for the gas line and power cord.
• Verify door swing clearance so the oven door can open fully.
• Confirm ventilation and side-clearance requirements for adjacent cabinets.
• Match fuel type (natural gas vs LP) and confirm the correct conversion setup.

Quick size comparison (what “24-inch” usually means)

Range size	Typical use case	What to double-check
24-inch	Apartments, condos, tight kitchens	Cutout width, depth, and gas hookup location
30-inch	Most standard kitchens	Anti-tip bracket location and rear clearance

Why it matters

Range width is only part of the fit. Clearances, gas connection placement, and electrical requirements can prevent a “same width” range from installing correctly. Using the manual specs helps you avoid returns and ensures safe operation.

Last updated: February 2026

On the Samsung NX60T8711SG gas range, the CF2 code indicates a control-panel input problem; the range is detecting abnormal touch/keypad signals (often a stuck key condition). A power reset and cleaning the control area are the fastest first steps; if CF2 returns, the control panel or control board circuit needs attention.

Quick checks we recommend first

• Turn off power at the breaker for 2 to 5 minutes, then restore power.
• Wipe the control area with a lightly damp cloth, then dry it fully (grease or moisture can mimic a pressed key).
• Make sure nothing is pressing on the panel (cookware, towels, or a leaning utensil).
• Try several functions (Bake, Broil, Timer) to confirm whether specific keys fail.
• Keep the rear vent area clear to reduce heat buildup around the console (see the NX60T8711SG owner’s manual).

What usually causes CF2

CF2 is most often tied to the user interface (touch panel) or the electronics that read it.

Likely cause	What you’ll notice	Typical next step
Touch panel (keypad) issue	Beeping, unresponsive keys, code returns after reset	Clean and dry; replace the control panel if symptoms persist
Control board sensing issue	CF2 appears even when not touching controls	Inspect connections; replace the control board if needed
Moisture or cleaner intrusion	CF2 after cleaning or heavy steam	Dry thoroughly; avoid spraying cleaner directly on the panel

If you also have baking temperature problems

CF2 is a control-input code, but if the oven is also cooking unevenly or running hot/cold, we check the temperature-sensing circuit separately.

• A common part to test for temperature accuracy issues is the Samsung range oven temperature sensor DG32-00002B.

Why it matters

A persistent CF2 can disable cooking functions or cause constant beeping. Fixing the underlying touch input issue restores reliable operation and prevents repeated resets.

Last updated: February 2026

A Samsung gas range like the NX60T8711SG typically lasts 13 to 15 years with normal household use and basic maintenance. Keeping burners clean, ensuring proper ignition, and fixing heating issues early helps you reach the full expected service life.

Typical lifespan and what affects it

Most gas ranges wear based on heat exposure, cooking frequency, and how quickly small problems are corrected.

• Heavy daily cooking shortens lifespan; light use extends it
• Spills and boil-overs accelerate burner and igniter wear
• Poor airflow around the oven can stress the cooling fan and controls
• Power surges can damage the control board
• Delayed repairs can turn a small issue into a major failure

Parts that commonly determine “end of life”

When a range becomes unreliable, it is often due to a few serviceable components rather than the cabinet itself.

Symptom	Common wear area	Example part for this model
Oven temperature swings	Temperature sensing	Samsung range oven temperature sensor DG32-00002B
No broil heat or weak broil	Ignition system	Samsung range broil igniter DG94-01441A
Convection not circulating	Fan motor or blade hardware	Samsung range convection fan motor DG31-00014F

Maintenance that extends lifespan

Use these habits to keep your Samsung NX60T8711SG running longer.

• Clean burner caps and heads regularly; keep ports clear
• Avoid lining the oven bottom with foil (it can trap heat)
• Verify oven temperature if baking results change; recalibrate if your model supports it
• Keep the control area dry; wipe spills promptly
• Address slow ignition, gas odor, or error codes immediately

Why it matters

Knowing the 13 to 15 year average helps you decide whether to repair or replace. If your range is mid-life, replacing a sensor, igniter, or fan motor is often a practical way to restore safe, consistent cooking performance.

For model-specific care and operating guidance, use the NX60T8711SG user manual.

Last updated: March 2026
