Kenmore 920152011 gas outdoor grill Parts
Here are the diagrams and repair parts for Kenmore 920152011 gas outdoor grill, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 920152011 Outdoor Grills

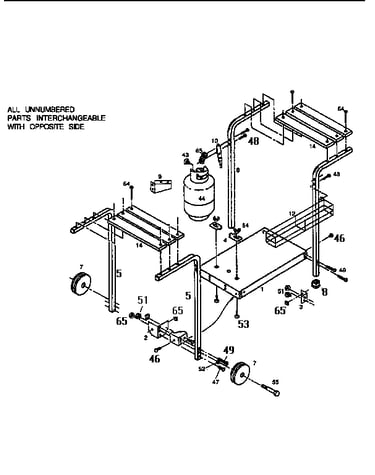

Deluxe cart diagram
Washer
Part #40-4004Replaced by #STD551025
Manufacturer substitutionThis part replaces 40-4004. Substitute parts can look different from the original.In Stock$36.61
Qty
Deluxe cart diagram
Screw
Part #40-3895
The manufacturer no longer makes this part, and there's no substitute part

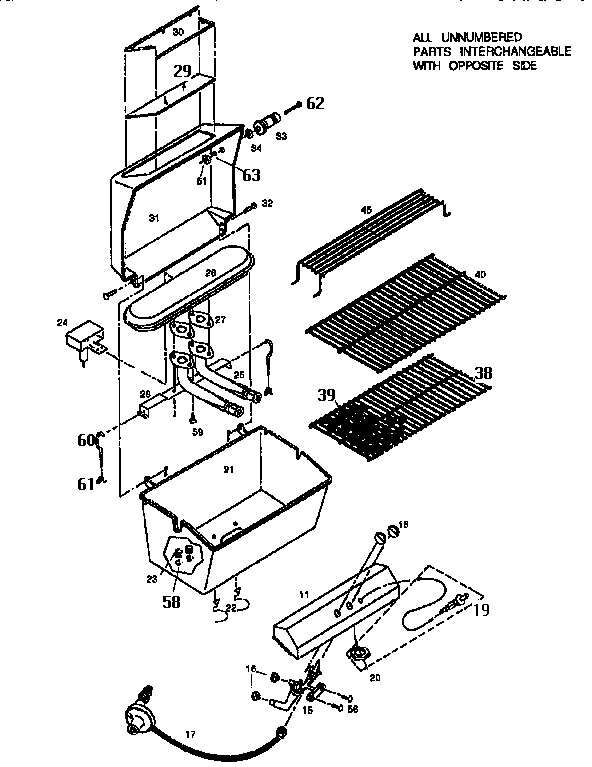

Grill and burner section diagram
Warming Rack
Part #40-2471
The manufacturer no longer makes this part, and there's no substitute part
Deluxe cart diagram
Leg 1
Part #15-3385
The manufacturer no longer makes this part, and there's no substitute part
Grill and burner section diagram
Shell
Part #27-3318
The manufacturer no longer makes this part, and there's no substitute part
Deluxe cart diagram
Shoulder Bolt
Part #40-4002
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #STD610807
The manufacturer no longer makes this part, and there's no substitute part
Deluxe cart diagram
Support
Part #15-3262
The manufacturer no longer makes this part, and there's no substitute part
Grill and burner section diagram
Control Knob
Part #40-4147
The manufacturer no longer makes this part, and there's no substitute part
Deluxe cart diagram
Basket
Part #15-3314
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your outdoor grills
Choose a symptom to see related gas grill repairs.
Main cause: worn wheel…
Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…
Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…
Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…
Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…
Repair guides for gas grills
These step-by-step repair guides will help you safely fix what’s broken on your gas grill.
How to replace a gas grill pressure regulator
You can install a new pressure regulator on your gas grill if the pressure regulator won’t let gas flow.…
Repair time and Difficulty
15 minutes or less
How to replace a gas grill igniter electrode
Replace the igniter electrode on your gas grill if it won’t light the burner.…
Repair time and Difficulty
15 minutes or less
How to replace a gas grill ignition module
Follow these steps to replace the ignition module if it doesn't produce a spark. …
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your outdoor grills
Use the advice and tips in these articles and videos to get the most out of your gas grill.
Tired of low flames ruining your grill nights? Learn how your gas grill regulator works, how to spot failures, and why r…
From rotisserie kits to smoker boxes, we break down the best gas grill add-ons and how to use them. These tips and ideas…
Learn about the main parts of gas grills and get DIY tips for replacing gas grill parts.…
