Gas Line Trimmer

Model #41BD2REC034 Ryobi trimmer

Here are the diagrams and repair parts for Ryobi 41BD2REC034 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 135 parts

    Line Trimmer Primer Bulb and Hose Assembly#11

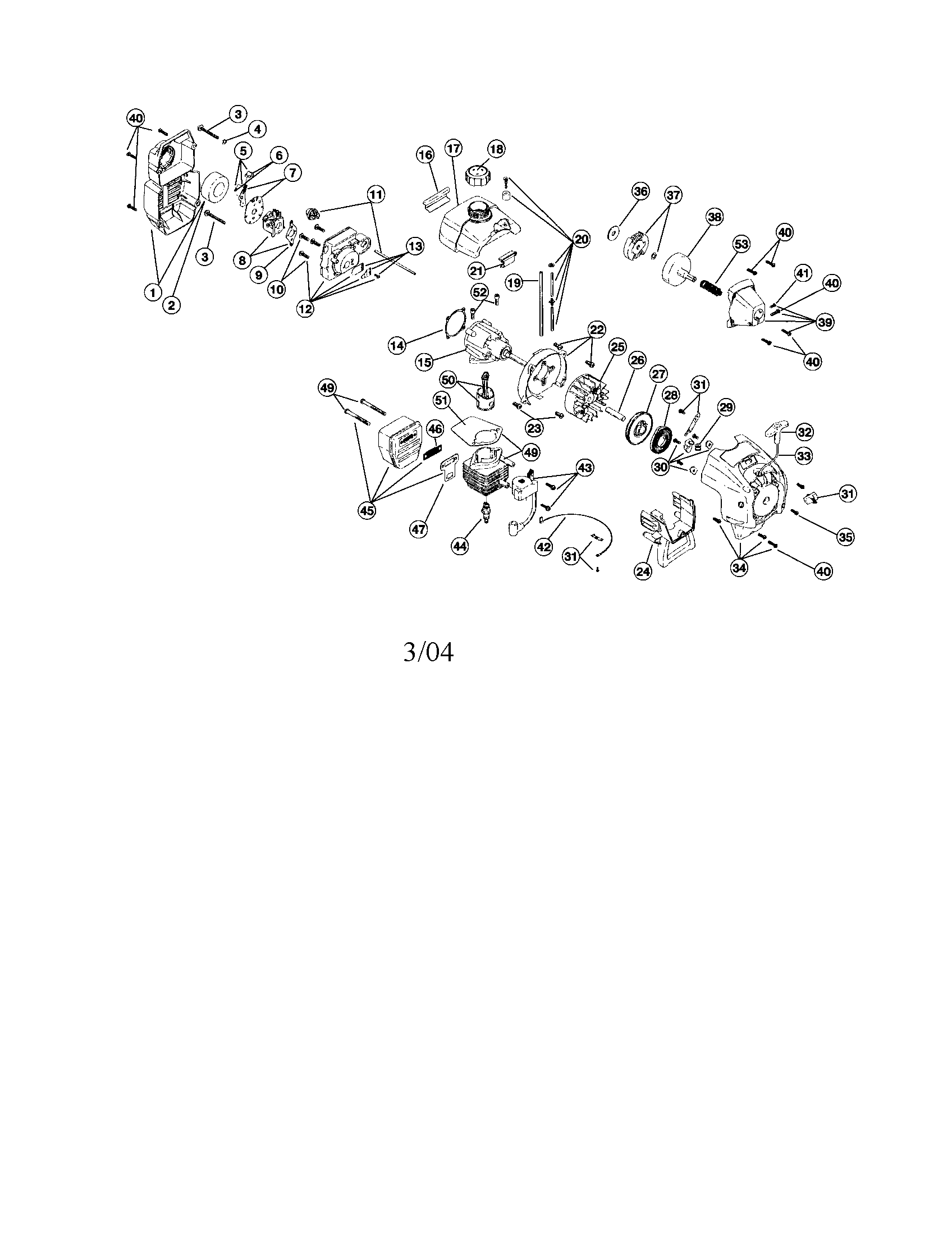

    Engine Diagram

    Primer

    Part #791-683974B
    Replaced by #791-683974B
    ?
    Manufacturer substitution
    This part replaces 791-683974B. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $17.79 |
    19% OFF
    MSRP: $22.00
    Line Trimmer Fuel Line#19

    Engine Diagram

    Fuel line

    Part #791-181168
    Replaced by #791-181086
    ?
    Manufacturer substitution
    This part replaces 791-181168. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.69 |
    22% OFF
    MSRP: $7.30
    Line Trimmer Fuel Line Assembly#20

    Engine Diagram

    Fuel line

    Part #791-682039
    Replaced by #791-682039
    ?
    Manufacturer substitution
    This part replaces 791-682039. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $13.49 |
    16% OFF
    MSRP: $16.00
    Lawn & Garden Equipment Carriage Bolt#11

    Edger Diagram

    710-0703 bol

    Part #791-182213
    Replaced by #710-0703
    ?
    Manufacturer substitution
    This part replaces 791-182213. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.39
    Lawn & Garden Equipment Engine Air Filter#2

    Engine Diagram

    Filter

    Part #791-180350B
    Replaced by #791-180350B
    ?
    Manufacturer substitution
    This part replaces 791-180350B. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $12.79
    Line Trimmer Flexible Drive Shaft, Lower#23

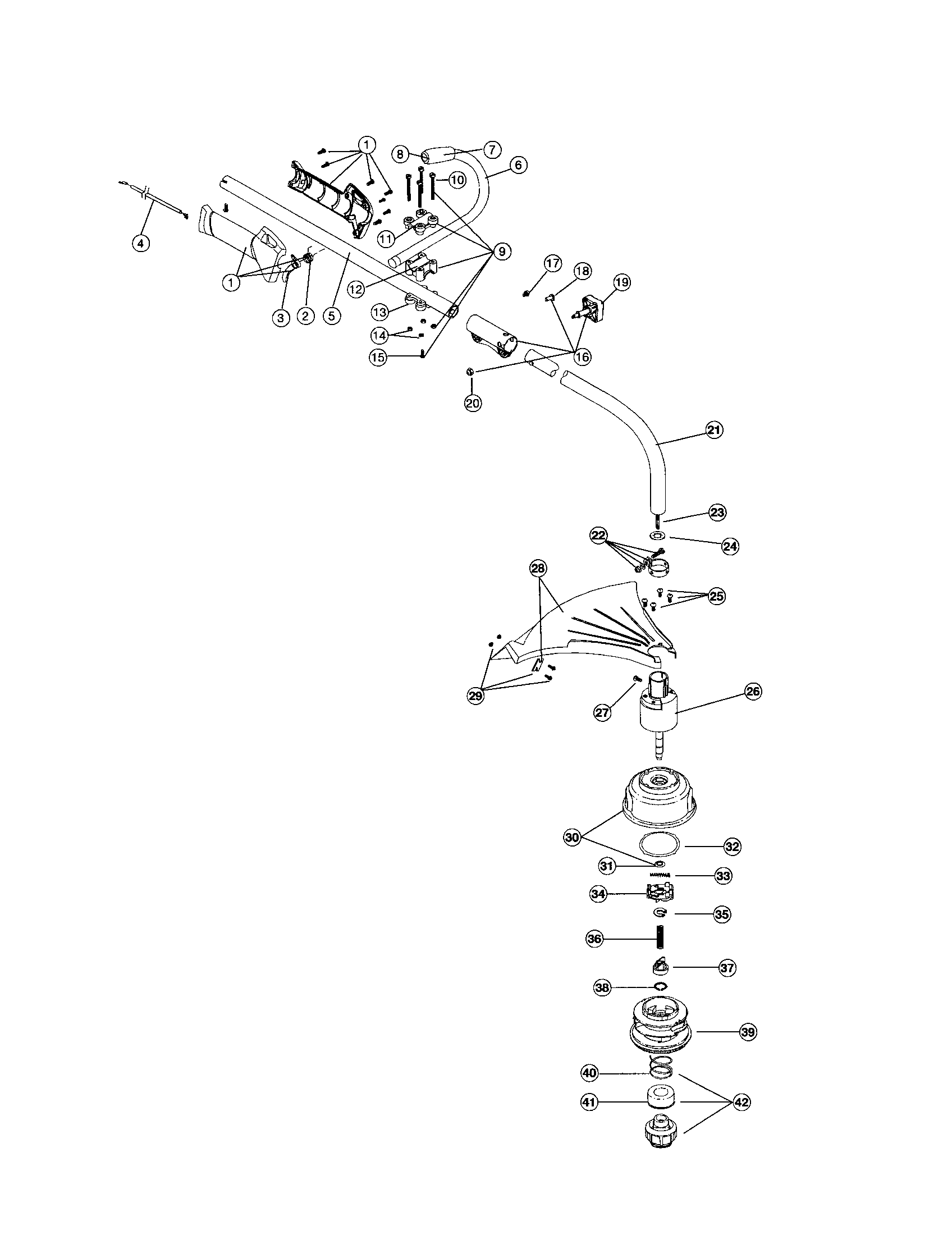

    Boom and trimmer Diagram

    Shaft

    Part #791-181852
    Replaced by #791-181852
    ?
    Manufacturer substitution
    This part replaces 791-181852. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $52.59 |
    12% OFF
    MSRP: $60.00
    Edger Blade#8

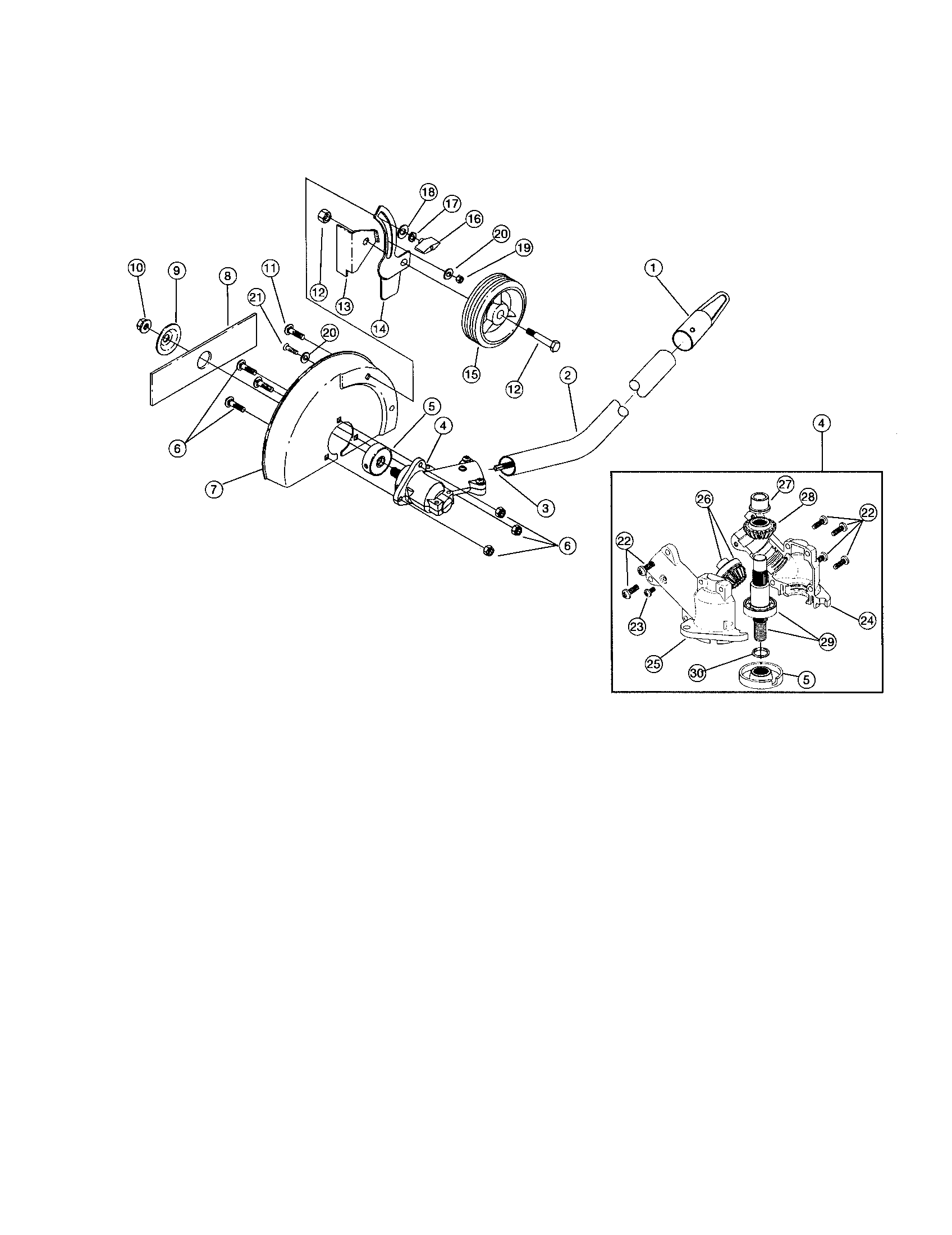

    Edger Diagram

    Edge replc

    Part #791-613223B
    Replaced by #791-613223B
    ?
    Manufacturer substitution
    This part replaces 791-613223B. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $18.69
    Lawn & Garden Equipment Engine Carburetor Mounting Gasket#9

    Engine Diagram

    Gasket

    Part #791-610675
    Replaced by #791-610675
    ?
    Manufacturer substitution
    This part replaces 791-610675. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.39
    Line Trimmer Bump Feed Knob#42

    Boom and trimmer Diagram

    Bump knob

    Part #791-181468B
    Replaced by #791-181468B
    ?
    Manufacturer substitution
    This part replaces 791-181468B. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $27.49
    Lawn & Garden Equipment Engine Spark Plug#44

    Engine Diagram

    Spark plug

    Part #791-610311B
    Replaced by #DJ7Y
    ?
    Manufacturer substitution
    This part replaces 791-610311B. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.75
