Model # 113201370 Official Craftsman 230-amp dual-range arc welder

Here are the diagrams and repair parts for Official Craftsman 113201370 230-amp dual-range arc welder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

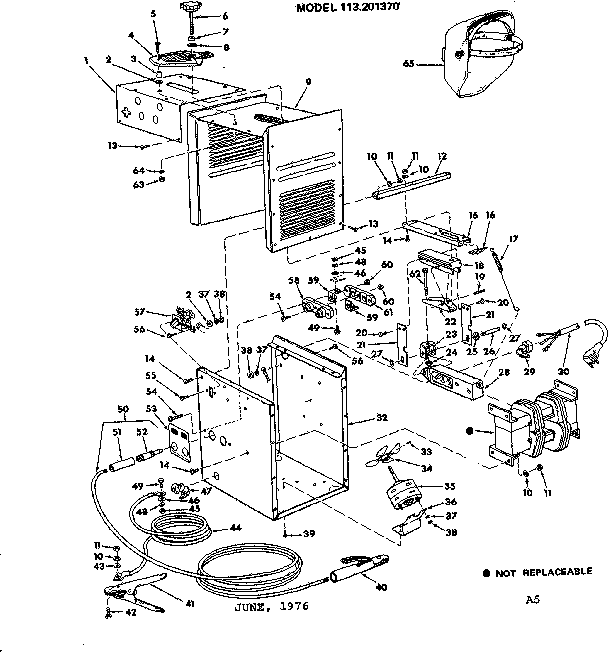

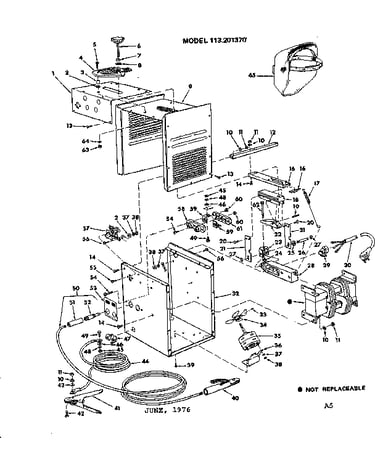

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 66 parts |

#52

Unit diagram

Welder cable plug

Part #61171

The manufacturer no longer makes this part, and there's no substitute part

#41

Unit diagram

Ground clamp

Part #51439

The manufacturer no longer makes this part, and there's no substitute part

#51

Unit diagram

Welder cable insulator

Part #30332

The manufacturer no longer makes this part, and there's no substitute part

Welder cable block

Part #61115

The manufacturer no longer makes this part, and there's no substitute part

#19

Unit diagram

Roll pin

Part #STD572512

The manufacturer no longer makes this part, and there's no substitute part

#13

Unit diagram

Screw

Part #STD611005

The manufacturer no longer makes this part, and there's no substitute part

#47

Unit diagram

Power cord strain relief

Part #61086

The manufacturer no longer makes this part, and there's no substitute part

#24

Unit diagram

Lock nut

Part #STD541425

The manufacturer no longer makes this part, and there's no substitute part

#61

Unit diagram

Block no. 6

Part #61117

The manufacturer no longer makes this part, and there's no substitute part

#46

Unit diagram

Plain washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part
