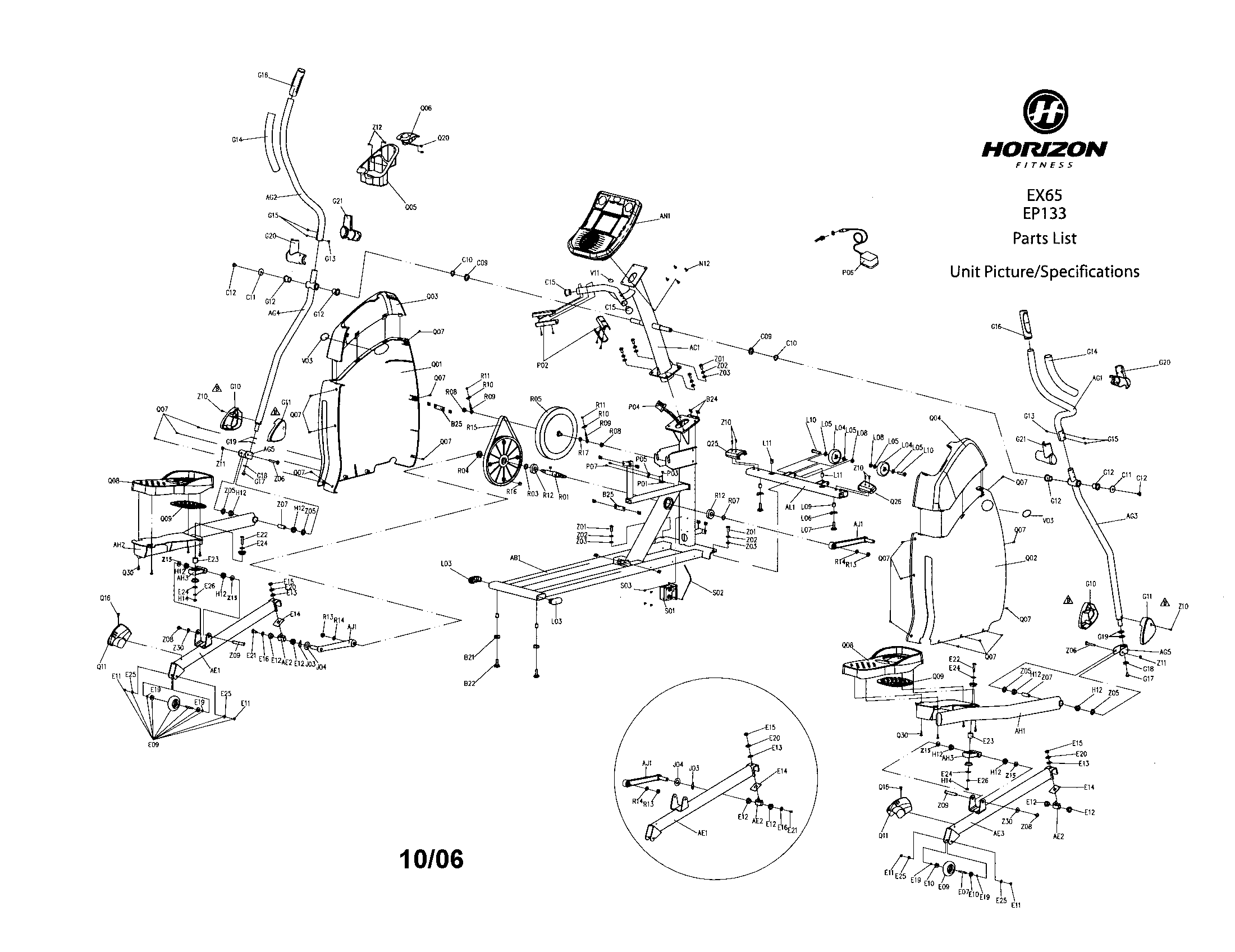

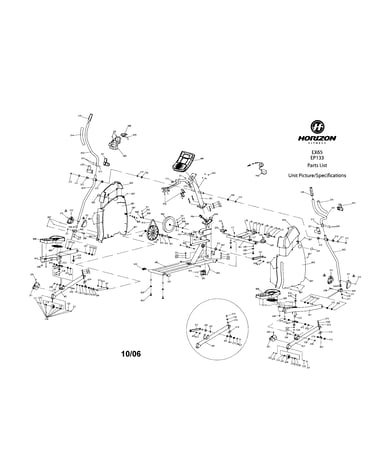

Horizon EX-65 elliptical machine Parts

Common problems on the Horizon EX-65 elliptical machine include squeaking or grinding noise, uneven pedal feel, resistance that will not change, console power issues, and incline or ramp buttons that do not respond. Most of these come from loose hardware, worn moving parts, or simple electrical connection problems.

Most common symptoms (and what they usually mean)

• Squeaks, clicks, or grinding: loose pedal arms, dry pivot points, worn rollers, or a misaligned drive belt
• Hard to pedal even at low resistance: belt tension too tight, brake system drag, or binding in a crank/pivot joint
• Resistance stuck high or low: resistance motor issue, loose wiring, or console-to-control signal problem
• Ramp/incline buttons not working: keypad/console issue, damaged wiring, or a failed incline actuator
• Console won’t power on: bad power supply, loose connector, blown fuse (if equipped), or damaged wire harness

Quick checks we recommend before buying parts

1. Unplug power, then remove the shrouds/covers and check for pinched or unplugged connectors.
2. Tighten hardware on pedal arms, crank, and frame joints; many noises are simply loose fasteners.
3. Inspect the drive belt path for rubbing, fraying, or misalignment.
4. Check moving joints for side-to-side play; excessive play points to worn bushings or bearings.
5. If the console is dead, verify the outlet and adapter output with a meter.

Basic troubleshooting map

Symptom	Most likely area	Best first action
Squeaking/clicking	Pedal arms, pivots, rollers	Tighten bolts; lubricate pivots (if applicable)
Hard to pedal	Belt/brake, crank joints	Check belt alignment; check for binding
Resistance won’t change	Resistance motor, wiring	Inspect connectors; test with a multimeter
Ramp buttons dead	Console keypad, wiring, actuator	Reseat connectors; inspect harness

Why it matters

Ignoring noise, binding, or stuck resistance can accelerate wear on the drive system and pivot joints, turning a simple adjustment into a larger repair.

Helpful DIY resource

For safe electrical checks on the console, resistance motor, or incline wiring, use our how to use a multimeter to test electrical parts video.

Last updated: January 2026

The “best” elliptical brand is the one that fits your body, space, and workout goals reliably; for many home users, Horizon (including model EX-65), Sole, NordicTrack, and Bowflex are strong picks depending on budget, features, and durability.

How we recommend choosing the best brand

• Fit and comfort first: stride length, pedal spacing (Q-factor), and handlebar reach should feel natural.
• Build quality: look for a stable frame, smooth resistance changes, and minimal wobble.
• Serviceability: brands with clear parts support and common wear items (drive belt, rollers, console wiring) are easier to keep running.
• Training features: basic console vs. app integration, heart-rate options, and workout programs.
• Noise level: important for apartments; smoother drive systems tend to be quieter.

Brand comparison (what each is known for)

Brand	Best for	Typical tradeoff
Horizon	Value and solid home performance	Fewer premium “immersive” features than top-tier models
Sole	Durability and comfort-focused designs	Often heavier and takes more floor space
NordicTrack	Interactive training ecosystems and incline options	More complexity (more electronics to maintain)
Bowflex	Compact, high-intensity options (some models)	Different feel than a traditional long-stride elliptical
ProForm / Schwinn	Budget-friendly variety	May have lighter frames or fewer long-term service options

What matters most for long-term satisfaction

• Warranty and parts availability: a great feature set does not help if wear parts are hard to source.
• Your primary goal: steady-state cardio, HIIT, low-impact knee-friendly training, or weight loss.
• Space and power: measure your workout area and confirm outlet placement if the console needs power.

Why it matters

Ellipticals are a mix of mechanical wear (rollers, bearings, belts) and electronics (console, wiring). Picking a brand that matches your usage level and is easy to maintain reduces downtime and keeps workouts consistent.

For help confirming you have the right unit before ordering parts for Horizon EX-65, use how to find your appliance model number (and what it means for parts).

Last updated: January 2026

The model number for your Horizon elliptical machine is typically printed on a rating label (sticker or metal tag) on the frame. On the EX-65, check the rear stabilizer area, the underside of the main frame, or near the power inlet; match the label exactly to EX-65.

Where to look on an EX-65 elliptical machine

Check these common label locations first:

• Rear base or rear stabilizer tube (near the floor)
• Underside of the main frame, behind the crank area
• Near the power jack or adapter connection point
• Along the upright mast (lower section, near the base)
• Inside or behind a removable shroud/cover (if accessible)

What the model label looks like

Most Horizon fitness equipment labels include a few identifiers. Use the model number as your primary match.

Label item	What it’s used for	Example you might see
Model number	Correct parts lookup	EX-65
Serial number	Identifies your specific unit	A long letter/number code
Electrical rating	Confirms power requirements	Voltage/amps info

Tips to avoid ordering the wrong parts

Small differences in the label can change the parts list, especially for consoles, wiring, and resistance components.

• Write the model number exactly as shown (including dashes)
• Take a clear photo of the full label before searching
• If multiple Horizon models look similar, rely on the label, not the console name
• Use the model number when searching diagrams and parts lists

Why it matters

Using the exact model number (EX-65) helps us match the correct diagrams and replacement parts for your Horizon elliptical machine, especially for electronic parts like the console, wire harness, and power components.

For more help identifying model information, use [how to find your appliance model number (and what it means for parts)].

Last updated: March 2026
