Model #SF5140EEW2 Whirlpool gas freestanding range

Here are the diagrams and repair parts for Whirlpool SF5140EEW2 gas freestanding range, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 132 parts

Nut

#21D

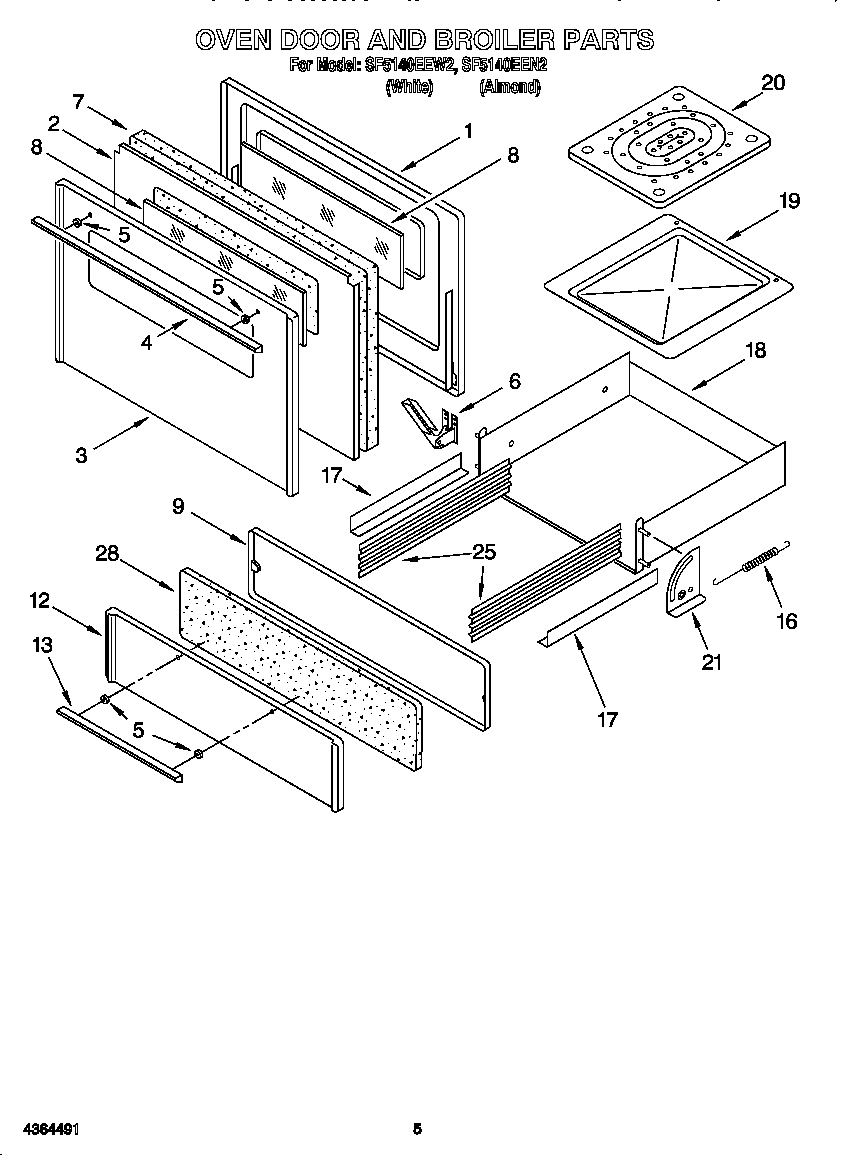

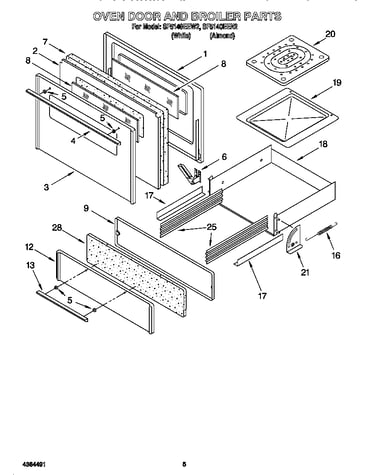

Oven door and broiler Diagram

Nut

Part #4364069
This item is not returnable
$4.20

In Stock

Screw

#21C

Oven door and broiler Diagram

Screw

Part #WP9419621
?
Manufacturer substitution
This part replaces 4364068. Substitute parts can look different from the original.
This part replaces 4364068
This item is not returnable
$2.19

In Stock

Door Gasket

#17

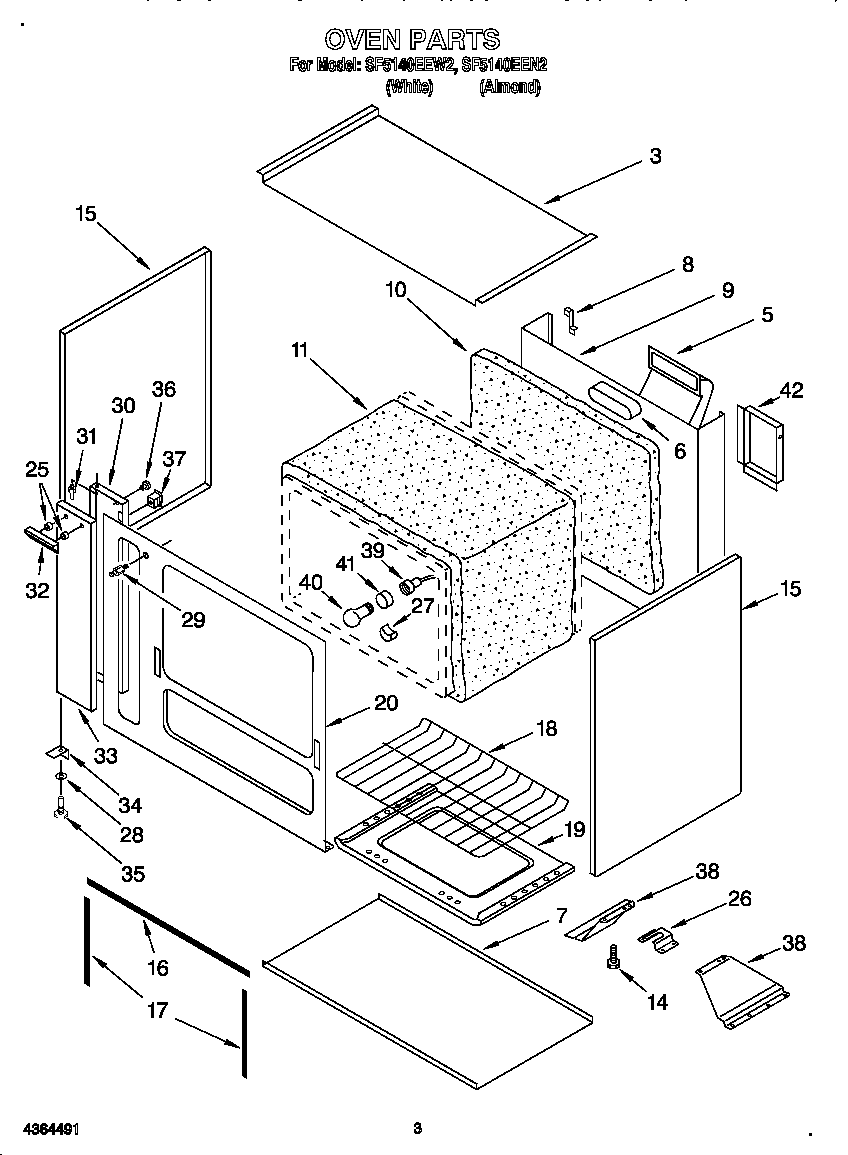

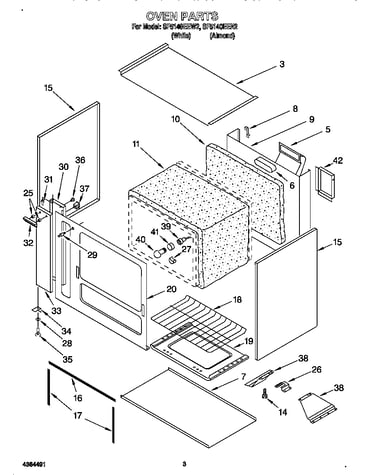

Oven Diagram

Door gasket

Part #WP4364084
?
Manufacturer substitution
This part replaces 4364084. Substitute parts can look different from the original.
This part replaces 4364084
$47.92

In Stock

Refrigerator Crisper Drawer Slide Rail Screw

#5A

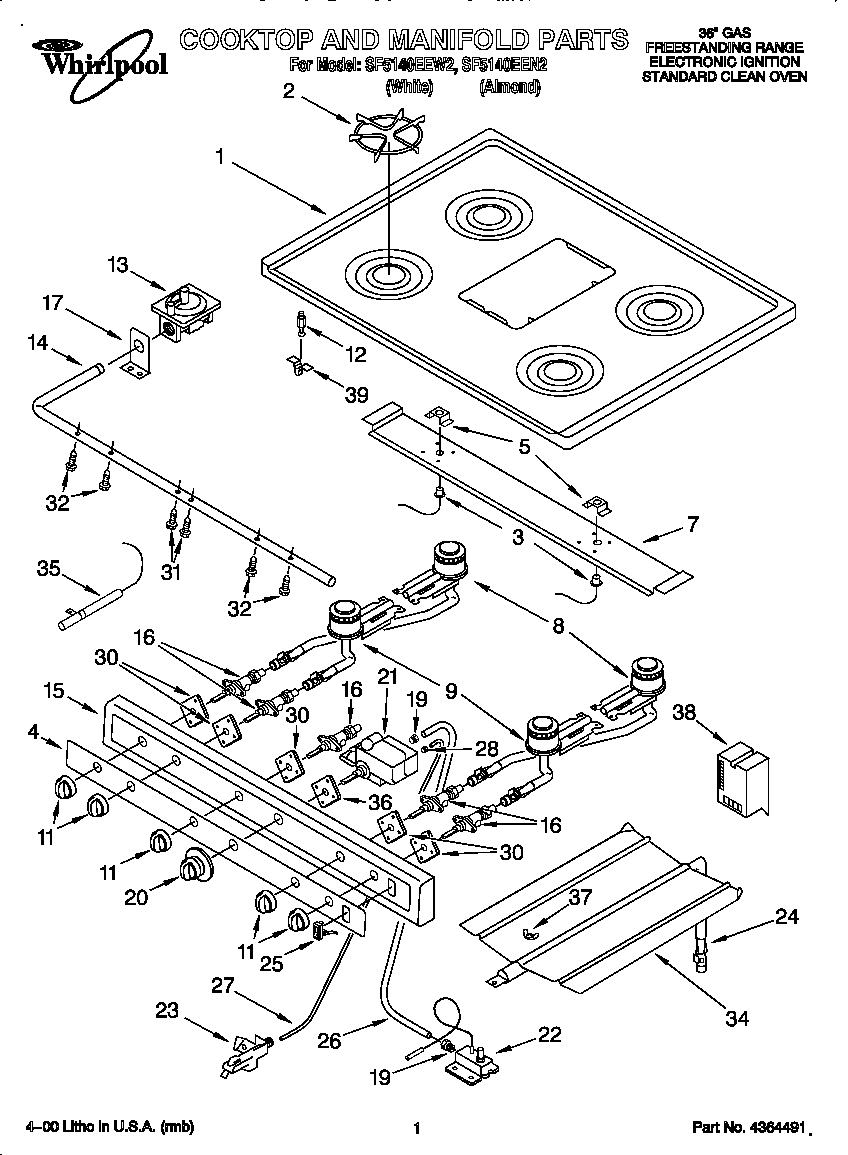

Cooktop and manifold Diagram

Refrigerator crisper drawer slide rail screw

Part #W10856125
?
Manufacturer substitution
This part replaces 4364151. Substitute parts can look different from the original.
This part replaces 4364151
This item is not returnable
$3.29

Back Order

Screw

#35A

Cooktop and manifold Diagram

Screw

Part #WP3196170
?
Manufacturer substitution
This part replaces 4364043. Substitute parts can look different from the original.
This part replaces 4364043
This item is not returnable
$3.29

In Stock

Appliance Light Bulb, 40-watt

#40

Oven Diagram

Appliance light bulb, 40-watt

Part #40A15
?
Manufacturer substitution
This part replaces 4364092. Substitute parts can look different from the original.
This part replaces 4364092
This item is not returnable
$2.16

In Stock

Bracket

#26

Oven Diagram

Bracket

Part #8190785
?
Manufacturer substitution
This part replaces 4364088. Substitute parts can look different from the original.
This part replaces 4364088
$13.59

In Stock

Glass Backsplash

#6

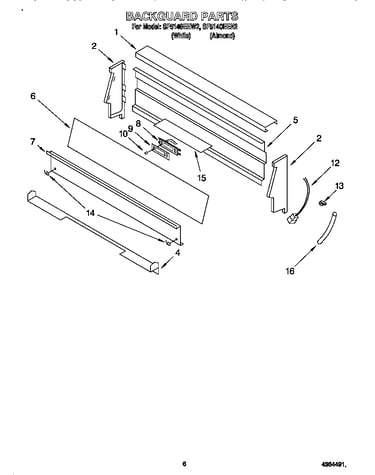

Backguard Diagram

Glass backsplash

Part #4364489

The manufacturer no longer makes this part, and there's no substitute part

Light Switch

#25

Cooktop and manifold Diagram

Light switch

Part #4364048

The manufacturer no longer makes this part, and there's no substitute part

Door Handle (Black)

#13

Oven door and broiler Diagram

Door handle (black)

Part #4364054

The manufacturer no longer makes this part, and there's no substitute part
