Maytag MER6550BCQ range Parts
Here are the diagrams and repair parts for Maytag MER6550BCQ range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

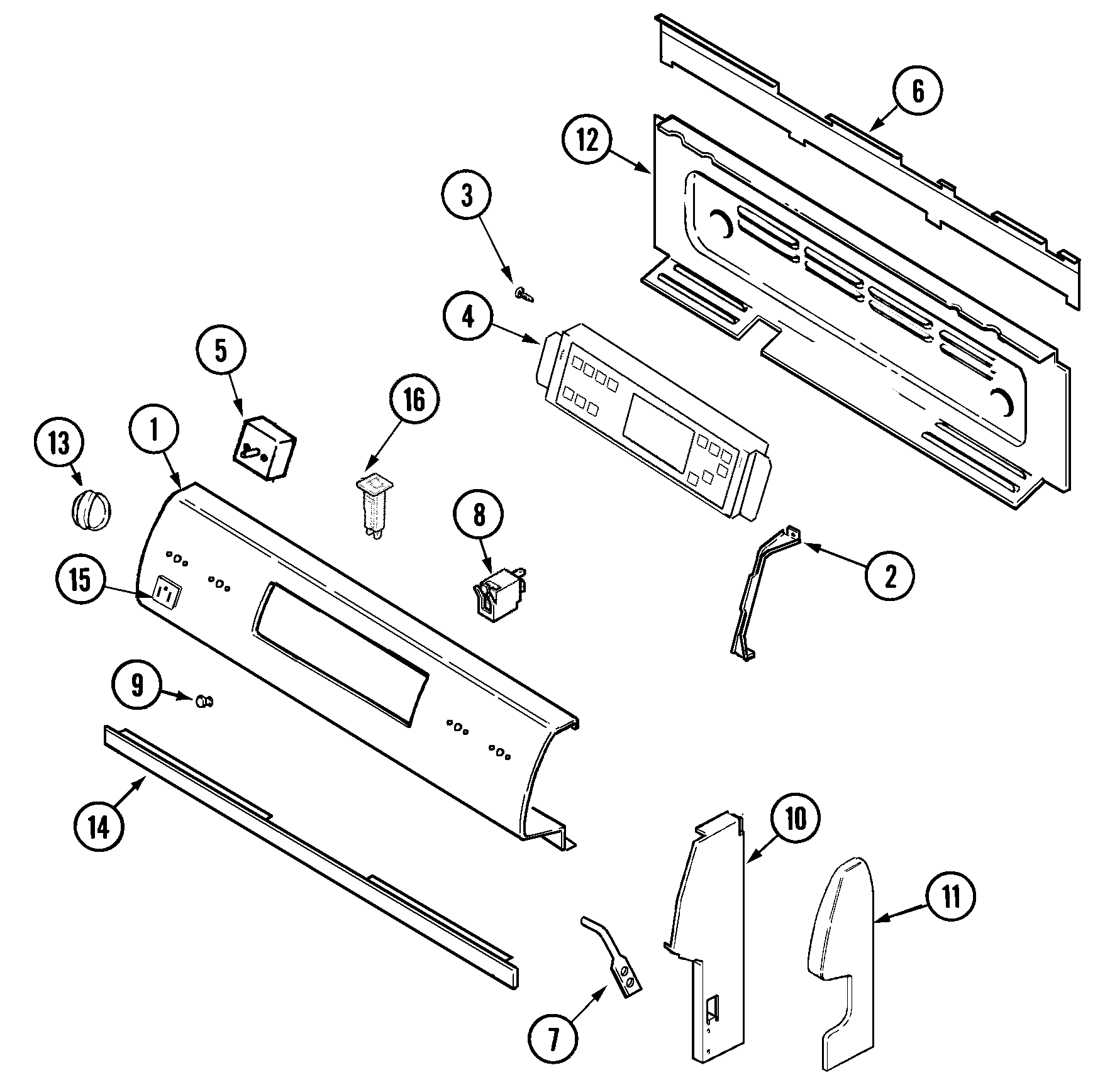

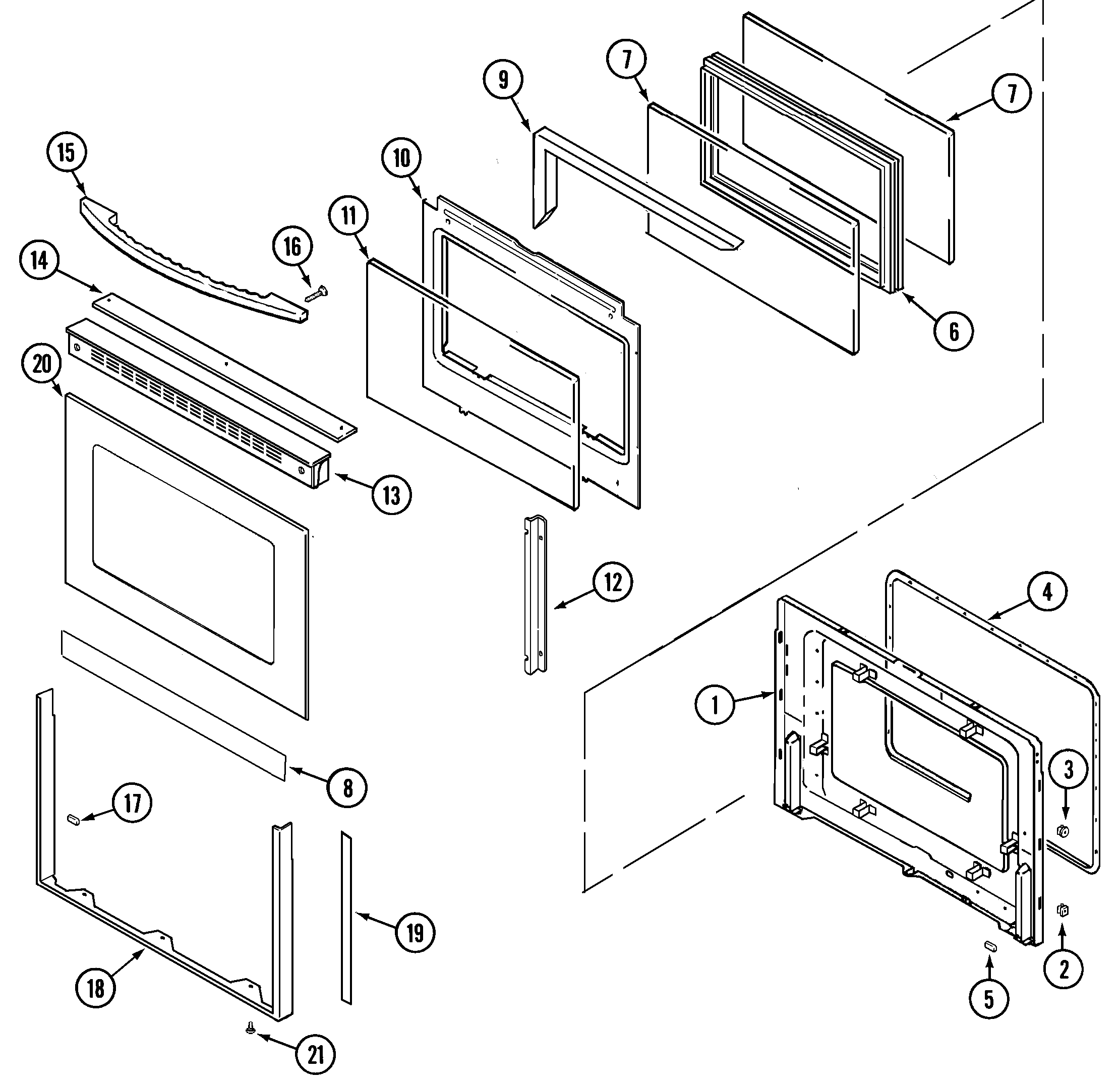

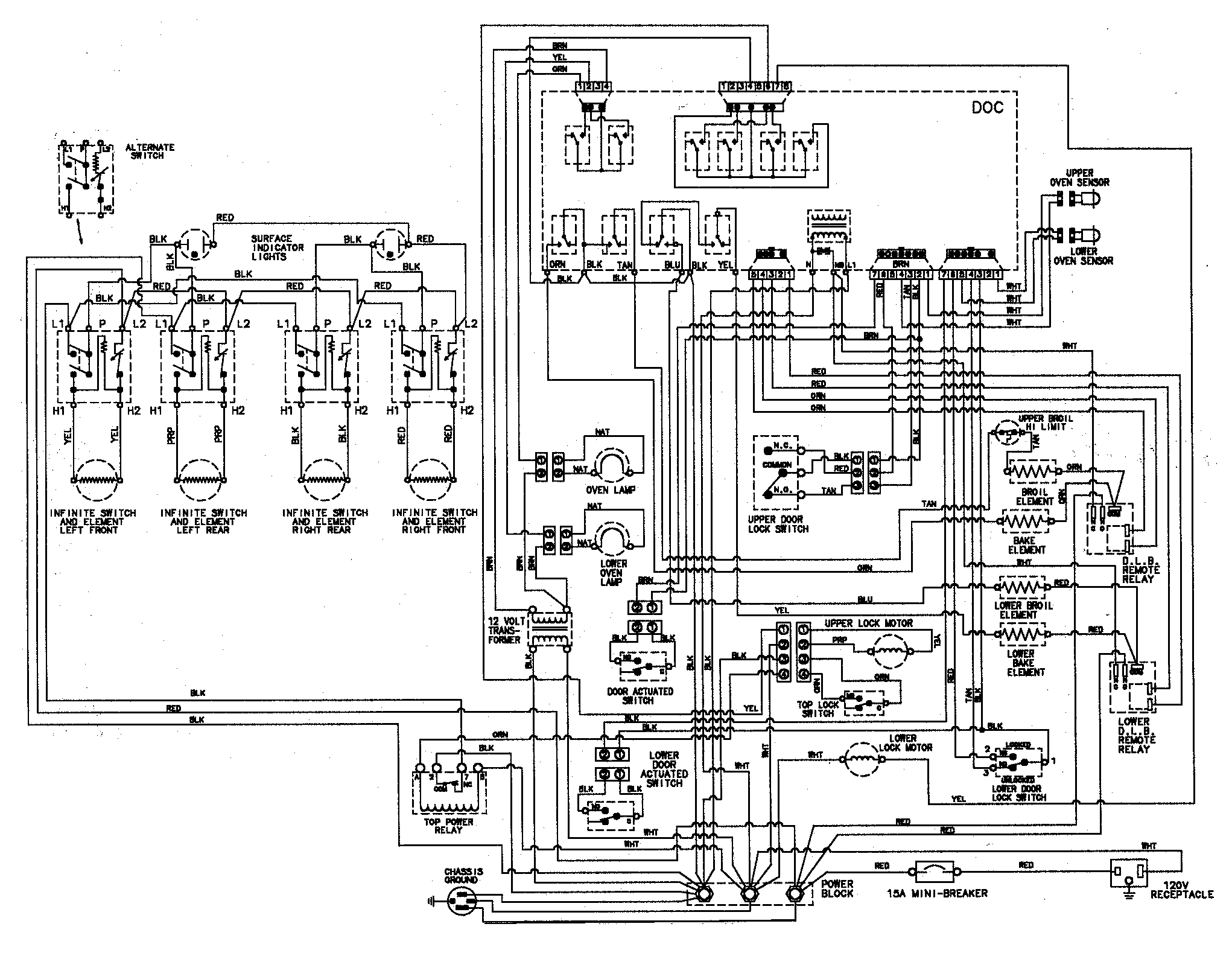

Browse Parts for MER6550BCQ Ranges

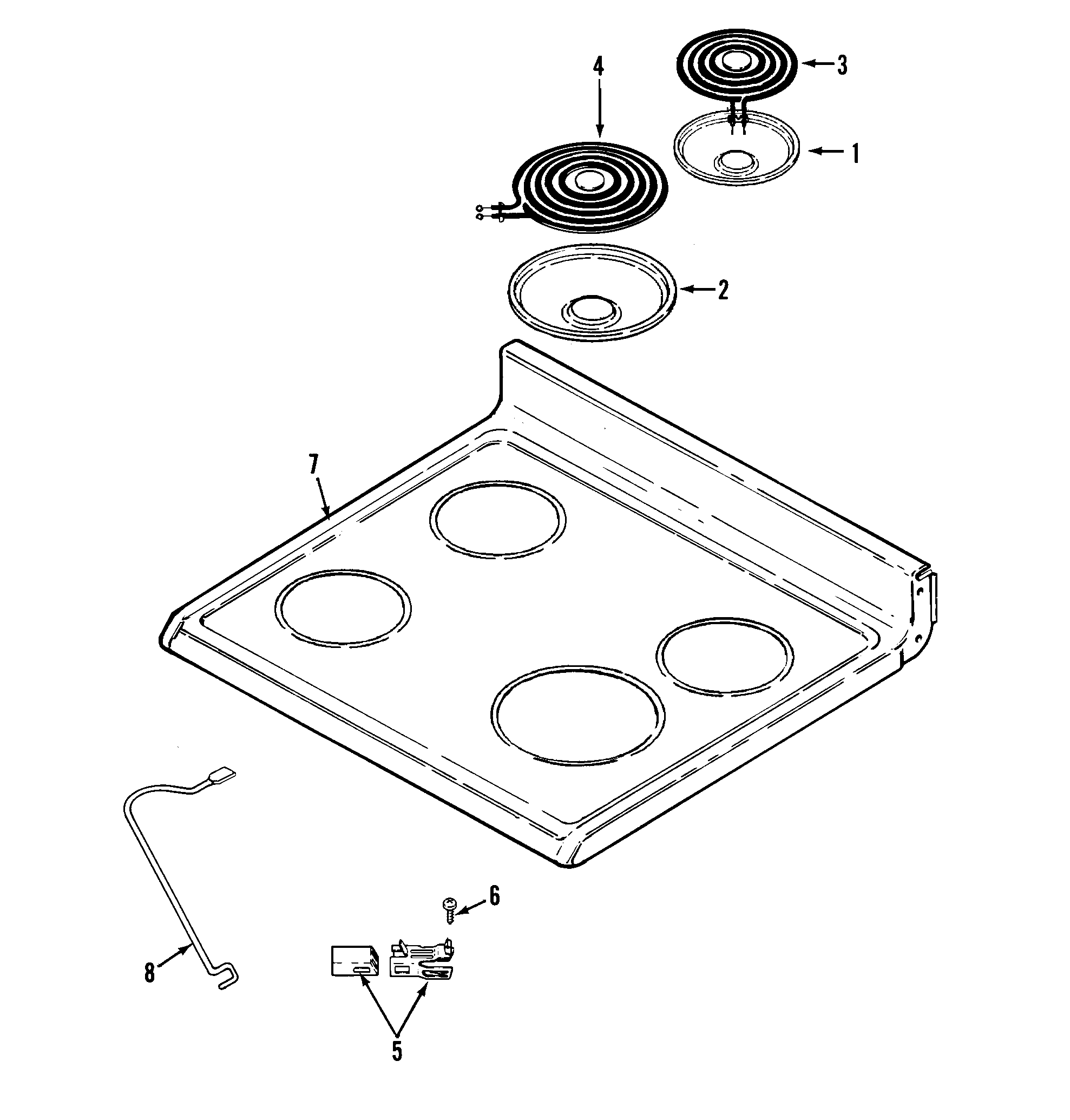

Top assembly diagram
Drip Bowl
Part #04100392Replaced by #W10290353RW
Manufacturer substitutionThis part replaces 04100392. Substitute parts can look different from the original.In Stock$18.1310% OFF Phone Price : $20.13
Qty
Snap Nut
Part #7103P039-60Replaced by #WP7103P114-60
Manufacturer substitutionThis part replaces 7103P039-60. Substitute parts can look different from the original.In Stock$36.27QtyRubber Spcr
Part #74005546Replaced by #WP74005546

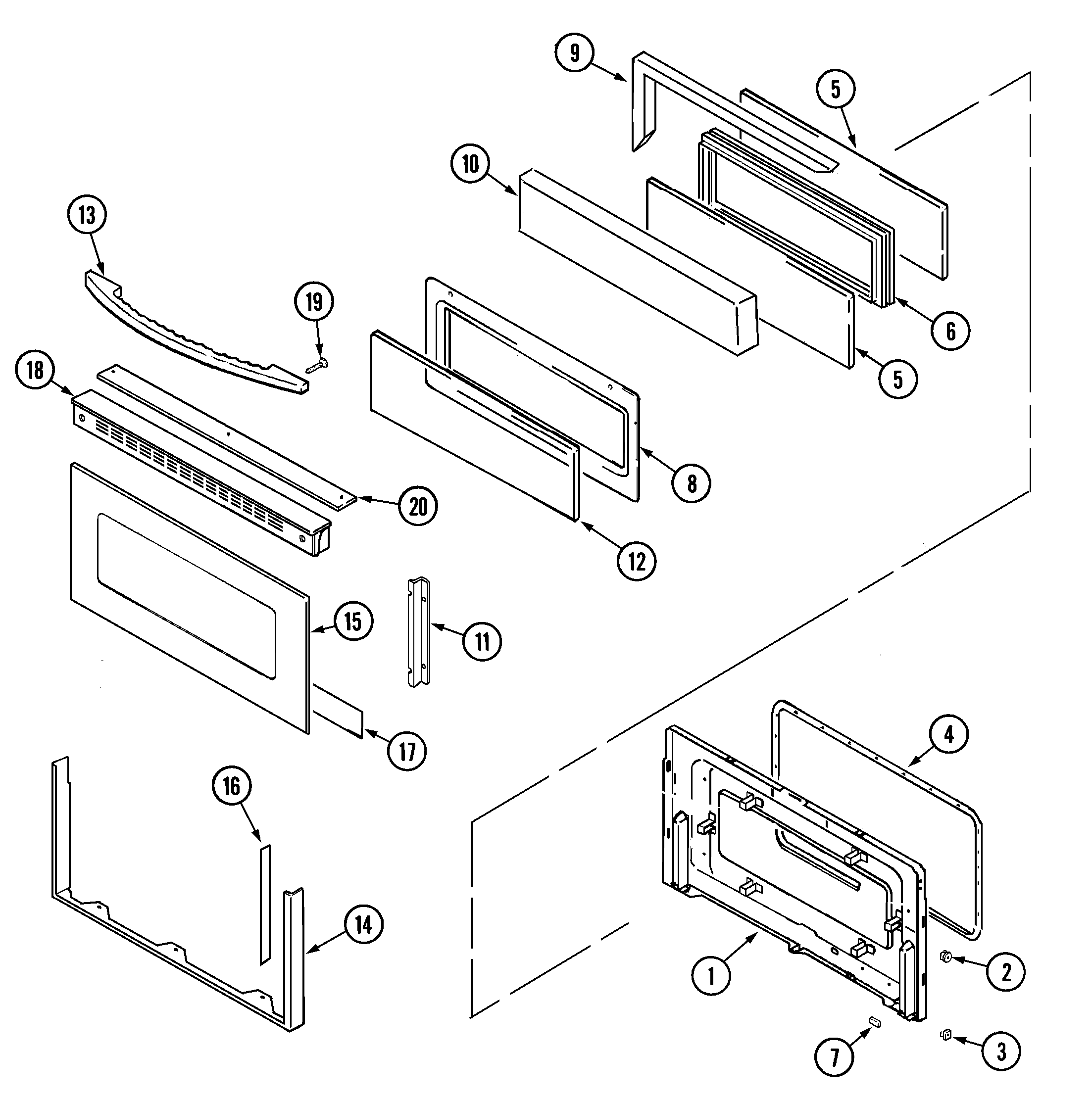

Manufacturer substitutionThis part replaces 74005546. Substitute parts can look different from the original.In Stock$8.2811% OFF Phone Price : $9.28QtyDoor (upper) diagram
Oven Door Gasket
Part #74004565Replaced by #WP7201P091-60
Manufacturer substitutionThis part replaces 74004565. Substitute parts can look different from the original.In Stock$79.687% OFF Phone Price : $85.68QtyTop assembly diagram
Surface Element
Part #74004090Replaced by #WP12001559

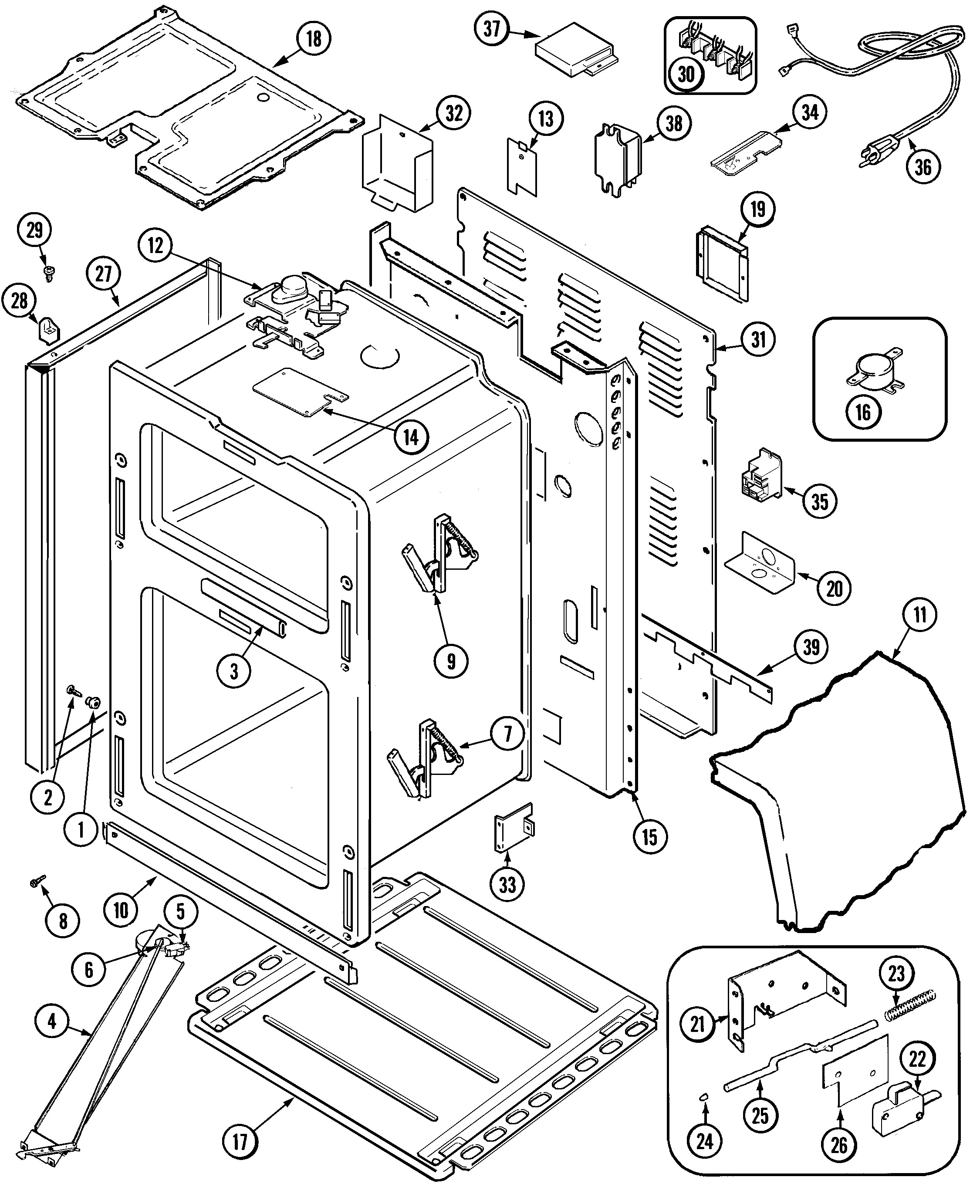

Manufacturer substitutionThis part replaces 74004090. Substitute parts can look different from the original.In Stock$98.1511% OFF Phone Price : $110.15QtyBody diagram
Screw
Part #7101P347-60Replaced by #WPY706189
Manufacturer substitutionThis part replaces 7101P347-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyTop assembly diagram
Surface Element
Part #74007157Replaced by #WPW10259868

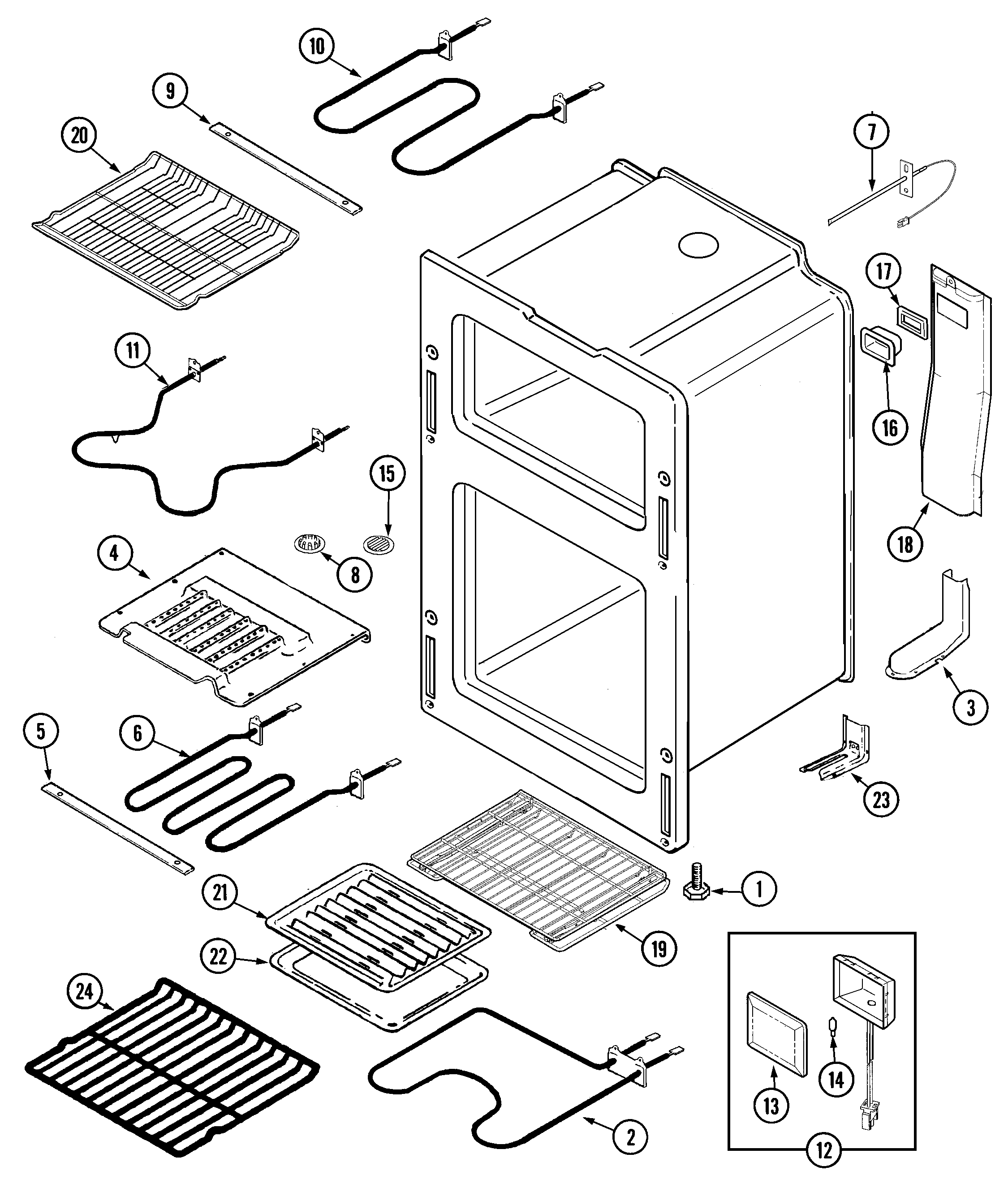

Manufacturer substitutionThis part replaces 74007157. Substitute parts can look different from the original.In Stock$68.3326% OFF Was : $92.40QtyOven diagram
Broiler Pan
Part #3401F020-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3401F020-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyOven diagram
Broiler Insert
Part #3413F016-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3413F016-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyBody diagram
Oven Hinge
Part #74003968Replaced by #WP74011141
Manufacturer substitutionThis part replaces 74003968. Substitute parts can look different from the original.In Stock$108.0810% OFF Phone Price : $120.08Qty
