Amana CW9003W/P1122805WW heavy-duty washer Parts
Here are the diagrams and repair parts for Amana CW9003W/P1122805WW heavy-duty washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

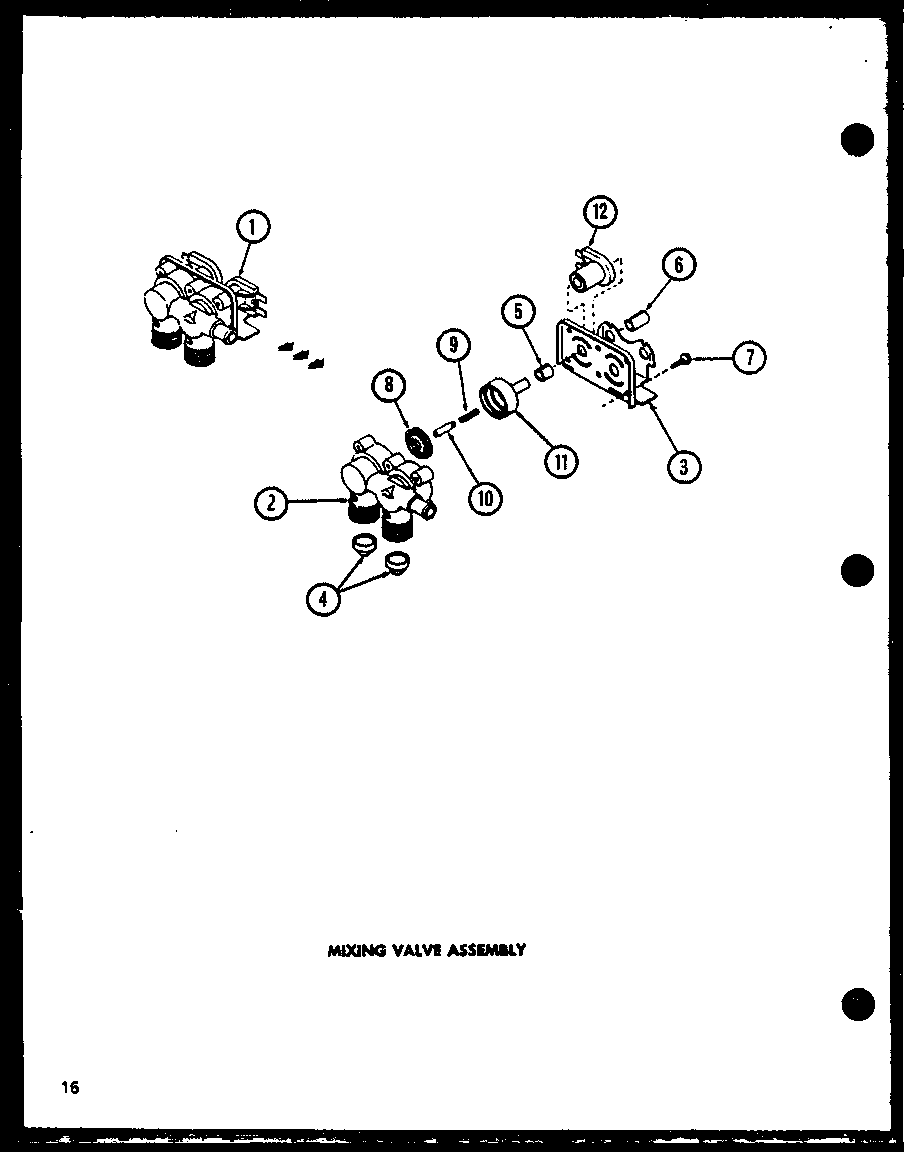

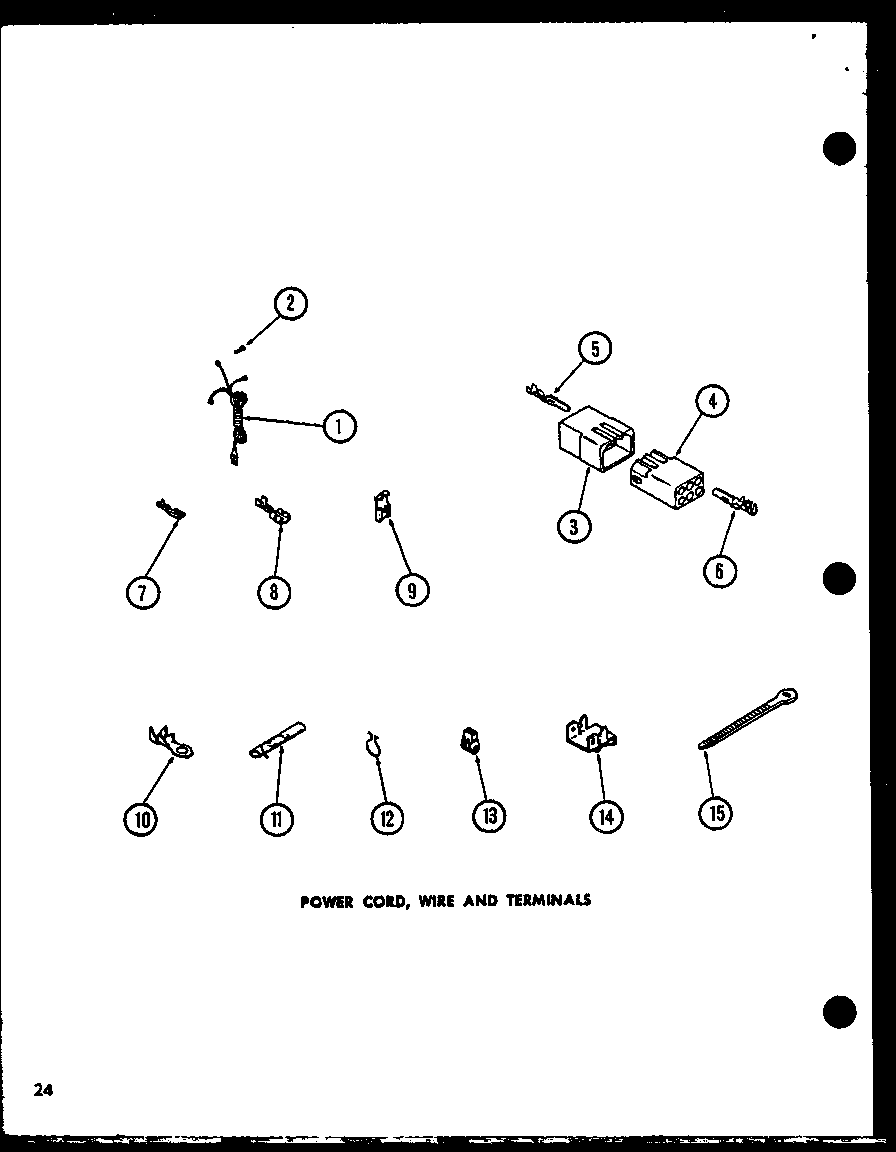

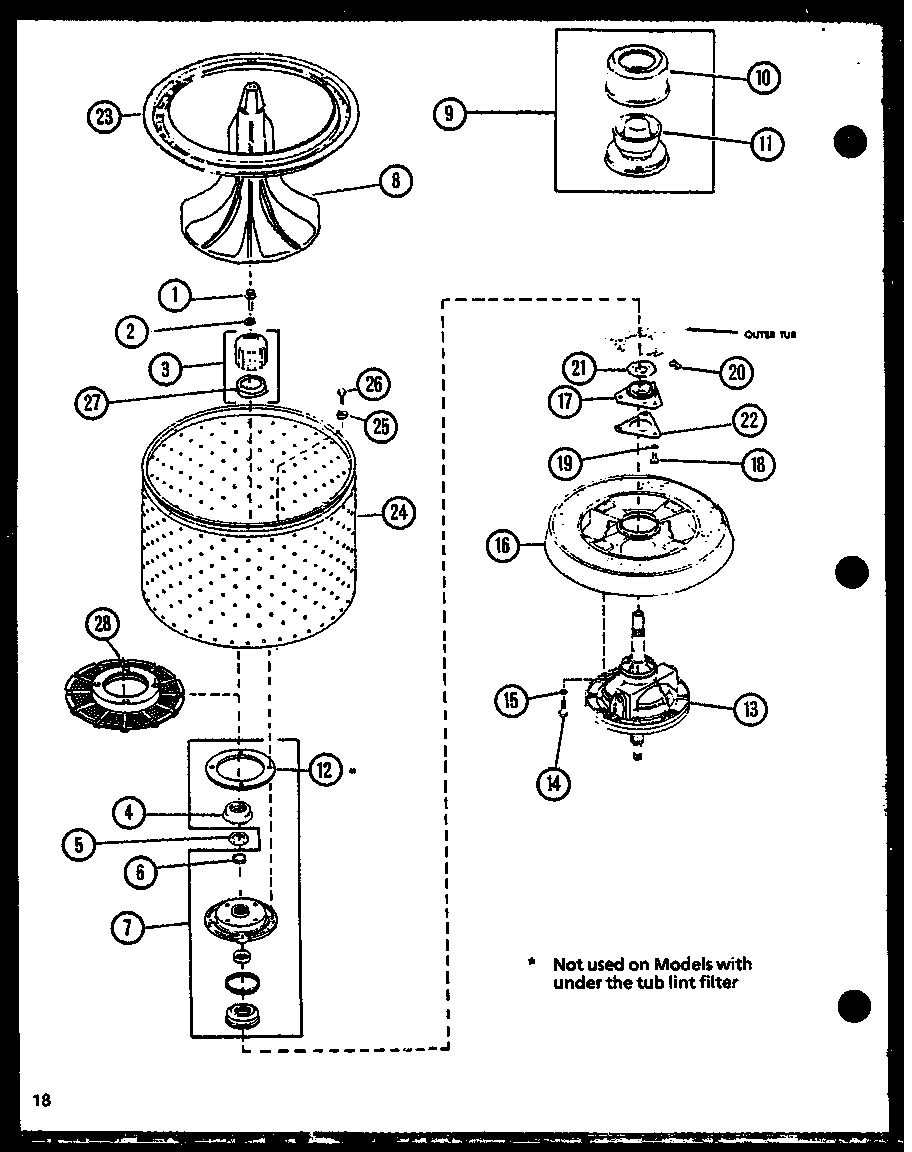

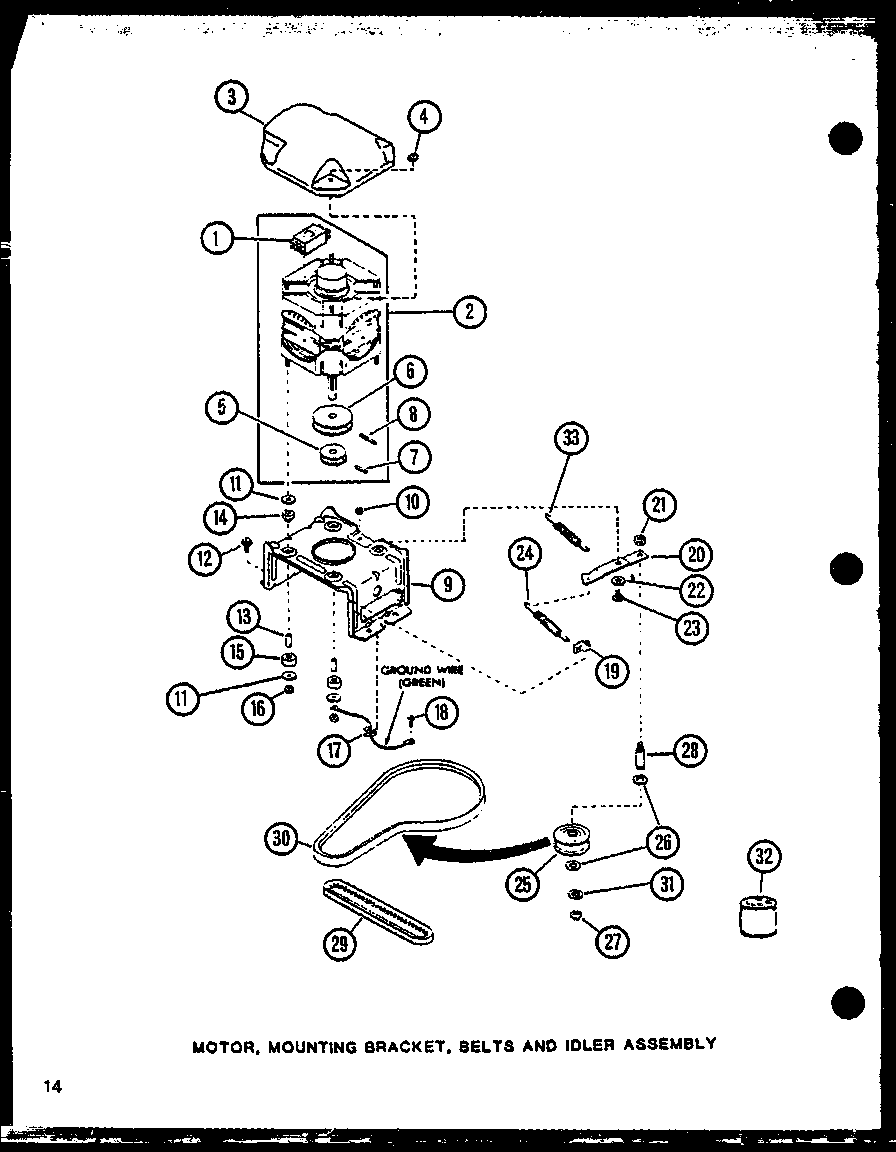

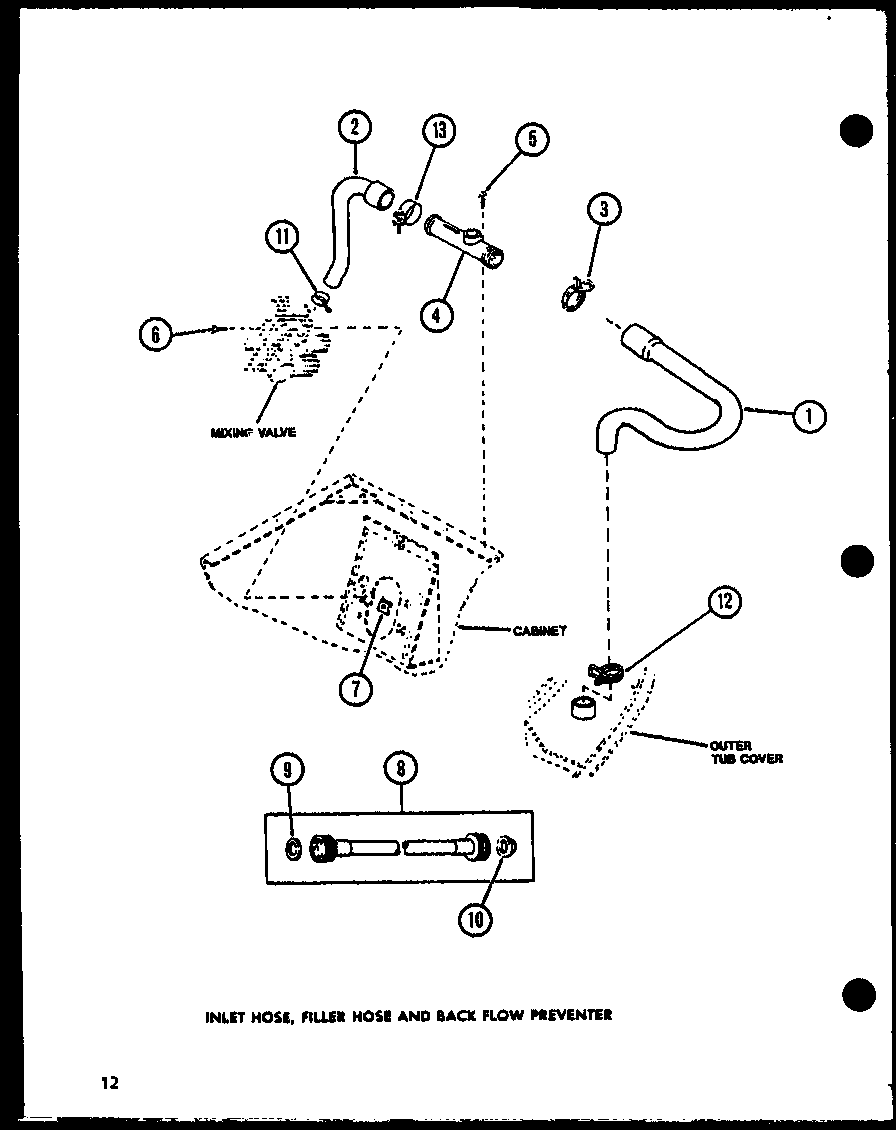

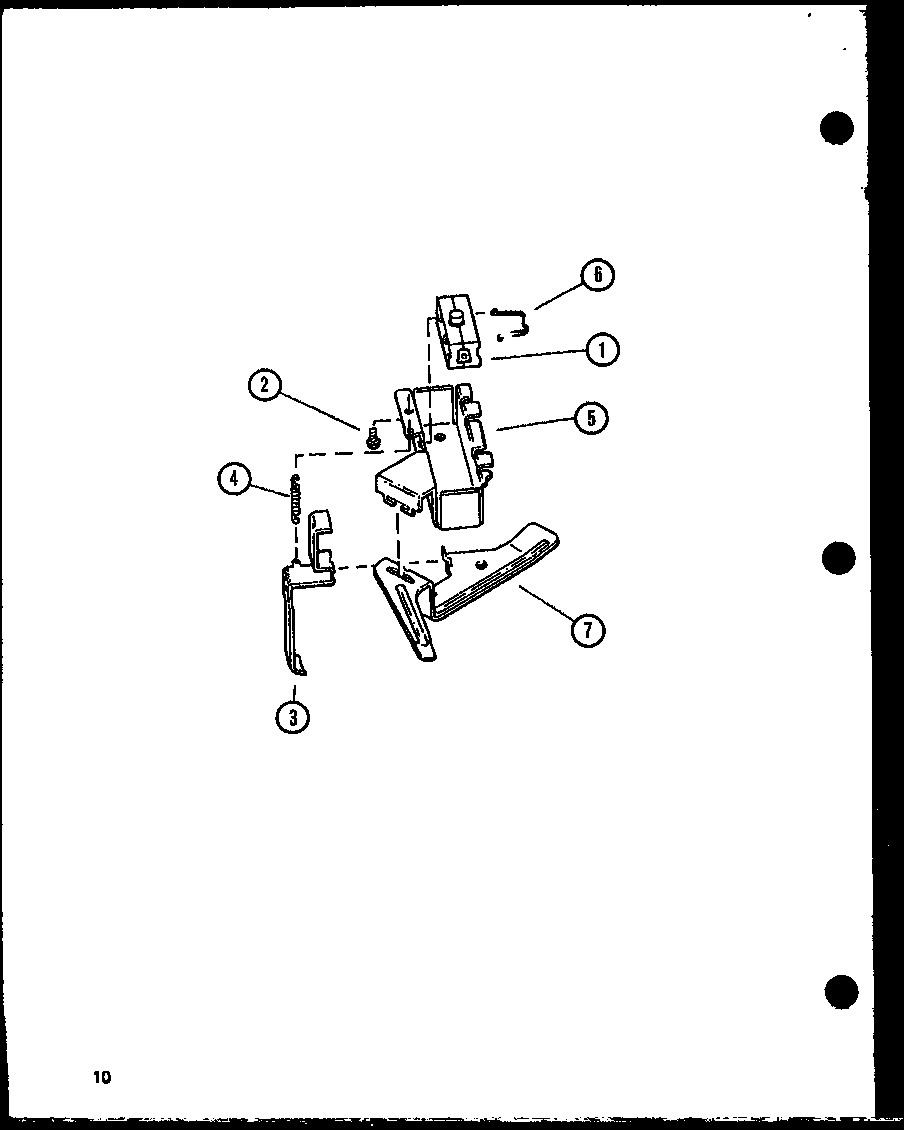

Browse Parts for CW9003W/P1122805WW Heavy-Duty Washer

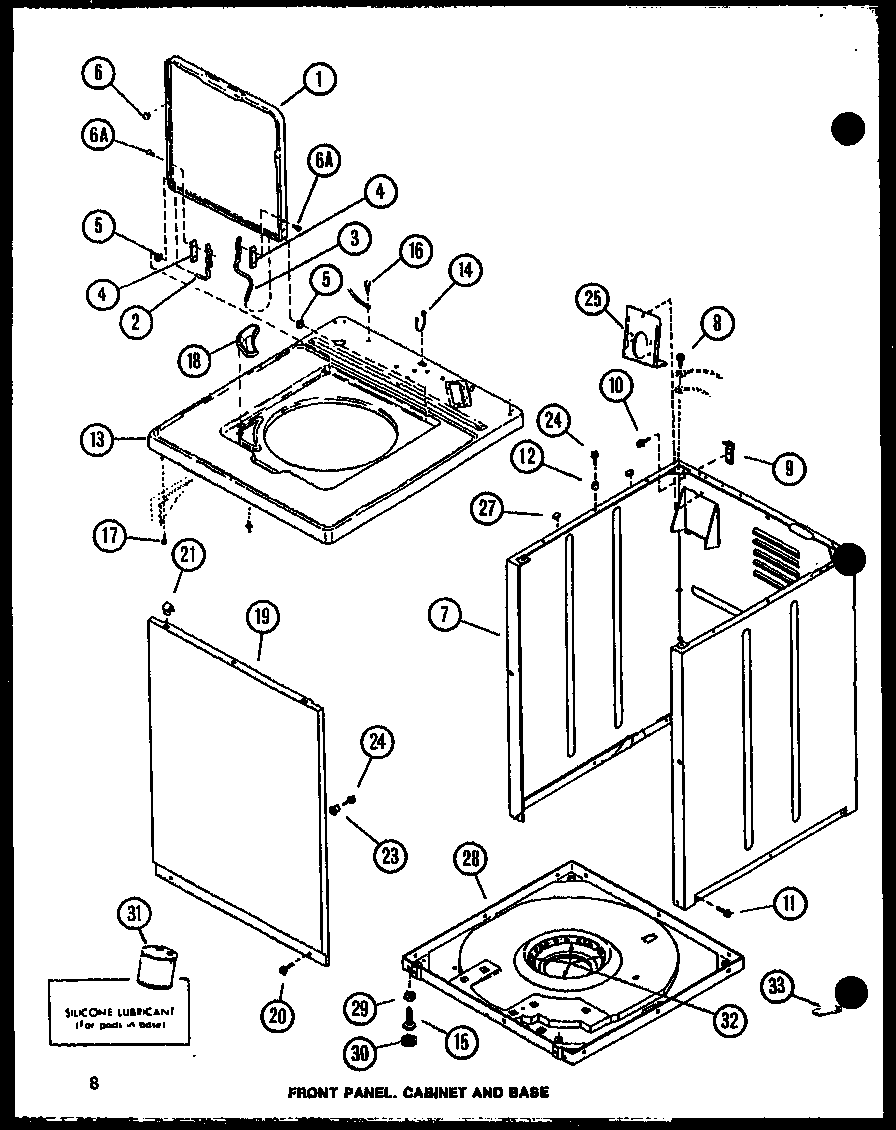

Front panel diagram
Cabinet (almond)
Part #R0603090
The manufacturer no longer makes this part, and there's no substitute part
Washer
Part #R0600518
The manufacturer no longer makes this part, and there's no substitute part

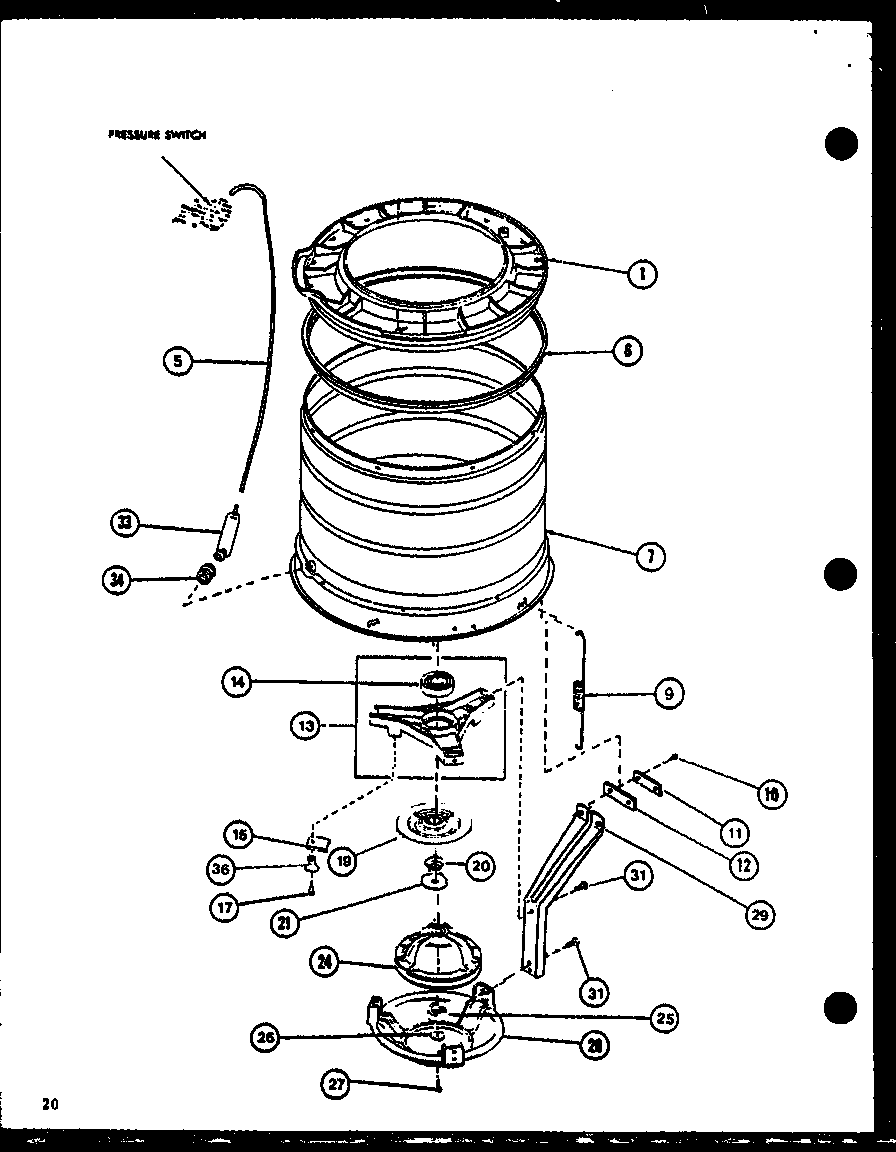

Outer Tub Cover
Part #R0603612
The manufacturer no longer makes this part, and there's no substitute part
Balance Ring
Part #R0610012
The manufacturer no longer makes this part, and there's no substitute part
Trim Strip, Upper
Part #R0605678
The manufacturer no longer makes this part, and there's no substitute part
Hex Head Screw
Part #R0600092
The manufacturer no longer makes this part, and there's no substitute part

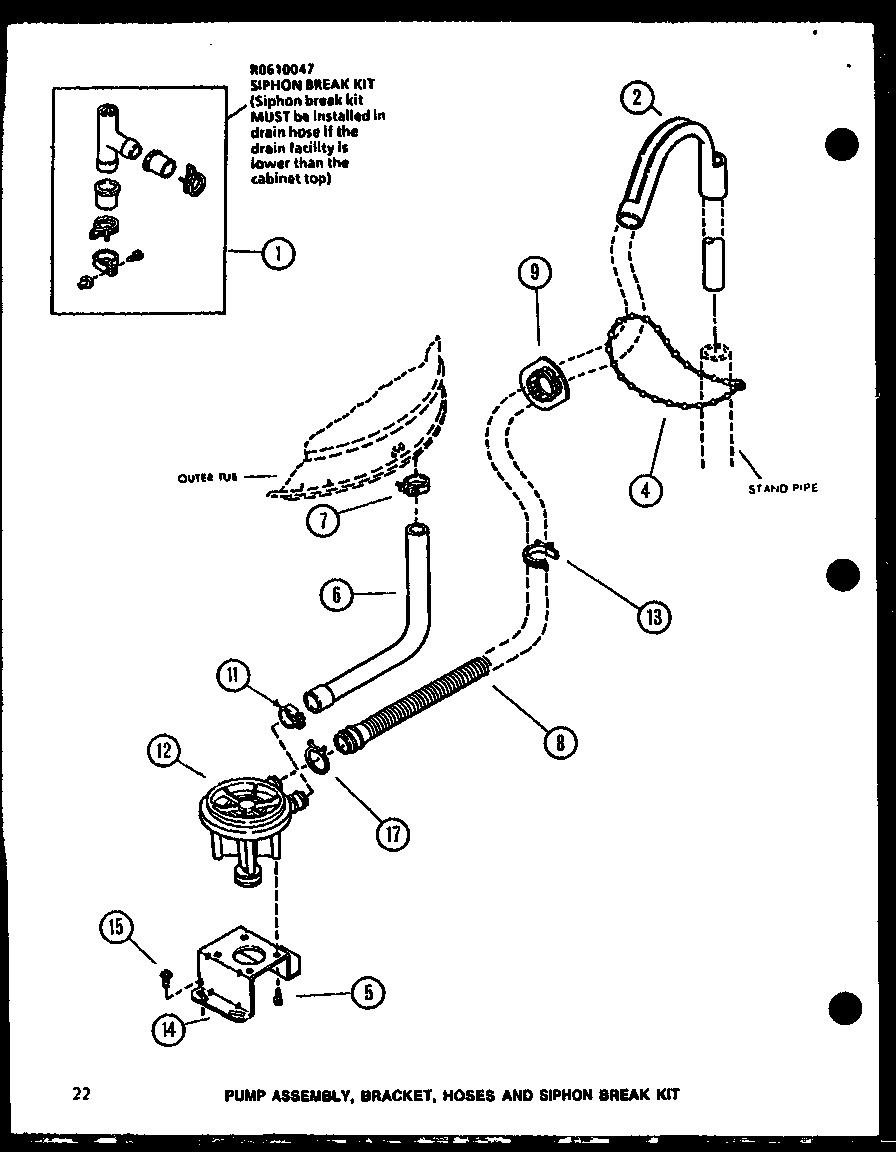

Pump assembly diagram
Strain Relief Drain Hose
Part #R0603617
The manufacturer no longer makes this part, and there's no substitute part

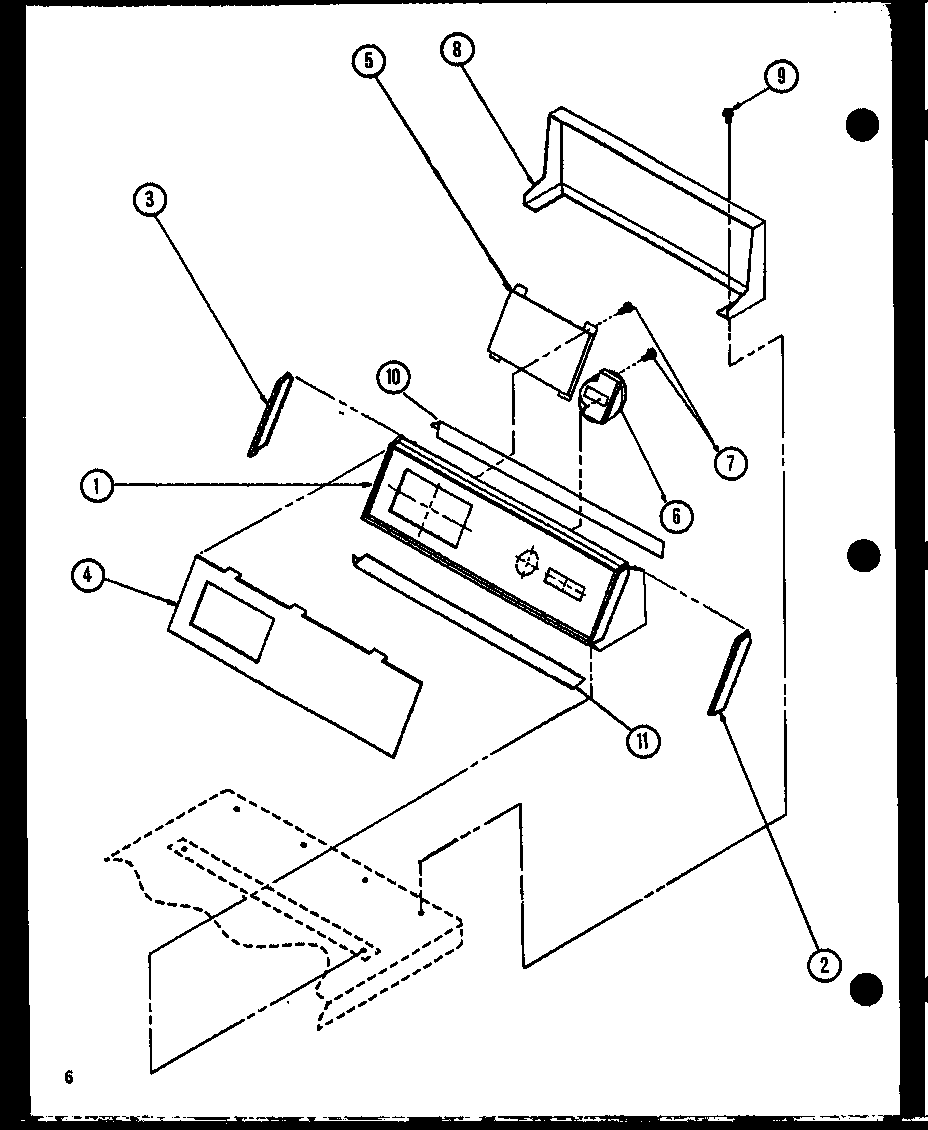

Front panel diagram
Panel, Front (gold)
Part #R0603051
The manufacturer no longer makes this part, and there's no substitute part
Dispenser
Part #R0603549
The manufacturer no longer makes this part, and there's no substitute part
Ground Clip
Part #R0601507
The manufacturer no longer makes this part, and there's no substitute part
