Model # AGP10ABG1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AGP10ABG1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Ag_ 07 08 10 49-7390
#9999

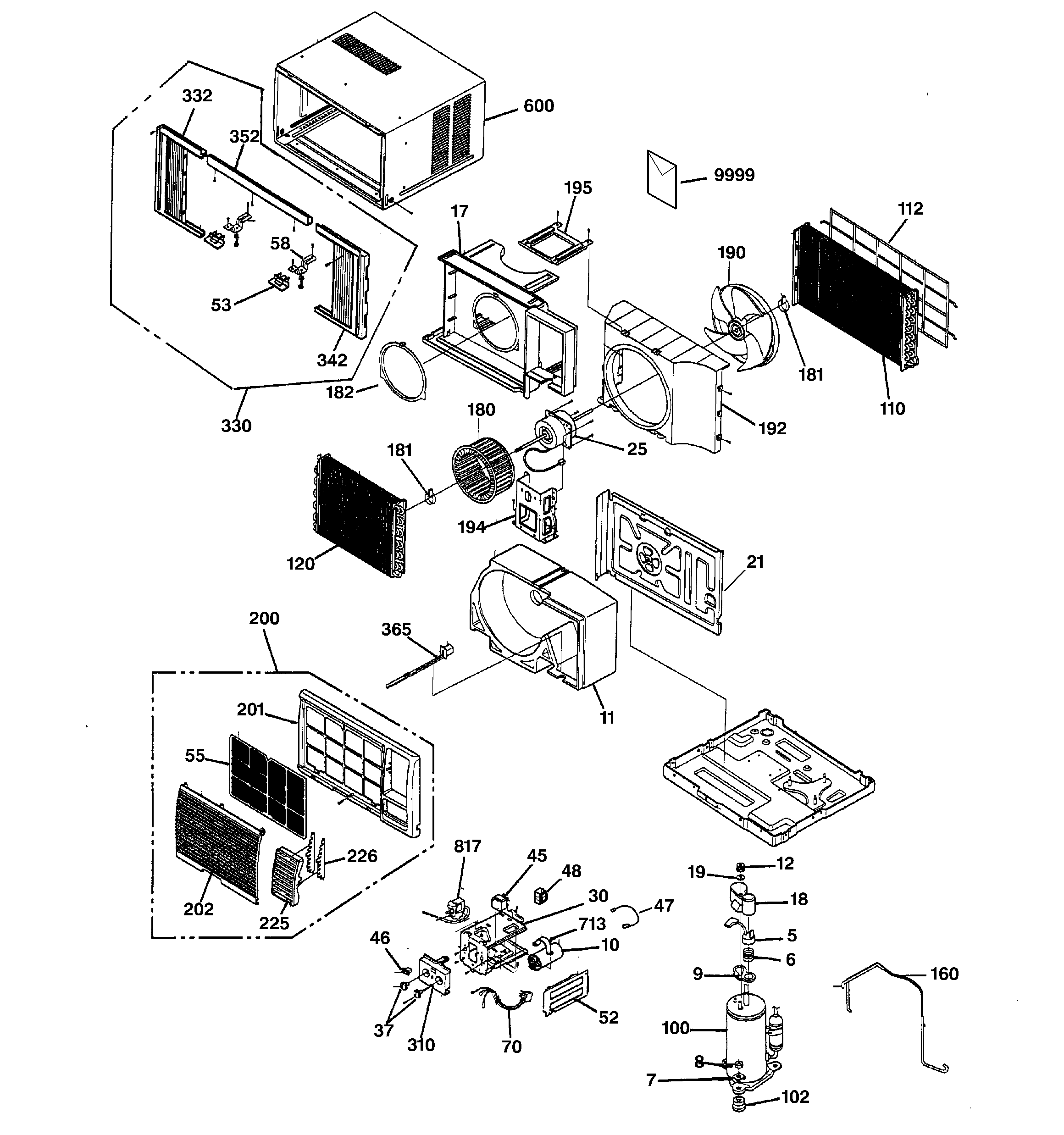

Room air conditioner diagram

Ag_ 07 08 10

Part #49-7390

$8.49
In Stock
Cabinet WJ90X10010
#600

Room air conditioner diagram

Cabinet

Part #WJ90X10010

The manufacturer no longer makes this part, and there's no substitute part

Motor WJ94X10089
#25

Room air conditioner diagram

Motor

Part #WJ94X10089

The manufacturer no longer makes this part, and there's no substitute part

Spring WJ02X10017
#6

Room air conditioner diagram

Spring

Part #WJ02X10017

The manufacturer no longer makes this part, and there's no substitute part

Grille WJ71X10073
#201

Room air conditioner diagram

Grille

Part #WJ71X10073

The manufacturer no longer makes this part, and there's no substitute part

Horizontal L WJ71X10082
#225

Room air conditioner diagram

Horizontal l

Part #WJ71X10082

The manufacturer no longer makes this part, and there's no substitute part

Guide WJ66X10018
#352

Room air conditioner diagram

Guide

Part #WJ66X10018

The manufacturer no longer makes this part, and there's no substitute part

Control Panel WJ07X10047
#310

Room air conditioner diagram

Control panel

Part #WJ07X10047

The manufacturer no longer makes this part, and there's no substitute part

Rocker Switch WJ26X10015
#46

Room air conditioner diagram

Rocker switch

Part #WJ26X10015

The manufacturer no longer makes this part, and there's no substitute part

Install Atio WJ86X10009
#330

Room air conditioner diagram

Install atio

Part #WJ86X10009

The manufacturer no longer makes this part, and there's no substitute part
