Model # U5460-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5460-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Vacuum Screw 21447230
#23

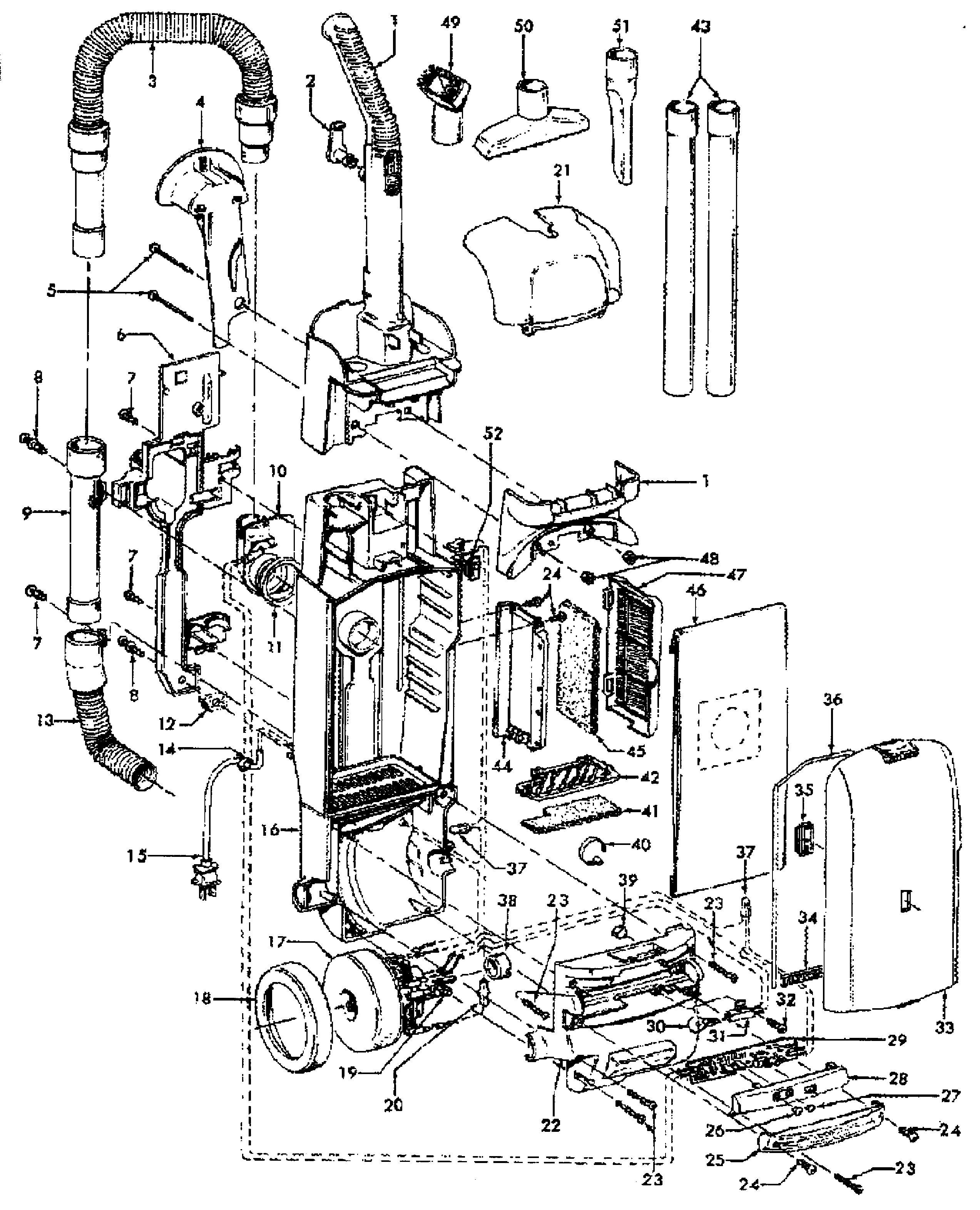

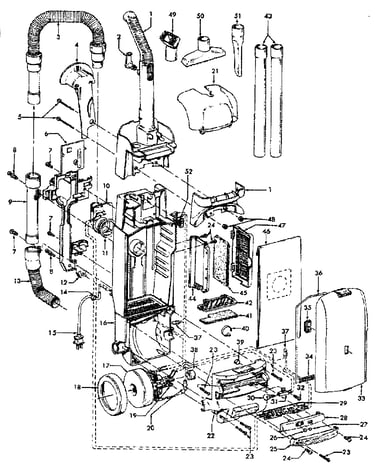

Main body diagram

Vacuum screw

Part #21447230

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Base Plate And Beater Bar Cover Assembly 37242135
#11

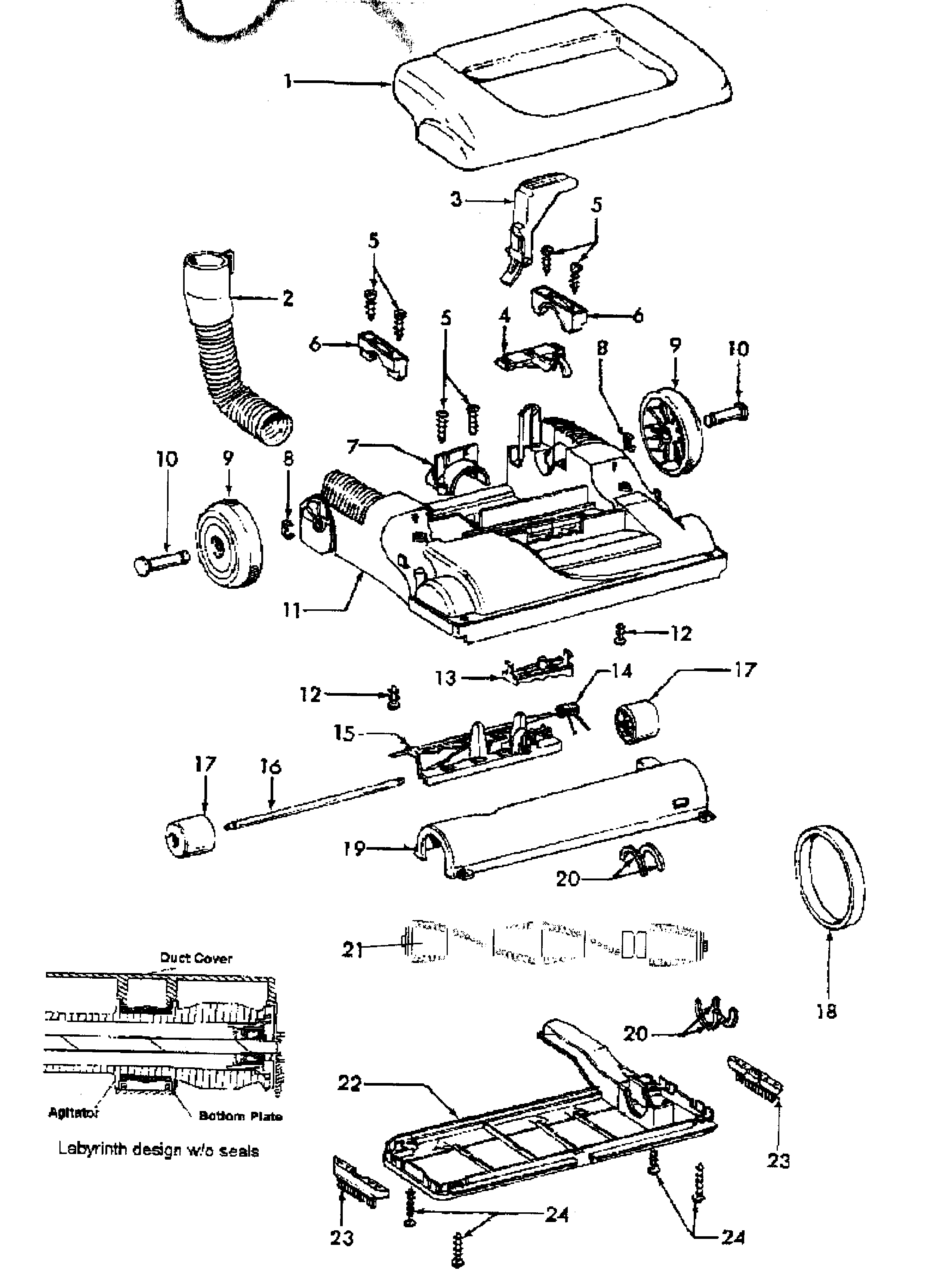

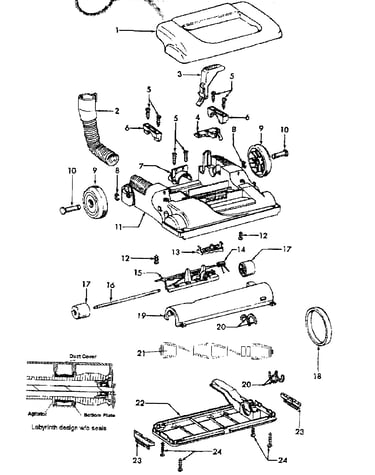

Base assy diagram

Vacuum base plate and beater bar cover assembly

Part #37242135

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 27313101
#30

Main body diagram

Vacuum light bulb

Part #27313101

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 43414197
#49

Main body diagram

Vacuum dust brush

Part #43414197

The manufacturer no longer makes this part, and there's no substitute part

Nut 33426001
#17A

Main body diagram

Nut

Part #33426001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag Level Indicator 51151010
#35

Main body diagram

Vacuum bag level indicator

Part #51151010

The manufacturer no longer makes this part, and there's no substitute part

Wire Connector 27618508
#37

Main body diagram

Wire connector

Part #27618508

The manufacturer no longer makes this part, and there's no substitute part

Cord Wrap 39442056
#2A

Main body diagram

Cord wrap

Part #39442056

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/off Switch 28161075
#52

Main body diagram

Vacuum on/off switch

Part #28161075

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Exhaust Filter 40110004
#45

Main body diagram

Vacuum exhaust filter

Part #40110004

The manufacturer no longer makes this part, and there's no substitute part
