Model # 11652812208 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11652812208 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Vacuum Beater Bar 8192535
#27

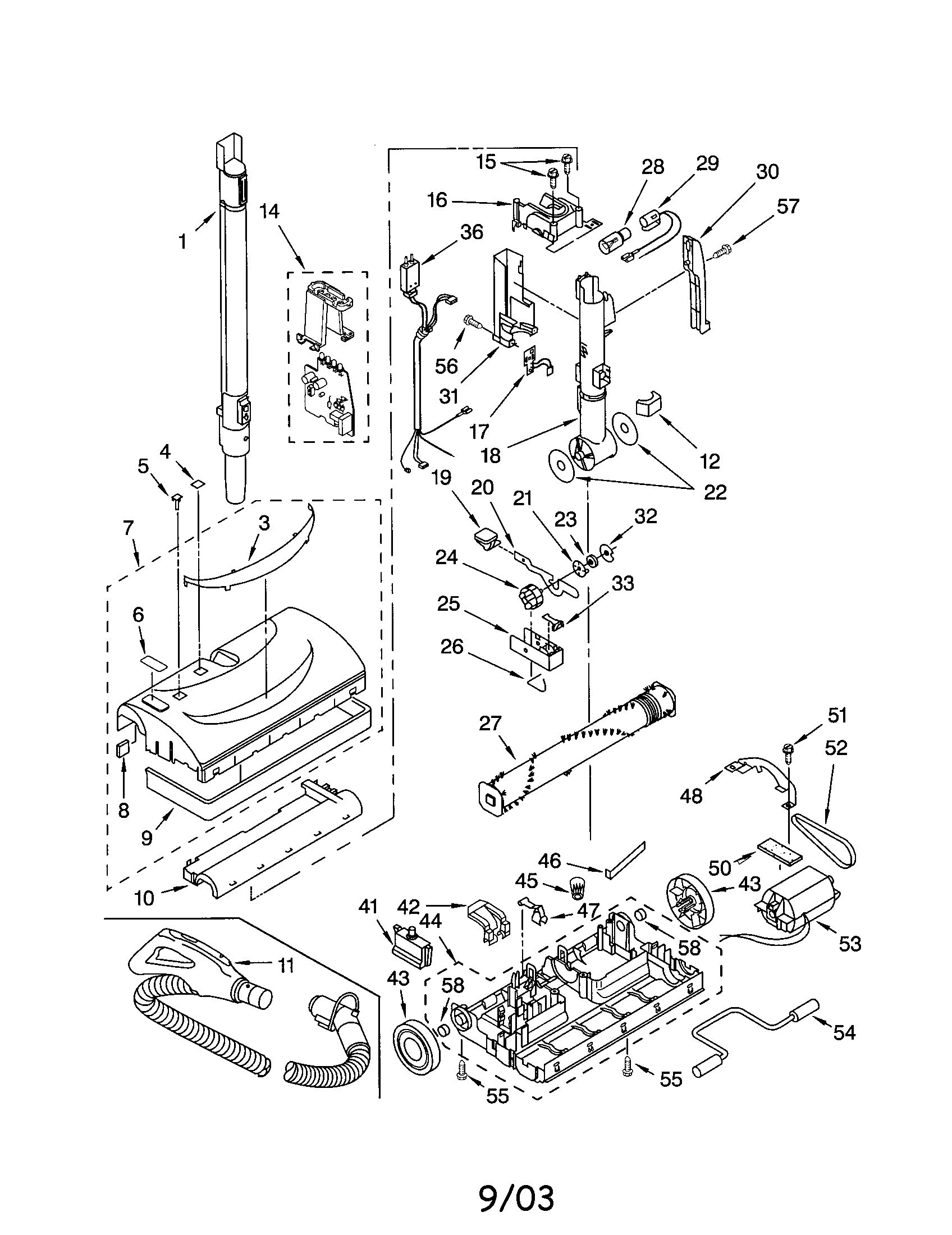

Power-mate diagram

Vacuum beater bar

Part #8192535

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Wheel 4370724
#43

Power-mate diagram

Vacuum powermate wheel

Part #4370724

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Foam Filter 4370713
#8

Power-mate diagram

Vacuum foam filter

Part #4370713

This item is not returnable

Get free shipping with Automatic Reorder

In Stock
Release 4370578
#42

Power-mate diagram

Release

Part #4370578

Replaced by #KC47AGJ3V06

?
Manufacturer substitution
This part replaces 4370578. Substitute parts can look different from the original.
This item is not returnable
$4.79
17% OFF Phone Price : $5.79
In Stock
Twist-on Wire Connector 4368522
#45

Power-mate diagram

Twist-on wire connector

Part #4368522

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Overload Reset Switch 8175256
#41

Power-mate diagram

Vacuum overload reset switch

Part #8175256

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb Socket 4370721
#29

Power-mate diagram

Vacuum light bulb socket

Part #4370721

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Axle Lifter 4370726
#47

Power-mate diagram

Vacuum axle lifter

Part #4370726

The manufacturer no longer makes this part, and there's no substitute part

Pcb Control 4370719
#17

Power-mate diagram

Pcb control

Part #4370719

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Base 4370725
#44

Power-mate diagram

Nozzle base

Part #4370725

The manufacturer no longer makes this part, and there's no substitute part
