Black & Decker
Circular Saw

Model # 7392TY5 Official Black & Decker saw

Here are the diagrams and repair parts for Official Black & Decker 7392TY5 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

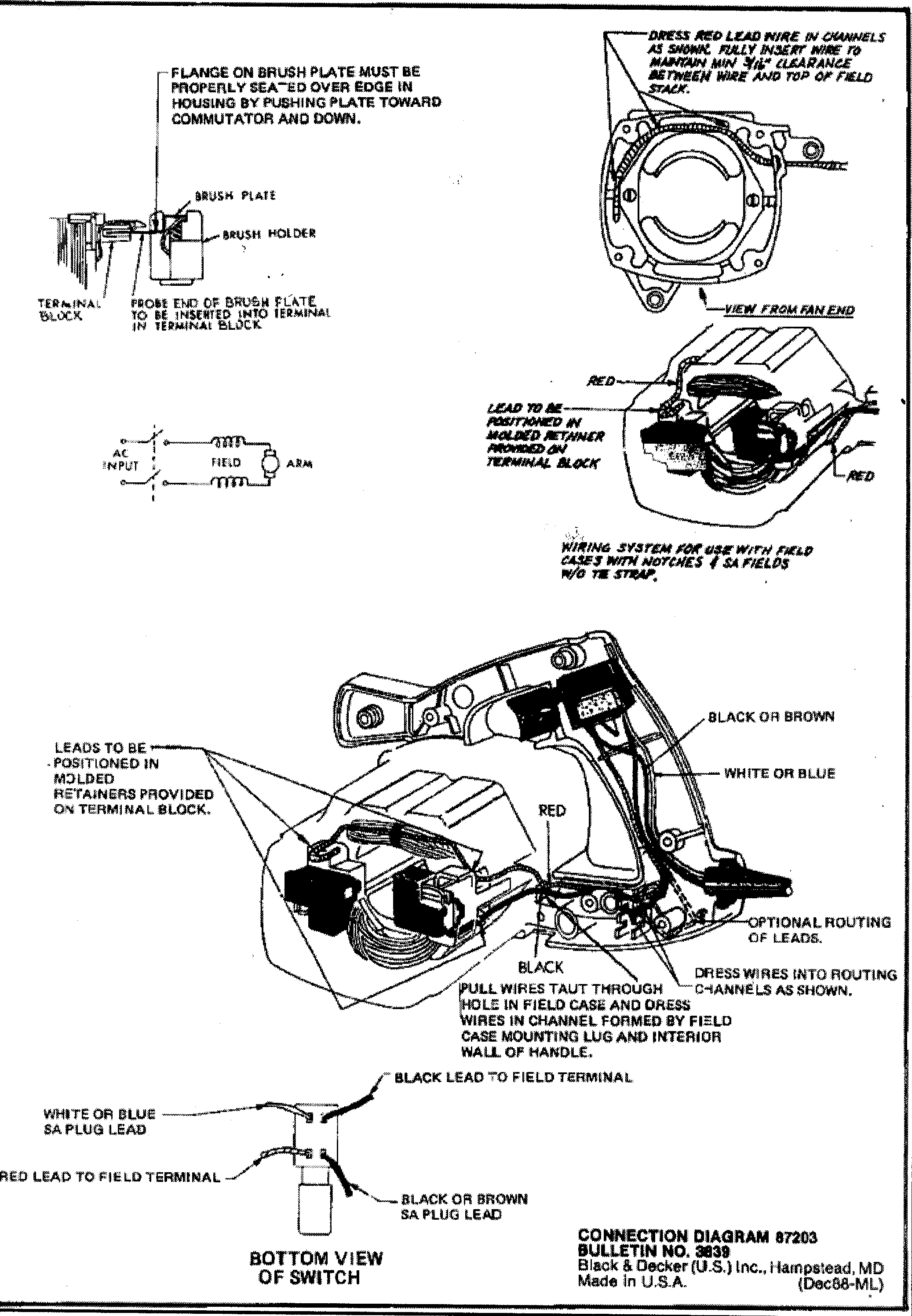

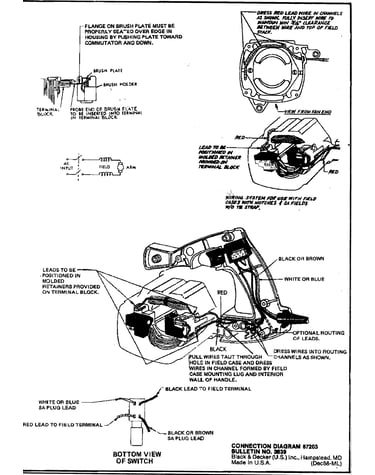

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Bolt 679139-00
#28

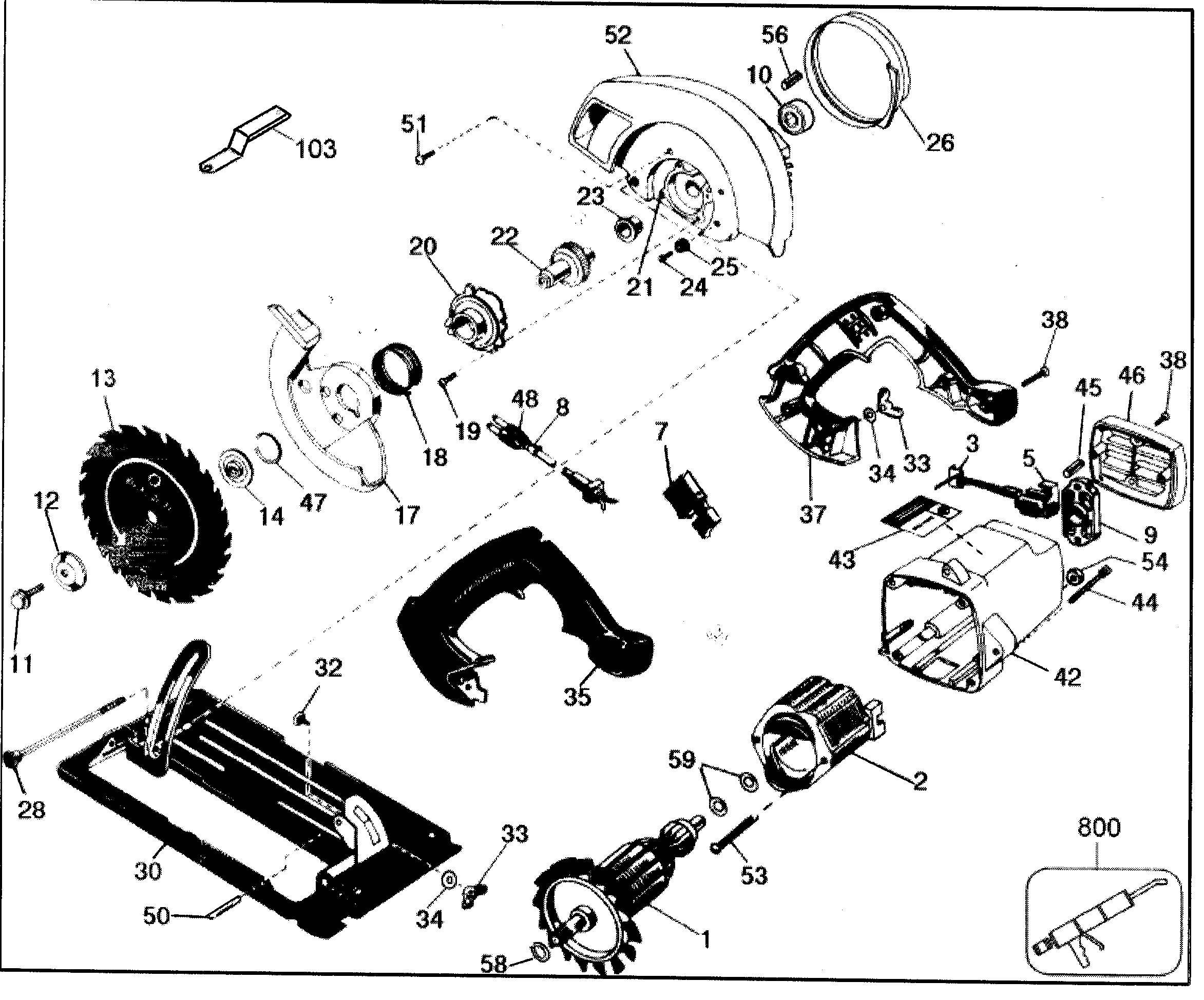

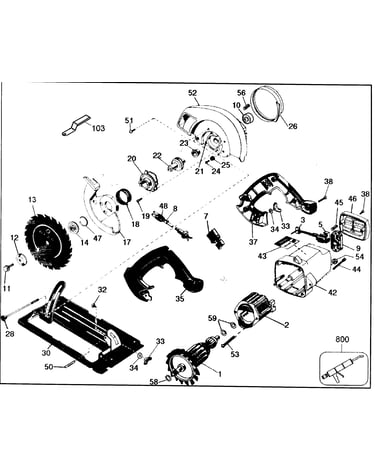

Saw assy diagram

Bolt

Part #679139-00

The manufacturer no longer makes this part, and there's no substitute part

Shoe 95100-19
#30

Saw assy diagram

Shoe

Part #95100-19

The manufacturer no longer makes this part, and there's no substitute part

Gear & Spn 131401-07
#22

Saw assy diagram

Gear & spn

Part #131401-07

The manufacturer no longer makes this part, and there's no substitute part

Screw 399729-00
#51

Saw assy diagram

Screw

Part #399729-00

The manufacturer no longer makes this part, and there's no substitute part

Field 429882-09
#2

Saw assy diagram

Field

Part #429882-09

The manufacturer no longer makes this part, and there's no substitute part

Guard 151848-02
#52

Saw assy diagram

Guard

Part #151848-02

The manufacturer no longer makes this part, and there's no substitute part

Screw 131890-00
#24

Saw assy diagram

Screw

Part #131890-00

The manufacturer no longer makes this part, and there's no substitute part

Circular Saw Blade Washer 131404-01
#12

Saw assy diagram

Circular saw blade washer

Part #131404-01

The manufacturer no longer makes this part, and there's no substitute part

Pin 695197-00
#50

Saw assy diagram

Pin

Part #695197-00

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bol 38910-00
#32

Saw assy diagram

Carriage bol

Part #38910-00

The manufacturer no longer makes this part, and there's no substitute part
